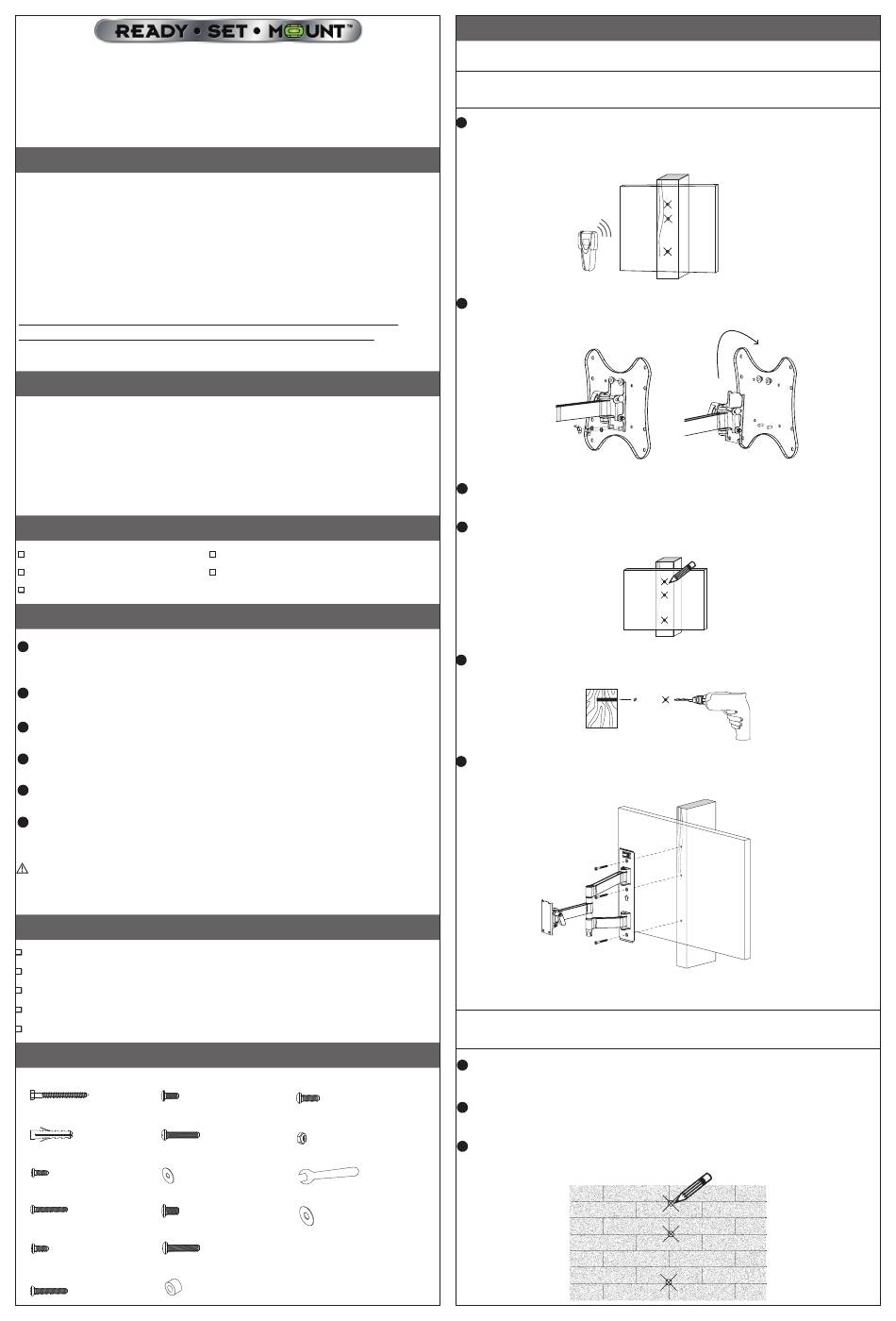

Ready-Set-Mount RSMWA40 Instruction Manual

RSMWA40
MEDIUM ARTICULATING WALL MOUNT
INSTRUCTION MANUAL
INTRODUCTION
Congratulations on your purchase!
We take pride in the quality of our products and are confident you have
received one of the finest wall mounts on the market. Should you have any
questions or comments, require any assistance, or need replacement parts for
your mount, please contact us by e-mailing info@RSMount.com or calling
1-888-530-7904. You can also visit our website for more information:
www.readysetmount.com.
IF YOU ARE NOT SATISFIED WITH YOUR MOUNT FOR ANY REASON,
PLEASE CONTACT US BEFORE RETURNING IT TO THE RETAILER
SPECIFICATIONS
Display Size: 32" and up
Maximum Load: 55 lbs.
Mounting Pattern: 75 mm x 75 mm to 400 mm x 400 mm
Tilt Range: up to 15°
Pan/Swivel Range: up to 180°
Profile: 2.1" to 16.1" (5.3 cm to 41.0 cm)
BOX CONTENTS
Mount (x1)
Adaptor Plate (x4)
Instruction Manual (x1)
WARNINGS
1 Read these instructions before you begin. If you are unsure of any part of the
process, contact a professional contractor or installer for assistance. Improper
installation can result in injury or damage.
The wall or mounting surface must be capable of supporting the combined weight of
2
the mount and the display; if not, the structure must be reinforced.
Locate pipes, wires, or any other hazards in the wall where you wish to install the mount
3
before drilling.
Safety gear and proper tools must be used. Failure to do so can result in injury or
4
damage.
Two people are recommended for installation. Do not attempt to lift a heavy display
5
without assistance.
6 Follow all instructions and recommendations regarding adequate ventilation and
suitable locations for mounting your display. Consult the owner's manual for your
particular display for more information.
CAUTION: This wall mount is intended for use only with the maximum weight of 55 lbs.
Use with heavier than the maximum weights indicated may result in instability causing
possible injury.
TOOLS REQUIRED
Phillips Head Screw Driver
Electric or Portable Drill
3 mm (1/8") Drill Bit and Stud Finder for Drywall Installation
8 mm (5/16") Masonry Bit for Concrete Installation
Level
HARDWARE KIT
(A) Drywall Screw (x3) (F) M6 x 12 Screw (x4)
Concrete Anchor (x3) (G) M6 x 20 Screw (x4)
(B) M4 x 12 Screw (x4)
(H) M6 Washer (x4)
(C) M4 x 20 Screw (x4) (I) M8 x 12 Screw (x4)
(D) M5 x 12 Screw (x4) (J) M8 x 20 Screw (x4)
(E) M5 x 20 Screw (x4) (K) Spacer (x4)
Hardware Kit (x1)
Plastic Cover (x2)
(L) M6 x 12 Screw (x8)
Lock Nut (x8)
(M) Wrench (x1)
(N) M8 Washer (x4)
INSTALLATION
Part 1A – Mounting to the Wall (Drywall)
IMPORTANT! For safety reasons, this mount must be secured to a wood stud capable of
supporting the combined weight of the mount and display. Do not mount to drywall alone.
1 Use a high quality stud finder to locate a stud on the wall where you wish to install your
mount (see Fig. 1). Mark both edges of the stud to help identify the exact center.
NOTE: Use the center of the stud to avoid cracking or splitting the wood.
Fig. 1
Remove the front part of the mount from the back part by removing the wing nuts and
2
washers shown (see Fig. 2). Place the wing nuts and washers in a safe location.
Fig.2
3 Place the mount against the wall over the marked studs with the arrow on the mount
pointing up. Make sure it is level.
While another person holds the mount in place, mark three locations for securing the mount
4
to the wall (see Fig. 3).
Fig. 3
5 Set the mount aside and drill a 1/8" pilot hole at each marked location (see Fig. 4).
Fig. 4
Attach the mount to the wall with the arrow pointing up using the drywall screws (A)
6
provided (see Fig. 5). Ensure that the mount remains level.
Fig. 5
Part 1B – Mounting to the Wall (Concrete)
IMPORTANT! For safety reasons, the concrete wall must be capable of supporting the
combined weight of the mount and the display.
1 Remove the front part of the mount from the back part by removing the wing nuts and
washers shown (see Fig. 2). Place the wing nuts and washers in a safe location.
Place the mount against the wall in the desired location with the arrow on the mount
2
pointing up. Make sure it is level.
3 While another person holds the mount in place, mark three locations for securing the mount
to the wall (see Fig. 6).
Fig. 6
1/4"
