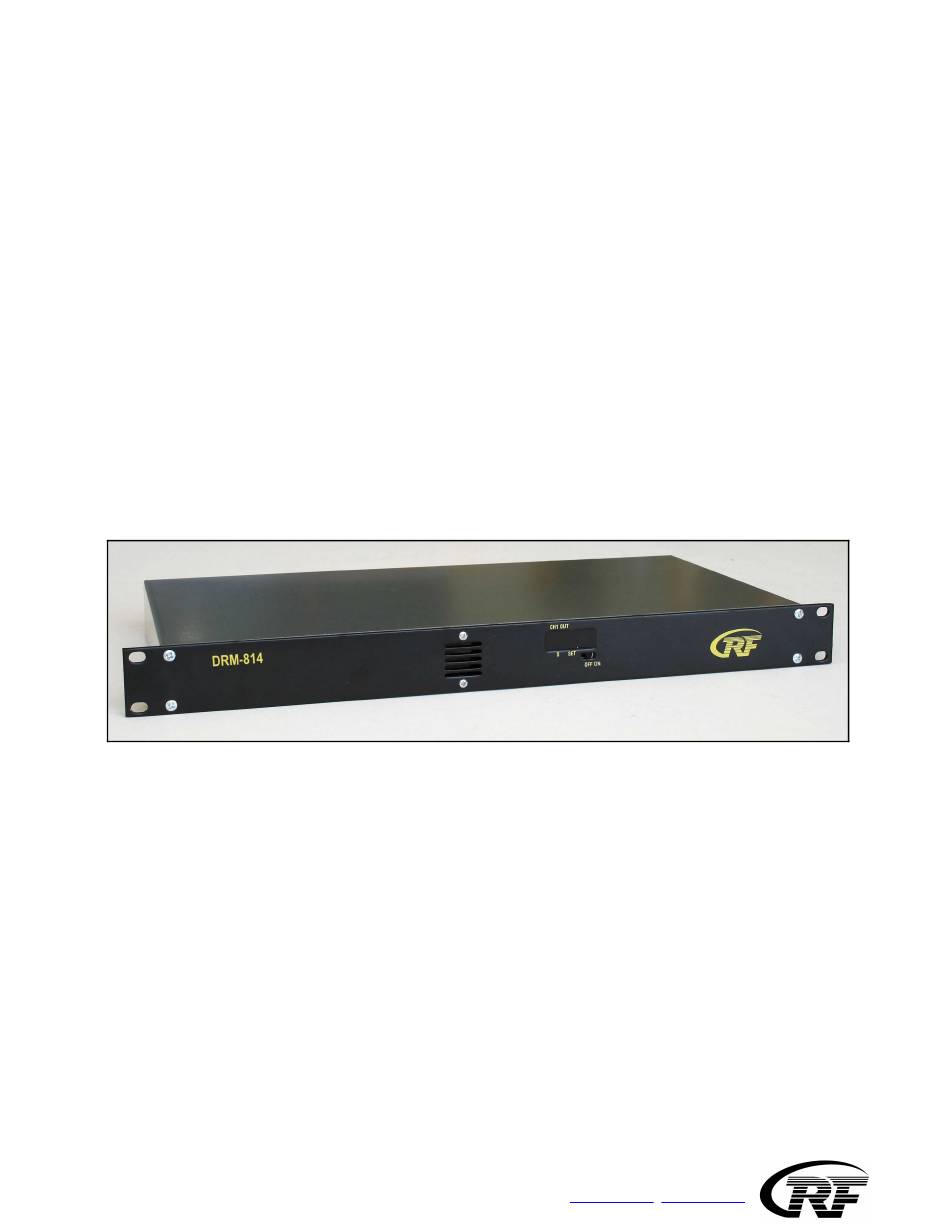

- Page 1 DRM-814M DVB-S/S2/T/T2/C HD or SD to AM scaling remodulator VSB A2 User Manual RF-Tuote Oy, Joensuunkatu 13, 24100 Salo, tel. +358-2736 6360, fax. +358-2-736 6360, info@rf-tuote.fi, www.rf-tuote.fi...
-
Page 2: Installation
CCIR channels. DRM-814M is supplied with a A2 stereo/dual/swap dual/multistandard mono modulator, which can be used on the adjacent channels (VSB modulation) from S2 to E69. DRM-814M is valid for both MPEG-2 and MPEG-4 signals. The multistandard modulator supports BG, I, DK, L, MN standards. - Page 3 The selectable channels are S02 - S10, 5 - 12, S11 - S41 and 21 – 69 (CCIR). To change TV standard press SYS key repeatedly until required standard name (BG, I, DK, L or MN) is displayed. RF-Tuote Oy, Joensuunkatu 13, 24100 Salo, tel. +358-2736 6360, fax. +358-2-736 6360, info@rf-tuote.fi, www.rf-tuote.fi...
- Page 4 VOL button of RCU, it is not memorized and setting will disappear after next power break. Press “Exit” in RCU and then select “Picture” menu. Below “Picture” menu is just for your information. It is not necessary to adjust. RF-Tuote Oy, Joensuunkatu 13, 24100 Salo, tel. +358-2736 6360, fax. +358-2-736 6360, info@rf-tuote.fi, www.rf-tuote.fi...
- Page 5 There are two ways to search channels; “Automatic” and “Manual”. “Manual” search is recommendated as it is faster than “Automatic” mode. “Automatic” mode is used only if channel frequency is not known. RF-Tuote Oy, Joensuunkatu 13, 24100 Salo, tel. +358-2736 6360, fax. +358-2-736 6360, info@rf-tuote.fi, www.rf-tuote.fi...
- Page 6 Select “Start scan” and press OK. When scanning is ready, press “Exit” three times to exit from menu. The program can be selected now with CH ∧ or CH ∨ pushbuttons. RF-Tuote Oy, Joensuunkatu 13, 24100 Salo, tel. +358-2736 6360, fax. +358-2-736 6360, info@rf-tuote.fi, www.rf-tuote.fi...
- Page 7 Fore more information about where you can drop off your waste equipment for recycling, please contact your local city office, your house disposal service or the shop where you purchased the product. RF-Tuote Oy, Joensuunkatu 13, 24100 Salo, tel. +358-2736 6360, fax. +358-2-736 6360, info@rf-tuote.fi, www.rf-tuote.fi...
