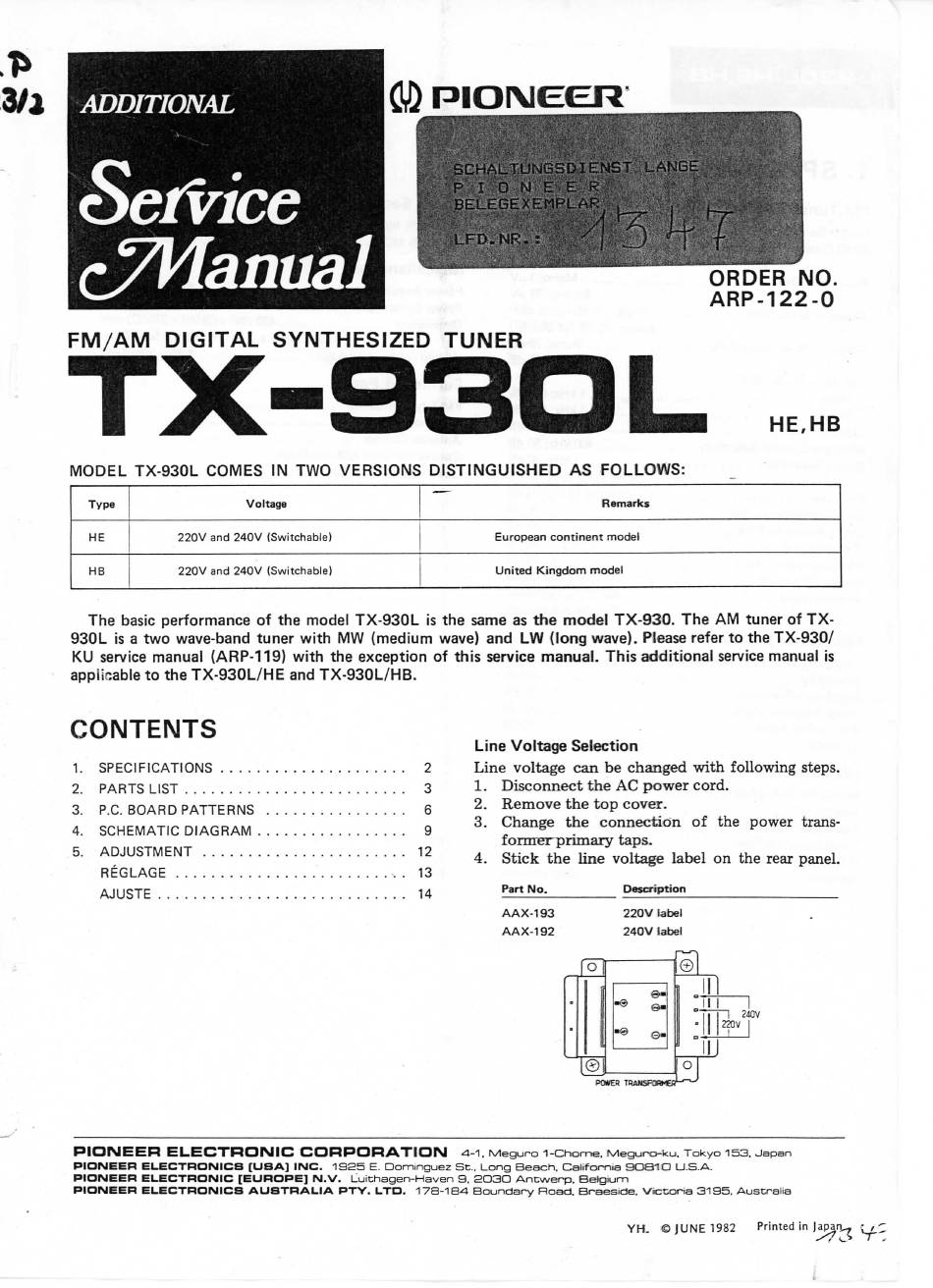

Pioneer TX-930L Service Manual

ADDITIONAL
Service
cTyianual
ORDER NO.
ARP-122-0
FM/AM DIGITAL SYNTHESIZED TUNER
HE,HB
M O D E L T X - 9 3 0 L C O M E S IN TWO V E R S I O N S D I S T I N G U I S H E D A S F O L L O W S :
Type Voltage Remarks
HE 220V and 240V (Switchable)
Europeen continent model
HB
220V and 240V (Switchable) United Kingdom model
The basic performance of the model T X - 9 3 0 L is the same as the model T X - 9 3 0 . The AM tuner of T X -
930L is a two wave-band tuner with MW (medium wave) and LW (long wave). Please refer to the T X - 9 3 0 /
KU service manual (ARP-119) with the exception of this service manual. This additionai service manual is
applicable to the T X - 9 3 0 L / H E and T X - 9 3 0 L / H B .
CONTENTS
1. S P E C I F I C A T I O N S 2
2. P A R T S L I S T 3
3. P.C. B O A R D P A T T E R N S 6
4. S C H E M A T I C D I A G R A M 9
5. A D J U S T M E N T 12
RÉGLAGE . 13
A J U S T E 14
Line Voltage Selection
Line voltage can be changed with following steps.
1. Disconnect the AC power oord.
2. Remove the top cover.
3. Change the connectiön of the power trans-
fomrerprimary taps.
4. Stick the line voltage label on the rear panel.
Part No.
A A X - 1 9 3
A A X - 1 9 2
Deso'iptian
220V label
240V label
Ml
-®
-®
220V
240V
P I O N E E R E L E C T R O N I C C O R P O R A T I O N
M e g u r o l - C n o m e . M e g u n o - k u . T o k y o 1 5 3 . J a p a n
PIONEER E L E C T R O N I C S [USA] INC.
1 9 2 5 E . D o m i n g u e z S c . L o n g B e a c h , C a l i f o m i a S O O I O U . S . A .
PIONEER E L E C T R O N I C [ E U R O P E ] N.V.
L u i c h a g e n - H a v e n S . 2 0 3 0 A n c w e n p . B e l g i u m
PIONEER E L E C T R O N I C S A U S T R A L I A PTY. LTD.
1 7 8 - 1 3 4 B o u n d a r y R o a d . B n a e s i d e . V i c t o r i a 3 1 3 5 . A u s t r a l i a
Y H . © J U N E 1982 Printed in Japan^
