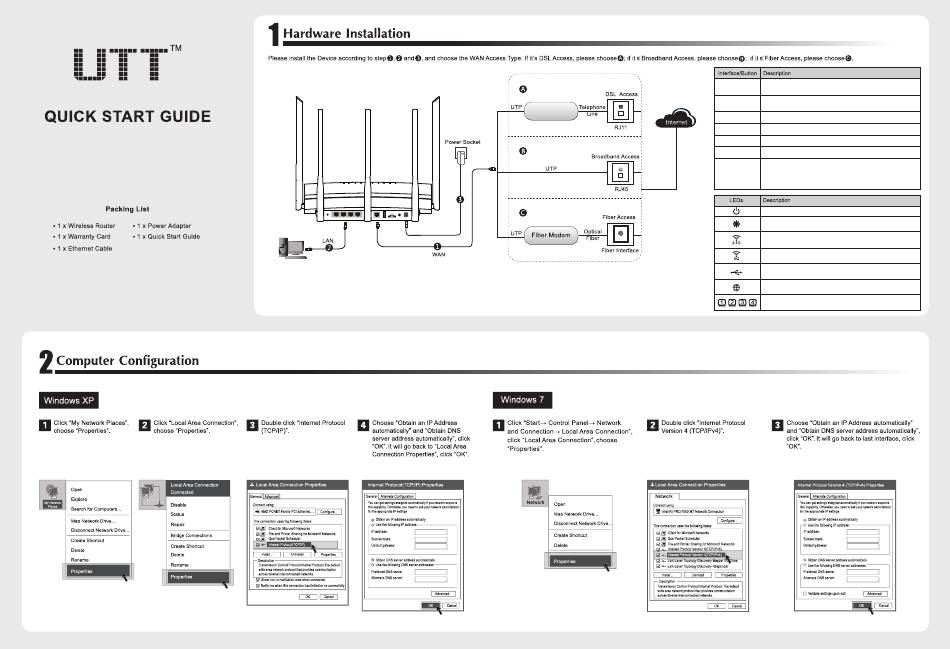

UTT SOHO Quick Start Manual

SOHO Wireless Router
SN: 0904-0003-014
Note: 1. The picture is only for reference. Please make the object as the standard.
2. Please power off the Device and disconnect all cables from the Device
during thunderstorms to avoid possible damage from a lightning strike.
DSL Modem
3. Please install the equipment in a place away from the High
Power Radio or Radar Station.
4. Please KEEP THIS DEVICE AWAY FROM WATER!
5. Please use the provided power adapter.
The WAN interface is connected to your Internet device, such as a cable
WAN
or modem.
These interfaces provide a LAN connection to network devices, such as
LAN
PCs or switches.
Plug-in a USB storage for data sharing.
USB
TF Insert a TF card for data sharing.
DC
The DC interface is where you connect the provided power adapter.
ON/OFF Press this button to turn the Device on and off.
Reset current settings to Factory Default Settings. While the Device is
powered on, use a pin or paperclip to press and hold the Reset button
Reset
for more than 5 seconds, and then release the button. After that, the
Device will restart with factory defalut settings.
The Power LED indicator is on when the Device is powered on.
The LED indicator blinks twice per second when the system is operating
properly, and it will blink slower if the system is under heavy load.
The 2.4G LED indicator is on when 2.4GHz Wireless is enabled, and it
blinks when transmitting/receiving 2.4G wireless data.
The 5G LED indicator is on when 5GHz Wireless is enabled, and it
blinks when transmitting/receiving 5G wireless data.
The LED indicator is yellow when the USB interface is connected
properly, and it is red when the TF port is connected properly.
The WAN LED indicator is on when Ethernet cable connection is normal,
and it blinks when the WAN port is sending or receiving data.
The LAN LED indicator is on when Ethernet cable connection is normal,
and it blinks when the LAN port is sending or receiving data.
