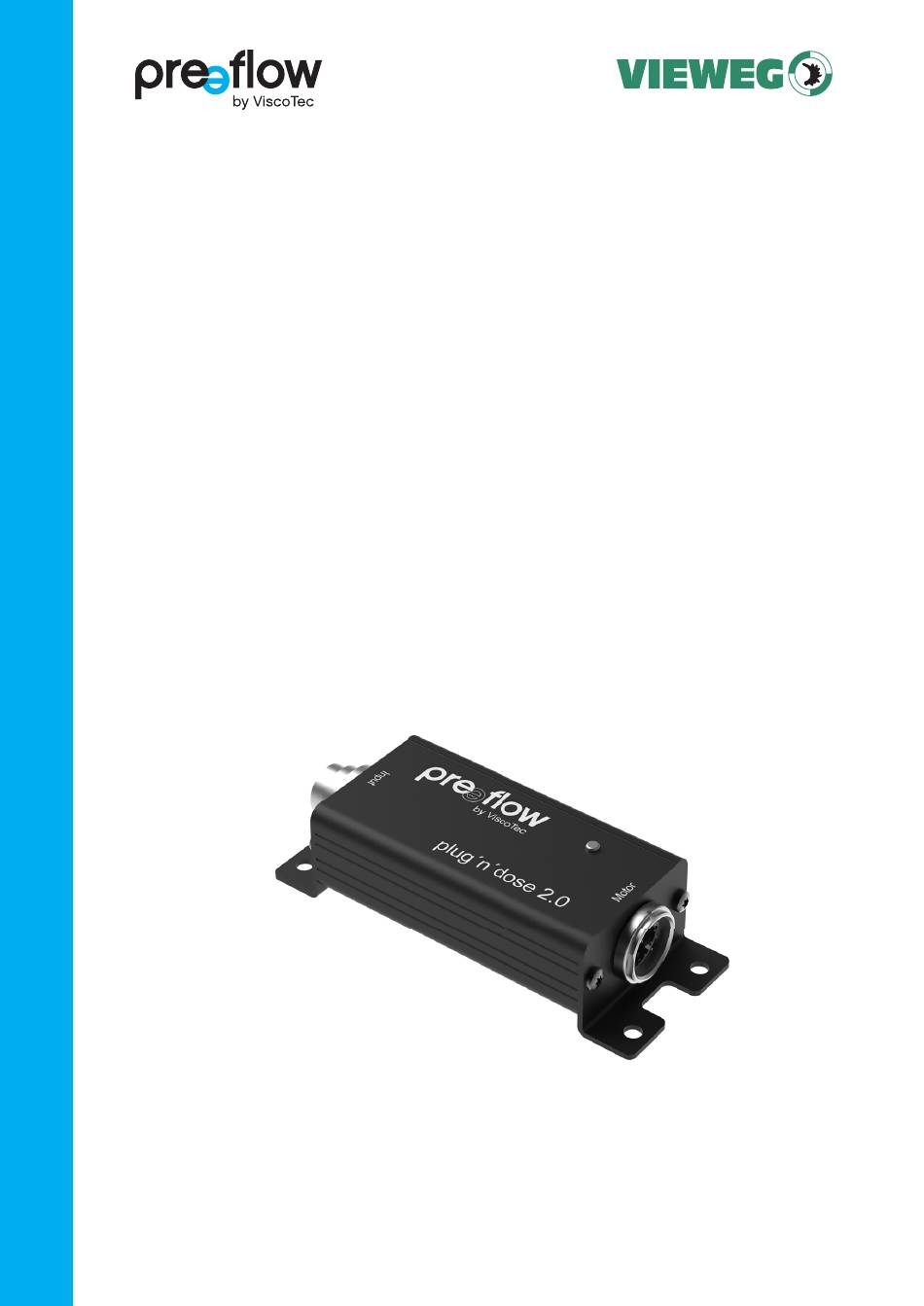

- Page 1 OPERATION & MAINTENANCE MANUAL Dosing control unit plug'n'dose 2.0...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ...................... 4 Scope of delivery ..................4 Incoming inspection ................. 4 Safety ........................ 5 Explanation of symbols used ..............5 Intended Use.................... 6 Personnel....................7 2.3.1 Operators..................7 2.3.2 Maintenance staff ................ 7 Informal safety precautions..............7 Preventing damage to equipment ............ - Page 3 TABLE OF CONTENTS Disposal ......................17 General principles .................. 17 Return and recycling programme for waste equipment in the European Union ................17 INST-019950 / 0 plug'n'dose 2.0 3 / 20...
-
Page 4: Introduction
INTRODUCTION Introduction Dear customer, We are delighted that you have decided to purchase a ViscoTec product. We have no doubt that this product will meet all your requirements. We wish you trouble-free and successful operation. The dosing system is made up of a master control unit, the plug'n'dose 2.0 dosing control unit and a dispenser. -
Page 5: Safety
SAFETY Safety Explanation of symbols used The following symbols are used in this manual: Work step • List Fig. 1 Legend number, reference to a figure Reference to a comment COMMAND Designations of buttons/switches, menu items and input dialogs The following notices indicate safety instructions and must be followed: DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. -
Page 6: Intended Use
SAFETY Intended Use The dosing control unit plug'n'dose 2.0 controls the dispensers in order to convey and precisely dispense viscose material. No liability can be accepted for damage caused by failure to observe this operation manual or due to a lack of maintenance or checks. Misuse Any use other than the stipulated intended use shall be considered as misuse. -
Page 7: Personnel
SAFETY Personnel The operating organisation shall ensure that only appropriately qualified and authorised personnel work on this machine. It is responsible for ensuring that operators and maintenance staff possess the necessary qualifications. Personnel must be at least 15 years old. All personnel working with or on the machine must have read and understood this operation manual. -
Page 8: Preventing Damage To Equipment
SAFETY Preventing damage to equipment In order to prevent damage to equipment and to ensure precision dosing, ensure that • The dispenser connecting cable may only be connected and disconnected when the power supply is switched off.. The electronics in the drive motor could be damaged if this precaution is not taken. -
Page 9: Residual Risks
SAFETY Residual risks Thorough training, observance of the operation manual and compliance with safety regulations are key to permanently accident-free operation. The following residual risks may occur when operating this machine: DANGER Danger to life from electrical voltage There is a risk of fatal electric shock if equipment covers are removed or cables are defective. -
Page 10: Product Description
PRODUCT DESCRIPTION Product description The plug'n'dose 2.0 dosing control unit controls the dispenser based on the signals generated by a master control unit. The speed and the rotating direction of the dispenser (dosing quantity and suck-back) are therefore adjustable. General overview Fig. -
Page 11: Operation
OPERATION Operation Setup Set the dispenser (D) to function standby condition as described in the operation and maintenance manual supplied. Connect the dispenser (D) connecting cable to plug 3. Connect the connecting cable to the master control unit (B). ... -
Page 12: Decommissioning
OPERATION NOTE The quantity of material that has been drawn in by the suck-back may only be large enough to prevent dripping. If more is sucked in, air gets into the dispenser and the material is dispensed with a delay at the next dosing. -
Page 13: Maintenance
MAINTENANCE Maintenance In the event of a fault, or if there is any doubt that the machine/system is not completely ready for operation, it must be shut down immediately and inspected by competent maintenance staff before operation continues. WARNING Maintenance and cleaning work may only be carried out when the machine has been shut down safely and secured against unauthorised restarting. -
Page 14: Cleaning
CLEANING Cleaning WARNING Cleaning work may only be carried out when the machine has been shut down safely and secured against unauthorised restarting. Otherwise, serious injuries may result. • Switch off the master control unit • Disconnect the cable to the master control unit (B) If the dosing control unit is dirty, clean it using a soft, damp cotton cloth with a few drops of pH-neutral cleaning agent (e.g. -
Page 15: Technical Specifications
EU Declaration of Conformity within the meaning of EC Directive 2006/42/EC on machinery Annex II A ViscoTec Pumpen- u. Dosiertechnik GmbH Amperstraße 13 I 84513 Töging a. Inn I Germany hereby declares, that the machine designated below complies with the relevant underlying safety and health protection requirements of the EU Directive on the basis of its design and type of construction and in the form in which it is sold by us. -
Page 16: Technical Data
TECHNICAL SPECIFICATIONS Technical data plug'n'dose 2.0 Dimensions (h x w x d) 112x42x28 mm Mounting 4 holes/4.5 mm, Hole spacing 102x28 mm Weight approx. 110 g Voltage 24 V DC Consumption / rating 65 VA/2,7 A Operating conditions +10 ° to +40 °C, air pressure 1 bar, relative humidity less than 60% (non-condensing) Storage conditions see page 9... -
Page 17: General Principles
ViscoTec Pumpen- u. Dosiertechnik GmbH assumes responsibility for its products and recycles them once they have reached the end of their useful life. For equipment that was used for commercial purposes or in public institutions (known as B2B equipment), we provide a return and disposal scheme for you. - Page 18 DISPOSAL Returning and disposing of waste equipment ViscoTec Pumpen- u. Dosiertechnik GmbH primarily takes back the actual electrical devices it manufactured as electronic waste at the end of their service life. We assume the costs of handling, recycling and recovering the electronic waste that was taken back, but do not assume shipping or transportation costs.
- Page 19 NOTES Notes INST-019950 / 0 plug'n'dose 2.0 19 / 20...
- Page 20 Überreicht durch: Gewerbepark 13 85402 Kranzberg www.dosieren.de © Copyright 2024 ViscoTec Pumpen- u. Dosiertechnik GmbH Amperstraße 13 D-84513 Töging am Inn Germany This document is protected by copyright. It must not be modified, extended, reproduced or distributed to third parties without written consent.
