- Page 1 Innovative Labs, LLC Sonoma Breeze SB-100 ® Instruction Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS About the Sonoma Breeze ® Safety Precautions Specifications Operating Instructions 9. Care and Maintenance 13. Troubleshooting 14. Warranty Information 17. Contact us 18. Appendix A P a g e... -
Page 3: About The Sonoma Breeze
(VOCs). Furthermore, unlike other air filtration systems our technology removes air pollutants without emitting hazardous material such as ozone. Every space is different, and the speed that your Sonoma Breeze cleanses the air is ®... -
Page 4: Safety Precautions
Do not use in areas of high humidity or wet areas such as shower rooms or saunas. Do not stand on or balance heavy items on the unit. Do not allow children to play near or with the Sonoma Breeze unit. ® Do not operate this unit outdoors. -
Page 5: Specifications

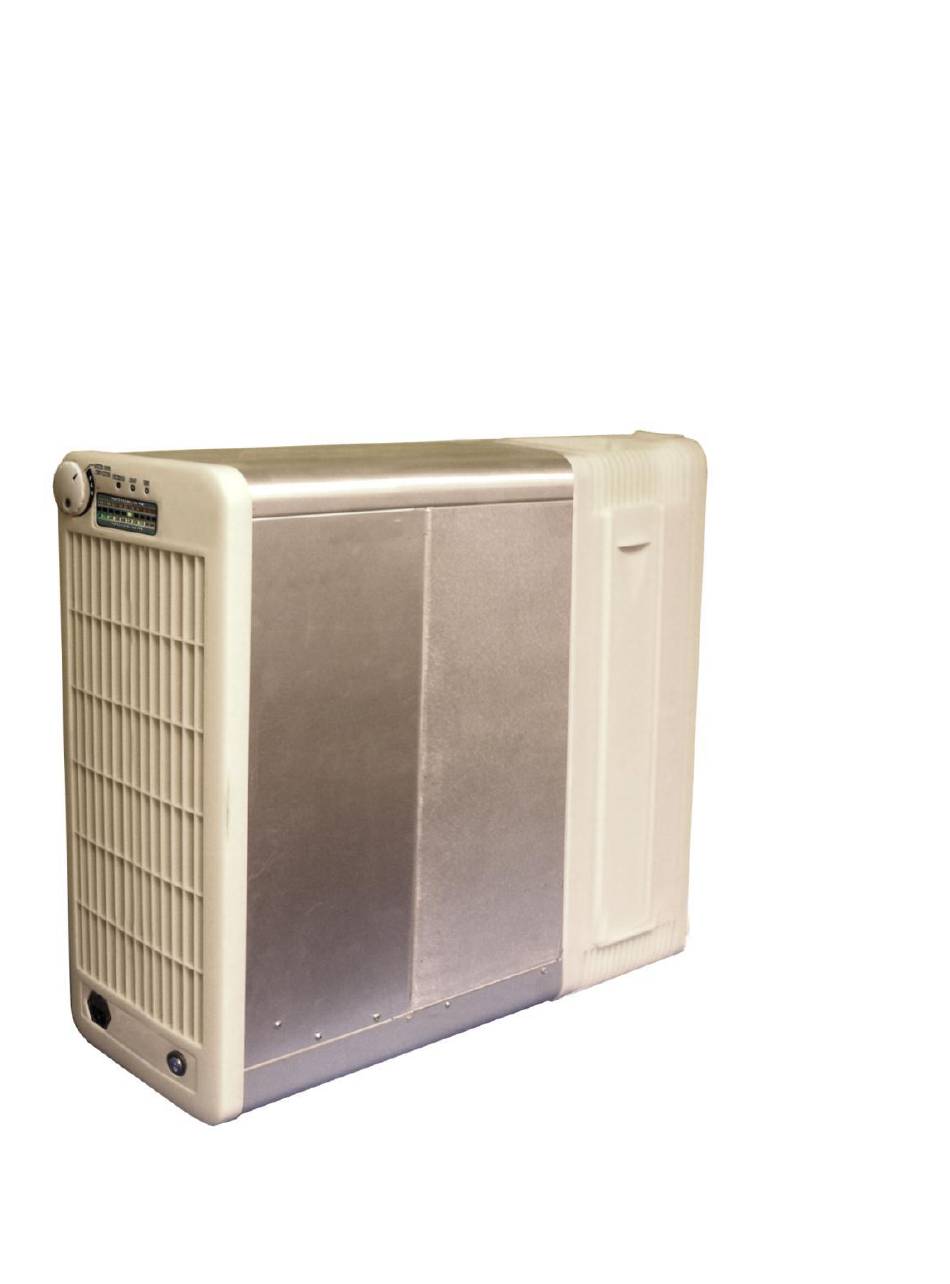

38 lb. (17.3 kg) Design and Function The Sonoma Breeze SB-100 is comprised of one front loading Macro-Particulate Filter, ® two germicidal UV lamps, three PCO-Purifier Cores including one rear loading PCO micro-particulate filter, three Flow-Netic fans and an innovative formaldehyde sensor system. -
Page 6: Operating Instructions
Operating Instructions Turning on the unit: To turn on your Sonoma Breeze locate your power cable and insert the AC power plug ® into the wall socket and the power socket component into the plug located at the back of the unit. Press the power switch located next to the power socket. The Sonoma... - Page 7 Understanding the VOC monitors: There is one VOC monitor located at the back of the unit below the round service lights. This monitor indicates both VOC levels and formaldehyde levels present in the environment. Formaldehyde and other volatile organic compounds can be measured in either parts per billion (ppb) or parts per million (ppm), a measure of 1000 ppb is equivalent to 1 ppm.
- Page 8 Filter installation: If you have recently purchased your Sonoma Breeze through an authorized distributor, ® it should come already equipped with all the necessary filters and lights. If you are the distributor you must install the filters and lights prior to shipment of the unit. Follow the steps below and refer to the photographs in this section.
-
Page 9: Care And Maintenance
3-4 months, the Germicidal UV lights every 8,000 hours and the PCO-Purifier Cores once every year. Replacing the Filters To replace the Macro-Particulate Filter: 1. Turn off and unplug the Sonoma Breeze unit. ® 2. Pull the magnetically retained front cover plate away from the unit in order to expose the Macro-Particulate Filter. - Page 10 4. Close the side-access panel and screw the door into place. Calibrating the VOCallic Sensors Unlike most of the air filtration units available on the market today, the Sonoma Breeze ® will automatically adjust the speed of the fan to suit the needs of the environment. In order to do this, our engineering team has developed a highly advanced ‘smelling’...
-
Page 11: Troubleshooting
Troubleshooting This troubleshooting guide provides helpful hints and possible scenarios in which you may experience difficulty. If your problem persists or your issue is not listed below please contact your distributor immediately. Problem Possible Cause Solution For your safety we installed a Turn the unit off and unplug I opened the unit while it safety mechanism that... -
Page 12: Warranty
SB- ® 40, SB-100 and SB-200 will be free of defects in material and workmanship during normal operational use for one year from the date of purchase provided that the lights and filters are replaced at the appropriate time and the distributor calibrates the unit at least once a year. - Page 13 Some states and provinces do not allow limitations of how long an implied warranty lasts or the exclusion or limitation of such damages. If the unit was purchased in one of these locations these limitations and exclusions may not apply. This warranty gives the consumer specific legal rights.
- Page 14 Limited Warranty Innovative labs, LLC warrants that all models of the Germicidal UV lamps will be free of defects in material and workmanship during normal commercial use for one- year from the date of installation. Damage caused by accident, misuse or abuse is not covered by this warranty including, but not limited to, incorrect placement, incorrect voltage, fire, flood, damage caused by power surges from power outages or “acts of nature.”...
-
Page 15: Contact Us
Contact Us If you have any questions or concerns after reading this manual or contacting your distributor, please do not hesitate to contact our customer service department by calling toll free 1 (888) 706-0080. If you lose or damage your copy of this user manual, you can locate an electronic copy online at our website www.ino-labs.com. - Page 16 Appendix A Permissable Exposure Limits of Formaldehyde * OSHA enforces a maximum permissable exposure limit of 0.75 ppm during a normal 8 hour work day. All values in this graph are based on an 8 hour work day. CDC- Center for Disease Control OSHA- Occupational safety and Health Administration HUD- Department of Housing and Urban...
- Page 17 Determining the best unit for your space 100 sq. 200 sq. 400 sq. 600 sq. 800 sq. 1000 + SB-40 SB-100 SB-200 Custom multiple units Figure 2 *Assuming a ambient formaldehyde concentration of 1 ppm Efficiency Table: Meeting OSHA standards...
- Page 18 Replacement Schedule Macro-Particulate Filter Germicidal UV lights PCO-Purifier Cores 3-4 months 1 year or 8,000 hours 1 year DOP* DOP* DOP* Figure 4 Date of Purchase (DOP) 18 | P a g e...
- Page 19 Indoor Air Pollutants Health Concern Chemical Household Products Acetaldehyde Citrus-scrub Benzene Comet disinfectant powder 2-butoxyethanol Febreze air effects 1-chloro-2,3-epoxypropane Glance HC Glass and Multi-surface cleaner Chloroform Goof Off cleaner Carcinogens: Ethylbenzene Pine-Sol brand cleaner Formaldehyde Pioneer Super cleaner N-ethyl-N-nitroso-ethanamine Shineline Seal Floor Sealer Simple Green Concentrated Cleaner/Degreaser/Deadorizer Waxie 21 Glass Cleaner...
-
Page 20: Calibration Instructions
7. When the timer goes off, indicated by a beeping sound, record the number on the right hand corner of the screen. Note that if the number is greater or equal to 1 ppm you will need to move the Sonoma Breeze to a different space and ®...
