HIKVISION UD38916B-A Quick Start Manual

Network Amplifier
Quick Start Guide
UD38916B-A
About this Document
This Document includes instructions for using and managing the Product. Pictures, charts, images
and all other information hereinafter are for description and explanation only.
The information contained in the Document is subject to change, without notice, due to firmware
updates or other reasons. Please find the latest version of the Document at the Hikvision website
(https://www.hikvision.com). Unless otherwise agreed, Hangzhou Hikvision Digital Technology Co.,
Ltd. or its affiliates (hereinafter referred to as "Hikvision") makes no warranties, express or implied.
Please use the Document with the guidance and assistance of professionals trained in supporting
the Product.
About this Product
This product can only enjoy the after-sales service support in the country or region where the
purchase is made.
Acknowledgment of Intellectual Property Rights
Hikvision owns the copyrights and/or patents related to the technology embodied in the Products
described in this Document, which may include licenses obtained from third parties.
Any part of the Document, including text, pictures, graphics, etc., belongs to Hikvision. No part of
this Document may be excerpted, copied, translated, or modified in whole or in part by any means
without written permission.
and other Hikvision's trademarks and logos are the properties of Hikvision in various
jurisdictions.
Other trademarks and logos mentioned are the properties of their respective owners.
LEGAL DISCLAIMER
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS DOCUMENT AND THE PRODUCT
DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED "AS IS" AND "WITH
ALL FAULTS AND ERRORS". HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR
PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION
BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,
INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION,
OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON
BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN
CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES OR LOSS.
YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY
RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION,
PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS
INFECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY
TECHNICAL SUPPORT IF REQUIRED.
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE
SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW.
ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT
INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF
PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS.
YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE
DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR
PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED
TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS
ABUSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS DOCUMENT AND THE APPLICABLE LAW, THE
LATTER PREVAILS.
© Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.

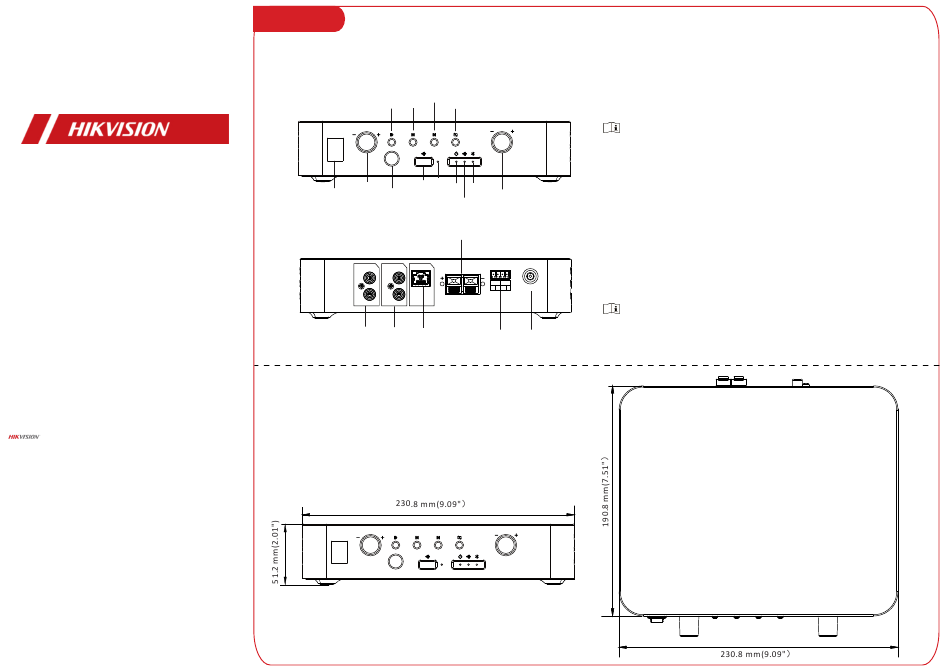

1 Appearance
Appearance
Front Panel
Backward
Play/Pause Forward
MIC
ON
MIC RST
OFF
Reset
MIC Volume Knob USB Flash
Drive Input
Power Switch
MIC Input
Constant Voltage Output
Rear Panel
RCA OUT RCA IN LAN
RCA Output RCA Input Network Interface
Dimensions
MIC
ON
MIC RST
OFF
Indicators:
Power indicator (solid white): the device is normally working.
USB flash drive indicator (solid white): the device is in USB flash drive mode.
Bluetooth indicator (solid blue): the device is in Bluetooth mode. The default Bluetooth name is "Audio
xxx".
Buttons:
Single cycle: single cycle playback of USB flash drive audio.
Single Cycle
Reset: press and hold for 5 seconds to restore the device to factory settings.
VOL
Single cycle is disabled by default.
Knobs:
MIC volume knob: adjust the volume of MIC.
Volume knob: adjust the volume of constant voltage output and RCA output on the rear panel.
Power Bluetooth
Interfaces:
Indicator Indicator
Volume Knob
USB Flash
MIC input: connect to the 6.35 mm moving-coil microphone.
Drive Indicator
USB flash drive input: connect to the USB flash drive in USB2.0 format.
RCA output: for amplifier cascading.
RCA input: connect to the audio device with RCA interface.
LAN: for network connection.
Power interface: 24 VDC.
100V COM
Alarm interface: 1 alarm input and 1 alarm output.
ALARM ALARM
IN
OUT
1A 1B GND IN
DC24V
Constant voltage output: a single channel can be connected to speakers rated at a voltage of 100 V.
• When selecting the USB flash drive input, the audio files in the same level directory
folder will be played first according to the playback order of the USB flash drive, and then
the audio files in the root directory will be played.
Alarm Interface Power Interface
• The power of constant voltage output cannot exceed 40 W.
VOL
