HIKVISION UD35503B Quick Start Manual

Network Amplifier
Quick Start Guide
UD35503B
About this Document
This Document includes instructions for using and managing the Product. Pictures, charts, images
and all other information hereinafter are for description and explanation only.
The information contained in the Document is subject to change, without notice, due to firmware
updates or other reasons. Please find the latest version of the Document at the Hikvision website
(https://www.hikvision.com). Unless otherwise agreed, Hangzhou Hikvision Digital Technology Co.,
Ltd. or its affiliates (hereinafter referred to as "Hikvision") makes no warranties, express or implied.
Please use the Document with the guidance and assistance of professionals trained in supporting
the Product.
About this Product
This product can only enjoy the after-sales service support in the country or region where the
purchase is made.
Acknowledgment of Intellectual Property Rights
Hikvision owns the copyrights and/or patents related to the technology embodied in the Products
described in this Document, which may include licenses obtained from third parties.
Any part of the Document, including text, pictures, graphics, etc., belongs to Hikvision. No part of
this Document may be excerpted, copied, translated, or modified in whole or in part by any means
without written permission.
and other Hikvision's trademarks and logos are the properties of Hikvision in various
jurisdictions.
Other trademarks and logos mentioned are the properties of their respective owners.
LEGAL DISCLAIMER
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS DOCUMENT AND THE PRODUCT
DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED "AS IS" AND "WITH
ALL FAULTS AND ERRORS". HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR
PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION
BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,
INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION,
OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON
BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN
CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES OR LOSS.
YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY
RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION,
PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS
INFECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY
TECHNICAL SUPPORT IF REQUIRED.
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE
SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW.
ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT
INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF
PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS.
YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE
DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR
PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED
TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS
ABUSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS DOCUMENT AND THE APPLICABLE LAW, THE
LATTER PREVAILS.
© Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.

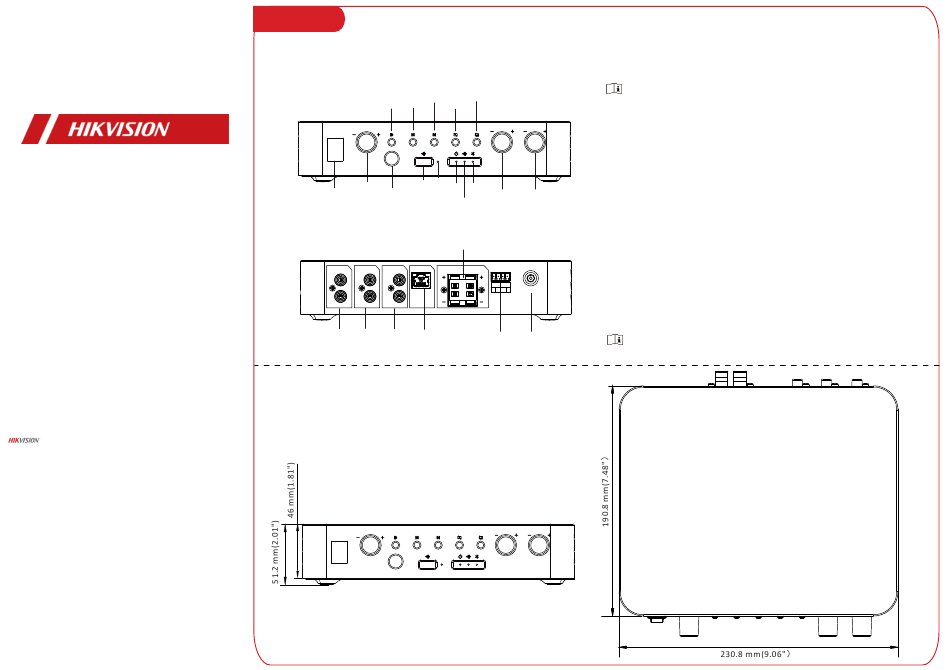

1 Appearance
Appearance

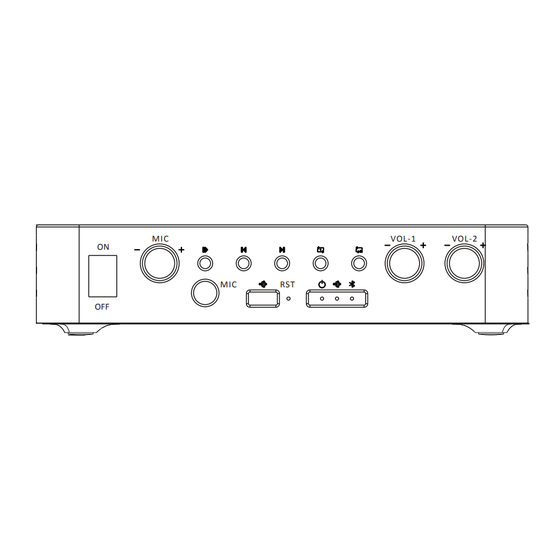

Front Panel
Backward
Play/Pause Forward
MIC
ON
MIC RST
OFF
Reset
MIC Volume Knob USB Flash
Drive Input
Power Switch
MIC Input
Rear Panel
Constant Voltage Output
RCA OUT2 RCA IN LAN
RCA OUT1
1
2
RCA Output RCA Output
RCA Input Network Interface
Dimensions
MIC
ON
MIC RST
OFF
Indicators:
Power indicator (solid white): the device is normally working.
USB flash drive indicator (solid white): the device is in USB flash drive mode.
Bluetooth indicator (solid blue): the device is in Bluetooth mode. The default Bluetooth name is "Audio
Serial No.".
Mode Switch The default factory Bluetooth indicator light is highlighted. The Bluetooth function is enabled by
Single Cycle default.
Buttons:
VOL-1 VOL-2
Mode switch (reserved function).
Single cycle: single cycle playback of USB flash drive audio.
Reset: press and hold for 5 seconds to restore the device to factory settings.
Knobs:
MIC volume knob: adjust the output volume of MIC.
Power Bluetooth
Indicator Indicator
Partition 1 Partition 2
Partition 1 volume knob: adjust the volume output of CH1 and RCA OUT1 on the rear panel.
Volume Knob Volume Knob
USB Flash
Drive Indicator
Partition 2 volume knob: adjust the volume output of CH2 and RCA OUT2 on the rear panel.
Interfaces:
MIC input: connect to the 6.35 mm moving-coil microphone.
USB flash drive input: connect to the USB flash drive in USB2.0 format.
RCA ouput: for amplifier cascading.
CH2 CH1
100V 100V
RCA input: connect to the audio device with RAC interface, and support 2 RCA inputs.
ALARM ALARM
IN LAN: for network connection.
OUT
1A 1B GND IN
DC24V
Power interface: 24 VDC.
Alarm interface: 1 alarm input and 1 alarm output.
Constant voltage output: a channel can be connected to speakers with a voltage of 100 V.
Alarm Interface Power Interface
The power of constant voltage output CH1/CH2 cannot exceed 40 W, and the total
power of constant voltage output cannot exceed 80 W.
VOL-1 VOL-2
