Summary of Contents for Jet Games MEGA SHOT

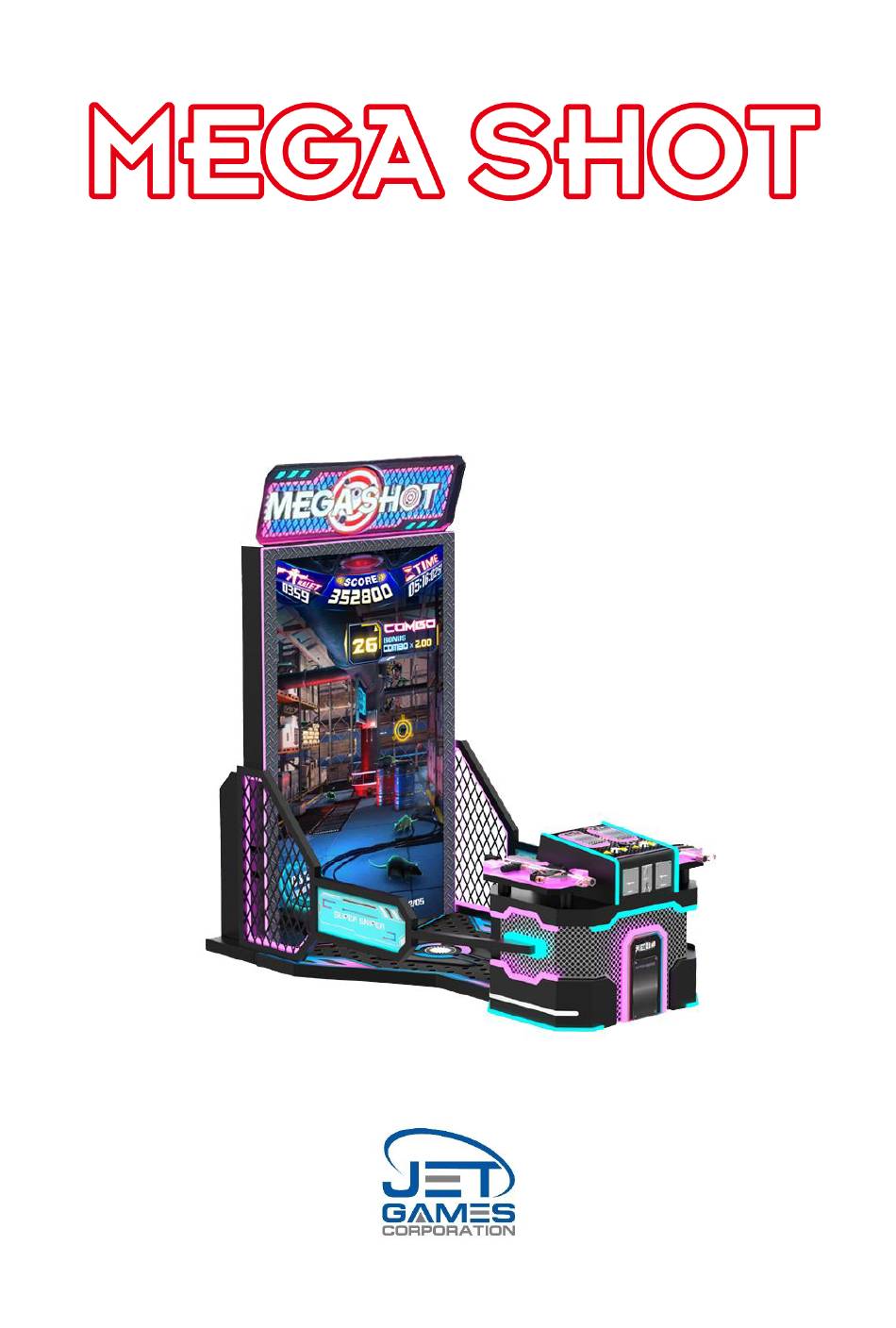

- Page 1 INSTRUCTIONS - MANUAL 20240515...
- Page 2 PLEASE READ THE MANUAL BEFORE ASSEMBLY, INSTALATION AND USE PLEASE KEEP THE MANUAL TOGETHER WITH THE MACHINE AT ALL TIMES...
-
Page 3: Attention
ATTENTION To have a better shooting experience please do not put the machine under sunshine or near infrared red LED light. Please notice the warning decals on the machine. ◆ Danger: Improper handling of the machine may cause damage ◆ Outfall: It is recommended to discharge the water from the drip tray once every 2 weeks, otherwise it may cause damage to the air pump. - Page 4 It is strictly prohibited to place the machine close to objects with high magnetic fields or strong radio waves. This machine is not waterproof. To prevent fire or electric shock, do not allow any liquid to enter the machine, or expose it to dripping water or moisture.
-
Page 5: Table Of Contents
CONTENT MEGA SHOT ........................... 2 ATTENTION ............................ 1 CONTENT ............................3 How to Move and Position the Machine ..................3 I. How to Move the Machine ............Error! Bookmark not defined. II. How to Position the Machine ............Error! Bookmark not defined. -
Page 6: How To Move And Position The Machine
How to move position the Machine ➢ Please place it on flat ground where it won’t slide easily; ➢ Please use the following foot to fix the machine (as shown below) ➢ Loosen the tightly locked nuts of the foot, tighten the bolts of the foot with a wrench, and keep the trundle approximately 5mm away from the ground. -
Page 7: Precautions Before Startup
Precautions before Startup Check the Amperage of the power supply. Mega Shot should be on it’s own dedicated 20 amp Circuit otherwise the machine will be underpowered and cause a risk of damage. An underpowered 110 voltage A/C socket might cause the socket to overheat. -
Page 8: Wiring And Precautions
Wiring and Precautions III. ➢ Connect one end of the cable to the terminal box of the machine, and connect the other end to the wall socket. ➢ Connect the power supply according to the voltage on the label, or the machine might be damaged (110 vs 220 AC). - Page 9 Attention: ➢ The cable cannot be pressed by heavy objects, or it might be easily damaged and cause short circuit, and even fire disaster. ➢ When unplugging the cable, you should grasp the plug instead of the cable. ➢ It is not allowed to directly unplug with wet hands. It is not allowed to directly unplug with wet hands.
-
Page 10: Installation And Maintenance
Installation and Maintenance Installation and commissioning ➢ Please check the accessory list to assemble components before installation ➢ The ground must be flat and solid. After positioning the machine, adjust the feet to the ground making sure that the game is level ➢... -
Page 11: Cleaning
Cleaning ➢ Housing Clean dirt on the surface of the machine with clean and soft cotton cloth. Display ➢ Clean the outside of the display with clean and soft Display screen with no water; anything that is acidic should not to touch the surface of the display. ➢... -
Page 12: Machine Assemble
Machine assembly 1-Fit the Marque to the machine by using the eight M6 Machine screws in the locations show below. The red arrow shows the location of the wire connection. (M6 screws shown on the right) 2-Fit the narrow side of the assembly side panel (front) with 6 shorter black cap screws (Cap screws shown on the right) 3-Fit the wide side of the assembly side panel (rear) with 3 longer black Cap screws (Cap Screws shown on the right) - Page 13 4-The Rear of the assembly side panel has two wire Connections (12Volt) for the LED Lights inside the Panel （see below for reference) 5-Assembling the Lower Floor of the game. The left side exits through the circle hole on the back and has the connections for the HMDI cable ( video) as well as the Orange air supply line (supplies pressurized air to the guns from the compressor) and the 2-12 volt led light connections.
- Page 14 11 12...
- Page 15 6-This flat cable (HDMI) is connected to the console's Computer at this point, Be careful not to force this connection as it could damage the output on the computer. 7-To attach the Game floor to the monitor console and player console there are 2 M6 Machine screws on each side from the floor to the player console and 3 screws on each side to the monitor console.
-
Page 16: Troubleshooting
Troubleshooting Error Reason Solution After plugging in,the No power to the scree Connect or replace the power cable screen doesn’t show The signal cable is not Connect or replace the signal cable image connected or damaged After plug in,the machine The fuse is burned Replace the fuse 11 14... - Page 17 is not started The power switch is off Turn on the power switch No power to the control Check the power supply Check the power supply board output output,5V,12V,24V,If it’s wrong After the machine is The host is not working Manually start the host power start powered on, the monitor button...
-
Page 18: Control Table And Game Start Scene
Gameplay/Menu instructions Control table and game start scene 11 16... -
Page 19: How To Play
How to play ① Insert coin； ② Press “←、→” to choose single player or multi-player mode and game, press “OK” to start ③ Score enough point in programmed time to enter into next game ④ Support to link up to 4 machines for competition ⑤... -
Page 20: How To Use The Alloy Toy Rifle
How to use the alloy toy rifle VII. ① Shoot by pulling the trigger during the game ② Aim at the target position through the magnifying glass to shoot accurately during the game ③ During the game, when the target is too small, you can zoom in on the target through the sniper mode switch button. -
Page 21: Menu Setting
Menu setting VIII. ➢ Basic Settings:Game time, number of coins can be set ① Coin Settings: how many coins for 1 game(from 1-10) ② Tickets: how many points for 1 ticket ③ Award mode: Ticket payout or no ticket payout ④... - Page 22 ⑥ Machine NO. : The Number of the machine in the linked mode ⑦ DemoVOL: Turn on/off the background music ⑧ Time: Game second level (60-300). ⑨ Continue: continue game ⑩ Time-DemoBGM(MIN):background music interval 11 ClearRankings（Rounds）：Clear table of ranking rounds 12 Game Mode：Bullet mode-Credit mode 13 BulletNumber：bullet number ➢...
- Page 23 ➢ IO TEST correction method: It can be used to test whether each function key of the machine produces gifts properly and to calibrate props and guns.3 point 1 line(sight bead, break,target) aim and shoot the red dot on the screen(left-up,right-up,left down,right- down) 11 21...
-
Page 24: Camera Correction
I. Camera correction ①Switch to ON,remove the tape first then the filter sheet ②Loosen the screws to adjust the position,it is normal when the screen is in the red frame(like picture 2) ③Press Turn Up Key to correct,it is normal when the screen is upright (like pic 2) ④Install the filter sheet,switch to OFF 11 22... - Page 25 Gun Calibration and Adjustment Correction method: 3 point 1 line(sight bead,break, target) aim and shoot the red dot on the screen (left-up,right-up,left-down,right-down) 11 23...
