Page 4: Introduction

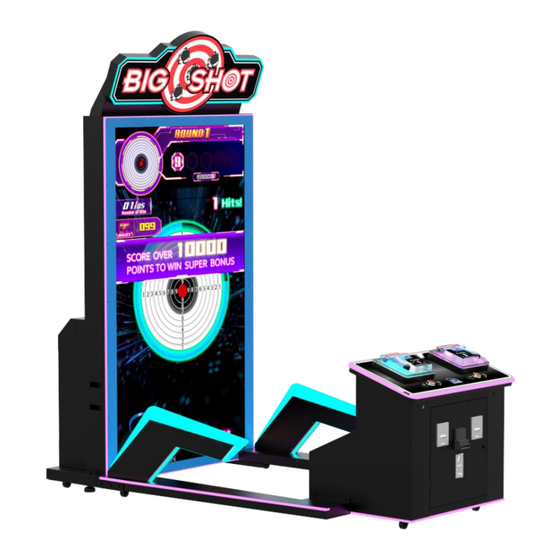

X. Troubleshooting ..........................30 Introduction Introduction of the Product: BIG SHOT shooting game is a two player cooperative or single player indoor machine that can be run with or without Ticket redemption. Features of the Product: ➢ Novel gameplay full of fun;... - Page 5 JET Games Corporation 822 South Nova Road, Daytona Beach FL 32114 www.JETGamesUSA.com...
-
Page 6: Specifications And Technical Parameters
Dimensions: W1240 × D2500 × H 2500 (mm) 4) Weight: 795 LBS or 360 Kgs 5) Operating Environment: Temperature (indoors): 32 F～95 F Humidity: ≤90%； Atmospheric pressure: 86Pa～106Pa. JET Games Corporation 822 South Nova Road, Daytona Beach FL 32114 www.JETGamesUSA.com... -
Page 7: Accessory List
Power 10A/250V-3M cord Manual English AA33 Please open the package and check whether all accessories are included. If not, please contact the distributor of the machine for check. JET Games Corporation 822 South Nova Road, Daytona Beach FL 32114 www.JETGamesUSA.com... -
Page 8: How To Move And Position The Machine
JET Games Corporation 822 South Nova Road, Daytona Beach FL 32114 www.JETGamesUSA.com... -
Page 9: How To Position The Machine
Place with heavy vibration; ( vibration can cause the IR laser to uncalibrated) ➢ Dusty place. Where to place Warning: The machine is only suitable for indoor use, not outdoor use. JET Games Corporation 822 South Nova Road, Daytona Beach FL 32114 www.JETGamesUSA.com... -
Page 10: Precautions Before Startup
Excessive loads on a power socket might cause socket overheat and fire accident. Warning Do not change or replace parts at your will when assembling the machine to prevent fire disaster or short circuit. JET Games Corporation 822 South Nova Road, Daytona Beach FL 32114 www.JETGamesUSA.com... -
Page 11: Wiring And Precautions
Cable Warning: The working voltage of the machine is 110V in the USA. Please connect the power supply according to the label, or the machine might be damaged. JET Games Corporation 822 South Nova Road, Daytona Beach FL 32114 www.JETGamesUSA.com... - Page 12 It is not allowed to put the cable at places where it may be easily kicked or touched. ➢ Use correct voltage and fuse (refer to technical parameters). JET Games Corporation 822 South Nova Road, Daytona Beach FL 32114 www.JETGamesUSA.com...
-
Page 13: Installation And Maintenance
Please also check to see if the top gun slides function properly. And add dry lubricate to the slide if needed like graphite or CRC dry lubricant. JET Games Corporation 822 South Nova Road, Daytona Beach FL 32114 www.JETGamesUSA.com... -
Page 14: Cleaning
➢ Do not place objects in the air outlet of the machine. ➢ The blocked air outlet may cause temperature rise inside the machine, affect the normal operation of the game, and even damage the parts. JET Games Corporation 822 South Nova Road, Daytona Beach FL 32114 www.JETGamesUSA.com... - Page 15 ➢ Do not repair the machine by yourself. It may cause short circuit or malfunction and other failure. JET Games Corporation 822 South Nova Road, Daytona Beach FL 32114 www.JETGamesUSA.com...
- Page 16 JET Games Corporation 822 South Nova Road, Daytona Beach FL 32114 www.JETGamesUSA.com...
-
Page 17: Instruction On Game
③ Score enough points in programmed time to enter into next game ④ Support to link up to 4 machines for competition ⑤ The player will get tickets according to the score JET Games Corporation 822 South Nova Road, Daytona Beach FL 32114 www.JETGamesUSA.com... -
Page 18: Menu Setting
④Award mode: Ticket payout or no ticket payout ⑤Language: English, etc ⑥Free: Free play on/off ⑦Player NO. : The Number of the machine in the linked together by LAN cable (locally) JET Games Corporation 822 South Nova Road, Daytona Beach FL 32114 www.JETGamesUSA.com... - Page 19 ⑭Game Mode: Game play limited by time or Bullet count ⑮Bullet Number: bullets allowed per stage (50,100,150,200,250,300, etc. up to 1000) ➢ Account: To check the total coins, tickets ,gifts and reset JET Games Corporation 822 South Nova Road, Daytona Beach FL 32114 www.JETGamesUSA.com...
-
Page 20: Camera Correction
(turning of the camera display). ⑤ Enter main menu, Go to I/O test and recalibrate the gun using the instructions below. You must recalibrate both Guns for proper game play. JET Games Corporation 822 South Nova Road, Daytona Beach FL 32114 www.JETGamesUSA.com... -
Page 21: Gun Adjustment
Gun Adjustment Correction method: 3 point 1 line(sight bead,break, target) aim and shoot the red dot on the screen(left-up,right-up,left-down,right-down) JET Games Corporation 822 South Nova Road, Daytona Beach FL 32114 www.JETGamesUSA.com... -
Page 22: Instruction For Regular Drainage
Turn off the machine, open the back door underneath the monitor as in photo below. ait until the water is drained, take out the drawer and pour away the water. ②W JET Games Corporation 822 South Nova Road, Daytona Beach FL 32114 www.JETGamesUSA.com... - Page 23 PS: It is recommended to drain the water once in 15-30 days in humid areas and once in 30-50 days in dry areas. JET Games Corporation 822 South Nova Road, Daytona Beach FL 32114 www.JETGamesUSA.com...
-
Page 24: How To Link Up Machine (1 Router Can Connect Up To 4 Machines)
Then switch on the machines at the same time (otherwise the link up will not work) Below is example connection for 4 machines JET Games Corporation 822 South Nova Road, Daytona Beach FL 32114 www.JETGamesUSA.com... -
Page 25: How To Turn On The Machine
This is the 3-in-1 master plug for the entire machine Left and right side connection installation Tighten all connecting screws from the outside in.(Left and right are the same operation) -Right side wire connection: JET Games Corporation 822 South Nova Road, Daytona Beach FL 32114 www.JETGamesUSA.com... - Page 26 1-Light wire 2-Internet wire 3-Power supply 1-Air tube 2-12V LED light JET Games Corporation 822 South Nova Road, Daytona Beach FL 32114 www.JETGamesUSA.com...
- Page 27 Same wire connection wire as the front side Wire connection: 1× HDMI cable 1× Air compressor JET Games Corporation 822 South Nova Road, Daytona Beach FL 32114 www.JETGamesUSA.com...
- Page 28 Camera board wiring drawing JET Games Corporation 822 South Nova Road, Daytona Beach FL 32114 www.JETGamesUSA.com...
- Page 29 IO board wiring drawing JET Games Corporation 822 South Nova Road, Daytona Beach FL 32114 www.JETGamesUSA.com...
-
Page 30: Troubleshooting
Troubleshooting Reason Error Solution On Power Up no Video is No power to the screen Connect or replace the power cable shown on the screen, The signal cable is not Connect or replace the signal cable dark screen no back connected or damaged lights On power up there is no... - Page 31 BIG SHOT PART LIST Name Picture Price Boards BS-01- Call Camera board Distributor Call BS-01- IO board Distributor BS-01- Call Small display Distributor BS-01- Call Distributor...
