edc Micropump II Operation And Maintenance Manual

Filtering
The filter fitted is to prevent large debris such as fibers, scale and slime from blocking the pump
mechanism and tubes. The filter is removable and washable. It extends the life of the pump and should
be carefully fitted (fig. 10).
On sealed and filtered air flow systems in clean environments, where clean condensate is produced,
the filter may be removed providing the system is flushed through first. If in doubt keep the filter fitted.
Troubleshooting
Pump Not Operating or operating intermittently:
Check Supply Fuse.
Check the filter (see inspection and maintenance).
Check Discharge tube for blockages.
Check Tube connections are secure and water tight.
See Note 2
Water Overflowing or Leaking:
Check the pump is secure and level.
Check Discharge tube for blockages.
Check Tube connections are secure and water tight.
Check Supply Fuse.
Check the filter (see inspection and maintenance).
Note 2. The pump motor is protected by an automatic self re-setting thermal overload. This will cause the
pump to stop if the discharge tube is blocked or debris built up on the sensor plates causing the pump to
pump air. Shut Off power for 30 minutes to allow to cool. Perform full service routine and test. If problems still
occur, Replace complete Pump.
Auxiliary Parts
MCP .0084.0 Replacement Filter Sponge
MCP .0083.0 MicroPump II Acoustic Control Jacket for the most sensitive applications
ACC.0056.0 Anti-siphone Valve (see fig. 7)
ACC.0059.0 6mm Discharge Tubing 30m coil
Warranty
This product is guaranteed for two years to be free from manufacturing defects or faulty materials. If it should fail for
either of these reasons within two years from the date of manufacture it will be replaced or repaired free of charge, at
the option of EDC International Limited.
EDC International Limited can accept no liability whatsoever for any loss or damage arising from the use of this
product, however caused. Before using this product the user should satisfy himself that the product is suitable for use
in the intended application, and for the manner in which it is intended that it be used. Note that the warranty on this
product is void if it has been blocked by dirt or if any part has been mechanically damaged. This product is subject to
continuous development and improvement and EDC International Limited reserves the right to alter the specifications
or design without prior notice.
p4
LIT-2500
6mm,
0.25" ID.

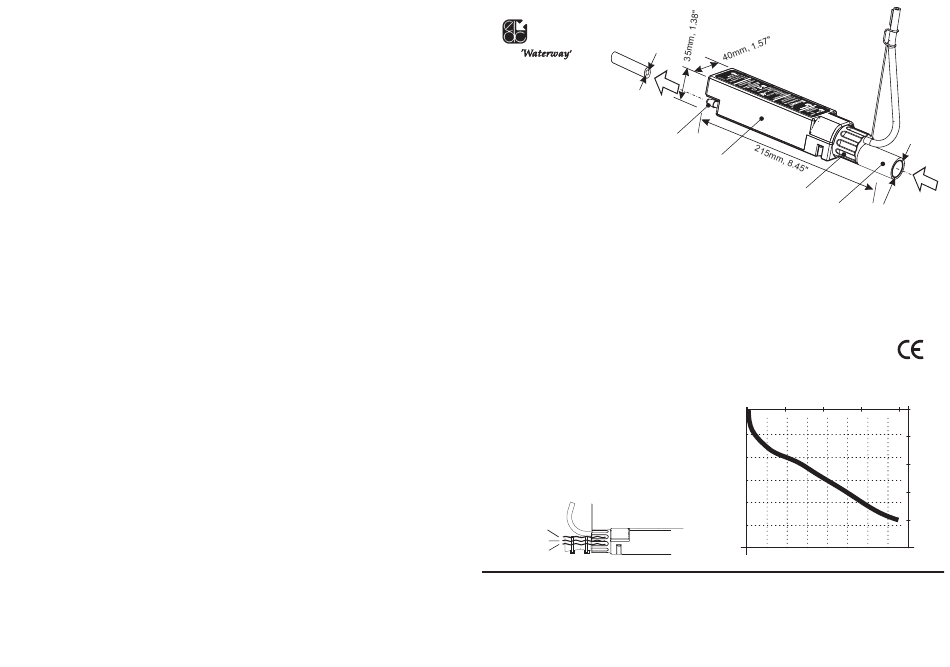

Micropump II Micropump II
®
Condensate Removal Pump Condensate Removal Pump
Discharge
Operation and Maintenance
guide
Pump Housing
For Installation and Service
Engineers
The installation of this product is to be carried out by Competent Engineers.
READ THIS BOOKLET before installation of this product.
Retain this booklet as it contains important information for the safe and proper use of this product.
All electrical wiring must comply with all National and Local Electrical Codes.
This product complies with the European Directive on Low Voltage Safety, and contains components designed to promote
compliance with the European EMC Directive.
Specification
Model Power Supply:
Euro MCP.2000.0 230V 50/60Hz 30W
US: MCP.2000.1 208-240V 60Hz 30W
US: MCP.2000.2 110-120V 60Hz 30W
Relay: 5A 250V, Break on Alarm.
Protection: IP20
Operating Temperature: Air 50°C / 122°F max
Water 25°C / 77°F max
Pumping Capacity: See Graph
Discharge Head: 15 metres/49ft max, see fig
Max Tube Length: 100 metres/ 330ft
Thermal Protection: Auto-reset at 55°C 131°F.
Pump Switching Levels: On 17 mm / 9/32"
Off 12 mm / 1/2"
Alarm Level *1 19 mm / 3/4"
*1. Level must be above for 15 seconds to trigger alarm.
ALARM LEVEL*1
PUMP ON
PUMP OFF
EDC International Ltd
Brook House, 14 Station Road,
Pangbourne, Reading, England
RG8 7AN
Tel: +44(0)118 9842991.
Fax: +44(0)118 9845300
www.edcinternational.com
Breather Tube
(Vent)
Filter Chamber
Inlet Connector
Important!
Cable Length
1.0 M /3'4" - 0.75mm²
3'4" - 18 AWG
3'4" - 18 AWG
fig.2 Capacity Chart
US Gal/Hr
1 2 3
Vertical
Height
12
(metres)
10 2.
8
6
4
2
0 2 4 6 8 10 12
EDC International, Inc
315 Riggs Street, Unit 1, Oxford, CT06478 U.S.A
Phone:(203)881 5544
EDC Technologies Asia Pte Ltd
21004 Toa Payoh North #06-08, Singapore, 318995
Phone:+65252 8030 Fax+65 252 3682
15 - 20mm,
0.6-0.79"
4
Vertical
50 Height
(feet)
40
30
20
10
14 16
Litres/ Hour
