Summary of Contents for Xigmatek VANGUARD S CUBE

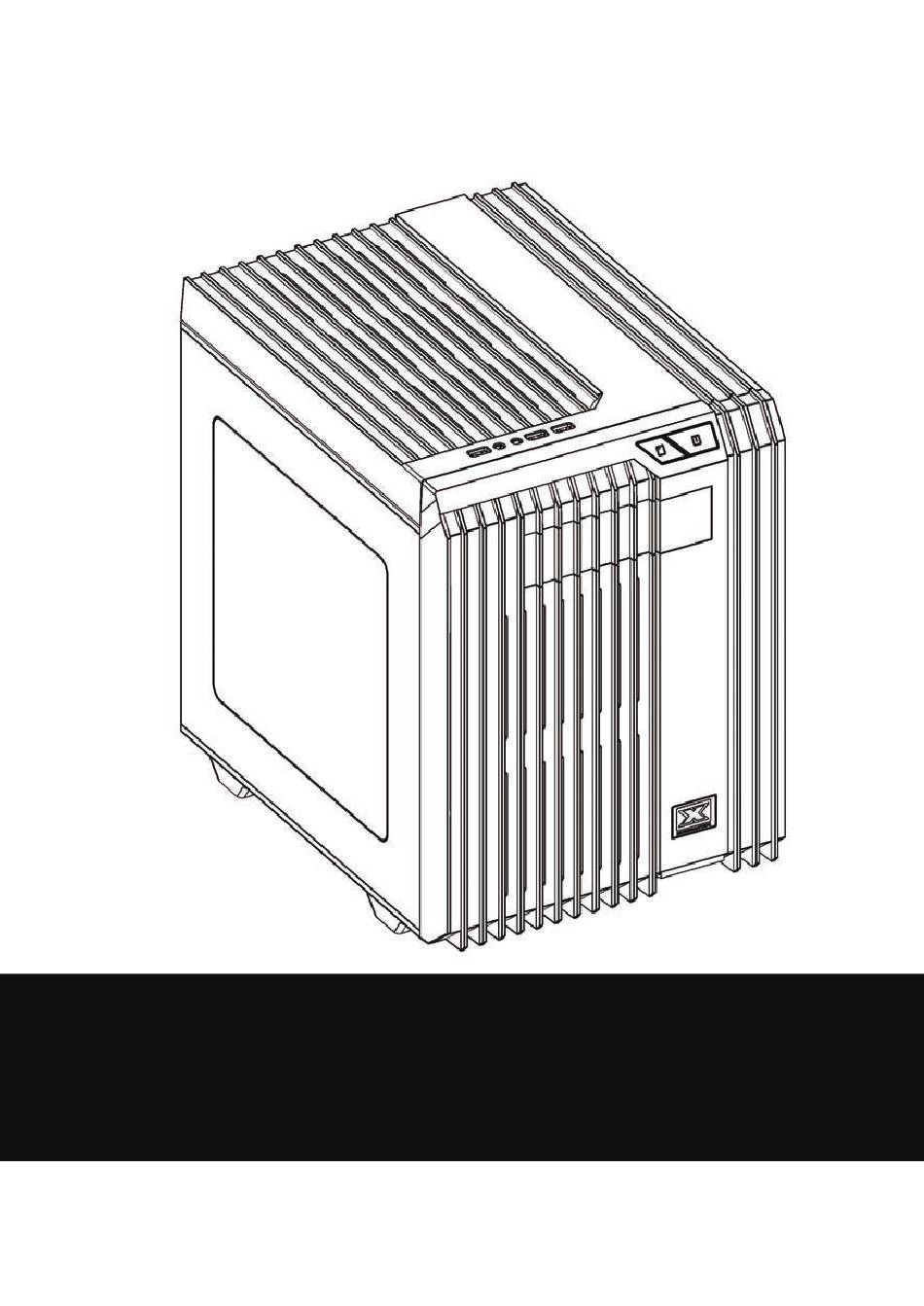

- Page 1 VANGUARD S CUBE INSTALLATION GUIDE 安裝指南...
- Page 2 Accessory Packet Contents Power Supply Screw |電源用螺絲 Motherboard Stand Off |主機板銅柱 Stand Off Tool |銅柱工具 Large Head 3.5” Drive Screw |3.5”硬碟螺絲 Large Head 2.5” Drive Screw |2.5”硬碟螺絲 X 12 3.5” HDD Screw |3.5”硬碟螺絲 Hard Drive + Motherboard Screw X 24 |光碟機螺絲+主機板螺絲...
-
Page 3: Case Features
Case Features Windowed Side Panel |開窗側板| Dust Filters |防塵網 | Ventilated Side Panel |網狀側板| Power+Reset Button |電源及重置按鈕| Optical Disk Drive Cover |光碟機檔板| Front Panel |前面板| Top Panel |上蓋面板| USB 3.0 x 2, USB 2.0 x 1, Audio I/O |USB 3.0 x 2 USB 2.0 x 1 / 前置麥克風跟音源孔| 200mm Front Fan |前置... -
Page 4: Installation Steps
Installation Steps Removal of Panels 卸載機身面板 1.To begin building your computer, unscrew the four thumb-screws securing the side-panels. 1.To begin building your computer, unscrew the four thumb-screws securing the side-panels. These are located at the back of the case. Once these are removed, hold the protrusion found on These are located at the back of the case. -
Page 5: Motherboard Installation
Motherboard Installation 安裝主機板 2. To install the motherboard, Xigmatek advises that you follow the guide included with your 2. To install the motherboard, Xigmatek advises that you follow the guide included with your motherboard purchase or on the company’s website. -
Page 6: Add-On Card Installation
Phillips Head screw-driver. Although the case design has a cut-out for easy cpu cooler installation, Xigmatek advises installing CPU coolers onto the motherboard rst. 3.1. To install a PCI-E/PCI card (such as graphics card), locate the slot (at the back of the case) which aligns with your add-on card location on the motherboard. - Page 7 Installation Steps Radiator/Hard Drive Mounting Bracket Removal Power Supply Installation 移除水冷裝置架/硬碟架 安裝電源供應器 4. Unscrew the four screws located on the corners of the radiator/drive mounting bracket with your Phillips Head screw-driver. It is advised that you remove this bracket until the end of your hardware installation.
- Page 8 Installation Steps Drive Cage Removal and Relocation 硬碟架的移除與替代位置 6. The drive cage can be removed or relocated depending on user preference. To remove, use your screw-driver to unscrew the two screws found at the front of the cage and the four on the back. 6.1.
-
Page 9: Drive Installation
Installation Steps Drive Installation 安裝硬碟/光碟機 7.1 Inside the drive cage are two drive trays. Each drive tray supports a 3.5” HDD or 2.5” SSD. 7.2 To install 3.5” HDD, align one side of the drive’s screw-holes with the drive tray screws and slide in. - Page 10 Installation Steps Drive Installation Drive Installation 安裝硬碟/光碟機 安裝硬碟/光碟機 8. With the front panel o , slide your 5.25” optical disk drive into the mount. Do not slide the drive all the way in. Once in the external 5.25” bracket, place the front panel back onto the case to align the 5.25”...
- Page 11 Installation Steps 9.1. The radiator/hard drive mounting bracket can support two 2.5” SSD and one 3.5” HDD. Align the screw-holes on the surface of your drives with the mounting bracket holes. Make sure the connect- ing ends of the drives are facing a convenient direction for easy access and cable management. Use the hard drive screws found in the accessory packet to secure your 2.5”...
- Page 12 Installation Steps Drive Installation 安裝硬碟/光碟機 10. At the base of the case (beneath the motherboard) are options for drive installation. To install hardware on the bottom of the case, you must rst remove the dust lters by sliding them out (towards the power supply side of the case).
-
Page 13: Fan Installation
If you choose to use 140mm or 2 x 120mm Xigmatek fans, the screws are fastened from the inside of the case. 2 x 120mm fans can be installed on the inside of the body and screwed in from the outside.It is advised that you do not install fans on both inside and outside of any one side of the case as this may cause turbulence resulting in loss of air ow and increase in noise output. - Page 14 170mm Fan x1 12. The top of the case will support 200mm, 170mm, 2 x 140mm and 2 x 120mm Xigmatek fans. If you intend to install 170mm or a single 140mm fan, you can choose to install on the inside or outside of the body.
- Page 15 Installation Steps Fan Installation 安裝風扇 13. 2 x 120mm fans can be install below the motherboard at the base of the body. To installed these fans you must rst remove the dust lters by sliding them out (towards the right side of the body). Before installing the fans you must rst remove the rubber drive mounts located in this space.
- Page 16 Installation Steps Fan Installation 安裝風扇 Optional 120mm Fan x2 120mm 240mm 14. The radiator/drive mounting bracket supports 2 x 120mm fans and a 240mm radiator. For installation, place the fans and radiator on the mounting bracket and secure with your screw-driver from the inside side of the bracket.
- Page 17 E-mail: sales@xigmatek.com 2015 © XIGMATEK Co., Ltd. All rights reserved. All trademarks are the property of their respective owners.
