V1
RACK SK14
RACK SK28
RACK SK38

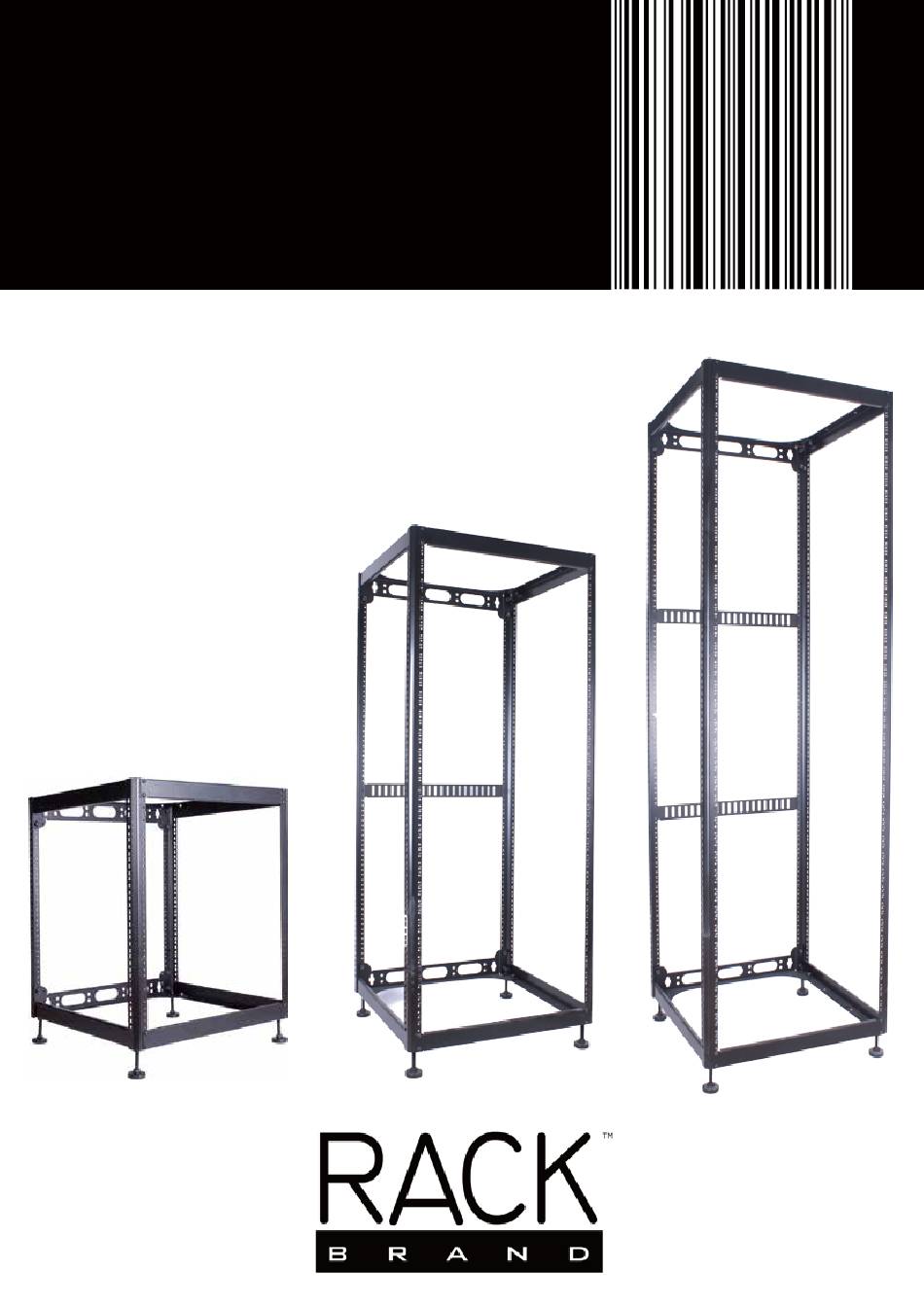

14, 28, and 38 Space Skeleton Rack Enclosure
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
MANUEL D' INSTRUCTIONS
CAUTION: DO NOT EXCEED MAXIMUM
WEIGHT CAPACITY. SERIOUS INJURY OR
PROPERTY DAMAGE MAY OCCUR!
Max Weight:
14 Space Rack - On floor 500 lbs
Mounted to wall 175 lbs
28 Space Rack - Floor only 700 lbs
38 Space Rack - Floor only 1000 lbs
Advertisement
Related Manuals for MSTR BRAND RACK SK14
Summary of Contents for MSTR BRAND RACK SK14
- Page 1 RACK SK14 RACK SK28 RACK SK38 14, 28, and 38 Space Skeleton Rack Enclosure INSTRUCTION MANUAL MANUAL DE INSTRUCCIONES MANUEL D’ INSTRUCTIONS CAUTION: DO NOT EXCEED MAXIMUM WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR! Max Weight: 14 Space Rack - On floor 500 lbs...
-
Page 2: Tools Needed
Marque con lápiz Destornillador Nivel Tres Lourd! Percer Marque de crayon Clé ouverte Attention Serrer Tournevis Niveau !Pesado! HARDWARE PRODUCT NUMBERS Nylon Nut Screw Phillips Screw Lag Bolt Anchor Foot Screw M5*18mm M6*12mm ST8*65mm RACK SK14 RACK SK28 RACK SK38... - Page 3 PRODUCT COMPONENT PARTS Product Components Contents Description RACK SK14 RACK SK28 RACK SK38 Left Frame Right Frame L Brackets Flat Brackets Middle Brackets...
- Page 4 STEP 1- INSTALL L BRACKETS Fit L Bracket over Slide L Bracket over left frame vertical horizontal screw stud. screw stud. Repeat Step 1 to secure Right L Secure L Bracket with Bracket. Nylon Nuts. Nylon Nut M8...
- Page 5 STEP 2- INSTALL FLAT BRACKETS TO FRAMES Screw M5*18mm STEP 3 - SECURE THE MIDDLE BRACKET TO THE RACK- 28 AND 38 SPACE AND RACK ONLY Screw M5*18mm Secure the middle bracket(s) to the rack with Middle brackets can be used for cable management...
- Page 6 STEP 4- ATTACH FOOT SCREWS Install Foot Screws.Make sure Foot Screws are screwed in until the Nylon Nuts at the top of the Foot Screws are flush against the frame. Level Level Adjust the Foot Screws with a screwdriver to make sure the frame is level.
- Page 7 OPTIONAL STEP- STACKING - 14 SPACE RACK ONLY (SECOND RACK SOLD SEPARATELY) Fit second frame (without Secure frames with Phillips Screws Foot Screws) onto first one. Phillips Screw M6*12mm CAUTION: When stacking, ensure heavier equipment is placed at the bottom of the rack(s) for stability.
- Page 8 WOOD STUD INSTALLATION - 14 SPACE RACK ONLY (CONCRETE INSTALLATION SKIP TO 5B) STEP 5A- Find stud and mark edge and center locations Ubique el panel y marque las ubicaciones de los bordes y el centro. Repérez l'emplacement d'une poutre, puis marquez l'emplacement des bords et du centre de cette poutre. STEP 5A –...
- Page 9 STEP 5A- WOOD STUD INSTALLATION (CONCRETE INSTALLATION SKIP TO 5B) Find stud and mark edge and center locations Ubique el panel y marque las ubicaciones de los bordes y el centro. Repérez l'emplacement d'une poutre, puis marquez l'emplacement des bords et du centre de cette poutre. STEP 5A –...
- Page 10 STEP 5B – SOLID CONCRETE INSTALLATION - 14 SPACE RACK ONLY Solid Concrete Drill Bit Level Drill pilot hole Concreto sólido S. broca Nivelado Realice el agujero piloto Béton massif Foret Level Percez le trou de guidage DRILL BIT LEVEL WALL PLATE NOT INCLUDED WITH INCLUDED BUBBLE LEVEL AND...
- Page 11 STEP 5B – SOLID CONCRETE INSTALLATION Solid Concrete Drill Bit Level Drill pilot hole Concreto sólido S. broca Nivelado Realice el agujero piloto Béton massif Foret Level Percez le trou de guidage DRILL BIT LEVEL WALL PLATE NOT INCLUDED WITH INCLUDED BUBBLE LEVEL AND MARK HOLES FOR DRILL BIT PILOT HOLE...
-
Page 12: Warranty Information
STEP 6- HANG THE RACK TO THE LAG BOLTS AND TIGHTEN THE LAG BOLTS - 14 SPACE RACK ONLY Heavy, Assistance Required TRES LOURD ! Cette etape requiert deux personnes !PESADO! Necesitara ayuda para realizar esta operacion WARRANTY INFORMATION This warranty applies to US Residents who purchase from an authorized RACK BRAND Dealer. RACK BRAND are covered againse defects in materials and workmanship for 5 years.RACK BRAND will repair or replace the defective component or product, at its sole discretion.
