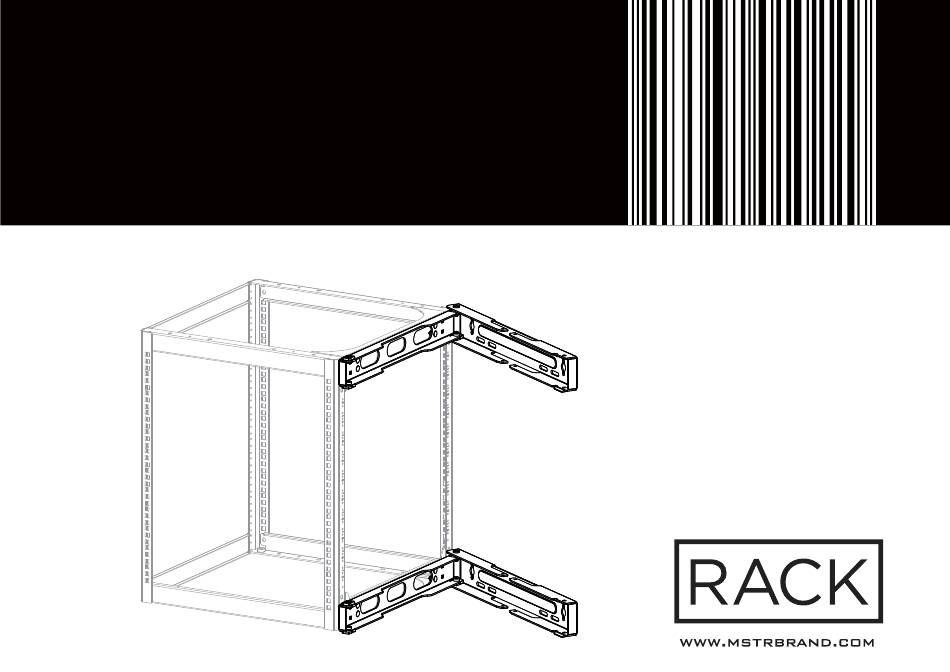

- Page 1 RACK SK-SWING Swing Arm Wall Mount Accessory for RACK SK14,SK28 and SK38 INSTRUCTION MANUAL...
-
Page 2: Required Tools
Required Tools 13mm 5.5mm 10mm (1/2 in. (7/32 in.) (3/8 in.) -
Page 3: Supplied Parts
Supplied Parts WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer;... - Page 4 Attach Swing Arm to Rack Assembly The swing arms [01] can be mounted guration best guration or a right suits your needs. Attach the rack arm [02] guration. of both swing arms [01] to the back brace of the rack using carriage bolts [02], washers [03], and lock nuts [04].
- Page 5 Mounting to Wall (Wood stud) Locate studs. Verify the center of the stud with an rst lag nder. bolts on the center line of the stud CAUTION: Avoid potential personal injuries and property damage! Ù Any material covering the wall must not exceed 16 mm (5/8 in.).
- Page 6 Drill pilot holes as illustrated. Start hinge side lag bolts [05]. Leave approximately 13 mm (1/2 in.) of CAUTION: Improper use space from the bolt head to the wall. could reduce the holding power of the lag bolt. To avoid potential injuries or property damage: pilot holes MUST be drilled to a depth of 89 mm (3½...
- Page 7 Hang swing arm/rack assembly onto the lag bolts [05]. [05] [01] [05] [01]...
- Page 8 Tighten lag bolts [05] only until the washers [06] rmly against the wall arm [01]. CAUTION: Improper use could reduce the holding power of the lag bolt. To avoid potential injuries or property damage DO NOT over- tighten the lag bolts [05]. [05] [05] 13mm...
- Page 9 Tighten lag bolts [05] only until the washers [07] Drill through the top slots of the wall arms [01] rmly against the wall arm [01]. into the center of the next stud. CAUTION: Improper use could reduce the CAUTION: Improper use could reduce the holding power of the lag bolt.
- Page 10 Mount to Wall (solid concrete or concrete block) Mark the locations for the lag bolts on the Drill pilot holes as illustrated. corners of a rectangle measuring 406.4 (16 in.) CAUTION: To avoid potential injuries or property damage: Ù Pilot holes MUST be drilled to a depth of 89 mm (3½...
- Page 11 Insert lag bolt anchors [08]. Start hinge side lag bolts [05]. NOTE: Leave approximately 13 mm CAUTION: To avoid potential injuries or (1/2 in.) of space from the bolt head property damage be sure the anchors [08] seat to the wall. ush with the concrete surface.
- Page 12 Hang swing arm/rack assembly onto the lag bolts [05]. [05] [01] [05] [01]...
- Page 13 Tighten lag bolts [05] only until the washers [06] rmly against the wall arm [01]. CAUTION: Improper use could reduce the holding power of the lag bolt. To avoid potential injuries or property damage DO NOT over- tighten the lag bolts [05]. [01] [05] [01]...
- Page 14 Tighten lag bolts [05] only until the washers [07] rmly against the wall arm [01]. CAUTION: Improper use could reduce the holding power of the lag bolt. To avoid potential injuries or property damage DO NOT over- tighten the lag bolts [05]. 13mm (1/2 in.
- Page 15 Lock Frame to Wall Close the rack arm/frame assembly onto the Secure frame arm to wall swing arm. arm with locking pins [08]. [08] NOTE: Remove the locking pins [08] and swing rack away from the wall to access the back of the rack. [08] [08]...
-
Page 16: Manage Cables
Manage Cables Run cables through both slots on the wall arms [01] or out the side of the rack frame to prevent damage to the cables. If there are additional cables above or below that need to be routed behind the rack, route them through the slots of the wall arms.
