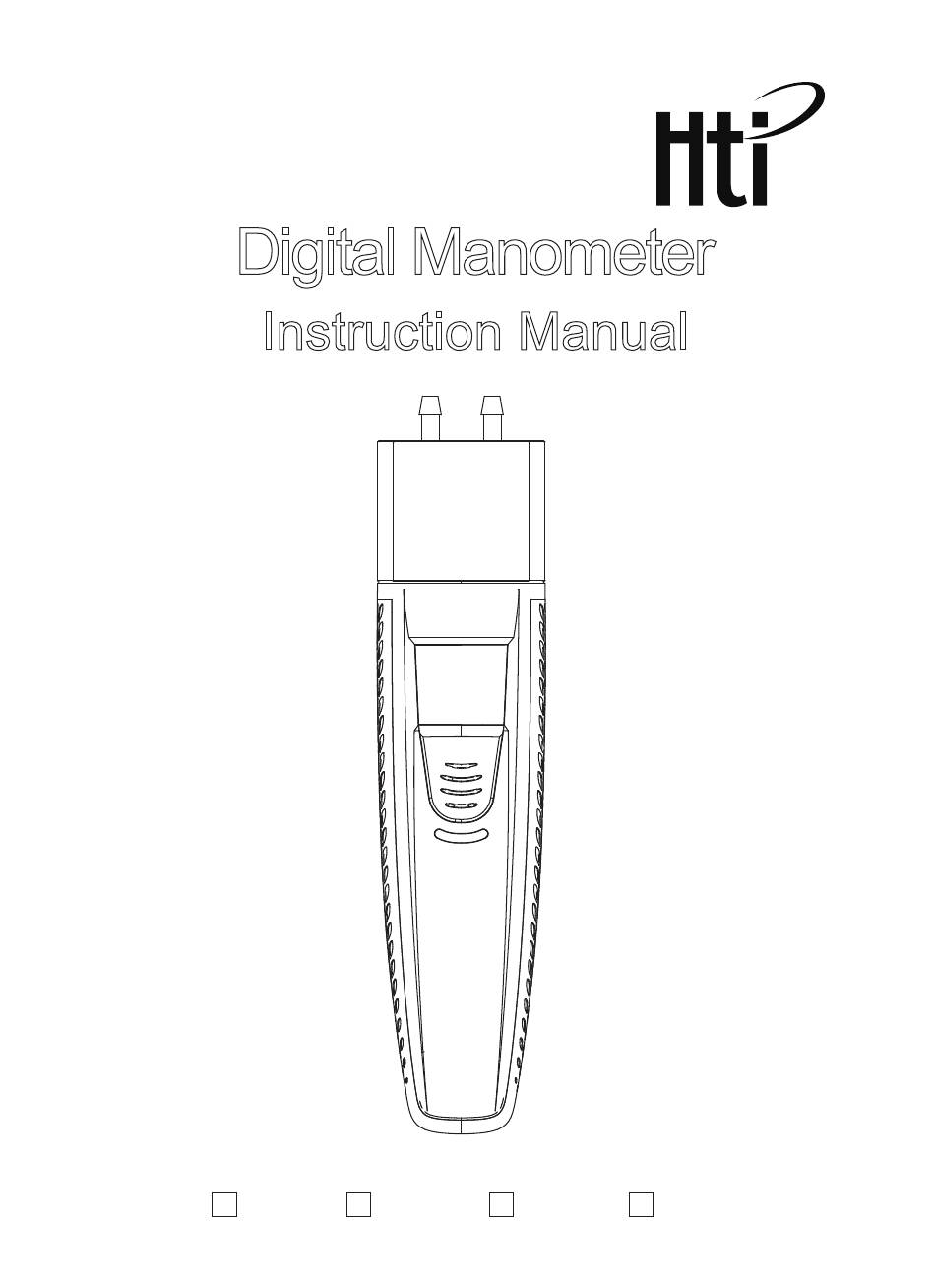

- Page 1 Digital Manometer Instruction Manual HT-805 HT-805A HT-805B HT-805C...
- Page 2 Overview Thank you for using our manometer. In order to ensure the better use of it, we remind you to carefully read this instruction before use. This product is an manometer with Bluetooth function, it can measure differential pressure, positive pressure and negative pressure, suitable for ventilation system measurement, field verification, troubleshooting of any gas pressure system, it is an indispensable measurement tool for HVAC technicians, operation and maintenance engineers and scientific research personnel.
-
Page 3: Display Description
Key Position Figure 1 Display description Bluetooth symbol Power indicator Air pressure reading Air pressure unit Bluetooth function applications 1)Get the software of application Our company offers the apps for Apple mobile system and Android system. Scan the two-dimensional code below to download and install the app "Manometer"... - Page 4 2) Android phone first connection instrument Turn on the meter → activate the smartphone’s Bluetooth function → Open the manometer APP. When it is the first time to install manometer software and open it, it goes to the “BLE Device List” interface other than the main interface by default (When the APP is opened the next time, the APP will directly enter the main interface, and automatically search and connect the meter successfully connected the last time) →...
- Page 5 5) The main interface of Manometer APP can show measured reading and battery capacity of gauge and switch measurement units at any moment (see fig.2) 6)Setting the frequency of data record: Click on for the setup in the dialog box (see fig.3) Figure 2 Figure 3 7) Saving measured data in your mobile phone or share with...
- Page 6 Iphone: click icon under main interface of APP. Selecting “Share” in the pop-up dialog box can generate data as Excel files which can be shared with other people NOTE: data is not available to store in Apple system. 8)Tendency chart for checking, saving and sharing data: click “TREND”...
-
Page 7: Product Parameters
Product parameters HT-805 Unit Range Resolution Accuracy 0.002 0～0.050Kpa ± （ ±0.500 0.001 ± （0.002+1.5%readings） （0.050～0.500Kpa）; HT-805A Unit Range Resolution Accuracy ± 0.006（0～0.2psi); 0.001 readings ±（0.006+1.5% ） ±2 （0.2～2psi); HT-805B Unit Range Resolution Accuracy ± 0.006（0～0.2psi); readings ±（0.006+1.5% ） ±5 0.001... - Page 8 Dongguan Xintai Instrument Co.,Ltd. Add: Building F, No. 13-16, Hongye Industrial Zone, Tangxia community, Tangxia Town, Dongguan City Postcode:523710 Tel:+86-769-82612006 Fax:+86-769-82612005 Website:www.hti-meter.com https://hti-instrument.com www.xintest.en.alibaba.com...
