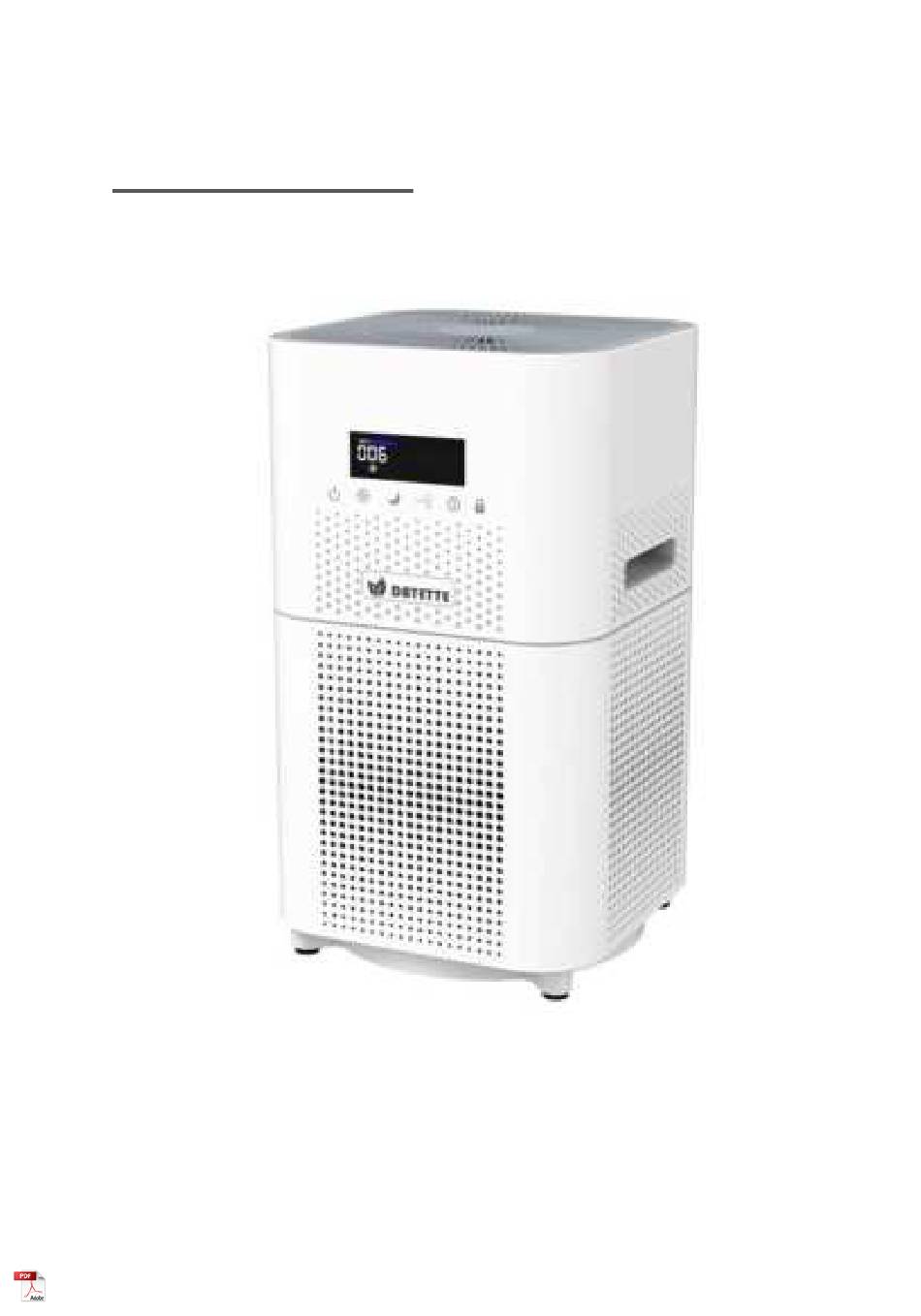

- Page 1 USER MANUAL TRUE HEPA AIR PURIFIER READ AND SAVE THESE INSTRUCTIONS LIFETIME WARRANTY IF REPLACES THE FILTER ON TIME YOUR SATISFACTION IS OUR TOP CONCERN...
-
Page 2: Table Of Contents
Content Safety Information......................3 Package Contents......................4 Specification & Unique Features................5 Know Your Air Purifier....................7 How To Use........................10 How To Replace Filter....................12 Care & Maintenance..................... 14 Disposal and Recycling....................16 Tips to Buy Air Purifier....................17 Trouble Shooting......................18... -
Page 3: Safety Information
SAFETY INFORMATION To reduce the risk of fire, electric shock, or other injury, follow all instructions and safety guidelines. GENERAL SAFETY • Only use your air purifier as described in this manual. • Always place the air purifier on a firm, leveled surface. •... -
Page 4: Package Contents
WARNING • If the power adapter is damaged, please contact our customer service directly to replace with new replacement. • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 5: Specification & Unique Features
SPECIFICATION & UNIQUE FEATURES Power Supply 100-240V 50/60hz Rated Power Temperature: Noise Level 22–53dB Operating Conditions 14°F– 104°F / - 10°C–40°C Humidity: < 85% RH GENUINE TRUE HEPA H13 FILTRATION SYSTEM TRUE HEPA H13 FILTRATION Removes up to 99.97% of airborne particles as small as 0.3 microns, such as allergens, pollen, dust, germs, pet dander, odor, mold spores, and smoke from the air that passes through the filter. - Page 6 PRE-FILTER Captures large particles such as dust, lint, fibers, hair, and pet fur.Maximizes the life of the True HERA Filter by protecting it. PROTECTIVE NET FILTER Air Quality Indicator Chart & DIGITAL DISPLAY This indicator uses an automatic sensor to display the air quality. This sensor uses an infrared light to detect airborne particles.
-
Page 7: Know Your Air Purifier
KNOW YOUR AIR PURIFIER Front Back A: Air Outlet B: Control Panel C: Air Inlet D: Body Shell E: Handle F: Power Adapter Interface G: Air Quality Sensor Cover H: H13 HEPA Filter Note: Filter and base are one-piece design. Upside Down... -
Page 8: Control Panel
CONTROL PANEL A: On/Off Button B: Fan Speed Button C: Sleep Mode Button D: Filter Rest Button E: Timer Button F: Child Lock Button LED Display 1: PM2.5 Digital Display 2: Air Quality Indicator 3: Auto Mode 4: Smart Filter Replace Indicator 5: Timer Display 6: Low Speed 7: Medium Speed... -
Page 9: Remote Control
Remote Control On / OFF Button Child Lock Button Speed Button Sleep Mode Button Filter Rest Button Timer Button Note: remote control comes without battery (2*AAA batteries needed). How To Install Batteries For Remote Control? Open battery cover and put Close battery cover 2*AAA batteries in correctly... -
Page 10: How To Use
HOW TO USE BEFORE TURNING THE UNIT ON Take the air purifier out of the box and remove the clear protective plastic bag. Open bottom filter cover to take filter out,then take the power adapter out.Finally put air filter back and lock filter cover. Place the air purifier on a firm, leveled surface. - Page 11 or change fan speed, press the fan speed button until the desired setting is reached. The speed indicator will change to show the speed you choose currently. Please check “LED Display” content for reference. Auto Mode When at turbo speed,press fan speed button again to switch to auto mode.
-
Page 12: How To Replace Filter
Press sleep mode button again to turn off sleep mode, air purifier will run at low fan speed. Sleep Mode can also be turned off via fan speed button or timer button. But if you press timer button, the timer function will be activated. Note: sleep mode indicator could not turn off. - Page 13 HOW TO REPLACE FILTER NOTE: for safety consideration , please do unplug the power adapter before starting to replace filter. Rotate the twist handle Take the old filter out counterclockwise to unlock Remove the new filter protective Tighten the filter buckle bag before installation.Place the clockwise until it clicks into place filter into the air purifier and install...
-
Page 14: Care & Maintenance
CARE & MAINTENANCE NOTE: For the best performance, vacuum the pre-filter once a month under normal usage. Cleaning the Air Purifier Wipe the outside of the air purifier with a dry cloth. Do not clean with water or any other liquid to avoid risk of electric shock. Clean the white side of the filter with a brush or vacuum hose each month to prevent buildup of hair or dust. -
Page 15: Use Environment
Storage If not using the air purifier for an extended period of time, wrap the filter in plastic packaging and store in a dry place to avoid moisture damage. When Should I Replace the Filter? The filter should be replaced every 6-8 months (3000h). But you may need to replace your filter earlier or later depending on how often you use your air purifier. -
Page 16: Disposal And Recycling
Warning: Do not wash or spill this product with liquid. Keep your hands and fingers away from the high-speed wheel component rotating in the purifier. Avoid foreign objects entering the unit air vent, it may cause heat or damage to the unit. Children shall not play with the air purifier. -
Page 17: Tips To Buy Air Purifier
Tips to Buy Air Purifier Clean Air Delivery Rate (CADR) Clean Air Delivery Rate (CADR) measures the efficiency of an air purifier by indicating the volume of clean air that an air purifier produces per minute. This is based on the removal of dust, pollen, and smoke, which are the 3 most common indoor air pollutants. -
Page 18: Trouble Shooting
Filter failure-replace the Check if filter in correct Can't feel the effect filter. location Use in inappropriate Use in bedroom,living room places (excessive area) or other indoor places If your problem is not listed here, please contact our Customer Support. info@dayette.com...
