DOEPFER R2M User Manual

Ribbon to midi controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

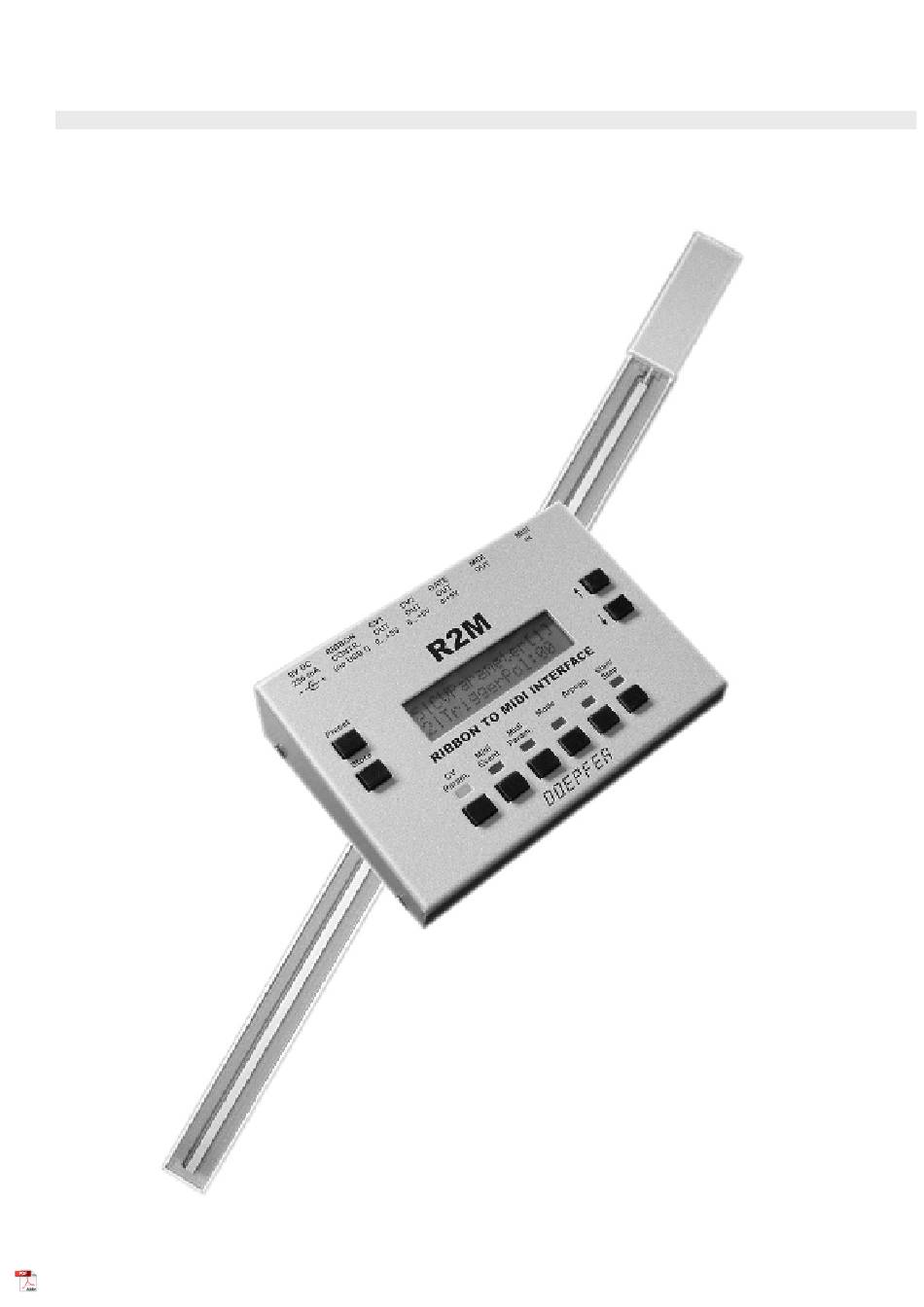

DOEPFER
Ribbon To Midi Controller
R2M
User's Guide
© 2005 by
Doepfer Musikelektronik GmbH
Geigerstr. 13
82166 Graefelfing
Germany
Phone:
Fax:
Web Site: www.doepfer.de
Email: sales@doepfer.de
https://manual-hub.com/
#49 89 89809510
#49 89 89809511

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R2M and is the answer not in the manual?

Questions and answers

Related Manuals for DOEPFER R2M

Summary of Contents for DOEPFER R2M

  • Page 1 DOEPFER Ribbon To Midi Controller User’s Guide © 2005 by Doepfer Musikelektronik GmbH Geigerstr. 13 82166 Graefelfing Germany Phone: #49 89 89809510 Fax: #49 89 89809511 Web Site: www.doepfer.de Email: sales@doepfer.de https://manual-hub.com/...

  • Page 2: Operating And Safety Instructions

    VDE 0550 (Teil 1/12.69), DIN VDE 0551 (05.72), DIN VDE 0551e (06.75), DIN VDE 0700 (Teil 1/02.81, Teil 207/10.82), DIN VDE 0711 (Teil 500/10.89), DIN VDE 0860 (05.89), DIN VDE 0869 (01.85). VDE papers can be obtained from the VDE-Verlag GmbH, Berlin. Page 2 R2M User's Guide V1.11 https://manual-hub.com/...

  • Page 3: Table Of Contents

    Generating note messages only (no pitch bend)..........23 Generating single note messages with pitch bend (Trautonium mode) ....23 Generating succeeding note messages with pitch bend ........24 Generation of the control voltages CV1/CV2 and Gate........26 Appendix ........................28 R2M User's Guide V1.11 Page 3 https://manual-hub.com/...

  • Page 4: Introduction

    Additionally a pressure voltage is generated that increases with the pressure applied to the position sensor. Both voltages are fed to the R2M control box via a four-pin cable (same as USB but does not transmit USB data). For the manual the same type as the for the modular version A-198 is used.

  • Page 5: Connections

    Fig. 2 Power Supply (9V DC 250 mA) R2M does not have a built-in power supply. Instead it uses a plug-in type external power supply (AC adapter). One reason for this feature is electrical safety. Keeping danger voltages (mains) out of the R2M increases the electrical safety. Another reason for the external power supply is the fact that line voltages and plug types vary considerably from country to country.

  • Page 6: Cv1 Out

    MIDI Out Connect the Midi Out socket of R2M with the Midi In socket of the device to be controlled by the R2M (e.g. computer with Midi, Synthesizer, Expander, Sequencer) via a suitable MIDI-cable. If only analog equipment is controlled via CV/gate the Midi output is left unconnected.

  • Page 7: Operation

    This function can be used to modify Midi data with the R2M (e.g. adding pitch bend to note messages on the same Midi channel). If the arpeggiator is on the Midi merging function is not working. Incoming data on other Midi channels than the currently selected R2M Midi channel are not merged ! The Midi input of R2M is not suitable for large amounts of Midi data (e.g.

  • Page 8: Fundamental Operation Notes

    Fundamental operation notes • R2M contains a lot of parameters that can be adjusted by the user and stored in 16 presets. Similar parameters are collected in the same menu. • A menu is activated by pressing the corresponding menu button. The active menu is indicated by an illuminated LED.

  • Page 9: Menu / Parameter Overview

    1 to 127 Gate length Norm CV 0 to -96 Norm CV off, note on/offf, note hold, note write external, internal BPM , Mod&BPM sensor 1 = position sensor; sensor 2 = pressure sensor R2M User's Guide V1.11 Page 9 https://manual-hub.com/...

  • Page 10: Description Of Menus And Parameters

    Remark 1: If the device connected to the gate output behaves reverse the trigger polarity has to be changed. Remark 2: If a device with switched trigger (S-Trig) is controlled by the R2M the inverted gate mode has to be selected and the hardware modification for switched trigger described in the attachment has to be carried out (removing a jumper inside the R2M).

  • Page 11: Menu 2: Midi Event

    Simultaneously the corresponding CV1 is generated and the gate output turns on. If the analog synthesizer resp. the envelope generator (ADSR) connected to the gate output of R2M User's Guide V1.11 Page 11 https://manual-hub.com/...
  • Page 12 R2M does not recognize the gate on/off/on transition the retrigger time 4-3 has to be increased until the gate transition is recognized by the receiver. The Midi messages are sent on the Midi channel adjusted in menu 3-1. Only in this mode b the quantization (see 4-1) is active.

  • Page 13: Midi Event [2]

    #7) is assigned the loudness is set to zero in the Midi equipment connected to R2M. If the mode for the pressure sensor is changed after volume zero has been sent the Midi equipment seems not to respond as the loudness is still zero. In this R2M User's Guide V1.11...

  • Page 14: Menu 3: Midi Parameter

    Midi receiver. Consequently the pitch scales of the R2M and the Midi receiver have to match for the Midi events c or d mentioned above. Otherwise the pitch change caused by note messages (i.e.

  • Page 15: Menu 4: Mode

    ± 5 octaves or to the maximum value if this is not possible. Otherwise the Midi event c (note & pitch relative) of the R2M cannot be used over the full range of 5 octaves. Then the pitch scale parameter of the R2M is adjusted so that best result is obtained.

  • Page 16: Number Octave

    R2M Midi note messages provided that the Midi channel corresponds to the Midi channel of the R2M (see chapter 3-1). The transpose offset is the note number value that is subtracted from the incoming note number before the transposition is calculated.

  • Page 17: Menu 5: Arpeggio

    The transposition is controlled by the position sensor of the R2M. The gate length determines the relation between Midi clock resp. internal clock and the arpeggio tempo.

  • Page 18: Octave

    In this mode the incoming Midi realtime messages start, stop, continue and clock are used to control the arpeggiator. The Midi transmitter connected to the Midi input of the R2M has to send these messages (at least start and clock). Otherwise the arpeggiator will not work.

  • Page 19: Norm Cv

    0...+5V. If the total arpeggio width is more than 5 octaves CV1 will be able to output only a 5 octave share of the arpeggio notes. This parameter has no influence to the Midi messages sent by R2M but only to CV1. If the arpeggiator seems not to work please check the following: •...

  • Page 20: Preset / Store

    Preset / Store R2M has available 16 presets that are used to store and call up 16 different settings of all parameters. The buttons Preset and Store are used to control these functions. Principle: Once a preset has been called up it is loaded into the so-called work-buffer.

  • Page 21: Typical Applications

    The parameter 3-2 Note is used to adjust the key for the quantization. This parameter is the Midi note number that corresponds to the leftmost position of the manual. R2M User's Guide V1.11 Page 21 https://manual-hub.com/...
  • Page 22 In addition the Midi channels of R2M and the controlling keyboard have to match. For the R2M this parameter is 3-1 Midi Channel.

  • Page 23: Generating Note Messages Only (No Pitch Bend)

    ± one quint, ± one octave or any other intervall according to the setting of the Midi receiver. Consequently the pitch scale of the R2M and the Midi receiver have to match for a meaningful cooperation between both devices. Otherwise a pitch change caused by note messages (i.e.

  • Page 24: Generating Succeeding Note Messages With Pitch Bend

    Midi receiver to ± 5 octaves or to the maximum value if this is not possible. Otherwise the R2M cannot be used over the full range of 5 octaves. Then the pitch scale parameter of the R2M is adjusted so that best result is obtained. Generating succeeding note messages with pitch bend This mode is similar the preceding Trautonium mode.
  • Page 25 As soon as the area of the new note is reached a pitch jump can be heard. In cases a and c the pitch bend scale of the Midi receiver or the R2M has to be adjusted until no pitch jump is heard when a new note is reached.

  • Page 26: Generation Of The Control Voltages Cv1/Cv2 And Gate

    In any case it is the best solution is to adjust both the pitch scale of the R2M and the Midi receiver until a satisfactory cooperation between both devices is reached. As soon as the optimal setting is found it is recommended to stored the settings as a new preset (see page 20).
  • Page 27 If 2-1 b Note is selected CV1 outputs a quantized control voltage with the quantization table that is selected with 4-1 Quantization (see page 15). The voltage that appears at CV1 corresponds to the Midi note messages generated by R2M. CV1 follows the 1V/octave standard, i.e. the voltage difference is 1/12 V (0.0833V) for each semitone.

  • Page 28: Appendix

    Appendix The following tables can be used to write down complete R2M settings (presets). Simply copy this page and complete the column labelled value with the corresponding values. Menu 1 CV Parameter Index Parameter Sensor Range Value Explanation see chapter ... Page Trigger Pol.
