For the following Model:
39A00-3 HAI UPB™ Three-Phase Repeater (TPR)
READ THESE INSTRUCTIONS BEFORE INSTALLING DEVICE
Important Notes Prior To Installation
1.
This HAI UPB™ Three-Phase Repeater is intended for installation in accordance with the National Electrical Code and all
other local codes and regulations.
2.
Installation must only be preformed by a qualified electrician.
3.
This product is for indoor use only.
4.
Be sure that all power has been disconnected by turning off the main breaker panel.
5.
This product must be installed in a suitable junction box or equivalent enclosure.
6.
Connect only copper or copper clad wire to this device.
7.
Retain these instructions for reference.
HAI UPB™ Three-Phase Repeater (TPR)
The HAI UPB™ Three-Phase Repeater (TPR) is a small electronic device that enables communication between devices using the
Universal Powerline Bus (UPB™) method of communication (such as HLC devices) on a three-phase 120/208VAC
delta-wye, 60Hz powerline. The main purpose of the TPR is to transfer UPB™ multi-packet messages transmitted on one phase (leg)
of the electrical system and strongly repeating them on to the other phases (legs) to ensure proper communication.
UPB™ communication was designed to work on a single phase powerline. In a three-phase environment, the signals will not directly
jump across all three phases of a 120/208V electrical system. The TPR is designed to take any UPB™ multi-packet generated signal
on a single phase and repeat them onto all three phases of the powerline.
INSTALLATION INSTRUCTIONS
Note: The TPR works best when installed as close
to the main circuit breaker panel as possible.
1.
Turn off the power at the main breaker panel.
2.
Install the TPR into a suitable junction box or
equivalent enclosure.
3.
Run wires from a three-pole circuit breaker to
the workbox for Phase A, Phase B, Phase C,
and Neutral (see illustration).
4.
Use wire nuts to connect the black wire of the
TPR to Phase A, and the red wire to Phase B,
and the blue wire to Phase C. Connect the white
wire of the TPR to Neutral. Check that there
are no bare wires protruding and cover the wire
nuts with insulating tape if necessary.
5.
Check all wiring and connections, and turn on
the main breaker.
6.
All three status LED indicators will light up if
all of the connections are proper.
HAI UPB™ Three-Phase Repeater
Installation and Operating Instructions

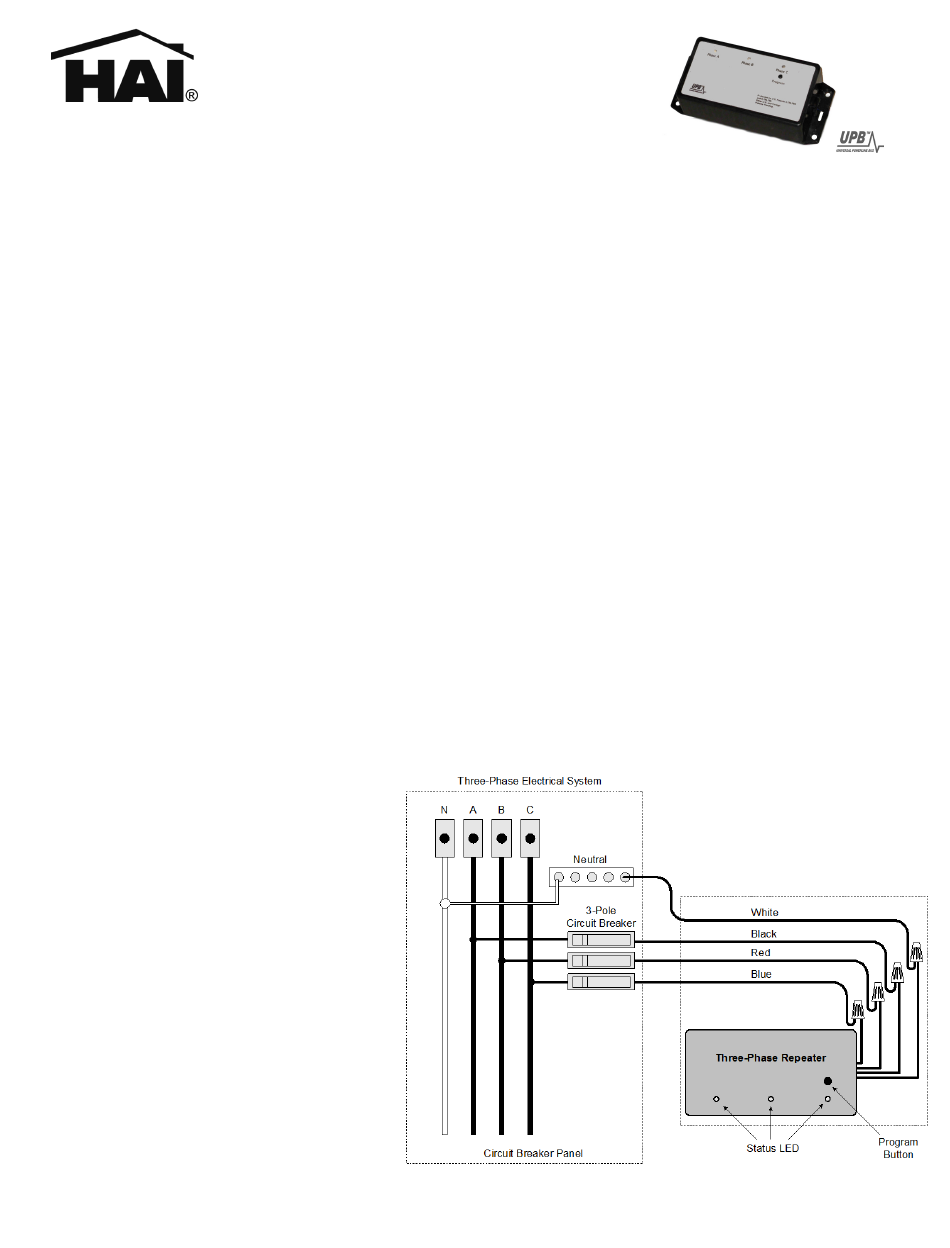

HAI UPB™ THREE-PHASE REPEATER WIRING DIAGRAM
39I00-3, Rev A

Advertisement

loading
Need help?

Need help?

Do you have a question about the UPB 39A00-3 and is the answer not in the manual?

Questions and answers

Summary of Contents for HAI UPB 39A00-3

  • Page 1 READ THESE INSTRUCTIONS BEFORE INSTALLING DEVICE Important Notes Prior To Installation This HAI UPB™ Three-Phase Repeater is intended for installation in accordance with the National Electrical Code and all other local codes and regulations. Installation must only be preformed by a qualified electrician.
  • Page 2 CONFIGURATION Although the TPR will operate without any configuration, HAI recommends that you use the UPB™ UPStart configuration software to add the TPR to the UPB network with a Unit ID. Once added to the network, UPStart can then be used to adjust the receive sensitivity of the TPR and perform communication tests between other devices to insure proper system signal strength.
