39A00-2 HAI UPB™ Split-Phase Repeater (SPR)
READ THESE INSTRUCTIONS BEFORE INSTALLING DEVICE
Important Notes Prior To Installation
1.
This HAI UPB™ Split-Phase Repeater is intended for installation in accordance with the National Electrical Code and all
other local codes and regulations.
2.
Installation must only be preformed by a qualified electrician.
3.
This product is for indoor use only.
4.
Be sure that all power has been disconnected by turning off the main breaker panel.
5.
This product must be installed in a suitable junction box or equivalent enclosure.
6.
Connect only copper or copper clad wire to this device.
7.
Retain these instructions for reference.
HAI UPB™ Split-Phase Repeater (SPR)
The HAI UPB™ Split-Phase Repeater (SPR) is a small electronic device that is designed to enhance the communication reliability
between devices using the Universal Powerline Bus (UPB™) method of communication (such as HLC devices). It is designed to be
used in a typical residential 120/240VAC split-phase electrical environment. The main purpose of the SPR is to increase powerline
communication reliability by taking UPB™ messages transmitted on one phase (leg) of the electrical system and strongly repeating
them on to the other phase (leg).
INSTALLATION INSTRUCTIONS
1.
Turn off the power at the main breaker panel.
2.
Install the SPR into a suitable junction box or equivalent
enclosure using the wiring nipple to insert in any ½"
knock-out (if necessary).
3.
Connect the black wire to Phase A, and the red wire to
Phase B, using wire nuts. Connect the white wire to
neutral (see illustration). Check that there are no bare
wires protruding and cover the wire nuts with insulating
tape if necessary.
4.
Check all wiring and connections, and turn on the main
breaker.
5.
The LED will light up if all connections are proper.
OPERATION
The SPR will automatically repeat all multi-packet
messaging transmissions that it hears in order to enhance the
UPB™ communication reliability of your network. All HLC
devices (and most other UPB™ devices) are pre-configured
at the factory to use multi-packet messaging.
HAI UPB™ Split-Phase Repeater
Installation and Operating Instructions

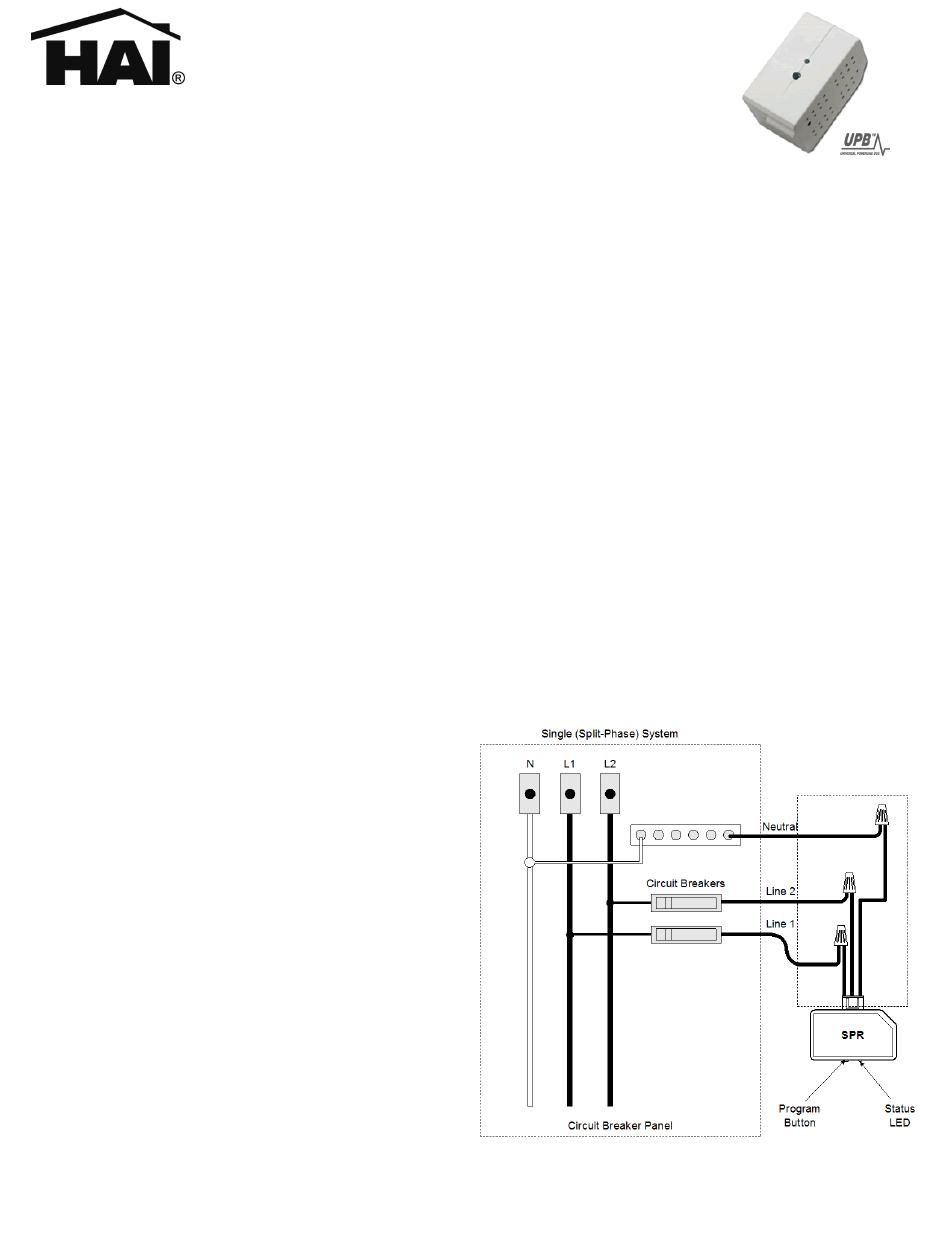

HAI UPB™ SPLIT-PHASE REPEATER WIRING DIAGRAM
39I00-2, Rev A
