PNI D1026 Manual

Wireless apple carplay & android auto screen with dvr

Advertisement

Quick Links

PNI D1026
Wireless Apple Carplay & Android Auto
Screen with DVR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D1026 and is the answer not in the manual?

Questions and answers

Summary of Contents for PNI D1026

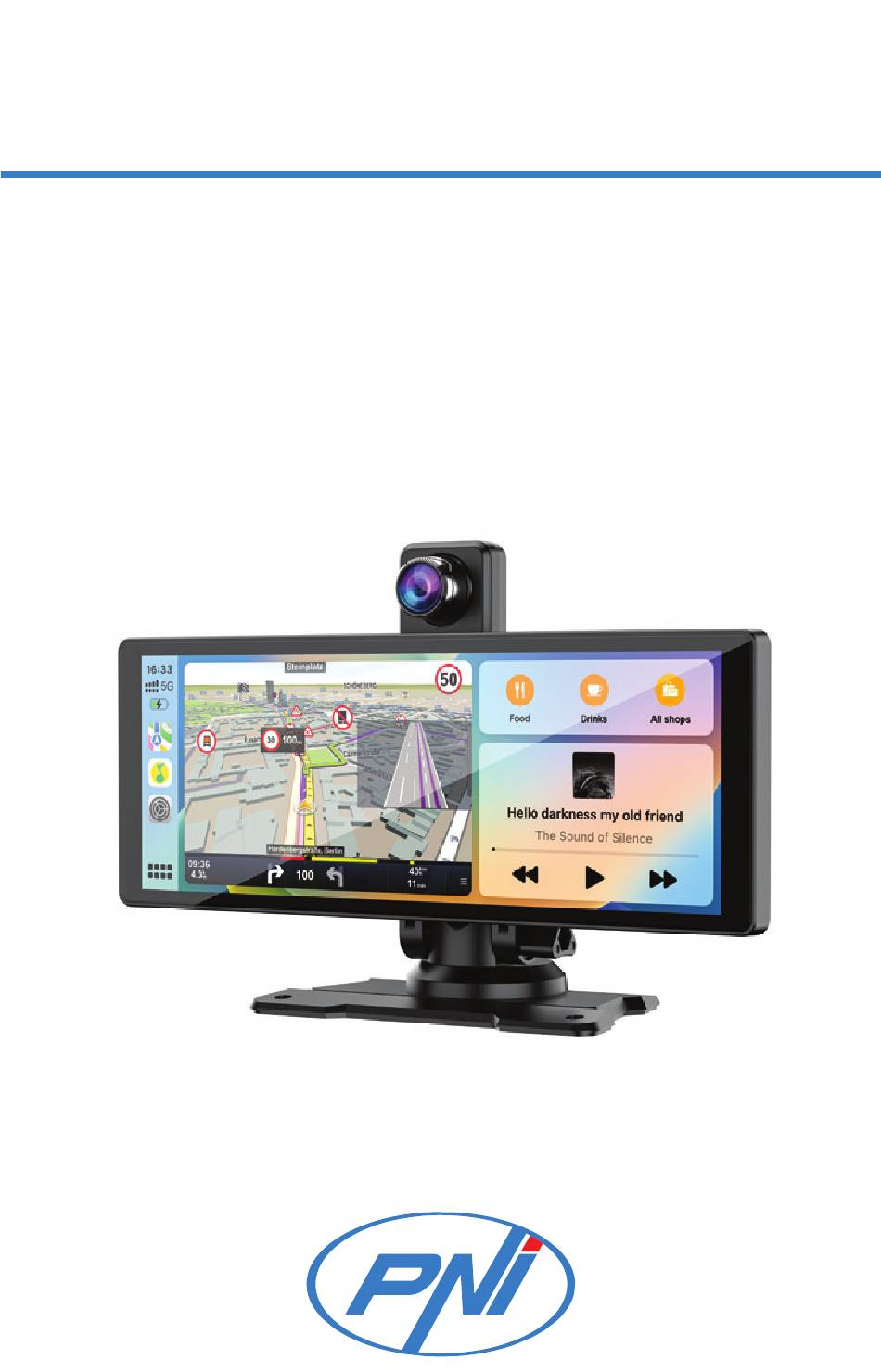

  • Page 1 PNI D1026 Wireless Apple Carplay & Android Auto Screen with DVR...
  • Page 2 Contents English ..... Български ..... Deutsch ..... Español ..... Français ..... Magyar ..... Italiano ..... Nederlands ..... Polski ..... Romana .....
  • Page 3: Special Warnings

    Special warnings To store the recordings, please use a micro SD Class 10 card, to avoid incompatibility with the device and the “file error” or “SD card error” error. The maximum supported capacity is 256GB. We recommend that you format the micro SD card before using it.
  • Page 4: Technical Specifications

    in the package. The presence of a constant sound coming out of the device may indicate improper power supply. Technical specifications Supply voltage 5V DC 2A 10.26” IPS Screen size touchscreen Screen resolution 1600 x 600 Chipset Allwinner V553 Operating system Linux 4.9 Bluetooth 2.4 GHz/<10mW...
  • Page 5 FM transmitter + AUX dual channel stereo , Functions Airplay/Miracast, Media Player AUX-IN, Micro SD Connections slot (max. 256 GB), AV-IN, USB-C Supported audio MP3, OGG, AAC, formats FLAC, WAV Supported video MP4, MOV, 3GP, MKV, formats FLV, WMV Supported photo JPEG, BMP formats DVR camera...
  • Page 6: Product Overview

    Make sure that you have the AndroidAuto application installed on your phone and that you have ac tivate d the applic ation’s notifications. Connect the mobile phone to the Bluetooth network “PNI-D1026-BT”. In the player’s main interface, click on the AndroidAuto option.
  • Page 7 After making the connection between the phone and the multimedia system, you have access to various applications and options, including Google Maps, News, Phone call, Contact list, Messages, etc. By voice command you can make a phone call, send messages or perform various operations.
  • Page 8 CarPlay Connect the iPhone to the Bluetooth network “PNI-D1026-BT”. In the player’s main interface, click on the CarPlay option. After making the connection between the phone and the multimedia system, you have access to various applications and options, including Google Maps, News, Phone call, Contact list,...
  • Page 9 a phone call, send messages or perform various operations. To disconnect the iPhone from the multimedia system, deactivate the Bluetooth and Carplay functions on the phone or access the menu of the multimedia system and click on the “Clear Connection History” option. Miracast (Android phone mirroring) Note: disconnect AndroidAuto before accessing the Miracast option.
  • Page 10 Wi-Fi password: 12345678. Access the Smart View/Mirror Screen option on your phone. After the PNI-D1026 appears in the list of devices, click on it. After making the connection, the mobile phone interface will appear on the screen of the multimedia system.
  • Page 11 AirPlay (iPhone mirroring) Note: disconnect CarPlay before accessing the Mirror Link option. In the player’s main interface, click on the AirPlay option.
  • Page 12 Connect the iPhone to the local Wi-Fi network “PNI-D1026-WiFI” generated by the multimedia system. Network password: 12345678. The mobile phone interface will be displayed on the screen of the multimedia system. Media Player If photo, audio or video files are saved on the...
  • Page 13 FM transmitter Tune the FM device in your car on the same frequency as the multimedia system. The frequency is displayed on the screen of the multimedia system and can be changed according to needs. Music and all other sounds will be heard in the car’s audio system.
  • Page 14: Settings Menu

    Settings menu Dual camera You can choose to view on the screen both cameras simultaneously (DVR camera and secondary camera) or only one of them. The images taken by both cameras will be saved on the micro SD card.
  • Page 15 Secondary camera connection diagram 1. Multimedia system 2. Connection to the +12V terminal of the reverse light 3. Secondary camera (rear-view camera)
  • Page 16: Questions And Answers

    Questions and answers 1. No audio. Check the audio output set in the “Audio out” menu of the multimedia system. Deactivate the FM Transmitter function. Check if the volume is set to a level higher than 2. I cannot connect to the Bluetooth network of the multimedia system.
  • Page 17: Simplified Eu Declaration Of Conformity

    Check your phone’s CarPlay app permissions. Check the Wi-Fi and Bluetooth connections. Simplified EU declaration of conformity ONLINESHOP SRL declares that PNI D1026 Carplay/AndroidAuto screen complies with RED Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.mypni.eu/products/10526/...
  • Page 18 Специални предупреждения З а д а с ъх раняв ате з аписите, моля, използвайте micro SD карта клас 10, за да избегнете несъвместимост с устройството и грешката „грешка във файла“ или „грешка в SD картата“. Максималният поддържан капацитет е 256GB. Препоръчваме...
  • Page 19: Технически Спецификации

    Това устройство трябва да се захранва само с 5V 3A. Моля, не използвайте 230V адаптери или USB кабели за захранване. Използвайте с а м о а д а п те ра з а кола, в к люч е н в опаковката.
  • Page 20 Bluetooth Честота/ 2.4 GHz/<10mW Мощност Wi-Fi честота/ 5 GHz/200mW мощност FM честота/ 87.5- 108.0 MHz/ 50 мощност FM transmitter + AUX dual channel stereo , Функции Airplay/Miracast, Media Player AUX-IN, Micro SD Връзки slot (max. 256 GB), AV-IN, USB-C Поддържани MP3, OGG, AAC, аудио...
  • Page 21: Преглед На Продукта

    Поддържани формати за JPEG, BMP снимки DVR камера QHD 2K 2560x1440 AHD 1080P Вторична камера 1920 x 1080 Захранващо напрежение Ъгъл на гледане 120° Преглед на продукта 1. Aux 2. Слот за микро SD карта...
  • Page 22: Android Auto

    3. AV-In (вторичен вход за камера) 4. USB-C порт (захранване) AndroidAuto Уверете се, че приложението AndroidAuto е инсталирано на вашия телефон и че сте активирали известията на приложението. Свържете мобилния телефон към Bluetooth мрежата “PNI-D1026-BT”. В основния интерфейс на плейъра щракнете върху опцията AndroidAuto.
  • Page 23 мултимедийната сис тема, натиснете „Disconnect“ в областта за уведомяване на мобилния телефон или влезте в менюто на мултимедийната система и натиснете опцията „Clear Connection History“. CarPlay Свържете iPhone към Bluetooth мрежата „PNI-D1026-BT“. В основния интерфейс на плейъра щракнете върху опцията CarPlay.
  • Page 24 След като осъществите връзката между телефона и мултимедийната система, имате достъп до различни приложения и опции, включително Google Maps, News, Phone call, Contact list, Messages и др. С гласова команда можете да осъществявате телефонно обаждане, да изпращате съобщения или извършват различни операции. За...
  • Page 25 Забележка: изключете AndroidAuto, преди да получите достъп до опцията Miracast. В основния интерфейс на плейъра щракнете върху опцията Miracast. Свържете телефона с Android към Bluetooth мрежата „PNI-D1026-BT“ и към локалната Wi-Fi мрежа „PNI-D1026-WiFI“, генерирана от мултимедийната система. Парола за Wi-Fi:...
  • Page 26 Достъп до опцията Smart View/Mirror Screen на вашия телефон. След като PNI-D1026 се появи в списъка с устройства, щракнете върху него. С л е д о с ъ щ е с т в я в а н е н а в р ъ з к а т а...
  • Page 27 AirPlay (iPhone mirroring) Забележка: изключете CarPlay, преди да получите достъп до опцията Mirror Link. В основния интерфейс на плейъра щракнете върху опцията AirPlay. Свържете iPhone към локалната Wi-Fi мрежа „ P N I - D 1 0 2 6 - W i F I “, г е н е р и р а н а о т мултимедийната...
  • Page 28: Media Player

    Media Player Ако снимките, аудио или видео файловете са записани на micro SD картата, поставена в мултимедийната система, те могат да се възпроизвеждат чрез достъп до интерфейса на Media Player. Audio Out Изберете аудио изхода: високоговорителя н а м у л т и м е д и й н а т а с и с т е м а и л и високоговорите...
  • Page 29 система. Честотата се показва на екрана на мултимедийната система и може да се променя според нуждите. Музиката и всички други звуци ще се чуват в аудио системата на автомобила. Бележки: Ко г а т о н а с т р о й в а т е F M ч е с т о т а т а , внимавайте...
  • Page 30: Dual Camera

    Меню с настройки Dual camera Можете да изберете да видите на екрана двете камери едновременно (DVR камера и вторична камера) или само една от тях. Изображенията, направени от двете камери, ще бъдат записани на micro SD картата.
  • Page 31 Схема за свързване на вторична камера 1. Мултимедийна система 2. Свързване към +12V клема на фара за заден ход 3. Вторична камера (камера за обратно виждане) Въпроси и отговори 1. Няма аудио. Проверете аудио изхода, зададен в менюто “Audio out” на мултимедийната система. Деактивирайте...
  • Page 32 Проверете дали друг потребител е свързан към вашата система. 3. Не мога да свържа телефона чрез Android Auto. Само телефони с Android поддържат тази функция. Актуализирайте Android Auto до най-новата версия. Проверете разрешенията на приложението Android Auto на телефона си. Проверете...
  • Page 33 ONLINESHOP SRL декларира, че екранът PNI D1026 Carplay/AndroidAuto отговаря на Директива RED 2014/53/EU. Пълният текст на ЕС декларацията за съответствие е достъпен на следния интернет адрес: https:// www.mypni.eu/products/10526/download/ certifications...
  • Page 34 Besondere Warnhinweise Verwenden Sie zum Speichern der Aufnahmen bitte eine Micro-SD-Karte der Klasse 10, um Inkompatibilitäten mit dem Gerät und den Fehler „Dateifehler“ oder „SD-Kartenfehler“ zu vermeiden. Die maximal unterstützte Kapazität beträgt 256 GB. Wir empfehlen, die Micro-SD-Karte vor der Verwendung zu formatieren.
  • Page 35: Technische Daten

    Dieses Gerät darf nur mit 5 V 3 A betrieben w e r d e n . B i t t e v e r w e n d e n S i e k e i n e 2 3 0 - V - A d a p t e r o d e r U S B - K a b e l z u r Stromversorgung.
  • Page 36 FM-Frequenz/ 87.5- 108.0 MHz/ Leistung 50 nW FM transmitter + AUX dual channel Funktionen stereo , Airplay/ Miracast, Media Player AUX-IN, Micro SD Anschlüsse slot (max. 256 GB), AV-IN, USB-C Unterstützte MP3, OGG, AAC, Audioformate FLAC, WAV Unterstützte MP4, MOV, 3GP, Videoformate MKV, FLV, WMV Unterstützte...
  • Page 37: Android Auto

    Versorgungsspannung 5V Blickwinkel 120° Produktübersicht 1. Aux 2. Micro-SD-Kartensteckplatz 3. AV-In (sekundärer Kameraeingang) 4. USB-C-Anschluss (Stromeingang) AndroidAuto Stellen Sie sicher, dass die AndroidAuto- Anwendung auf Ihrem Telefon installiert ist und dass Sie die Benachrichtigungen der Anwendung aktiviert haben.
  • Page 38 Verbinden Sie das Mobiltelefon mit dem Bluetooth-Netzwerk „PNI-D1026-BT“. Klicken Sie in der Hauptoberfläche des Players auf die Option AndroidAuto. Nachdem Sie die Verbindung zwischen dem Telefon und dem Multimediasystem hergestellt haben, haben Sie Zugriff auf verschiedene Anwendungen und Optionen, darunter Google Maps, Nachrichten, Telefonanruf, Kontaktliste, Nachrichten usw.
  • Page 39 Benachrichtigungsbereich des Mobiltelefons auf „Trennen“ oder rufen Sie das Menü des Multimediasystems auf und drücken Sie die Option „Verbindungsverlauf löschen“. CarPlay Verbinden Sie das iPhone mit dem Bluetooth- Netzwerk „PNI-D1026-BT“. Klicken Sie in der Hauptoberfläche des Players auf die Option CarPlay.
  • Page 40 Nachdem Sie die Verbindung zwischen dem Telefon und dem Multimediasystem hergestellt haben, haben Sie Zugriff auf verschiedene Anwendungen und Optionen, darunter Google Maps, News, Telefonanruf, Kontaktliste, Nachrichten usw. Per Sprachbefehl können Sie einen Anruf tätigen, Nachrichten senden oder verschiedene Vorgänge ausführen. Um das iPhone vom Multimediasystem zu trennen, deaktivieren Sie die Bluetooth- und Carplay-Funktionen auf dem Telefon oder rufen...
  • Page 41 Verbinden Sie das Android-Telefon mit dem Bluetooth-Netzwerk „PNI-D1026-BT“ und mit dem lokalen WLAN-Netzwerk „PNI-D1026-WiFI“, das vom Multimediasystem generiert wird. WLAN-Passwort: 12345678. Greifen Sie auf Ihrem Telefon auf die Option Smart View/Bildschirm spiegeln zu. Wenn das PNI-D1026 in der Geräteliste erscheint, klicken Sie darauf.
  • Page 42 Nachdem die Verbindung hergestellt wurde, erscheint die Mobiltelefonschnittstelle auf dem Bildschirm des Multimediasystems. Um die Option Smart View zu verlassen, drücken Sie „Trennen“. AirPlay (iPhone mirroring) Hinweis: Trennen Sie CarPlay, bevor Sie auf die M i r r o r L i n k - O p t i o n z u g r e i f e n .
  • Page 43: Media Player

    Verbinden Sie das iPhone mit dem lokalen WLAN-Netzwerk „PNI-D1026-WiFI“, das vom M u l t i m e d i a s y s t e m g e n e r i e r t w i r d .
  • Page 44: Audio Out

    Player-Oberfläche abgespielt werden. Audio Out Wählen Sie den Audioausgang: den Lautsprecher des Multimediasystems oder den Lautsprecher des über AUX, FM oder Bluetooth verbundenen Geräts. FM transmitter Stellen Sie das FM-Gerät in Ihrem Auto auf die gleiche Frequenz ein wie das Multimediasystem. Die Frequenz wird auf dem Bildschirm des Multimediasystems angezeigt und kann je nach Bedarf geändert werden.
  • Page 45: Dual Camera

    Achten Sie beim Einstellen der FM-Frequenz darauf, dass es nicht zu Überschneidungen mit der FM-Frequenz der Radiosender kommt. Die FM-Transmitter-Funktion funktioniert nur mit dem originalen Kfz-Netzteil. Menü „Einstellungen“ Dual camera Sie können wählen, ob Sie beide Kameras gleichzeitig (DVR-Kamera und Sekundärkamera) oder nur eine davon auf dem Bildschirm...
  • Page 46 anzeigen möchten. Die von beiden Kameras aufgenommenen Bilder werden auf der Micro- SD-Karte gespeichert. Anschlussdiagramm für Sekundärkamera 1. Multimediasystem...
  • Page 47: Fragen Und Antworten

    2. Anschluss an die +12V-Klemme des Rückfahrscheinwerfers 3. Sekundärkamera (Rückfahrkamera) Fragen und Antworten 1. Kein Ton. Überprüfen Sie den im Menü „Audioausgang“ de s Mult im e dias y s te ms einge s tellte n Audioausgang. Deaktivieren Sie die FM-Transmitter-Funktion. Überprüfen Sie, ob die Lautstärke auf einen Wert über 0 eingestellt ist.
  • Page 48: Vereinfachte Eu-Konformitätserklärung

    Überprüfen Sie die CarPlay-App-Berechtigungen Ihres Telefons. Überprüfen Sie die WLAN- und Bluetooth- Verbindungen. Vereinfachte EU-Konformitätserklärung ONLINESHOP SRL erklärt, dass der PNI D1026 Carplay/AndroidAuto-Bildschirm der RED- Richtlinie 2014/53/EU ent spr icht . Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse...
  • Page 49 https://www.mypni.eu/products/10526/ download/certifications...
  • Page 50: Advertencias Especiales

    Advertencias especiales Para almacenar las grabaciones, utilice una tarjeta micro SD Clase 10, para evitar incompatibilidades con el dispositivo y el error de “error de archivo” o “error de tarjeta SD”. La capacidad máxima admitida es de 256 GB. Le recomendamos que formatee la tarjeta micro SD antes de utilizarla.
  • Page 51: Especificaciones Técnicas

    a 5 V 3 A. No utilice adaptadores de 230 V ni cables USB para alimentarlo. Utilice únicamente el adaptador para automóvil incluido en el paquete. La presencia de un sonido constante que sale del dispositivo puede indicar una fuente de alimentación inadecuada Especificaciones técnicas Tensión de...
  • Page 52 Frecuencia/ 5 GHz/200mW Potencia de Wi-Fi Frecuencia/ 87.5- 108.0 MHz/ 50 Potencia de FM FM transmitter + AUX dual channel stereo , Funciones Airplay/Miracast, Media Player AUX-IN, Micro SD Conexiones slot (max. 256 GB), AV-IN, USB-C Formatos de audio MP3, OGG, AAC, compatibles FLAC, WAV Formatos de vídeo...
  • Page 53: Descripción General Del Producto

    AHD 1080P Cámara secundaria 1920 x 1080 Tensión de alimentación Ángulo de visión 120° Descripción general del producto 1. Aux 2. Ranura para tarjeta Micro SD 3. Entrada AV (entrada de cámara secundaria) 4. Puerto USB-C (entrada de alimentación) AndroidAuto...
  • Page 54 Asegúrate de tener instalada la aplicación AndroidAuto en tu teléfono y de tener activadas las notificaciones de la aplicación. Conecta el móvil a la red Bluetooth “PNI-D1026- BT”. En la interfaz principal del reproductor, pulsa sobre la opción AndroidAuto. Después de realizar la conexión entre el teléfono...
  • Page 55 área de notificaciones del móvil o accede al menú del sistema multimedia y pulsa la opción “Borrar historial de conexiones”. CarPlay Conecta el iPhone a la red Bluetooth “PNI- D1026-BT”. En la interfaz principal del reproductor, pulsa sobre la opción CarPlay.
  • Page 56 Después de realizar la conexión entre el teléfono y el sistema multimedia, tienes acceso a varias aplicaciones y opciones, entre ellas Google Maps, Noticias, Llamada telefónica, Lista de contactos, Mensajes, etc. Mediante un comando de voz puedes hacer una llamada telefónica, enviar mensajes o realizar varias operaciones.
  • Page 57 Contraseña Wi-Fi: 12345678. Accede a la opción Smart View/Mirror Screen en tu teléfono. Una vez que el PNI-D1026 aparezca en la lista de dispositivos, haz clic sobre él. Una vez realizada la conexión, aparecerá la interfaz del teléfono móvil en la pantalla del...
  • Page 58 Para salir de la opción Smart View, pulsa “Desconectar”. AirPlay (iPhone mirroring) Nota: desconecte CarPlay antes de acceder a la opción Mirror Link. En la interfaz principal del reproductor, haga clic en la opción AirPlay.
  • Page 59: Media Player

    Conecte el iPhone a la red Wi-Fi local “PNI- D1026 -WiFI” generada por el sis tema multimedia. Contraseña de red: 12345678. La interfaz del teléfono móvil se mostrará en la pantalla del sistema multimedia. Media Player Si se guardan archivos de fotos, audio o vídeo...
  • Page 60: Audio Out

    Audio Out Seleccione la salida de audio: el altavoz del sistema multimedia o el altavoz del dispositivo conectado vía AUX, FM o Bluetooth. FM transmitter Sintonice el dispositivo FM de su automóvil en la misma frecuencia que el sistema multimedia. La frecuencia se muestra en la pantalla del sistema multimedia y se puede cambiar según las necesidades.
  • Page 61: Menú De Configuración

    de radio. La función de transmisor FM solo funciona con el adaptador de corriente original del automóvil. Menú de configuración Dual camera Puedes elegir visualizar en pantalla ambas cámaras simultáneamente (cámara DVR y cámara secundaria) o solo una de ellas. Las imágenes tomadas por ambas cámaras se guardarán en la tarjeta micro SD.
  • Page 62 Diagrama de conexión de la cámara secundaria 1. Sistema multimedia 2. Conexión al terminal +12V de la luz de marcha atrás 3. Cámara secundaria (cámara de visión trasera)
  • Page 63: Preguntas Y Respuestas

    Preguntas y respuestas 1. No hay audio. Verifique la salida de audio configurada en el menú “Salida de audio” del sistema multimedia. Desactive la función Transmisor FM. Verifique si el volumen está configurado a un nivel superior a 0. 2. No puedo conectarme a la red Bluetooth del sistema multimedia.
  • Page 64 Verifique las conexiones Wi-Fi y Bluetooth. Declaración conformidad simplificada de la UE ONLINESHOP SRL declara que la pantalla PNI D1026 Carplay/AndroidAuto cumple con la Directiva RED 2014/53/UE. El texto completo de la declaración UE de conformidad está disponible en la siguiente dirección de Internet: https://www.mypni.eu/products/10526/...
  • Page 65 Avertissements spéciaux Pour stocker les enregistrements, veuillez utiliser une carte micro SD Classe 10, afin d’éviter toute incompatibilité avec l’appareil et l’erreur « erreur de fichier » ou « erreur de carte SD ». La capacité maximale prise en charge est de 256 Nous vous recommandons de formater la carte micro SD avant de l’utiliser.
  • Page 66: Spécifications Techniques

    Cet appareil doit être alimenté uniquement à 5 V 3 A. Veuillez ne pas utiliser d’adaptateurs 230 V ou de câbles USB pour l’alimenter. Utilisez uniquement l’adaptateur de voiture inclus dans l’emballage. La présence d’un son constant sor tant de l’appareil peut indiquer une alimentation électrique incorrecte.
  • Page 67 Fréquence/ puissance 2.4 GHz/<10mW Bluetooth Fréquence/ 5 GHz/200mW puissance Wi-Fi Fréquence/ 87.5- 108.0 MHz/ 50 puissance FM FM transmitter + AUX dual channel stereo , Fonctions Airplay/Miracast, Media Player AUX-IN, Micro SD Connexions slot (max. 256 GB), AV-IN, USB-C Formats audio pris MP3, OGG, AAC, en charge FLAC, WAV...
  • Page 68: Présentation Du Produit

    Formats photo pris JPEG, BMP en charge Caméra DVR QHD 2K 2560x1440 AHD 1080P Caméra secondaire 1920 x 1080 Tension d'alimentation Angle de vue 120° Présentation du produit 1. Aux 2. Emplacement pour carte Micro SD 3. AV-In (entrée secondaire de la caméra)
  • Page 69: Android Auto

    Assurez-vous que l’application AndroidAuto est installée sur votre téléphone et que vous avez activé les notifications de l’application. Connectez le téléphone mobile au réseau Bluetooth « PNI-D1026-BT ». Dans l’interface principale du lecteur, cliquez sur l’option AndroidAuto. Après avoir établi la connexion entre le...
  • Page 70 » dans la zone de notification du téléphone mobile ou accédez au menu du système multimédia et appuyez sur l’option « Effacer l’historique des connexions ». CarPlay Connectez l’iPhone au réseau Bluetooth « PNI- D1026-BT ». Dans l’interface principale du lecteur, cliquez sur l’option CarPlay.
  • Page 71 Après avoir établi la connexion entre le téléphone et le système multimédia, vous avez accès à diverses applications et options, notamment Google Maps, Actualités, Appel téléphonique, Liste de contacts, Messages, etc. Par commande vocale, vous pouvez passer un appel téléphonique, envoyer des messages ou effectuer diverses opérations.
  • Page 72 Dans l’interface principale du lecteur, cliquez sur l’option Miracast. Connectez le téléphone Android au réseau Bluetooth « PNI-D1026-BT » et au réseau Wi-Fi local « PNI-D1026-WiFI » généré par le système multimédia. Mot de passe Wi-Fi : 12345678. Accédez à l’option Smart View/Mirror Screen...
  • Page 73 Une fois que le PNI-D1026 apparaît dans la liste des appareils, cliquez dessus. Une fois la connexion établie, l’interface du téléphone mobile apparaît sur l’écran du système multimédia. Pour quitter l’option Smart View, appuyez sur « Déconnecter ».
  • Page 74: Media Player

    ’a c c é d e r à l ’o p t i o n M i r r o r L i n k . Dans l’interface principale du lecteur, cliquez sur l’option AirPlay. Connectez l’iPhone au réseau Wi-Fi local « PNI- D1026-WiFI » généré par le système multimédia. Mot de passe réseau : 12345678.
  • Page 75: Audio Out

    le système multimédia, ils peuvent être lus en accédant à l’interface Media Player. Audio Out Sélectionnez la sortie audio : le haut-parleur du système multimédia ou le haut-parleur de l’appareil connecté via AUX, FM ou Bluetooth. FM transmitter Réglez l’appareil FM de votre voiture sur la même fréquence que le système multimédia.
  • Page 76: Menu Des Paramètres

    Lorsque vous réglez la fréquence FM, veillez à ne pas chevaucher la fréquence FM des stations de radio. La fonction émetteur FM ne fonctionne qu’avec l’adaptateur secteur d’origine de la voiture. Menu des paramètres Dual camera Vous pouvez choisir de visualiser sur l’écran les deux caméras simultanément (caméra DVR et caméra secondaire) ou une seule d’entre elles.
  • Page 77 Les images prises par les deux caméras seront enregistrées sur la carte micro SD. Schéma de connexion de la caméra secondaire 1. Système multimédia 2. Connexion à la borne +12V du feu de recul...
  • Page 78: Questions Et Réponses

    3. Caméra secondaire (caméra de recul) Questions et réponses 1. Pas de son. Vérifiez la sortie audio réglée dans le menu « Sortie audio » du système multimédia. Désactivez la fonction Transmetteur FM. Vérifiez si le volume est réglé à un niveau supérieur à...
  • Page 79 Vérifiez les connexions Wi-Fi et Bluetooth. Déclaration de conformité simplifiée de l’UE ONLINESHOP SRL déclare que l’écran PNI D1026 Carplay/AndroidAuto est conforme à la directive RED 2014/53/UE. Le texte intégral de la déclaration de conformité UE est disponible à...
  • Page 80 Különleges figyelmeztetések A felvételek tárolásához használjon micro SD Class 10 kártyát, hogy elkerülje a készülékkel való összeférhetetlenséget és a „fájlhiba” vagy „SD kártyahiba” hibát. A maximális támogatott kapacitás 256 GB. Javasoljuk, hogy használat előtt formázza meg a micro SD kártyát. Óvatosan helyezze be a kártyát a készülékbe, kövesse a tokon jelzett irányt.
  • Page 81 áramellátáshoz. Csak a csomagban található autós adaptert használja. A készülékből kilépő állandó hang jelenléte a nem megfelelő tápellátásra utalhat Műszaki előírások Tápfeszültség 5V DC 2A 10.26” IPS Képernyő mérete touchscreen Képernyő felbontás 1600 x 600 Lapkakészlet Allwinner V553 Operációs rendszer Linux 4.9 Bluetooth frekvencia/...
  • Page 82 FM frekvencia/ 87.5- 108.0 MHz/ 50 teljesítmény FM transmitter + AUX dual channel stereo , Funkciók Airplay/Miracast, Media Player AUX-IN, Micro SD Kapcsolatok slot (max. 256 GB), AV-IN, USB-C Támogatott MP3, OGG, AAC, hangformátumok FLAC, WAV Támogatott videó MP4, MOV, 3GP, MKV, formátumok FLV, WMV Támogatott...
  • Page 83: Android Auto

    1. Aux 2. Micro SD kártyanyílás 3. AV-In (másodlagos kamera bemenet) 4. USB-C port (tápbemenet) AndroidAuto Győződjön meg arról, hogy az AndroidAuto alkalmazás telepítve van a telefonjára, és aktiválta az alkalmazás értesítéseit. Csatlakoztassa a mobiltelefont a „PNI-D1026- BT” Bluetooth hálózathoz.
  • Page 84 A lejátszó fő felületén kattintson az AndroidAuto lehetőségre. A telefon és a multimédiás rendszer közötti k a p c s o l a t l é t r e h oz á s a u t á n s z á m o s alkalmazáshoz és opcióhoz férhet hozzá, beleértve a Google Maps, Hírek, Telefonhívás, N é...
  • Page 85 és nyomja meg a „Kapcsolódási előzmények törlése” opciót. CarPlay Csatlakoztassa az iPhone készüléket a „PNI- D1026-BT” Bluetooth hálózathoz. A lejátszó fő felületén kattintson a CarPlay lehetőségre. A telefon és a multimédiás rendszer közötti k a p c s o l a t l é t r e h oz á s a u t á n s z á m o s...
  • Page 86 beleértve a Google Maps, Hírek, Telefonhívás, N é v je g y zé k , Üze n e te k s t b. külö nfé le műveleteket végezni. Ha le szeretné választani az iPhone készüléket a multimédiás rendszerről, kapcsolja ki a Bluetooth és a Carplay funkciót a telefonon, vag y lépjen be a multimédiás rendszer menüjébe, és kattintson a „Kapcsolódási...
  • Page 87 Csatlakoztassa az Android telefont a „PNI- D1026 - BT” Bluetooth hálózathoz és a multimédiás rendszer által generált „PNI-D1026- WiFI” helyi Wi-Fi hálózathoz. Wi-Fi jelszó: 12345678. Nyissa meg a Smart View/Mirror Screen opciót telefonján. Miután a PNI-D1026 megjelenik az eszközök listájában, kattintson rá.
  • Page 88 AirPlay (iPhone mirroring) Megjegyzés: a Mirror Link opció elérése előtt válassza le a CarPlay-t. A lejátszó fő felületén kattintson az AirPlay lehetőségre.
  • Page 89: Media Player

    Csatlakoztassa az iPhone készüléket a multimédiás rendszer által generált „PNI-D1026- WiFI” helyi Wi-Fi hálózathoz. Hálózati jelszó: 12345678. A mobiltelefon felülete meg jelenik a multimédiás rendszer képernyőjén. Media Player Ha a multimédiás rendszerbe helyezett micro SD kártyára fényképek, hang- vagy videofájlok vannak mentve, akkor azok a Media Player felületén keresztül lejátszhatók.
  • Page 90 eszköz hangszóróját. FM transmitter Hangolja be az FM-eszközt autójában ugyanazon a frekvencián, mint a multimédiás rendszert. A frekvencia a multimédiás rendszer képernyőjén jelenik meg, és igény szerint változtatható. A zene és az összes többi hang az autó audiorendszerében hallható lesz. Megjegyzések: Az FM frekvencia hangolásakor ügyeljen arra, hogy a rádióállomások FM frekvenciája ne...
  • Page 91: Beállítások Menü

    Beállítások menü Dual camera Választhat, hogy a képernyőn egyszerre jelenítse meg mindkét kamerát (DVR kamera és másodlagos kamera), vagy csak az egyiket. A mindkét kamerával készített képeket a rendszer a micro SD kártyára menti.
  • Page 92 Másodlagos kamera bekötési rajza 1. Multimédiás rendszer 2. Csatlakozás a hátrameneti lámpa +12V termináljához 3. Másodlagos kamera (visszapillantó kamera)
  • Page 93 Kérdések és válaszok 1. Nincs hang. Ellenőrizze a multimédiás rendszer „Audio out” menüjében beállított hangkimenetet. Kapcsolja ki az FM Transmitter funkciót. Ellenőrizze, hogy a hangerő 0-nál magasabb szintre van-e állítva. 2. Nem tudok csatlakozni a multimédiás rendszer Bluetooth hálózatához. Ellenőriz ze, hog y c satlakozik- e másik felhasználó...
  • Page 94 Ellenőrizze a Wi-Fi és Bluetooth kapcsolatokat. Egyszerűsített EU megfelelőségi nyilatkozat Az ONLINESHOP SRL kijelenti, hogy a PNI D1026 Carplay/AndroidAuto képernyő megfelel a 2014/5 3/EU R ED ir ánye l v n e k . A z EU - megfelelőségi nyilatkozat teljes szövege az alábbi internetcímen érhető...
  • Page 95: Avvertenze Speciali

    Avvertenze speciali Per archiviare le registrazioni, utilizzare una scheda micro SD Classe 10, per evitare incompatibilità con il dispositivo e l’errore “file error” o “SD card error”. La capacità massima supportata è di 256 GB. Si consiglia di formattare la scheda micro SD prima di utilizzarla.
  • Page 96: Specifiche Tecniche

    l’adattatore per auto incluso nella confezione. La presenza di un suono costante proveniente d a l d i s p o s i t i v o p o t r e b b e i n d i c a r e un’alimentazione non corretta.
  • Page 97 Frequenza/ 87.5- 108.0 MHz/ 50 alimentazione FM FM transmitter + AUX dual channel stereo , Funzioni Airplay/Miracast, Media Player AUX-IN, Micro SD Connessioni slot (max. 256 GB), AV-IN, USB-C Formati audio MP3, OGG, AAC, supportati FLAC, WAV Formati video MP4, MOV, 3GP, MKV, supportati FLV, WMV Formati foto...
  • Page 98: Panoramica Del Prodotto

    Tensione di alimentazione Angolo di 120° visualizzazione Panoramica del prodotto 1. Aux 2. Slot per scheda Micro SD 3. AV-In (ingresso telecamera secondaria) 4. Porta USB-C (ingresso alimentazione) AndroidAuto Assicurati di avere l’applicazione AndroidAuto installata sul tuo telefono e di aver attivato le...
  • Page 99 Collega il telefono cellulare alla rete Bluetooth “PNI-D1026-BT”. Nell’interfaccia principale del lettore, fai clic sull’opzione AndroidAuto. Dopo aver effettuato la connessione tra il telefono e il sistema multimediale, hai accesso a varie applicazioni e opzioni, tra cui Google Maps, Notizie, Chiamata telefonica, Elenco contatti, Messaggi, ecc.
  • Page 100 Per disconnettere il telefono Android dal sistema multimediale, premi “Disconnetti” nell’area di notifica del telefono cellulare o accedi al menu del sistema multimediale e premi l’opzione “Cancella cronologia connessioni”. CarPlay Collega l’iPhone alla rete Bluetooth “PNI-D1026- BT”. Nell’interfaccia principale del lettore, fai clic sull’opzione CarPlay.
  • Page 101 Dopo aver effettuato la connessione tra il telefono e il sistema multimediale, hai accesso a varie applicazioni e opzioni, tra cui Google Maps, Notizie, Chiamata telefonica, Elenco contatti, Messaggi, ecc. Con il comando vocale puoi effettuare una chiamata telefonica, inviare messaggi o eseguire varie operazioni.
  • Page 102 Collega il telefono Android alla rete Bluetooth “PNI-D1026-BT” e alla rete Wi-Fi locale “PNI- D1026-WiFI” generata dal sistema multimediale. Password Wi-Fi: 12345678. Accedi all’opzione Smart View/Mirror Screen sul tuo telefono. Dopo che il PNI-D1026 appare nell’elenco dei dispositivi, cliccaci sopra.
  • Page 103 AirPlay (iPhone mirroring) Nota: disconnetti CarPlay prima di accedere all’opzione Mirror Link. Nell’interfaccia principale del lettore, fai clic sull’opzione AirPlay.
  • Page 104: Media Player

    Collega l’iPhone alla rete Wi-Fi locale “PNI- D1026-WiFI” generata dal sistema multimediale. Password di rete: 12345678. L’interfaccia del telefono cellulare verrà visualizzata sullo schermo del sistema multimediale. Media Player Se sulla scheda micro SD inserita nel sistema multimediale sono salvati file di foto, audio o video, è...
  • Page 105 Bluetooth. FM transmitter Sintonizza il dispositivo FM nella tua auto sulla stessa frequenza del sistema multimediale. La frequenza viene visualizzata sullo schermo del sistema multimediale e può essere modificata in base alle esigenze. La musica e tutti gli altri suoni saranno ascoltati nel sistema audio dell’auto.
  • Page 106: Menu Impostazioni

    Menu impostazioni Dual camera Puoi scegliere di visualizzare sullo schermo entrambe le telecamere contemporaneamente (telecamera DVR e telecamera secondaria) o solo una di esse. Le immagini scattate da entrambe le telecamere verranno salvate sulla scheda micro SD.
  • Page 107 Schema di collegamento della telecamera secondaria 1. Sistema multimediale 2. Collegamento al terminale +12V della luce di retromarcia 3. Telecamera secondaria (telecamera...
  • Page 108: Domande E Risposte

    posteriore) Domande e risposte 1. Nessun audio. Controlla l’uscita audio impostata nel menu “Uscita audio” del sistema multimediale. Disattiva la funzione Trasmettitore FM. Controlla se il volume è impostato su un livello superiore a 0. 2. Non riesco a connettermi alla rete Bluetooth del sistema multimediale.
  • Page 109 Controlla le connessioni Wi-Fi e Bluetooth. Dichiarazione di conformità UE semplificata ONLINESHOP SRL dichiara che lo schermo PNI D1026 Carplay/AndroidAuto è conforme alla direttiva RED 2014/53/UE. Il testo completo della dichiarazione di conformità UE è disponibile al seguente indirizzo Internet: https://www.mypni.eu/products/10526/...
  • Page 111 Speciale waarschuwingen Gebruik voor het opslaan van de opnames een micro SD Class 10-kaart om incompatibiliteit met het appar aat en de foutmelding “bestandsfout” of “SD-kaartfout” te voorkomen. De maximaal ondersteunde capaciteit is 256 We raden u aan de micro SD-kaart te formatteren voordat u deze gebruikt.
  • Page 112: Technische Specificaties

    5V 3A. Gebruik geen 230V-adapters of USB- kabels om het van stroom te voorzien. Gebruik alleen de autoadapter die in het pakket is inbegrepen. De aanwezigheid van een constant geluid uit het apparaat kan duiden op een onjuiste voeding. Technische specificaties Voedingsspanning 5V DC 2A 10.26”...
  • Page 113 FM-frequentie/ 87.5- 108.0 MHz/ 50 vermogen FM transmitter + AUX dual channel stereo , Functies Airplay/Miracast, Media Player AUX-IN, Micro SD Aansluitingen slot (max. 256 GB), AV-IN, USB-C Ondersteunde MP3, OGG, AAC, audioformaten FLAC, WAV Ondersteunde MP4, MOV, 3GP, MKV, videoformaten FLV, WMV Ondersteunde...
  • Page 114: Android Auto

    2. Micro SD-kaartsleuf 3. AV-In (secundaire camera-ingang) 4. USB-C-poort (stroomingang) AndroidAuto Zorg ervoor dat u de AndroidAuto-applicatie op uw telefoon hebt geïnstalleerd en dat u de meldingen van de applicatie hebt geactiveerd. Verbind de mobiele telefoon met het Bluetooth- netwerk “PNI-D1026-BT”.
  • Page 115 Klik in de hoofdinterface van de speler op de optie AndroidAuto. Nadat u de verbinding tussen de telefoon en het multimediasysteem tot stand hebt gebracht, hebt u toegang tot verschillende applicaties en opties, waaronder Google Maps, Nieuws, Telefoongesprek, Contactenlijst, Berichten, enz.
  • Page 116 “Verbindingsgeschiedenis wissen”. CarPlay Verbind de iPhone met het Bluetooth-netwerk “PNI-D1026-BT”. Klik in de hoofdinterface van de speler op de optie CarPlay. Nadat u de verbinding tussen de telefoon en...
  • Page 117 het multimediasysteem tot stand hebt gebracht, hebt u toegang tot verschillende applicaties en opties, waaronder Google Maps, Nieuws, Telefoongesprek, Contactenlijst, Berichten, enz. Met spraakopdrachten kunt u een telefoongesprek voeren, berichten verzenden of verschillende handelingen uitvoeren. Om de iPhone los te koppelen van het multimediasysteem, deactiveert u de Bluetooth- en Carplay-functies op de telefoon of opent u het menu van het multimediasysteem en klikt...
  • Page 118 Wi-Fi- wachtwoord: 12345678. Open de optie Smart View/Mirror Screen op uw telefoon. Nadat de PNI-D1026 in de lijst met apparaten verschijnt, klikt u erop. Nadat de verbinding tot stand is gebracht, verschijnt de interface van de mobiele telefoon...
  • Page 119 Om de optie Smart View te verlaten, drukt u op “Disconnect”. AirPlay (iPhone mirroring) Let op: ontkoppel CarPlay voordat u de Mirror Link-optie opent. Klik in de hoofdinterface van de speler op de AirPlay-optie.
  • Page 120: Media Player

    Verbind de iPhone met het lokale Wi-Fi-netwerk “ P N I - D 1 0 2 6 - W i F I ” d a t d o o r h e t m u l t i m e d i a s y s t e e m i s g e g e n e r e e r d . Netwerkwachtwoord: 12345678.
  • Page 121: Audio Out

    via de interface van de Media Player. Audio Out Selecteer de audio-uitgang: de luidspreker van het multimediasysteem of de luidspreker van het apparaat dat is aangesloten via AUX, FM of Bluetooth. FM transmitter Stem het FM-apparaat in uw auto af op dezelfde frequentie als het multimediasysteem.
  • Page 122: Dual Camera

    Zorg er bij het afstemmen van de FM-frequentie voor dat de FM-frequentie van de radiozenders niet overlapt. De FM-zenderfunctie werkt alleen met de originele auto-stroomadapter. Instellingenmenu Dual camera U kunt ervoor kiezen om beide camera’s tegelijk (DVR-camera en secundaire camera) op het scherm te bekijken of slechts één van de twee.
  • Page 123 De beelden die door beide camera’s worden gemaakt, worden opgeslagen op de micro SD- kaart. Aansluitschema secundaire camera 1. Multimediasysteem 2. Aansluiting op de +12V-aansluiting van het...
  • Page 124: Vragen En Antwoorden

    achteruitrijlicht 3. Secundaire camera (achteruitrijcamera) Vragen en antwoorden 1. Geen audio. Controleer de audio-uitvoer die is ingesteld in h e t m e n u ‘ A u d i o - u i t ’ v a n h e t multimediasysteem.
  • Page 125: Vereenvoudigde Euconformiteitsverklaring

    Controleer de CarPlay-appmachtigingen van uw telefoon. Controleer de wifi- en Bluetooth-verbindingen. Vereenvoudigde EU- conformiteitsverklaring ONLINESHOP SRL verklaart dat het PNI D1026 Carplay/AndroidAuto-scherm voldoet aan de RED-richtlijn 2014/53/EU. De volledige tekst van de EU-conformiteitsverklaring is beschikbaar op het volgende internetadres: https://www.mypni.eu/products/10526/...
  • Page 126 Ostrzeżenia specjalne Aby przechowywać nagrania, należy używać kar t y micro SD klasy 10, aby uniknąć niezgodności z urządzeniem i błędu „file error” lub „SD card error”. Maksymalna obsługiwana pojemność to 256 GB. Zalecamy sformatowanie karty micro SD przed jej użyciem. Ostrożnie włóż...
  • Page 127: Dane Techniczne

    prądem 5 V 3 A. Nie należy używać adapterów 230 V ani kabli USB do zasilania. Należy używać w y ł ąc znie z asilac z a s amo ch o dowego dołączonego do zestawu. Obecność ciągłego dźwięku wydobywającego się z urządzenia może wskazywać...
  • Page 128 FM Częstotliwość/ 87.5- 108.0 MHz/ 50 FM transmitter + AUX dual channel stereo , Funkcje Airplay/Miracast, Media Player AUX-IN, Micro SD Połączenia slot (max. 256 GB), AV-IN, USB-C Obsługiwane MP3, OGG, AAC, formaty audio FLAC, WAV Obsługiwane MP4, MOV, 3GP, MKV, formaty wideo FLV, WMV Obsługiwane...
  • Page 129: Przegląd Produktu

    2. Gniazdo karty Micro SD 3. AV-In (wejście kamery pomocniczej) 4. Port USB-C (wejście zasilania) AndroidAuto Upewnij się, że masz zainstalowaną aplikację A ndroid Auto na s woim telefonie i że aktywowałeś powiadomienia aplikacji. Podłącz telefon komórkowy do sieci Bluetooth „PNI-D1026-BT”.
  • Page 130 W głównym interfejsie odtwarzacza kliknij opcję AndroidAuto. Po nawiązaniu połączenia między telefonem a systemem multimedialnym masz dostęp do różnych aplikacji i opcji, w tym Map Google, Wiadomości, Rozmowy telefoniczne, Lista kontaktów, Wiadomości itp. Za pomocą poleceń głosowych możesz wykonać połączenie telefoniczne, wysłać...
  • Page 131 ę p d o m e n u s y s t e m u multimedialnego i naciśnij opcję „Wyczyść historię połączeń”. CarPlay Podłącz iPhone’a do sieci Bluetooth „PNI-D1026- BT”. W głównym interfejsie odtwarzacza kliknij opcję CarPlay.
  • Page 132 systemem multimedialnym masz dostęp do różnych aplikacji i opcji, w tym Google Maps, News, Phone call, Contact list, Messages itp. Za pomocą poleceń głosowych możesz wykonać połączenie telefoniczne, wysłać wiadomości lub wykonać różne operacje. A b y o d ł ą c z y ć i P h o n e ’a o d s y s t e m u multimedialnego, wyłącz funkcje Bluetooth i Carplay w telefonie lub przejdź...
  • Page 133 Podłącz telefon z systemem Android do sieci Bluetooth „PNI-D1026-BT” i do lokalnej sieci Wi-Fi „PNI-D1026-WiFI” generowanej przez system multimedialny. Hasło Wi-Fi: 12345678. Uzyskaj dostęp do opcji Smart View/Mirror Screen w telefonie. Po wyświetleniu urządzenia PNI-D1026 na liście urządzeń kliknij je.
  • Page 134 AirPlay (iPhone mirroring) Uwaga: rozłącz CarPlay przed uzyskaniem dostępu do opcji Mirror Link. W głównym interfejsie odtwarzacza kliknij opcję AirPlay.
  • Page 135: Media Player

    Podłącz iPhone’a do lokalnej sieci Wi-Fi „PNI- D1026-WiFI” generowanej przez system multimedialny. Hasło sieciowe: 12345678. Interfejs telefonu komórkowego zostanie w y ś w i e t l o n y n a e k r a n i e s y s t e m u multimedialnego.
  • Page 136 podłączonego przez AUX, FM lub Bluetooth. FM transmitter Dostrój urządzenie FM w swoim samochodzie na tę samą c zę s totliwoś ć , co s ys tem multimedialny. Częstotliwość jest wyświetlana na ekranie systemu multimedialnego i można ją zmienić w zależności od potrzeb. Muzyka i wszystkie inne dźwięki będą...
  • Page 137: Menu Ustawień

    Menu ustawień Dual camera Możesz wybrać, aby oglądać na ekranie obie kamery jednocześnie (kamera DVR i kamera pomocnicza) lub tylko jedną z nich. Obrazy wykonane przez obie kamery zostaną zapisane na karcie micro SD.
  • Page 138 Schemat podłączenia kamery pomocniczej 1. System multimedialny 2. Podłączenie do zacisku +12V światła cofania 3. Kamera pomocnicza (kamera cofania)
  • Page 139: Pytania I Odpowiedzi

    Pytania i odpowiedzi 1. Brak dźwięku. Sprawdź wyjście audio ustawione w menu „Wyjście audio” systemu multimedialnego. Dezaktywuj funkcję nadajnika FM. Sprawdź, czy głośność jest ustawiona na poziom wyższy niż 0. 2. Nie mogę połączyć się z siecią Bluetooth systemu multimedialnego. Sprawdź, czy inny użytkownik jest połączony z systemem.
  • Page 140: Uproszczona Deklaracja Zgodności Ue

    Sprawdź uprawnienia aplikacji CarPlay na telefonie. Sprawdź połączenia Wi-Fi i Bluetooth. Uproszczona deklaracja zgodności UE ONLINESHOP SRL oświadcza, że ekran PNI D1026 Carplay/AndroidAuto jest zgodny z dyrektywą RED 2014/53/UE. Pe łny tekst deklaracji zgodności UE dostępny jest pod następującym adresem internetowym: https://www.mypni.eu/products/10526/...
  • Page 141 Atentionari speciale Pentru stocarea inregistrarilor va rugam sa folositi un card micro SD Clasa 10, pentru e evita incompatibilitatea cu dispozitivul si eroarea “file error ” or “SD card error”. Capacitatea maxima suportata este de 256GB. Va recomandam sa formatati cardul micro SD inainte de a-l folosi.
  • Page 142: Specificatii Tehnice

    adaptorul auto inclus in pachet. Prezenta unui sunet constant iesit din aparat poate indica curent de alimentare nepotrivit. Specificatii tehnice Tensiune de 5V DC 2A alimentare Dimensiune ecran 10.26” IPS tactil Rezolutie ecran 1600 x 600 Chipset Allwinner V553 Sistem de operare Linux 4.9 Frecventa/Putere 2.4 GHz/<10mW...
  • Page 143 FM transmitter + AUX dual channel stereo , Functii Airplay/Miracast, Media Player AUX-IN, Micro SD Conectori slot (max. 256 GB), AV-IN, USB-C Formate audio MP3, OGG, AAC, suportate FLAC, WAV Formate video MP4, MOV, 3GP, MKV, suportate FLV, WMV Formate foto JPEG, BMP suportate Camera DVR...
  • Page 144 3. AV-In (intrare pentru camera marsarier) 4. Port USB-C (intrare alimentare) AndroidAuto Asigurati-va ca aveti instalata in telefon aplicatia AndroidAuto si ca ati activat notificarile aplicatiei. Conectati telefonul mobil la reteaua Bluetooth “PNI-D1026-BT“. In interfata principala a player-ului apasati pe optiunea AndroidAuto.
  • Page 145 Dupa realizarea conexiunii intre telefon si sistemul multimedia, aveti acces la diferite aplicatii si optiuni, printre care Google Maps, News, Apel telefonic, Lista contacte, Mesaje etc. Prin comanda vocala puteti efectua un apel telefonic, puteti trimite mesaje sau efectua diferite operatiuni. Pentru a deconecta telefonul Android de sistemul multimedia, apasati “Disconnect“...
  • Page 146 CarPlay Conectati telefonul iPhone la reteaua Bluetooth “PNI-D1026-BT“. In interfata principala a player-ului apasati pe optiunea CarPlay. Dupa realizarea conexiunii intre telefon si sistemul multimedia, aveti acces la diferite aplicatii si optiuni, printre care Google Maps, News, Apel telefonic, Lista contacte, Mesaje etc.
  • Page 147 telefonic, puteti trimite mesaje sau efectua diferite operatiuni. Pentru a deconecta telefonul iPhone de sistemul multimedia, dezactivati functiile Bluetooth si Carplay in telefon sau accesati meniul sistemului multimedia si apasati pe optiunea “Clear Connection History“. Miracast (mirroring telefon Android) Nota: deconectati AndroidAuto inainte de a accesa optiunea Miracast.
  • Page 148 “PNI-D1026-BT“ si la reteaua Wi-Fi locala “PNI- D1026-WiFI“ generata de sistemul multimedia. Parola retelei Wi-Fi: 12345678. Accesati in telefon optiunea Smart View/Mirror Screen. Dupa ce PNI-D1026 apare in lista de dispozitive, apasati pe el. Dupa realizarea conexiunii, interfata telefonului mobil va aparea pe ecranul sistemului multimedia.
  • Page 149 AirPlay (mirroring telefon iPhone) Nota: deconectati CarPlay inainte de a accesa optiunea Mirror Link. In interfata principala a player-ului apasati pe optiunea AirPlay.
  • Page 150 Conectati telefonul iPhone la reteaua Wi-Fi locala “PNI-D1026-WiFI“ generata de sistemul multimedia. Parola retelei: 12345678 Pe ecranul sistemului multimedia va fi afisata interfata telefonului mobil. Media Player Daca pe cardul micro SD introdus in sistemul multimedia sunt salvate fisiere foto, audio sau video, acestea pot fi redate accesand interfata Media Player.
  • Page 151 FM transmitter Reglati dispozitivul FM din masina dvs. pe aceeasi frecventa cu sistemul multimedia. Frecventa este afisata pe ecranul sistemului multimedia si poate fi modificata conform nevoilor. Muzica si toate celelalte sunete se vor auzi in sistemul audio al masinii. Note: Cand reglati frecventa FM, asigurati-va ca nu va suprapuneti peste frecventa FM a posturilor...
  • Page 152: Meniu Setari

    Meniu setari Dual camera Puteti opta pentru vizualizarea pe ecran a ambelor camere simultan (camera DVR si camera secundara) sau doar a uneia dintre ele. Imaginile preluate de ambele camere vor fi salvate pe cardul micro SD.
  • Page 153 Diagrama conexiuni camera secundara 1. Sistem multimedia 2. Conexiune la lampa de marsarier la borna/firul cu +12V 3. Camera secundara (marsarier)
  • Page 154 Intrebari si raspunsuri 1. Lipsa audio. Verificati iesirea audio setata in meniul “Audio out” al sistemului multimedia. Dezactivati functia FM Transmitter. Verificati daca volumul este setat la un nivel mai mare de 0. 2. Nu ma pot conecta la reteaua Bluetooth a sistemului multimedia.
  • Page 155 Verificati conexiunile Wi-Fi si Bluetooth. Declaratie UE de conformitate simplificata ONLINESHOP SRL declara ca Monitor auto cu DVR PNI D1026 este in conformitate cu Directiva RED 2014/53/UE. Textul integral al declaratiei UE de conformitate este disponibil la urmatoarea adresa de internet: https://www.mypni.eu/products/10526/...

Table of Contents
