PNI V7270 Manual

2 din multimedia player

Advertisement

PNI V7270
2 DIN multimedia player / 2 DIN мултимедиен плейър / 2 DIN-Multimedia-Player /
Reproductores multimedia 2 DIN / Lecteur multimédia 2 DIN /
2 DIN multimédia lejátszó / Lettore multimediale DIN / Odtwarzacz multimedialny 2 DIN /
Multimedia player 2 DIN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V7270 and is the answer not in the manual?

Questions and answers

Summary of Contents for PNI V7270

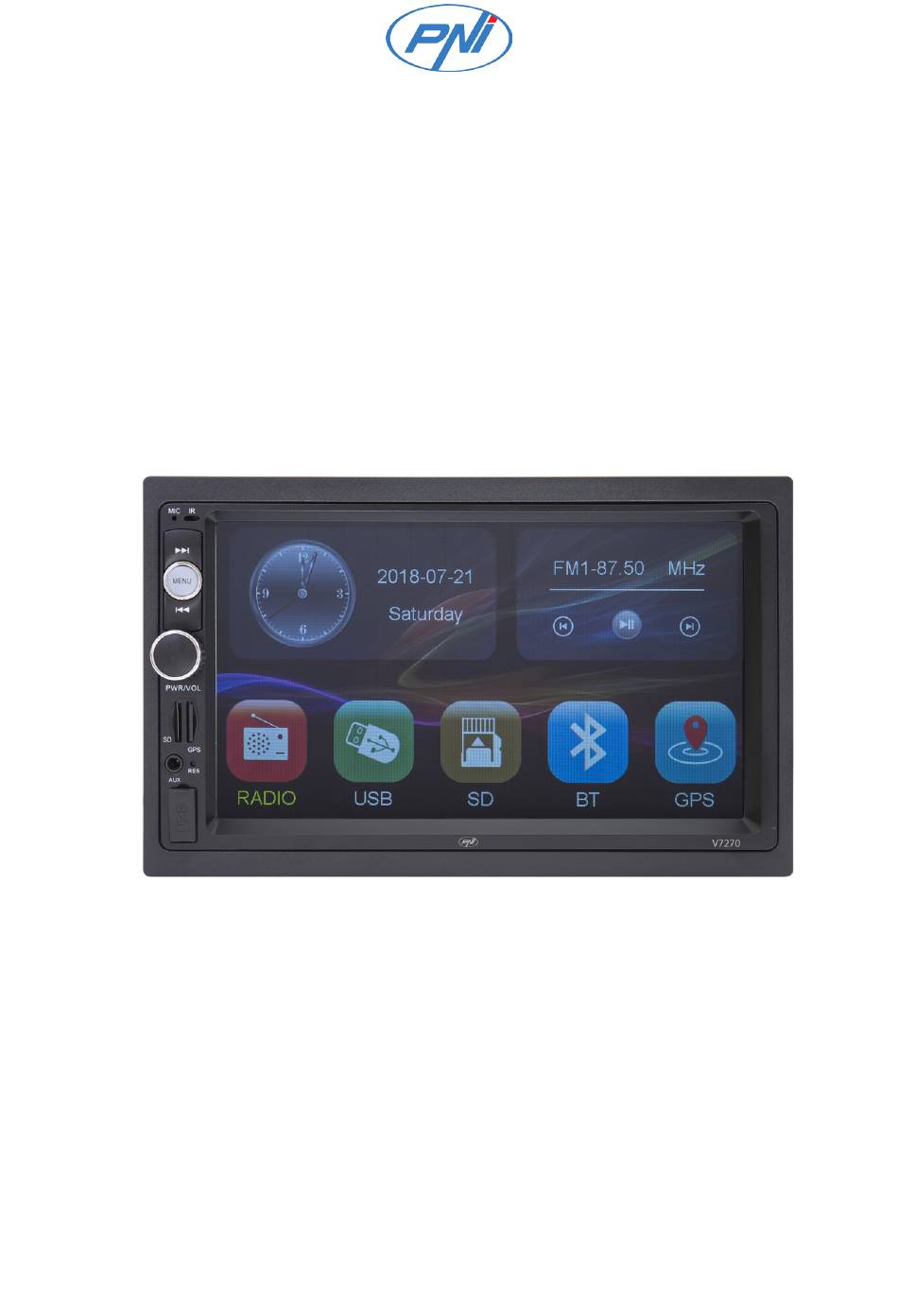

  • Page 1 PNI V7270 2 DIN multimedia player / 2 DIN мултимедиен плейър / 2 DIN-Multimedia-Player / Reproductores multimedia 2 DIN / Lecteur multimédia 2 DIN / 2 DIN multimédia lejátszó / Lettore multimediale DIN / Odtwarzacz multimedialny 2 DIN / Multimedia player 2 DIN...
  • Page 2: Main Functions

    MAIN FUNCTIONS • GPS module (GPS map is not included) • full HD 1920 x 1080px video riproduction • Supported video files RMVBIRM/FLV/3GP/MPEG/DVIXIXVID/DTA/VOB/AVI/MP4 • Supported audio files MP3/WMAJWAVIOGGIAPEIAACIPLAC • Supported photo files JPG/BMP/PNG • Video input for rear view camera •...
  • Page 3: Front Panel Description

    FRONT PANEL DESCRIPTION PWR/VOL/SEL • PWR: Press this button long to turn the device on or off. • VOL: When the device is on, turn this knob to adjust the volume. • SEL: Press this button briefly to switch between VOL/BAS/TRE/BAL/FAD/LOUD/EQ and rotate this button to the right or left to customize the selected parameter VOL:00-39 BAS:-7-00--7 TRE: -7-00--7 BAL:R7-00--L7 FAD: R7-00--F7 EQ: USER/POP/ ROCK/CLASS/JAZZ/FLAT...
  • Page 4: Rear Panel Description

    REAR PANEL DESCRIPTION 01. AUX 02. Left audio output (subwoofer, amplifier) 03. Right audio output (subwoofer, amplifier) 04. Video Output 1 05. Video Output 2 06. Video Input 07. Video input for rear view camera 08. Radio antenna input 09. GPS antenna input Standard ISO connectors: Function Function...
  • Page 5 to use a rear view camera with this player. The connection allows switching to the video input of the camera when the car is switched to reverse mode; A3 - Steering wheel connection - Optionally, compatible only with certain cars that are equipped with a resistive steering wheel system (principle of operation - resistance measurement);...
  • Page 6 10. In Radio mode, press this button to play the saved radio station in position 6. In playback mode, press this button to navigate with 10 files forward, and in phone number mode, press to enter “6”. 11. When the device is on, press this button to activate the LOUD mode. In phone number mode, press to enter “7”.
  • Page 7: Radio Mode

    RADIO MODE - Tap this icon to automatically search and save radio stations (up to 6 channels per band, 18 in total, can se saved) - Tap this icon to switch between FM1, FM2, FM3 Press the key ►► to search for radio stations with higher frequency. Search will stop when a radio station is found.
  • Page 8: Bluetooth Function

    Stop / go to the file type Display file info on the screen: sont name, the ■ selection interface (audio, elapsed time, left time etc. video, photo) Play / pause Display shut off Video output (external monitor). Notes: Fast backward •...
  • Page 9: Mirror Link Function

    Notes: • Due to numerous software upgrades (Android, iOS), your phone may not be compatible with Mirror Link on this player. Please visit the product page at www.pni.ro, the Download section, to check for any firmware updates. • With Mirror Link, Android phones transmit only image on the screen of the player. For sound, you can connect the two devices via Bluetooth.
  • Page 10: Technical Specifications

    The device is not powered The thread to the speaker is interrupted There are no audio files on Check the cable connection No sound the USB stick or micro SD Check your USB stick and card micro SD card The USB stick or micro SD card has been wrongly inserted into your device The device is powered at too...
  • Page 11 Dimensions 178 x 103 x 63 mm Functions Bluetooth, Mirror Link, GPS Front panel connections 1 x USB2.0, 2 x micro SD, 1 x AUX 2 x audio output 2 x video output 1 x video input for rear view camera Rear panel connections 1 x CVBS video input 1 x GPS antenna input...
  • Page 12 Egyszerűsített EU Megfelelési Közlemény SC ONLINESHOP SRL kijelenti azt, hogy a Multimédia lejátszó PNI V7270 megfelel az EMC 2014/30/EU és RED 2014/53/UE irányelvnek. Az EU-megfelelőségi nyilatkozat teljes szövege a következő internetes címen érhető el: https://www.mypni.eu/products/6631/download/certifications Dichiarazione UE di conformità semplificata SC ONLINESHOP SRL dichiara che il Lettore multimediale PNI V7270 è...
