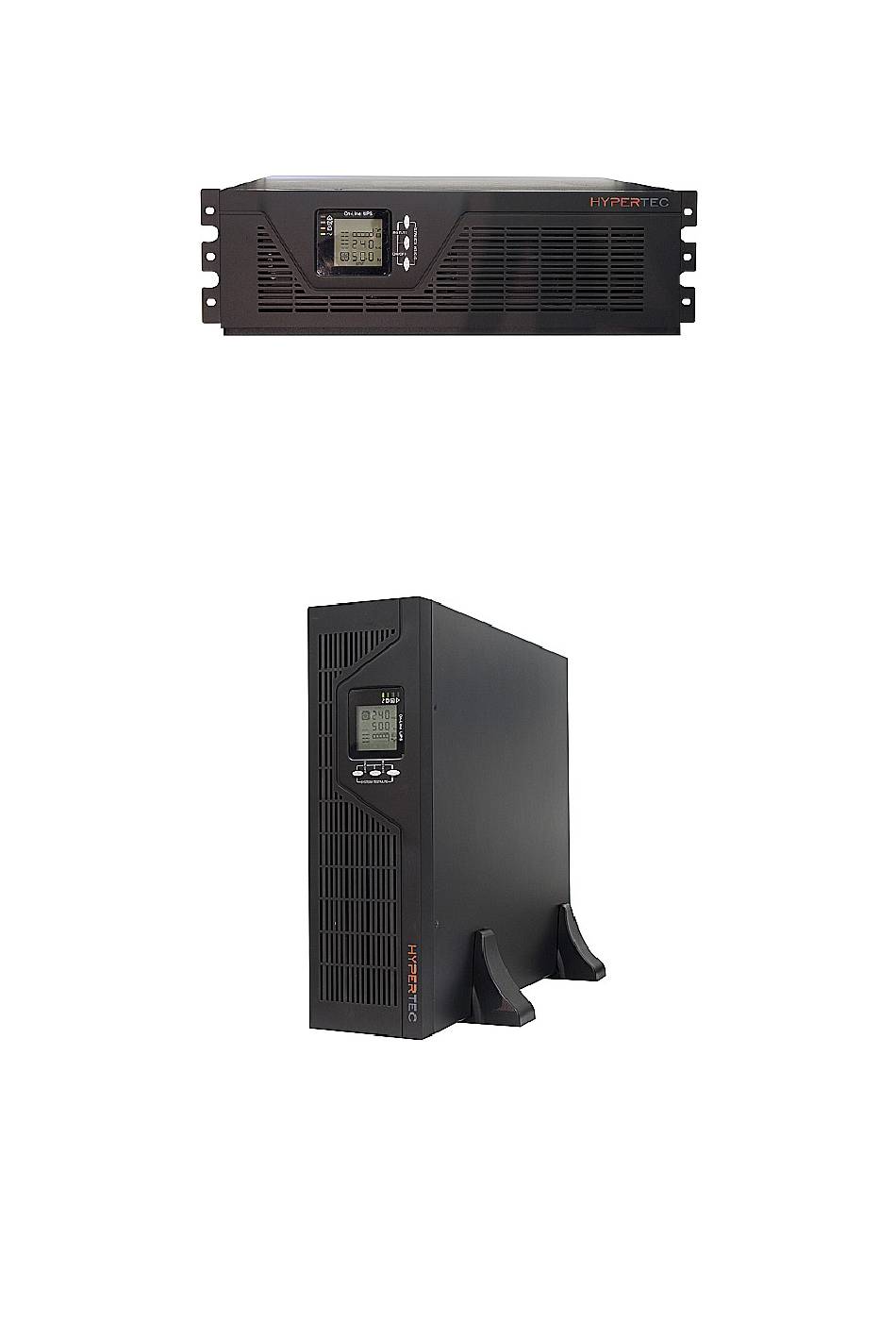

- Page 1 HYPERTEC UNINTERRUPTIBLE POWER SUPPLY USER’S MANUAL RBUPS1KVA RBUPS2KVA RBUPS3KVA RBUPS Manual Rev1a...
-
Page 2: Table Of Contents
Content I General Safety Instructions ............3 II. Conditions of Use ................ 3 III. Electrical Safety ................3 IV. Safe Operating Practices ............4 V. Battery Information ..............5 1.Summary. 1.1 Introduction ................6 1.2 Functions and characteristics ..........6 1.3 Symbol Definitions .............. -
Page 3: I General Safety Instructions
The Hypertec UPS will provide a 220~240VAC 1φ（single-phase）power source. Please verify that this model matches your AC mains / load voltage requirements. The Hypertec UPS must be earthed at all times during operation. This can... -
Page 4: Safe Operating Practices
be achieved by only connecting the input power chord to a mains supply socket outlet with an integral earth terminal. A means of disconnecting the mains supply should be within 2 meters of the UPS. Output sockets on the UPS are electrically live if the UPS is switched ON, even if the UPS is not plugged in to mains supply. -
Page 5: Battery Information
NOTE. The batteries used in your Hypertec UPS are maintenance free. This means that you DO NOT need to check the battery fluid levels. Trying to do so may cause injury to yourself, or may cause a fault with the battery / UPS. -
Page 6: Introduction
1. Summary 1.1 Introduction The Hypertec Uninterruptible Power Supply (UPS) provides uninterrupted, high quality, efficient and reliable AC power to loads It also has functions for protection and monitoring of the UPS operation. This series of 1KVA-3KVA products are designed as advanced ON-LINE UPS that provide the multiple functions and good performance. - Page 7 interruption. 1.2.10 Cold Start Capacity: When battery voltage is low, the UPS will protect itself and shut down automatically. When main power restores, the UPS will detect the main power and monitor it to determine whether the voltage and frequency are normal.
-
Page 8: Symbol Definitions
1.3 Symbol Definitions The safety symbols cited in this manual are shown in table 1-1, which are used to inform readers of safety issues that should be obeyed when installation, operation and maintenance. Safety Indication Symbol Attention Static discharge sensitive Electric shock There are three levers of safety grade: Dangerous, Warning and Attention. -
Page 9: Product Introduction
2. Product Introduction Physical Attributes Fig 1 Front Panel View Fig 2 1KVA Rear Panel View Fig 3 2KVA/3KVA Rear Panel View... -
Page 10: The Principle Of The Ups
The Principle of the UPS Fig 4 UPS Principle Diagram Input filter: Complete filtering of the input AC utility power to provide clean power into the UPS. AC/DC converter: Convert the filtered AC mains to DC and boost the DC for DC/AC inverter. -
Page 11: Installation
Model UPS Type MODEL NO Remark Internal 1A charger, 2 high-rate RBUPS1KVA 9AH batteries Internal 1A charger, 4 high-rate RBUPS2KVA 9AH batteries Standard unit Internal 1A charger, 6 high-rate RBUPS3KVA 9AH batteries Internal 6A/12A charger, external RBUPS1KVAH 24V battery Internal 6A/12A charger, external... -
Page 12: Ups Output Connection
Fig 5 Input Connection 3.4. UPS Output Connection 3.4.1. Fig 6 Output connections... -
Page 13: Extended Backup External Battery Connection Option
Extended backup external battery connection (OPTIONAL) Fig 7 Battery Connection WARNING: Before installing any additional battery units for longer backup time, ensure that the UPS is turned off and the input power is also switched off (or the input power plug is unplugged from the socket outlet) ... -
Page 14: Installation
UPS is likely to have output voltage no matter whether the power input cable is plugged in mains input socket. If you wish UPS have no output, first break off the switch and then cancel the mains. When connect laser printer, select the capacity of UPS according to the UPS start power because the startup power is higher. - Page 15 3.6.2.1. Fasten screws A & B, (2 x M4 screws) ( symmetrical on both sides, a total of four) Fig 9 Cabinet Installation Bracket Assembly Fig 10 Cabinet Installation Bracket Assembly 3.6.3 Tower/Rack assembly Fig 11 Standalone Tower Mount Assembly...
- Page 16 Fig 12 Rack Mount Enclosure Assembly...
-
Page 17: General Operation
4. Panel display and general operation The operation of the UPS is easy to understand and the instructions are clearly set out in the manual. No special training is required, however support is available upon request. Please contact Legend for further information. Display and its Control 4.1.1. - Page 18 4.1.2. The description of LED display lamp functions The LED’s on the display have specific functions. These are defined below. Warning red LED is on: The UPS is in fault mode and has no output. For example: Overload beyond the allowed time, inverter fault, BUS fault, over temperature fault etc.
- Page 19 Fig. 13b. Rack Mounted Display Orientation Fig 13a. Tower Mounted Display Orientation The display comprises of a Numerical Value Section, a Capacity Graphics Section, a Fan Status Graphics Section and a Charger Status Graphics Section. Numerical value section: Displays the corresponding numerical value of inquiring items(output, load, temperature, input, battery), for example, as the graphics shows above, the output voltage is 220v, the output frequency is 50Hz.
- Page 20 Fig 14b. Charger Status Graphics Fig 14c. Battery Capacity indicator as on Section when in fault mode the display when in Battery Mode Operation 4.2.1 Start up operation Turning on of the UPS in Line mode Once the mains power plug is plugged in, the UPS will start to charge the battery.
-
Page 21: Parameter Setting
Once the generator voltage has stabilised, connect to UPS input plug to the generator socket outlet. Turn the UPS on. Once the UPS has turned on, connect loads one-by-one. It is recommended that the output capacity of the generator be twice the UPS rated capacity ... - Page 22 function setting key for more than half a second (shorter than 2 seconds)to confirm the selection, then to set the minus range ⑤To set the minus range in the same way. Exit from the setting interface. Press and hold function setting key ⑥...
- Page 23 Enter the output voltage selecting interface. Press and hold the function ② setting key for more than half a second(less than 2 seconds), then come to setting interface of output voltage OPU, at this time, the letters “OPU” will light for a long time.
- Page 24 ④ set the battery type in the same way. ⑤ Exit from the setting interface. Press and hold function setting key more than half a second (less than 2 seconds), exit from the setting interface and return to main interface. 4.3.5 Load segment setting（5）...
- Page 25 Confirm the “Abt” selecting interface. After selecting ON or OFF, press and ③ hold the function setting key for more than half a second (less than 2 seconds). Now, the “Abt” setting function is completed and the “ON” or “OFF” below the “Abt”...
- Page 26 If used, the corresponding word is “ON”,2~5 seconds cycle Warning Code, please refer to Warning Code information Table in Appendix1. 4.3.8 EPO Input Polarity setting（8） ① Enter the setting interface. Press and hold the function setting key more than 2 seconds, then come to setting interface, Press and hold the scroll for more than half a second(less than 2 seconds), select the function setting, choose EPO Input polarity setting interface, the letters “EPO”...
-
Page 27: Parameters Inquiry
③Set the Eod tolerance range. Short press the scroll key for more than half a second (shorter than 2 seconds)to select the voltage range in percentage. 10.0V, 10.5V, 11.0V (default is 10.0V)，then short press function setting key for more than half a second (shorter than 2 seconds)to confirm the selection, then to set the minus range ④After the minus range is confirmed. - Page 28 Load: Displays the numerical value of the active power (WATT) and apparent power (VA) of the load. As demonstrated in the following figure, the WATT of the load is 100w, VA is 100VA (when the load is disconnect, it is a normal phenomenon to show a small numerical value of WATT and VA).
-
Page 29: Run Mode
Battery: Display the voltage and capacity of the battery (determined by type). As the following graphics shows: the battery voltage is 28v, the capacity of battery is 100 ％ (the capacity of battery is approximately reckoned according to the battery voltage). By pressing and holding the inquiring key for more than 2 seconds, a sequential display of the inquiry items will occur, changing every 2 seconds... - Page 30 4.5.2 Line mode LED indicators on front panel in line mode are as follows: The inverter green LED is on. When the input AC mains meets the conditions for normal operation, the UPS will work in line mode. 4.5.3 Battery mode LED indicators on the front panel in battery mode are as follows: Both the inverter green LED and battery yellow LED are on, the buzzer beeps once every 4 seconds.
-
Page 31: Maintenance
Fault mode(Display interface on which the fault code displays) The UPS goes into fault mode if an overload fault, inverting fault and/or over- temperature fault occurs. The UPS cuts off the output and fault codes will be displayed. At that moment, you can press the mute key to make the buzzer stop beeping temporarily to wait for maintenance. -
Page 32: Troubleshooting And Performance Of Product
the backup time or the battery voltage fluctuates, then the UPS batteries should be checked, and possibly replaced, as soon as possible. This must only be performed by qualified personnel. When replacing the batteries, it is recommended to change all the batteries rather than changing the batteries individually on separate occasions. -
Page 33: Led Indication And Warning Table
6.1 LED indication and warning table Table 6a：Warning and Fault Codes Table 6b：The corresponding working status of indications Indication Working status Warning Remarks Bat Bps Fau Line mode Normal voltage ● None High/low voltage Once every protection, turn to ● ●... -
Page 34: Troubleshooting
Overload in Remove the less battery mode, ● ● ● Long beeps important loads protection Overload warning Once every 2 Remove the less ● ★ in bypass mode seconds important loads Fan fault (fan icon Once every 2 Check if the fan is ▲... -
Page 35: Emc Standard/Safety Standard
The icon of charger status on Charger doesn’t work LCD display normally or battery Contact supplier for servicing flashes and buzzer aged beeps once per second 6.3 EMC standard/Safety standard Our products conform to the following EMC and safety standards. EMC standard number Safety standard number IEC62040-2... - Page 36 >150%, 300ms turn to bypass mode Line Full load ≥ 90% mode Battery efficiency Full load ≥ 85% mode Full load ≥ 94% ≤3% (100％ linear load ) Output voltage distortion ≤5% (100％ nonlinear load ) Input battery voltage 24VDC 48VDC 72VDC Internal battery...
-
Page 37: Communication Interface
6.5 Communication interface 6.5.1 RS232 communication interface This UPS provides a standard DB9 communication interface on its rear panel. The wiring specifics of the pins are as follows: 6.5.2 RS232 cable specifications When connecting the UPS to a PC using a RS232 cable, a standard RS232 cable with the following pin configurations is to be used. - Page 38 o Intelligent dry contact card: Use the monitoring function of the dry contact interface system to monitor and manage the power source of the UPS. NOTE: o Remove the cover before installing the optional accessories. o The operating instruction of the UPSilon monitoring software can be found on the installation CD.
