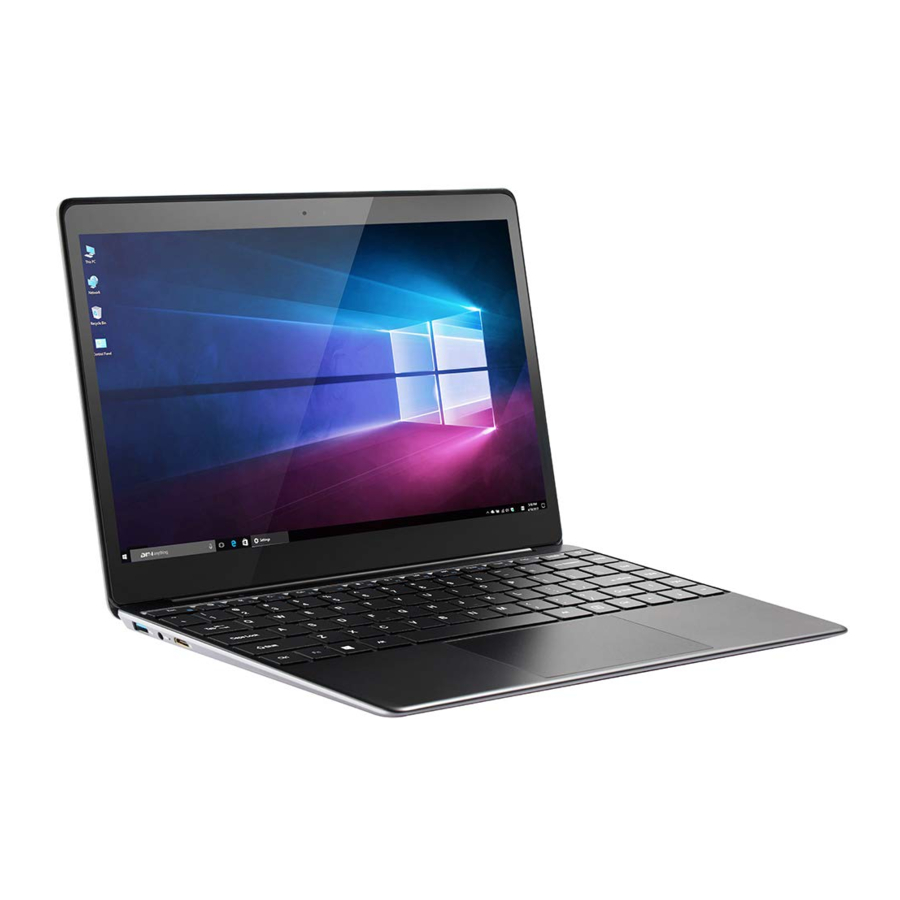

LincPlus P1 Manual

LAYOUT

USING YOUR DEVICE FOR THE FIRST TIME

Charging the device

You might need to charge the battery before using your LincPlus P1.

1. Plug the power adapter into the DC-In socket;
2. Connect the power adapter to an electrical outlet and charge the LincPlus P1 until the battery is fully charged.

Note:

1. The battery is not fully charged when you unpack your Device;
2. A fully discharged battery takes about 5 hours to fully charge;
3. When the battery is being charged, the LED indicator light is red. When the battery has been fully charged, the LED indicator light is green.

Turning on/off

Turning on the device
Note:
This LincPlus P1 has been preinstalled with Windows 10. You will need to perform an initial setup before the laptop can be used.

1. Press and hold the Power button for 2 seconds to turn your Device on. The lock screen will appear;
2. The Device is now ready for use.

Note:
If the login screen is not enabled in Windows, you will be taken directly from the lock screen to the start screen.

Turning off the device
You can turn off the device in two ways:

1. Press and hold the Power button for a minimum of 4 seconds;
2. Click on the shutdown confirmation screen to confirm turning the device off.

Connect to Wi-Fi

Turning On/Off Wi-Fi:

1. Select the Wi-Fi icon in the notification area, in the lower-right corner of the screen, to view the available Wi-Fi hot spots;
2. Select available Wi-Fi icon to establish a connection.

Connecting to a network:

1. Select the Wi-Fi icon in the notification area, in the lower-right corner of the screen, to view the available Wi-Fi hot spots;
2. Select an available network from the list and select Connect;
3. Input the password, if necessary, then select Connect to begin an internet connection.

Inserting a Micro-SD Card (sold separately*)

1. Align the Micro-SD Card so that the pins are pointed toward the card slot;
2. Push the Micro-SD Card into the card slot until it locks into place.

Removing a Micro-SD Card

Removing the Micro-SD Card while it is in use may cause data loss or result in application errors. (Ensure all data is saved to the Micro-SD Card before removing.)

1. Select the Tray button in the notification area
2. Select Safely Remove Hardware;
3. Select Eject XXXX SD Card. A message will appear confirming that the Micro-SD Card can be safely removed. If a warning message appears stating that the Micro-SD Card cannot be removed, ensure all data transfers involving the Micro-SD Card are complete;
4. Press down the Micro-SD Card to release it;
5. Slide the card out after it ejects from the Micro-SD Card slot.

* Micro-SD card sold separately. Use only compatible memory cards. Incompatible memory cards may cause damage to the laptop and corrupt the data stored on the card.

Using headphones

You can connect a headset, earphones or headphones to the audio port of your device.

Listening to loud music for an extended period of time can lead to hearing loss.

1. Connect the headphones to the audio port (3.5 mm) on the device;
2. Put the headphones over your ears and adjust the volume to a comfortable level.

To prevent damage to the headphones when disconnecting it from the device, pull the connector instead of the cable.

SSD installation instructions

Note: the LincPlus P1 must be shut down before installing the SSD
Compatible SSD: M.2 2280 SATA SSD. LincPlus SSD is sold on Amazon.de and shipped to the UK.

1. Find the SSD cover on the back of the laptop. Twist the SSD cover screw and remove the cover.
2. Insert the SSD into the mini PCI-E interface, and screw it to fix the SSD.
3. After assembly finished, turn on the laptop, boot to the system desktop, right clickWindows , and choose Disk Management to manage the new disk.

4. Right Click the New Disk(see below disk 0), pop-up Initialize Disk window, and click OK to start partition disk.

5. Right click the Disk 0 and choose New Simple Volume

6. Keep clicking Next until you see Finish.

Save your apps, documents, music, pictures, videos and maps to the SSD card to release the LincPlus P1 more space.

1. Click "Start" and click "setting"

2. Click "system"

3. Click " Storage"

4. Click "change where new content is saved"

5. Save your new files and apps to SSD


How to start Windows from SSD

Note: Starting Windows from the SSD is a violation of Microsoft's regulations and may damage the LincPlus P1. If you do need to do this, please e-mail us for help.

Info@lincplus.com.cn

IMPORTANT SAFETY INFORMATION

Your LincPlus P1 should be treated with care. The information below has been provided for you in the interest of safety and will help you to enjoy this product and its benefits:

1. Keep the product and all of its parts out of the reach of children;
2. Keep it dry. Avoid exposure to precipitation, humidity and liquids which could affect the product circuitry;
3. DO NOT leave it in high temperatures as electronic devices and plastic parts may warp in heat;
4. DO NOT leave it in low temperatures as moisture can form inside the product, which may damage the circuit board;
5. DO NOT block or cover slots, holes or openings on the product by placing on soft furnishings such as carpets, rugs or beds, as these are provided for functionality and/or ventilation to ensure safe operation of the product;
6. DO NOT expose the device to direct sunlight;
7. Disconnect your device from the main power supply during thunderstorms;
8. Avoid any heavy impacts caused by collisions or dropping your device, as this may damage the product;
9. Only use the power supply provided with the product. Using an unauthorized power supply will invalidate your warranty and may irrecoverably damage the product;
10. DO NOT store in dusty or dirty areas;
11. DO NOT use harsh chemicals, cleaning solvents, or detergents to clean the product. Wipe with a soft dry cloth or tissue paper to clean;
12. DO NOT attempt to dismantle the product. Unauthorized handling of the LincPlus P1 may damage it and will void your warranty;
13. Keep the laptop away from magnets or magnetic fields;
14. NEVER use the device near emergency/intensive care medical equipment or if you have a pacemaker fitted;
15. Never use the device during an electrical storm;
16. The underneath and sides of the product may become warm after long periods of use. This is normal.

Rechargeable lithium polymer battery

1. This device has an internal, non-removable, rechargeable Lithium Polymer battery. Do not attempt to open the back cover or remove the battery, as you may damage the device. To replace the battery, take the device to the nearest authorized service centre.
2. Only use the power supply that came with the product. Using an unauthorized power supply could invalidate your guarantee and may irrecoverably damage the product.
3. The battery can be charged and discharged hundreds of times, but it will eventually wear out.
4. When battery life is noticeably shorter than normal, replace the battery by taking the device to the nearest authorized service centre to replace the battery.

Battery and charger safety

1. To unplug a charger or an accessory, hold and pull the plug, not the cord.
2. Unplug your charger when it is not in use.
3. If your Device is left unused on standby, a fully charged battery will still lose charge over time.
4. Always keep the battery between 59°F and 77°F (15°C and 25°C) for optimal performance. Extreme temperatures reduce the capacity and lifetime of the battery. A LincPlus laptop with a hot or cold battery may not work temporarily.
5. Do not dispose of batteries in a fire as they may explode. Obey local regulations. Recycle when possible. Do not dispose as household waste.
6. Do not dismantle, cut, crush, bend, puncture, or otherwise damage the battery in any way. If a battery leaks, do not let the liquid touch your skin or eyes. If this happens, immediately flush the affected areas with water, and seek medical help.
7. Do not modify, attempt to insert foreign objects into the battery, or immerse or expose it to water or other liquids. Batteries may explode if damaged.
8. Use the battery and charger for their intended purposes only. Improper use, or use of unapproved or incompatible batteries or chargers may present a risk of fire, explosion, or other hazard, and may invalidate any approval of warranty. If you believe the battery or charger is damaged, take it to a service centre before continuing its use.
9. Never use a damaged battery or charger.
10. Do not charge your device during a lightning storm. Only use the charger indoors.

Medical device

Operation of radio transmitting equipment, including wireless phones, may interfere with inadequately shielded medical device functions. Consult a physician or the medical device manufacturer to determine if it is adequately shielded from external radio energy.

Implanted medical devices

To avoid potential interference, manufacturers of implanted medical devices recommend a minimum separation of 6 inches (15.3 centimeters) between a wireless device and the medical device. Persons who have such devices should:

• always keep the wireless device more than 6 inches (15.3 centimeters) from the medical device;
• turn the wireless device on if there is any reason to suspect that interference is taking place;
• follow the manufacturer directions for the implanted medical device.

Hearing

• When you use a headset or earphones, your ability to hear outside noise may be affected. Do not use a headset where it can endanger your safety. To prevent possible hearing damage, do not listen to audio at high volume levels for extended periods of time.

WARRANTY

LincPlus Limited warrants to the end user that this product will be free from defects in materials and workmanship, in the course of normal use for a period of 12 months (1 year) from the date of purchase. This warranty covers breakdowns due to manufacturing or design faults. If a genuine manufacturing fault is found, LincPlus Limited will issue a replacement.

• Should you have a problem with your unit please email us at: info@lincplus.com.cn

Warranty Supplier:
ShenZhen LincPlus Technology Co., Inc
5F, No.2 Building, District D2,TCL international E City, NO.1001 Zhongshanyuan Road, Nanshan District, ShenZhen, P.R.China

www.lincplus.com.cn

NEED MORE HELP?
Like our Facebook @lincplus.sz to get one-on-one tech support
