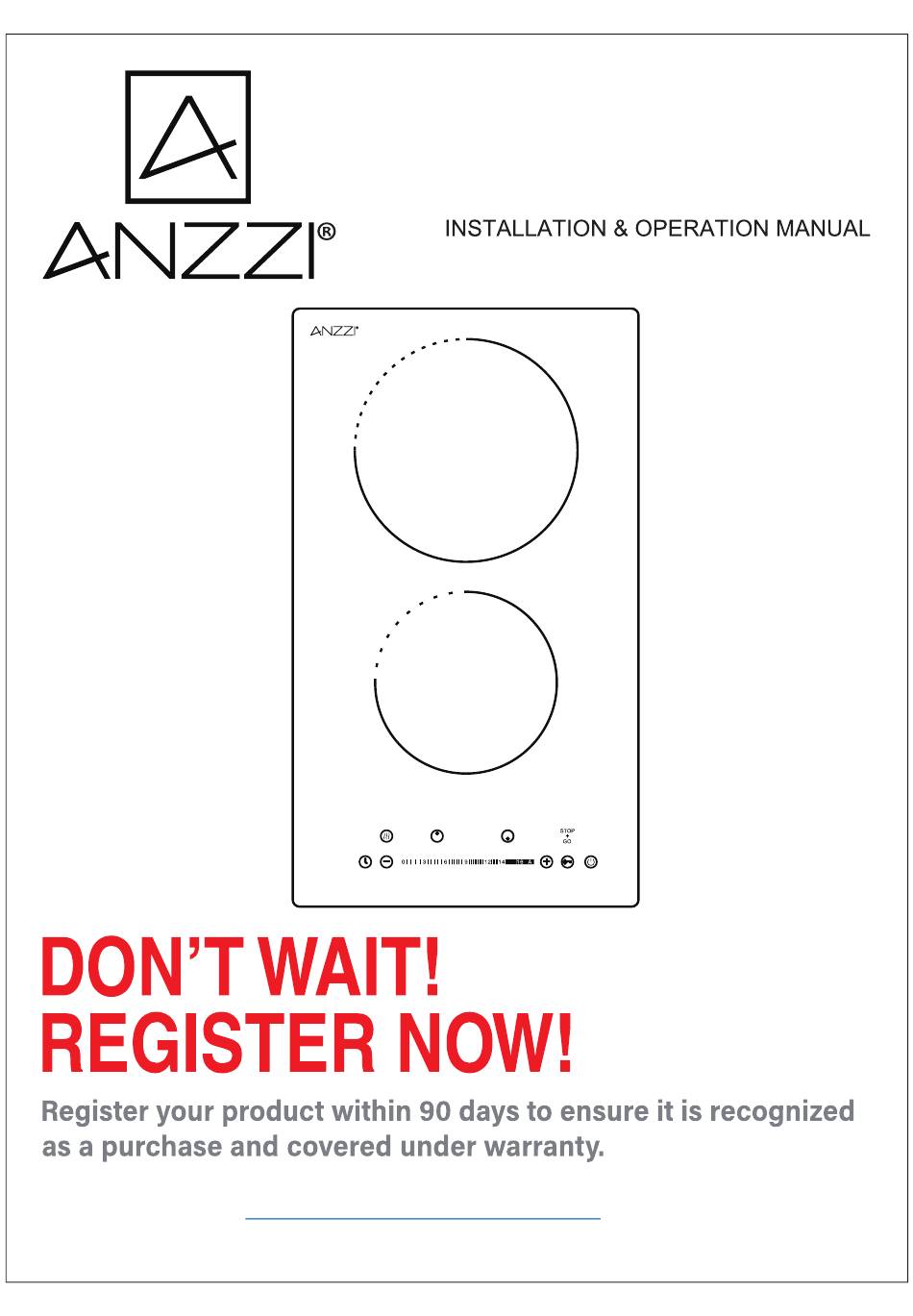

- Page 1 ITEM: AZ-CKTEL01 ANZZI ELECTRIC COOKTOP V1.0 01/21/2025 Register online at https://anzzi.com/pages/register or scan the QR code on PG. 2.
- Page 2 IMPORTANT: Warranty will not be recognized unless product is registered. https://anzzi.com/pages/register Register online at or Scan the QR code below. Registering your product maximizes your warranty benefits and ensures prompt service and support. USE YOUR PHONE CAMERA FILL IN A QUICK...
-
Page 3: Table Of Contents
CLEANING AND MAINTENANCE ..................14 TROUBLESHOOTING ........................15 Thank you for purchasing ANZZI ELECTRIC COOKTOP. Please read and follow the installation and operation instructions carefully, to ensure the long life and reliable operation of this appliance. FAILURE TO DO SO COULD CAUSE PROPERTY DAMAGE, SERIOUS INJURY, OR DEATH. -
Page 4: Product Size Chart
PRODUCT SIZE CHART 11.61" [295mm] 1.97" [50mm] 2.95" [75mm] 10.23" [260mm] COMPONENTS PART Description Qty. Electric Cooktop Anchor [ 02 ] Screws Manual [ 03 ] [ 04 ] [ 01 ] TOOLS AND MATERIALS PG.4... -
Page 5: Safety Precautions
SAFETY PRECAUTIONS READ AND SAVE THESE INSTRUCTIONS ! WARNING - GENERAL SAFETY INSTRUCTIONS Use this cooktop only for its intended purpose as To protect against electrical shock do not immerse described in this Owner's Manual. cord, or whole product in water or other liquid. Be sure your cooktop is properly installed and Do not use outdoors and HOUSEHOLD USE ONLY. - Page 6 ! WARNING - COOKTOP SAFETY INSTRUCTIONS Glazed Cooking Utensils - Only certain types of Do not let cooking grease or other flammable glass, glass/ceramic, ceramic, earthenware, or other materials accumulate in or near the cooktop. glazed utensils are suitable for range-top service Grease on the cooktop may ignite.
-
Page 7: Specifications
! CAUTION Use the proper pan size - select cookware having flat To minimize the possibility of burns, ignition of bottoms large enough to cover the surface heating flammable materials and spillage, the handle of a element. The use of undersized cookware will expose container should be tumed toward the center of the a portion of the surface unit to direct contact and may range without extending over nearby surface units. -
Page 8: Drop-In Installation
INSTALLATION Drop-in installation WARNING Do not store or use gasoline or other flammable vapors and liquids near the cooktop or any other appliance. To minimize the risk of burns or fire caused by overheating, avoid installing cabinets directly above the electric cooktop. -
Page 9: Step 3: Securing The Cooktop
INSTALLATION Ventilation and safety distances Important Note: To prevent overheating, it is recommended that all four sides of the cabinet have open-air exhaust, as shown in the table below: A(inch) B(inch) C(inch) D(inch) E(inch) 1.97 Air gap/ Exhaust air intake min. -
Page 10: Wire Connections
INSTALLATION STEP 4: Electrical Connections ! WARNING - THIS APPLIANCE MUST BE PROPERLY GROUNDED. General Guidelines: Adhere to all governing codes and ordinances. For personal safety, turn off the power supply by removing the house fuse or opening the circuit This electric cooktops operate on a single-phase, breaker before installation. -
Page 11: For Best Results
COOKWARE FOR ELECTRIC COOKTOP MATCHING COOKWARE Not recommended cookware: Copper bottom: Copper may leave residues Glass-ceramic/Stoneware: These materials that resemble scratches. These can be removed have poor performance and may scratch the if the cooktop is cleaned immediately. However, surface. avoid letting copper cookware boil dry, as overheated metal can bond to the glass cooktop and leave permanent stains. -
Page 12: Operation Instructions
OPERATION INSTRUCTIONS BEFORE OPERATION 1. Remove all stickers and protective items from the cooktop surface. 2. Clean the glass surface using a dedicated cooktop cleaner. This protects the surface and simplifies future cleaning. Dry thoroughly with a soft cloth. 3. Review the operation instructions in this manual. 4. -
Page 13: Hot Surface Warning
OPERATION INSTRUCTIONS FEATURES AND OPERATIONS ADJUSTING POWER LEVELS To turn off an element: Select the corresponding element, then press the − button until the power level reaches 0. Alternatively, press the 0 of the slide bar to shut down the burner. Alternatively, press the Power button to shut down all burners. -
Page 14: Cleaning And Maintenance
CLEANING AND MAINTENANCE GENERAL GUIDELINES Before Maintenance: Turn off the breaker to the electric cooktop and allow the unit to cool completely. Avoid cleaning the cooktop with abrasive materials or harsh chemicals, as they may cause damage. Do not use benzene, thinner, scrubbing brushes, or polishing powders. Keep flammable, acidic, or alkaline substances away from the cooktop to prevent damage or hazardous situations. -
Page 15: Troubleshooting
TROUBLESHOOTING For operational difficulties, refer to the table below. If further assistance is required, contact ANZZI Customer Support at 305-614-4070. Please have the product serial number, purchase date, and any diagnostic codes from the control panel ready when you call.
