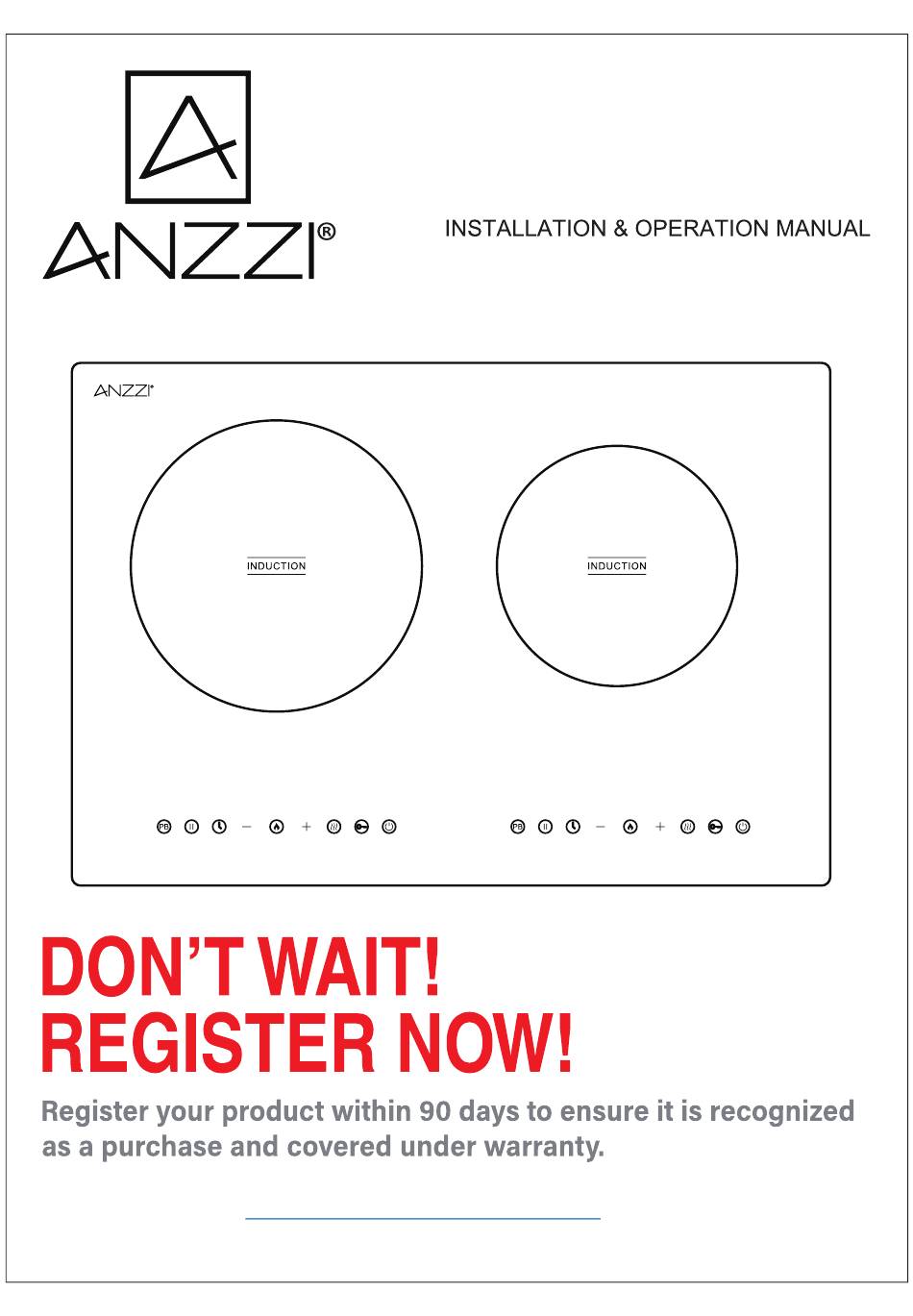

- Page 1 ITEM: AZ-CKTID01 ANZZI INDUCTION COOKTOP V1.0 01/16/2025 Register online at https://anzzi.com/pages/register or scan the QR code on PG. 2.
- Page 2 IMPORTANT: Warranty will not be recognized unless product is registered. https://anzzi.com/pages/register Register online at or Scan the QR code below. Registering your product maximizes your warranty benefits and ensures prompt service and support. USE YOUR PHONE CAMERA FILL IN A QUICK...
-
Page 3: Table Of Contents
CLEANING AND MAINTENANCE ..................14 TROUBLESHOOTING ........................15 Thank you for purchasing ANZZI INDUCTION COOKTOP. Please read and follow the installation and operation instructions carefully, to ensure the long life and reliable operation of this appliance. FAILURE TO DO SO COULD CAUSE PROPERTY DAMAGE, SERIOUS INJURY, OR DEATH. -
Page 4: Product Size Chart
PRODUCT SIZE CHART 20.51" [521mm] 2.4" [61mm] 3.23" [82mm] 19.3" [490mm] COMPONENTS PART Description Qty. Induction Cooktop Anchor Screws Manual [ 01 ] [ 04 ] [ 02 ] [ 03 ] TOOLS AND MATERIALS PG.4... -
Page 5: Safety Precautions
SAFETY PRECAUTIONS READ AND SAVE THESE INSTRUCTIONS ! WARNING - GENERAL SAFETY INSTRUCTIONS Use this cooktop only for its intended purpose as The cord should be arranged so that it will not drape described in this Owner's Manual. over the countertop or tabletop where it can be pulled on by children or tripped over. - Page 6 ! WARNING - COOKTOP SAFETY INSTRUCTIONS Close supervision is necessary when any appliance Do not place any magnetically objects like credit is used by or near children. They should never be cards, cassettes etc. on the glass surface while the allowed to climb, sit or stand on any part of the electric cooktop is in operation.
-
Page 7: Specifications
! CAUTION Never use your cooktop for warming or heating the Use the proper pan size - select cookware having flat room. bottoms large enough to cover the surface heating element. The use of undersized cookware will Do not use with empty pans/pots. expose a portion of the surface unit to direct contact and may result in ignition of clothing. -
Page 8: Cooking Noise
COOKING NOISE Noise from the cooktop When the cooktop is in use, the internal fans activate to dissipate heat, producing a low humming sound. This sound may increase at higher power levels due to faster fan operation. When using two burners at specific power levels, magnetic fields may interact, causing a high-pitched whistle or intermittent hum. -
Page 9: Countertop Installation
INSTALLATION Countertop installation 1. Place the cooktop directly on the countertop. 2. Connect the cooktop to a GFCI outlet. 3. Turn on the outlet to verify operation. outlet power cord Drop-in installation WARNING For safety, do not store or use gasoline or other flammable vapors and liquids near the cooktop or any other appliance. - Page 10 INSTALLATION Ventilation and safety distances To ensure proper ventilation and safe operation of the cooktop, adhere to the following guidelines: Avoid cabinet storage space above the surface units to reduce the risk of burns or fire caused by reaching over hot areas. If cabinet storage is necessary, install a range hood that extends horizontally by at least 5 inches below the cabinets.
-
Page 11: Cookware For Induction Cooktop
INSTALLATION STEP 3: Final Installation IMPORTANT: All electric cooktops operate on a single-phase, three-wire cable (120V/60Hz AC) with a ground connection. Ensure installation follows the National Electrical Code (ANSI/NFPA 70) standards using appropriate wires, conduits, and fittings. 1. Connect the cooktop to a GFCI outlet. Induction Cooktop [01] 2. -
Page 12: Operation Instructions
COOKWARE FOR INDUCTION COOKTOP FOR BEST RESULTS Use only dry pans on the surface elements. Avoid placing lids, especially wet lids, on the cooktop’s heating circles as they may stick when cool. Incompatible Cookware: Non-magnetic stainless steel Cookware with bottoms smaller than 12 cm (4.7 inches) Pots with stands Heat-resistant glass Ceramic containers... - Page 13 OPERATION INSTRUCTIONS FEATURES AND OPERATIONS POWER ON/OFF Press the Power button to turn the cooktop on or off. When powered on, you will hear a beep, and the display will show a line (--). If no operation is performed within 30 seconds, the unit will return to standby mode.
-
Page 14: Cleaning And Maintenance
OPERATION INSTRUCTIONS POWER SHARING When both burners are in use, their combined power output will not exceed 1800W. High-Power burner can reach a maximum of 1800W individually, Low-Power burner can reach a maximum of 1300W individually, but the output of one burner will adjust automatically when the other is in use. For example, if one burner is set at 1100W, the other will reduce to 700W to maintain the total maximum of 1800W. -
Page 15: Damage From Sugary Spills And Melted Plastic
ANZZI. Power supply voltage is too high. Check house voltage. If correct, wait for it to normalize. If the error persists, contact ANZZI. Power supply voltage is too low. As above, verify and allow the voltage to stabilize before using the cooktop. - Page 16 TROUBLESHOOTING Symptoms Possible Causes Recommended Action Fans run for one Remaining heat is being exhausted to protect This is a normal occurrence. minute after shutdown. electronic components. Scratches on the 1. Incorrect cleaning methods. 1. Use proper cleaning procedures outlined in "Cleaning and cooktop glass surface.
