AmpShell shown below with a Sonos Amp secured using included hook n' loop pull-tight strips to the base
plate. The amp is mounted sideways, with the rear of the device facing the hinges of the enclosures to help
with wire management, airflow, and to maximize the amount of usable space.

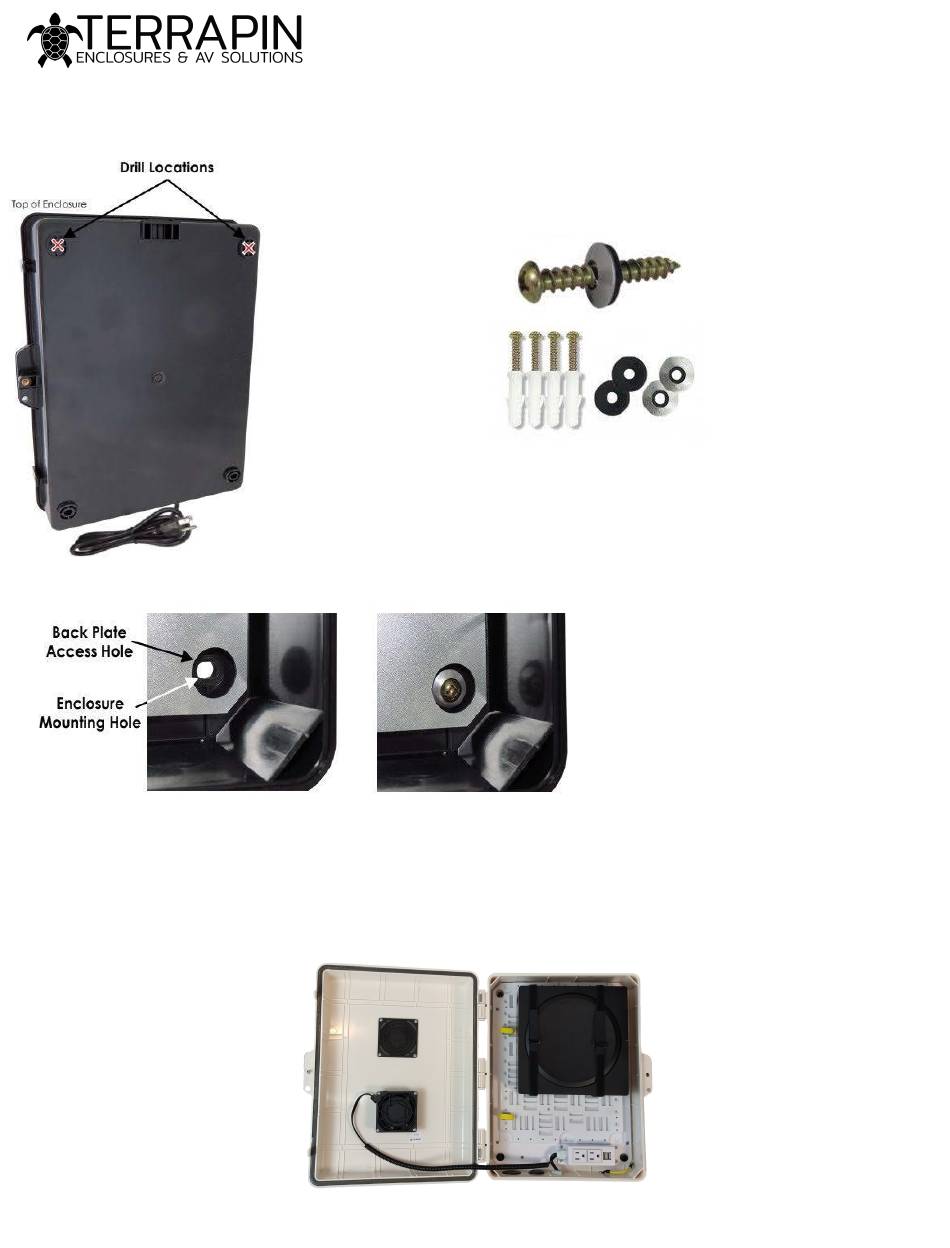

MOUNTING THE ENCLOSURE
You will need to Pre-Drill the top two lag screw holes before installing.
Rubber/metal washers or Rubber insert (depending on version) must be
installed on lag screws to prevent water ingress into the enclosure. We
recommend silicone on/around the lag screw during installation for extra sealing
insurance.
SECURING THE EQUIPMENT
AmpShell INSTALLATION & USER GUIDE
Alternatively we offer a Pole Mount
option, bracket sold separately.
