Lamphus SoundAlert SASN01 Quick Start Manual

SoundAlert 100W Amplifier with PTT Microphone
Manual ID: PIM-00000157-V002
IMPORTANT: READ CAREFULLY BEFORE ASSEMBLY AND USE.
• Installer of this product must have a good understanding of automotive electronics,
systems, and procedures.
• In the case that holes must be drilled in order to properly mount the product, the
installer must examine both sides of the mounting surface before drilling begins. It is
the installer's responsibility to be sure that no vehicle components or vital parts could
be damaged by the drilling process. De-burr any holes in order to remove metal shards
and remnants. Use grommets in all wire passage holes.
• Do not attempt to activate or operate this product under hazardous driving situations.
• Never operate the siren indoors or in an enclosed area.
DANGER!
Sirens are designed to produce extremely loud emergency warning tones!
Exposure to the tones produced without proper and adequate hearing protec-
tions, could lead to ear damage and/or hearing loss! The Occupational Safety &
Health Administration (www.osha.gov) provides information necessary to
determine safe exposure times in Occupational Noise Exposure Section 1910.95.
The operators of the siren and any one in the immediate vicinity of the siren
should be required to wear an approved hearing protection device until one has
determined the safe exposure times for your specific application. FAILURE TO
FOLLOW THIS RECOMMENDATION COULD CAUSE HEARING LOSS!

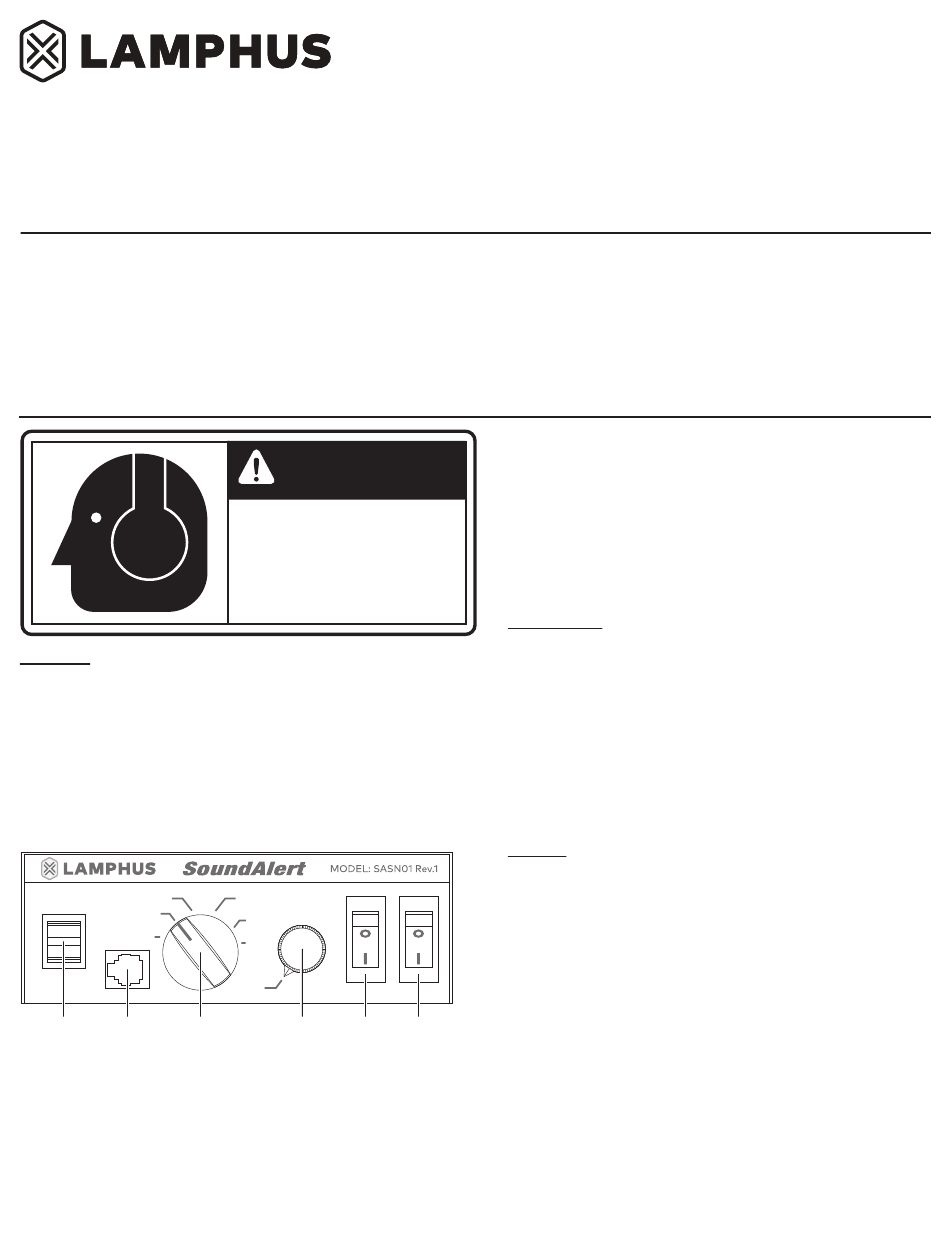

Functions:
HORN
YELP
STAND-BY
RADIO
SIREN
Manual PTT Mic. Rotary Switch
Horn/Siren
Manual Horn/Siren
This switch has two positions. Down - Siren & Up- Horn. The siren and horn
warning tone could be activated manually by engaging the switch to the
positions. Horn function can also be activated with the vehicle horn relay by
connecting the horn/radio wire of the siren unit to the horn relay of the automo-
bile. (see wiring diagram)
PTT Mic
Push to talk microphone which overrides any activated warning tone when in
use.
CAUTION
Loud Siren noise could
cause damage to
unprotected ears.
Refer to OSHA Section 1910.95 prior
to putting siren into service!
CTRL1 CTRL2
VOLUME
WAIL
MAX.
HI-LO
HI-LO2
OFF
Speaker/Mic AUX AUX
Volume Switch 1 Switch 2
True Mods © 2012-2021 All Rights Reserved
• Deployment area of the vehicle air bags must be cleared. Do not install this
product or route any electrical wires near the air bags deployment areas. Refer to
your vehicle owner's manual for the air bag deployment area. Products or wires
mounted in the air bag deployment area will damage, reduce the effectiveness of
the air bag, or even act as a projectile which may cause serious injury or death. The
user/installer of this product assumes full responsibility in determining the proper
mounting location while prioritizing the safety of all passengers in the vehicle.
• SAE J1849 recommends that the maximum sound pressure level in the passenger
area, with the vehicle in motion and the siren active, should not exceed 85 dB.
Rotary Switch
-
The rotary knob controls siren functions. There are 5 positions that may be
selected. (see switch functions below for detail)
Speaker/Mic Volume
-
The volume knob controls the volume of siren and public address function.
Rotating the knob clockwise will increase the volume. Rotating the knob
counter-clockwise will decrease the volume. Rotating the knob to minimal
volume will disable all siren functions.
Aux Switch 1 & 2
-
The auxiliary switches are meant to be used to power other equipment on
the vehicle. Each auxiliary switch is fused with a 20 amp AGC fuse.
Rotary Switch
Radio
-
With the rotary knob set to this function, the radio function would be
activated. Any signal that is received by the vehicle's two-way radio will be
broadcasted over the connected speaker. (the siren must be connected to
the two-way radio as outlined in wiring section of this manual)
Stand-by
-
With the rotary knob set to this function, the siren will be in stand-by.
Manual Horn/Siren and PTT Mic functions are enabled during stand-by.
Yelp - Activates Yelp warning tone.
-
Wail - Activates Wail warning tone.
-
Hi-Lo - Activates Hi-Lo warning tone.
-
Hi-Lo 2 - Activates Hi-Lo 2 warning tone.
-
Optional
Horn Override
-
This function, if used, will always be active when the siren unit is on. When
it's active, the stock steering wheel horn button will trigger the air horn
instead of the stock horn. When the siren unit is turned off, the steering
wheel horn button will once again trigger the stock horn. (the siren must
be connected to the stock horn wiring as outlined in the wiring section of
this manual)
Radio Bypass
-
The siren must be connected to the two-way radio as outlined in wiring
section of this manual.
