Key 7 SA840-A40 Installation Manual

SA840-A40
INSTALLATIONS MANUAL
Rev. 4.01
PROXIMITY READER
•
MULTI PROTOKOL OUTPUT
•
SUITS MOST CONTROL PANELS
•
ALSO FOR OUTDOOR USE
•
SKAFOR approved in class 3
•
This manual applies for serial no. geater than 1xx20000
SA840-A40 emulates ABA mag. reader, Wiegand reader, RS232 and RS485
SA840-A40 has a programmable facility code for Wiegand interface
SA840-A40 interfaces directly to Alphatronics, Cooper, Castle and others
SA840-A40 is a molded weatherproof construction for outdoor use
SA840-A40 has an optical tamper security circuit
SA840-A40 LED's and buzzer can be externally controlled
SA840-A40 has electrical isolated output for tamper/sabotage
SA840-A40 can be connected directly to PC or printer
SA840-A40 uses standard 125KHz EM4100-based prox cords / tags
SA840-A40 is SKAFOR approved in class 3 (AIA 212.069)
Select output format
Output format selection is done during power-up.
Connect wires a shown in below table, apply power, wait for buzzer acknowledge
and finish by disconnection power and the wires from below table.
Wire connection for programming
YELW GREEN to VIOLET to
WHITE nothing nothing
YELLOW GREEN to VIOLET to
nothing WHITE nothing
YELLOW GREEN to VIOLET to
nothing nothing WHITE
YELLOW GREEN to VIOLET to
PINK nothing nothing
YELLOWl GREEN to VIOLET to
PINK+WHT nothing nothing
YELLOW GREEN to VIOLET to
PINK WHITE nothing
YELLOW GREEN to VIOLET to
PINK nothing WHITE
YELLOW GREEN to VIOLET to
nothing PINK nothing
YELLOW GREEN to VIOLET to
WHITE PINK nothing
YELLOW GREEN to VIOLET to
nothing WHITE GREEN
YELLOW GREEN to VIOLET to
nothing PINK WHITE
Programming sequence:
1. Select output format and connect wires acordingly
2. If protocol 6 then the tamper circuit can be disabled connecting the
BROWN wire to ground now.
3. Connect power and then cut brown wire if it was connected.
4. Potocol 6/8/10 (Red LED flashes): Hold a random prox up to the
reader and wait for number of beeps according to ID no. If this is not
done then ID=1 (Cooper) or ID=8 (AVNG).
5. Await number of beeps according to format no.
6. Disconnet power and wires.
SA840-A40 is now programmet and ready for use. Programming is stored in
internal non-volatile memory of SA840-A40. Fascility code, if needed, can be
changed by use of KeyLink+ TECH PC program. If programming sequence needs
changede then first follow below procedure for
Factory reset
1. Disconnect power
2. Connect PINK wire to ground (BLACK)
3. Wait 5 seconds until red LED flashes
4. Disconnect the PINK wire within next 5 seconds
5. Disconnect power.
SA840 is now back in factory deafault state and a new protocol can be selected.
sa840_a40_inst_eng_401.doc
Format Output format
no.
1 ABA (magstripe card)
Deafault selected
2 Wiegand
26-bit
3 RS232, 9600,N,8,1
Log function
4 MI Wiegand
(26/8-bit)
Like til Motorola/Indala
5 UT
For use with Unitek, NOX Syst.
6 AVNG
For AlphaVisionNG/CP-508LCD
7 ATS Wiegand
8 COOPER
For RS central panels
9 TAC Wiegand
For I/Net Seven
10 Castle
(ver 4 eller nyere)
For CS2600/2700/2800
11 TAC ABA
For til I/Net Seven
Factory reset .
.

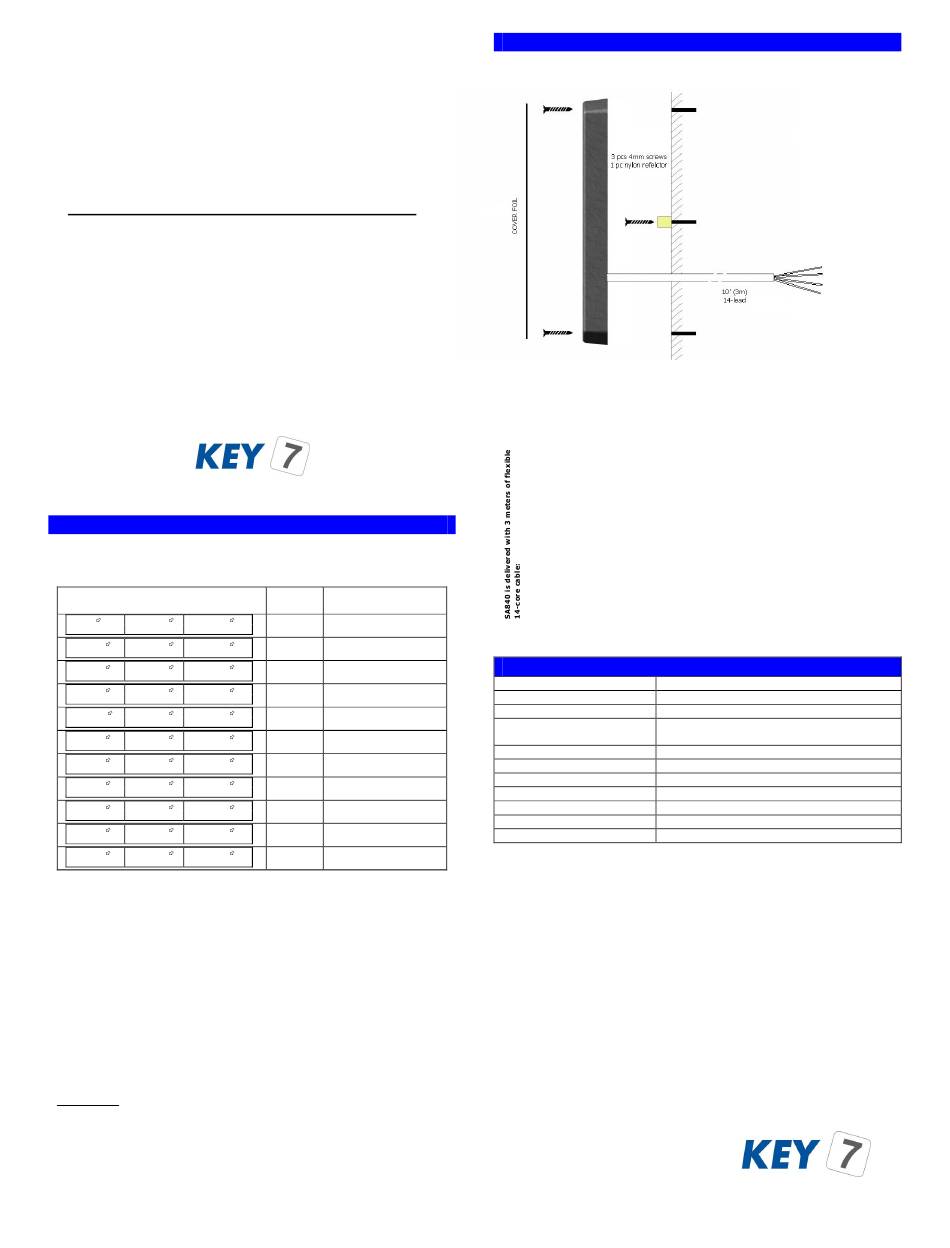

Mounting
SA840 mounts with only 2 screws on flat building surface
Connect SA840 wires appropriate and test tamper circuit. Tighten screws.
4
Clean key surface. Remove adhesive protection from front cover foil and place it
5
carefully on the SA850.
Red 8-24V DC
Back Ground. 0V
Green/White -
Green/Brown -
Yellow CLS (ABA), Data 0 (Wiegand)
Green CCLK (ABA), Data 1 (Wiegand)
Violet CDAT (ABA)
Blue Tamper loop, wire 1
Blue/Pink Tamper loop, wire 2
Gray/Pink RS485 data, A (RS485)
Grey RS485 data, B (RS485), TX (RS232)
White LED input
Pink Buzzer input
Brown Synchronizing. Only if two SA840's are placed closer than 50cm to each other.
Technical specifications
Power supply
Current consumption
Tamper loop
Output formats RS232 (9600,N,8,1) , RS485, Wiegand, ABA,
Prox reading distance
Prox type
Dimensions (H-W-D) 0.59in-1.93in-0.59in (150mm-49mm-15mm)
Vægt
Operating temperatures
Operating humidity
Wire
All specifications are subject to change. For latest info see www.keyseven.com.
Having problems? Contact your dealer or visit our
homepage www.keyseven.com.
Mark the 4 drilling holes with the
1
drill guide and drill the holes
according to the wall material.
Fasten the nylon reflector.
2
Guide the cable trough the hole in
3
the wall and fasten screws loosely.
(open collector output)
(open collector output)
(open collector output)
8V to 24V DC
typical 80mA
isolated, max100mA, 25 ohm, 50V
UT, AVNG, TAC
up to 10 cm.
125kHz, auto-tuning, EM4102 compatible
10.2oz (286g)
-30°F to 150°F (-35°C to 65°C)
0%-100%
10' (3 m), 14-lead
