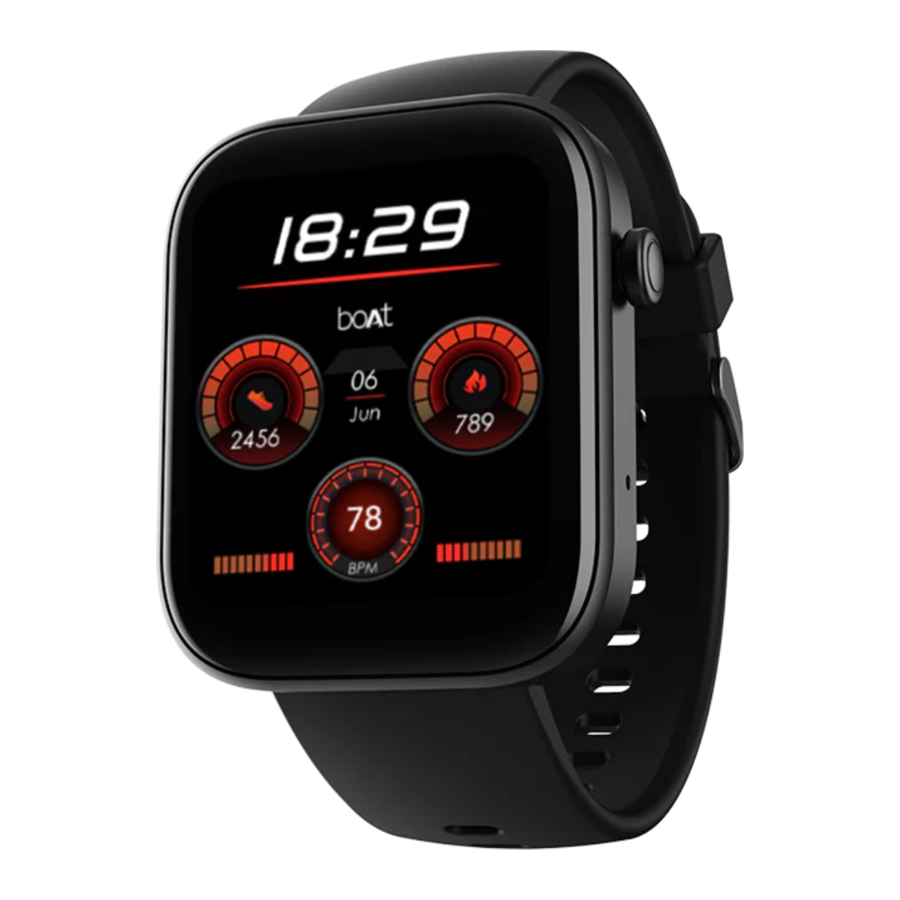

boAt Wave Call 2 Manual

Introduction

Allow this manual to guide you through the functioning of your smartwatch. Please read it thoroughly before using it for a smooth sail. You may refer to these instructions for later use as well.

Package Contains:

• boAt Wave Call 2 x1
• USB Magnetic Charging Cable x1
• User Manual and Warranty QR Card x1
• 5+1 Stickers

CHARGING THE WATCH

The smartwatch must be charged before initial use. It takes up to 1.5 hours to be fully charged. Connect and charge the watch with the image below as a reference, using a 5V/2A adapter.

TURNING THE WATCH ON/OFF

To restart or turn the watch on/off, long-press the side button for 3-5 seconds.
You can wake up the screen by lifting your wrist. You can change the watch faces by rotating the side button.

Sports
Choose from 50+ sports modes like running, walking, climbing, treadmill, cycling, spinning, yoga, basketball, football, badminton, weightlifting, boxing, jump rope, climbing stairs, skiing, skates, roller skating, hula hoop, golf, baseball, dance, ping-pong, hockey, pilates, taekwondo, handball, hip-hop, volleyball, tennis, darts, gymnastics, step, push-up, fencing, archery, sit-ups, and billiards.
Tap on any sport mode to start the activity. Press the side button to pause or stop the activity. If the activity is less than 3 minutes, it will not be recorded.
Sync your smartwatch to the app to get a detailed analysis.

Records
You can view the records of your workouts here.

Activity
Click on this to check your daily activity data, like step count, calories, and distance.

Heart Rate Monitor
Wear the watch on your wrist, then click on the icon to start measurements. You can also view the data on the app.
Note: Measurements are for reference only and not for medical purposes

SpO2 monitoring
Wear the watch on your wrist. You can also view the data on the app.
Note: Measurements are for reference only and not for medical purposes.

Stress Monitoring
Click this option to start stress monitoring. Make sure you wear your watch on your wrist properly to get accurate results.
Analysis of the measurement:
Relax: 1-29
Normal: 30-59
Medium: 60-79
High: 80-100
Note: Measurements are for reference only and not for medical purposes.

Sleep Monitor
Tap on the icon to review the sleep data of the previous night.
Once the asleep criteria are met, your smartwatch will start recording from 8 PM at night to 10 AM the next day.
Once you lie down and the watch detects no movement for 30 minutes, it will start recording and will stop recording if it detects excessive movement.
You can check the data on the app only after the awake criteria are met.
You can also track sleep scores on the boAt Wearabless app.
Note: For accurate sleep data recording, the asleep criteria have to be met, which includes limited movement, wrist positions and angles, and more.
The awake criteria will be met only after it records some noticeable movement.

Stopwatch
Click on this to start the stopwatch on your watch.

Notification
Tap on this icon to check your notifications.

Voice Assistant
Tap on this to enable the voice assistant feature and give the command from the watch.
Note: Make sure the watch is connected with the app and the phone is in an unlocked state.

Find my Phone
Tap on this icon to find your phone. Once enabled, your phone will start ringing and vibrating. Tap again to stop it.
Note: Your smartwatch should be connected to your phone via Bluetooth and within its range for this feature to work.

Alarm
Tap on this to set an alarm on your watch.

Camera
Tap on the remote camera icon on your smartwatch to click a photo from your phone.
Note: Turn the camera on from your phone to use this feature.

Weather
Connect with the boAt Wearabless app to get daily weather updates on the watch.

Music
Tap on the remote music control icon on your watch to play music from your phone.
Note: Some apps with different protocols might not work.

Female Wellness
Enable and set the details on the boAt Wearables app and get alerts of your period and ovulation dates on the watch.

Timer
Tap on this to turn on the timer.

QR Code
Scan and download the boAt Wearabless App from here.

SETTINGS

Brightness
Tap on this to adjust the brightness.

Theme
Change the menu style from here.

Power Off
Tap on this to switch your watch off.

Reboot
Tap on this to restart your watch.

Factory Reset
Tap on this to reset the watch data.
Note: All data will be erased if the watch is reset.

About
Shows the device details

SWIPE DOWN FOR SHORTCUT MENU

You can access Flashlight, Brightness, DND, Screen Sleep, Settings, Find My Phone, etc.

SWIPE LEFT TO ACCESS ALL DATA

You can access the heart rate monitor, daily activity, SpO2, sleep, weather, female wellness and music player from here.

SWIPE RIGHT TO ACCESS SPLIT SCREEN FOR RECENTLY USED APPS

You can control the recently used activities here.

MAINTENANCE

Regularly clean your wrist and the strap of the smartwatch, especially after sweating during exercise or being exposed to substances such as soap or detergent, which may get stuck on the other end of the product.
Do not wash the strap with a household cleanser. Please use soap less detergent, rinse thoroughly and wipe with a piece of soft towel or napkin.
For spots or stains that are not easy to remove, scrub the area with rubbing alcohol and then follow the above procedure.

FAQ

Search for the app to connect keeps failing

1. Keep the boAt Wearables app updated to the latest version
2. Close all the programs on the watch Stop and restart Bluetooth and GPS Connect again
3. Check and enable notification functions of your phone and keep the phone and watch in close contact.

Note: Make sure your phone system meets Android 7.0 and above and iOS 12.0 and above.

My Watch Wave Call 2 is receiving no alerts, texts, or phone calls
Make sure smart reminders on the app are on and synced to the Wave Call 2.
Also make sure your notification center of the phone is displaying messages. Only then will your smartwatch also display those notifications.
Make sure app is running in the background and battery optimization feature on the phone is disabled.

My Bluetooth keeps getting disconnected

1. Make sure there is not more than 7m distance between Bluetooth on the phone & the watch.
2. There is no obstacle in between the watch and the phone.
3. Make sure the app is running in background

Which functions of the Wave Call 2 need Bluetooth to work?
Call & Text Notifications, Find My Phone, music control, camera control, weather forecast, cloud and custom watch faces and need Bluetooth connectivity to work.

Will it be okay to take a bath wearing the Wave Call 2?
The IP67 water resistance will only work under the following conditions:

1. Maximum depth of water: 1.5m
2. Maximum time for exposure to water: 10 minutes The watch isn't suitable for hot baths, hot springs, saunas, snorkeling, diving, water skiing and other wading or deep-water activities with high-speed water flow.

SAFETY & PRODUCT INFORMATION

Battery

• Do not disassemble, bore or damage the battery.
• Do not disassemble the built in batteries of non-replaceable battery devices.
• Do not use sharp objects to remove the battery.

Health Warning

• If you are wearing a pacemaker or other implanted electronic devices, please consult your doctor before using the heart rate monitor of the watch.
• The optical heart rate sensor will glow green. If you suffer from epilepsy or are sensitive toblinking light sources, please consult your physician before wearing this device.
• The device tracks your daily activities through sensors. This data is intended to tell you about your daily activities such as steps, sleep, distance, heart rate and calories, but may not be completely accurate.
• The device accessories, heart rate sensor, oxygen level monitor, and other relevant data is designed for fitness and not for medical purposes. They are not applicable to the diagnosis, monitoring, treatment or prevention of any diseases or symptoms. The heart rate data is for reference only. We're not responsible for any deviation in data.
• Avoid wearing the watch too tightly. Make sure you keep your skin dry - the area that comes in contact with the watch. If symptoms such as redness or swelling appear on your skin, immediately stop using the watch and consult the doctor.

Things to keep in mind

• Sync data everyday days to avoid data loss.
• Water Resistance will not work for seawater, acidic and alkaline solutions, chemical reagents & other corrosive liquid. The damage or defects caused by misuse or improper use are not covered by the warranty.
• Sports modes support up to 6 hours of exercise at a time.
• Avoid wearing the watch too tight in daily use. Keep the parts of skin touching the watch dry.
• Keep your arm still while measuring data for accurate measurement.
