Projecta LVD30 User Manual

12 volt low voltage disconnect

Advertisement

Quick Links

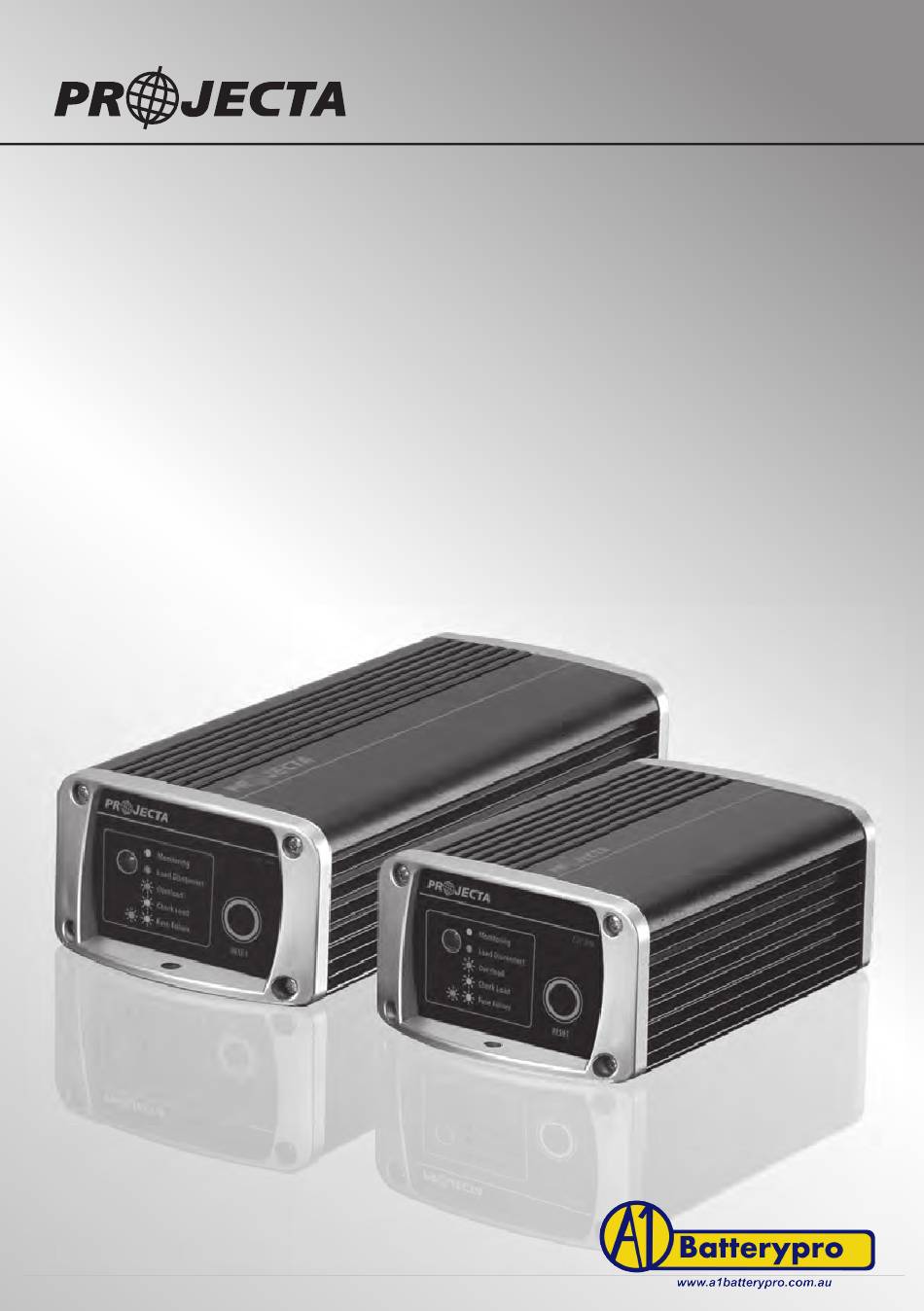

12 VOLT
LOW VOLTAGE DISCONNECT
USER MANUAL
P/No LVD30 & LVD50
P/No LVD30 & LVD50

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LVD30 and is the answer not in the manual?

Questions and answers

Summary of Contents for Projecta LVD30

  • Page 1 12 VOLT LOW VOLTAGE DISCONNECT USER MANUAL P/No LVD30 & LVD50 P/No LVD30 & LVD50...
  • Page 2 WARNING • PLEASE READ THESE INSTRUCTIONS COMPLETELY PRIOR TO INSTALLATION. • BATTERIES PRODUCE EXPLOSIVE GASES – Ensure no sparks or flames are present. • Wear eye protection. • Vehicles must be in ‘NEUTRAL’ or ‘PARK’, park brakes ‘ON’. • Follow all vehicle manufacturer’s instructions. •...
  • Page 3: Product Overview

    PRODUCT OVERVIEW L.E.D Status Indicator Fully sealed IP65 L.E.D signal highlights Fully sealed shock proof the LVD’s status aluminium housing protects against water and dust ingress Mounting Flange Reset Switch REAR VIEW Jumper Connection 2 Jumper Connection 1 Adjustable Disconnect Points Set the voltage disconnect point at 10, 10.5, 11 or 12V...
  • Page 4: Installation

    INSTALLATION 1. Low voltage disconnect units feature a fully sealed (IP65) shock proof aluminium housing, protecting the unit against water and dust ingress. The LVD end plates include a mounting flange for easy mounting, if permanently fixed the LVD should be mounted to a suitable horizontal or vertical panel. Mount in a convenient location.
  • Page 5: Wiring Diagram

    WIRING DIAGRAM Note: Fuses used when wiring the LVD unit should be rated to the cable being used for the installation.
  • Page 6: Fuse Failure

    OPERATING INSTRUCTIONS The LVD unit monitors the battery voltage and disconnects the DC load when the battery voltage falls below the set disconnect point, preventing further discharge and possible damage. Once the set disconnect point has been reached, a 60 second delay will occur prior to disconnection allowing for short periods of low voltage eg engine starting.
  • Page 7: Led Signal

    Green (Flashing) Check Load Red / Green (Flashing) Fuse Failure Replace fuse, check wiring for short circuit No Power to LVD No action required SPECIFICATIONS P/No: LVD30 LVD50 Output Current Input Voltage 10–16V 10–16V Current Draw 10mA 10mA LVD Disconnect 10V, 10.5V, 11V &...
  • Page 8: Warranty Statement

    WARRANTY STATEMENT Brown & Watson International Pty Ltd (“BWI”) of 1500 Ferntree Gully Road, Knoxfield, Vic., telephone (03) 9730 6000, fax (03) 9730 6050, warrants that all products described in its current catalogue will under normal use and service be free of failures in material and workmanship for a period of one (1) year from the date of the original purchase by the customer as marked on the invoice.

This manual is also suitable for:

Lvd50
