Sephra SAUPUM01 User Manual

Pump Cleaning and Care
Clean pump thoroughly between each use.
1.Remove nut-cylinder and pull pump-plunger from pump chamber
2.Remove knob from plunger and disassemble
USER MANUAL
3.Remove cap-tube and nut-sleeve-tube. Remove cover from pump
4.Remove "U" pin.
5.Remove ball bearings from pump
6.Wash all pieces with soap and water. Sanitize in 220 ppm four part solution.

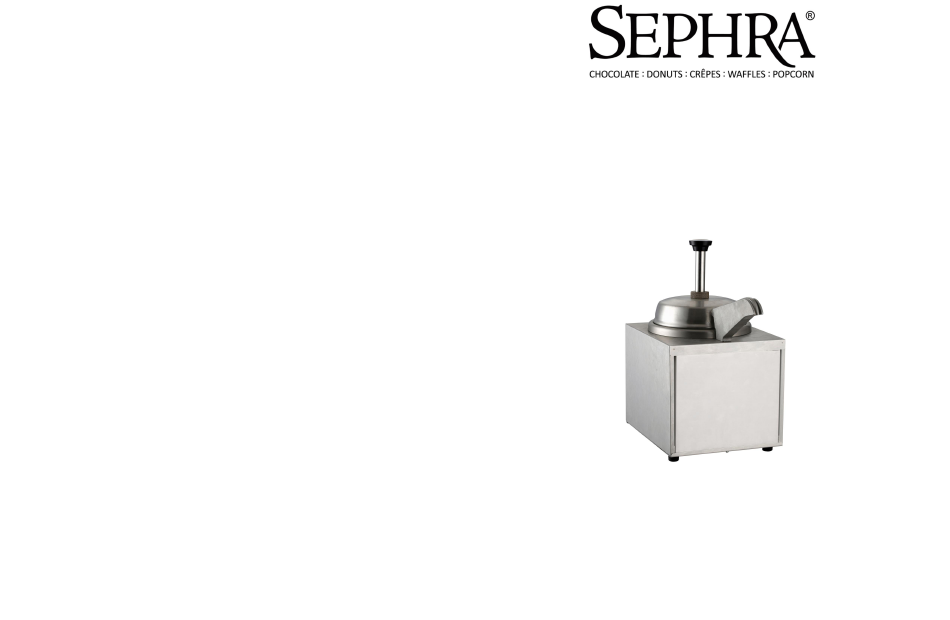

Sauce Pump Dispenser SAUPUM01
7.Reassemble. **NOTE – wet O-ring with edible vegetable oil when
reassembling.
Priming Pump
Pump may take up to three depressions of the plunger to fully prime and vend
thick products. If the pump does not dispense properly, remove and make sure
the O-ring is in the correct place. If it is missing, make sure the O-ring did not get
pulled into pump plunger tube. Failure to do this can result in a broken O-ring
being pumped out when the food is vended.
Please read and keep these instructions.
Indoor use only.
