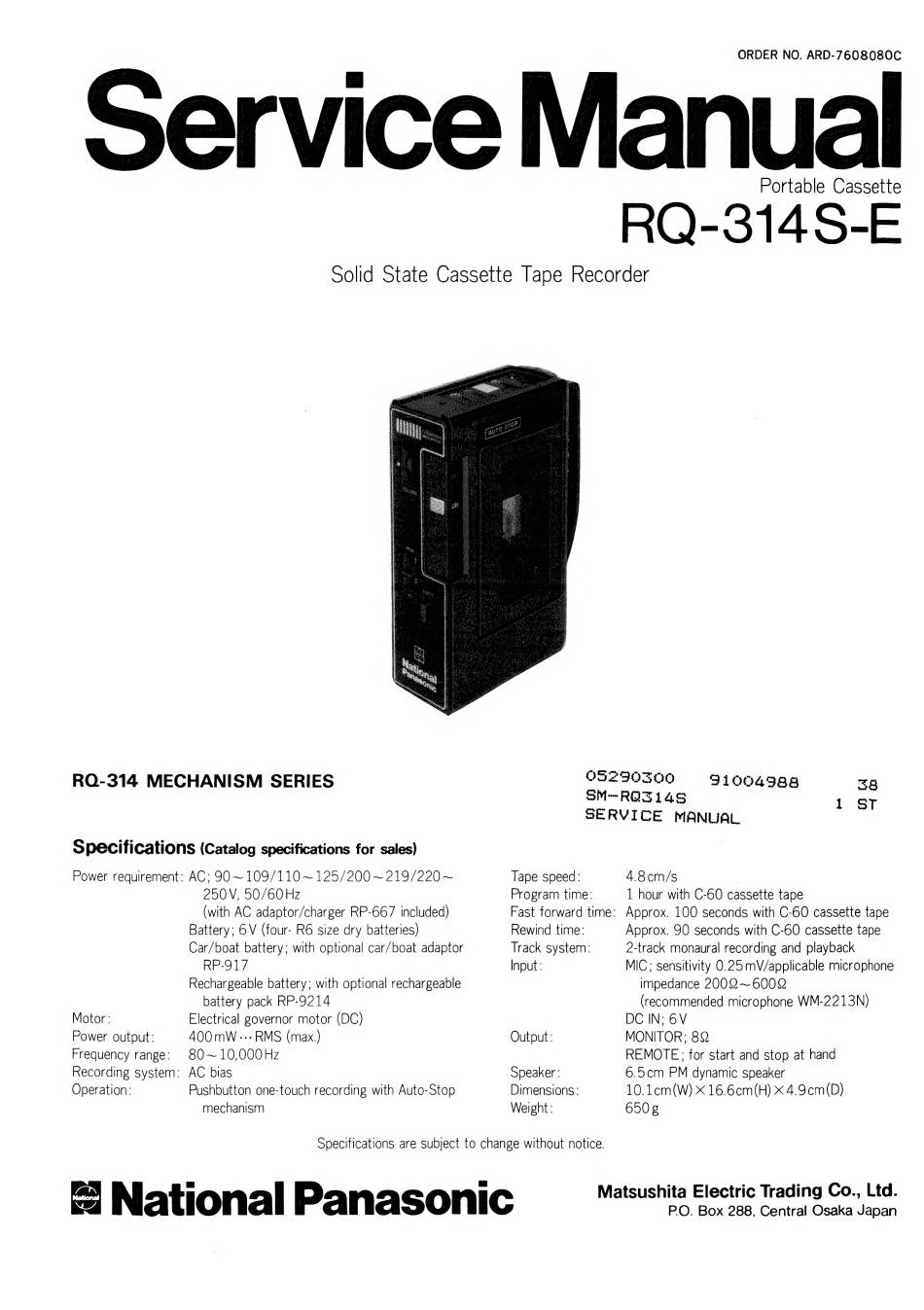

National Panasonic RQ-314 Series Service Manual

ORDER NO. ARD-7608080C
Portable Cassette
RQ-3148-E
Solid State Cassette Tape Recorder
RQ-314 MECHANISM SERIES
Specifications (Catalog specifications for sales)
Power requirement: AC; 90 ~~ 109/110 ~ 125/200 ~ 219/220 ~
Motor:
Power output:
Frequency range:
250 V, 50/60 Hz
(with AC adaptor/charger RP-667 included)
Battery: 6V (four- R6 size dry batteries)
Car/boat battery; with optional car/boat adaptor
RP-91/7
Rechargeable battery; with optional rechargeable
battery pack RP-9214
Electrical governor motor (DC)
A00mW--- RMS (max.)
80 ~ 10,000 Hz
Recording system: AC bias
Operation:
National Panasonic
Pushbutton one-touch recording with Auto-Stop
mechanism
OS2Z9IOSO0
OM—-ROSL45
91004988 25
1 ST
Tape speed:
Program time:
Fast forward time:
Rewind time:
Track system:
Input:
Output:
Speaker :
Dimensions:
Weight :
Specifications are subject to change without notice.
4 8cm/s |
1 hour with C-60 cassette tape
Approx. 100 seconds with C-60 cassette tape
Approx. 90 seconds with C-60 cassette tape
2-track monaural recording and playback
MIC; sensitivity 0.25 mV/applicable microphone
impedance 2002 ~ 60022
(recommended microphone WM-2213N)
DC IN; 6V
MONITOR; 8Q
REMOTE: for start and stop at hand
6.5cm PM dynamic speaker
10. 1cm(W) X 16.6cm(H) x 4.9cm(D)
650 g
Matsushita Electric Trading Co., Ltd.
P.O. Box 288, Central Osaka Japan
