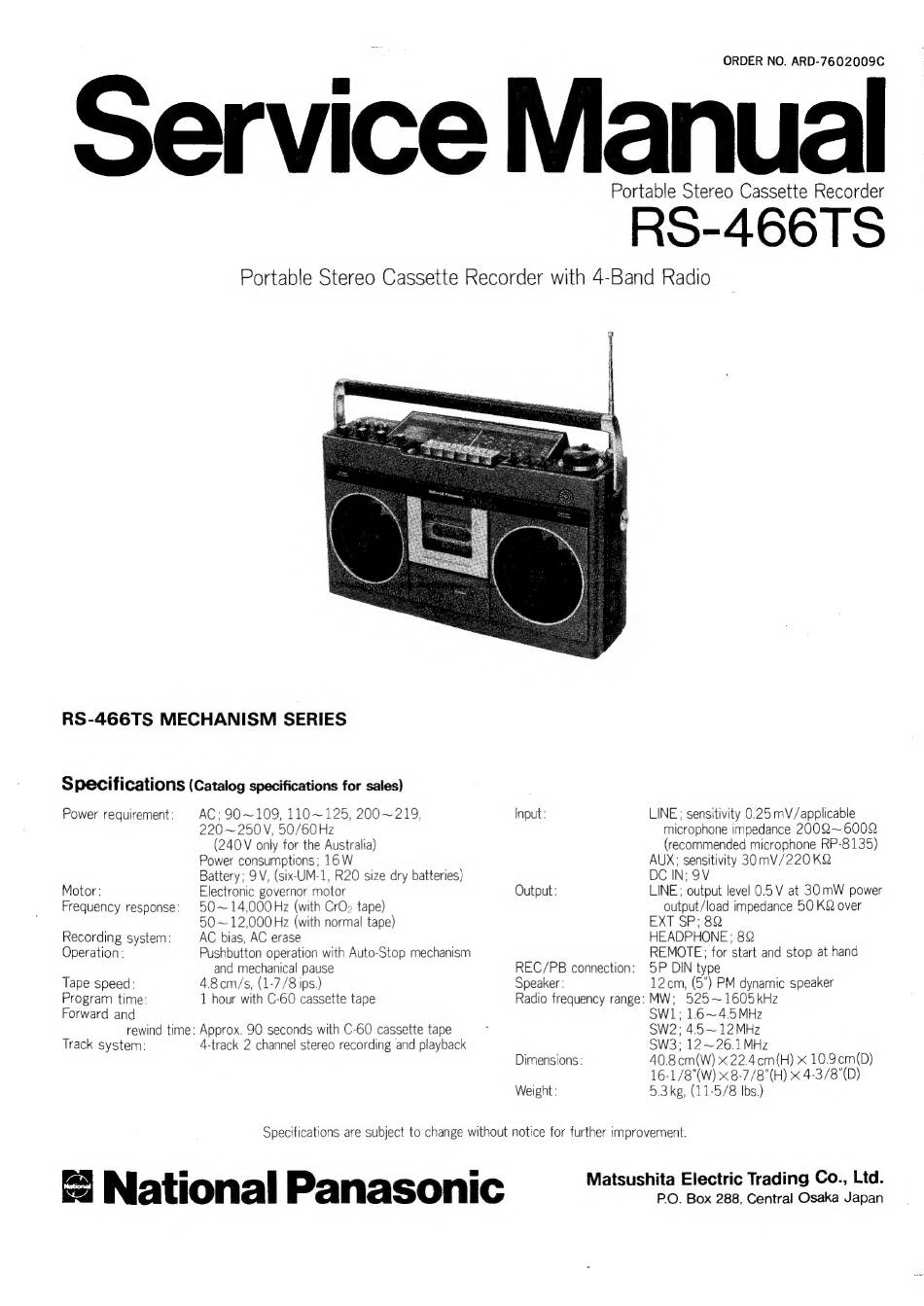

National Panasonic RS-466TS Service Manual

ORDER NO. ARD-7602009C

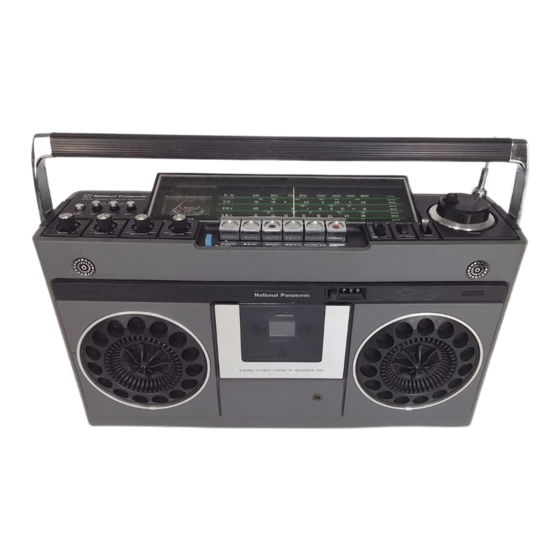

Portable Stereo Cassette Recorder
RS-466TS
Portable Stereo Cassette Recorder with 4-Band Radio
RS-466TS MECHANISM SERIES
Specifications (Catalog specifications for sales)
Power requirement:
Motor:
Frequency response:
Recording system:
Operation:
Tape speed:
Program time:
Forward and
rewind time:
Track system:
AC; 90~109, 110~125, 200~219,
220 ~ 250 V, 50/60 Hz
(240 V only for the Australia)
Power consumptions; 16 W
Battery; 9V, (six-UM-1, R20 size dry batteries)
Electronic governor motor
50~ 14,000 Hz (with CrO> tape)
50~ 12,000 Hz (with normal tape)
AC bias, AC erase
Pushbutton operation with Auto-Stop mechanism
and mechanical pause
4.8cm/s, (1-7/8 ips.)
1 hour with C-60 cassette tape
Approx. 90 seconds with C-60 cassette tape
4-track 2 channel stereo recording and playback
Specifications are subject to change without notice for further improvement.
National Panasonic
Input:
Output :
REC/PB connection:
Speaker:
Radio frequency range:
Dimensions :
Weight :
LINE: sensitivity 0.25 mV/applicable
microphone impedance 2002~ 6002
recommended microphone RP-8135)
AUX; sensitivity 30 mV/220 KQ
DC IN; 9V
LINE; output level 0.5 V at 30 mW power
output/load impedance 50 KQ over
EXT SP; 8Q
HEADPHONE : 8
REMOTE: for start and stop at hand
5P DIN type
12cm, (5") PM dynamic speaker
W; 525~1605kHz
SW1; 16~4.5MHz
SW2; 4.5~12MHz
SW3; 12 ~ 26.1 MHz
40.8 cm(W) x 22.4 cm{H) X 10.9 cm(D)
16-1/8"(W) x 8-7/8"(H) x 4-3/8"(D)
5.3kg, (11-5/8 Ibs.)
a
Matsushita Electric Trading Co., Ltd.
P.O. Box 288, Central Osaka Japan
