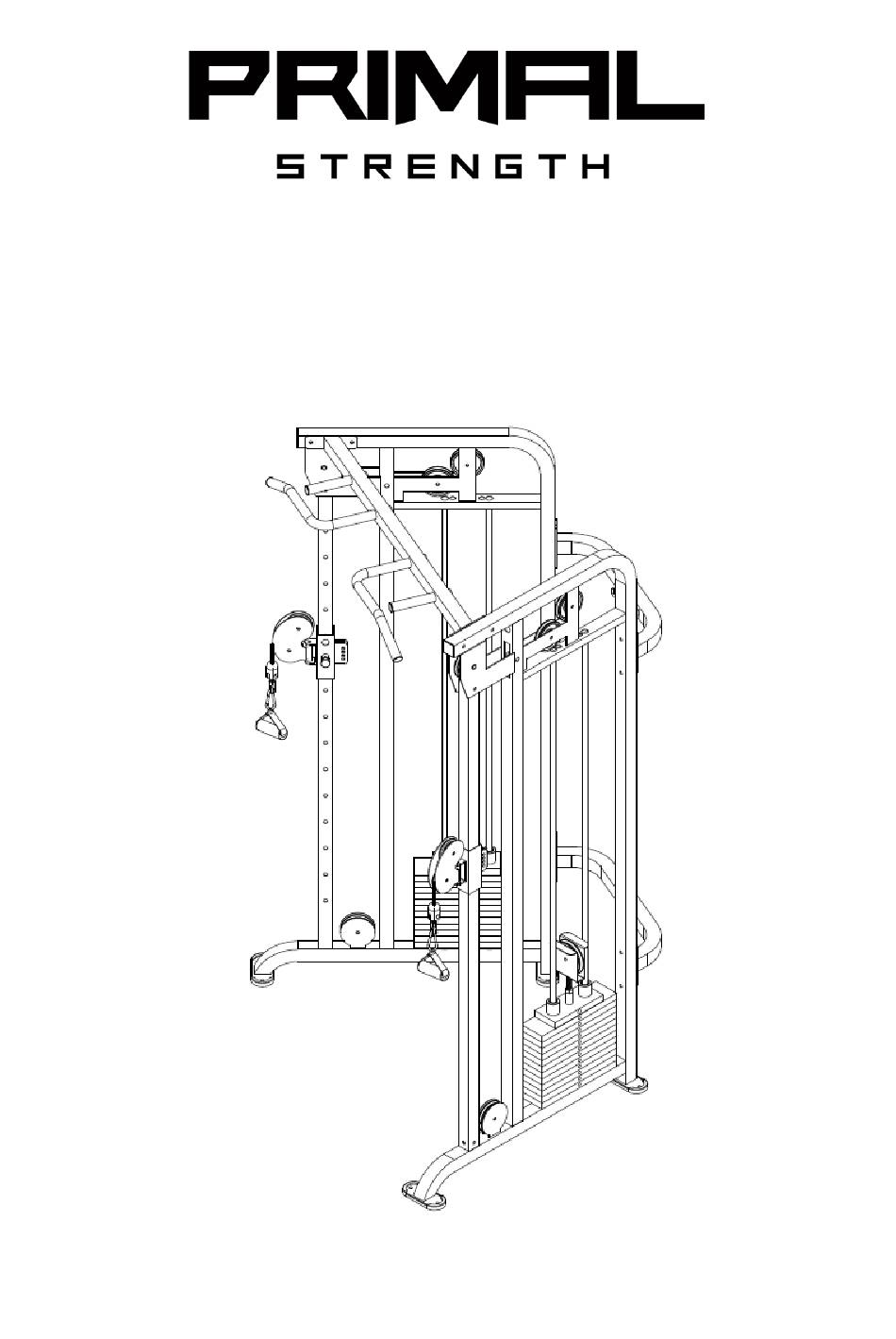

EXPLORE DRAWING PART LIST PART NO PART NAME Q'TY...
Page 3
Left main frame Right main frame Rear connect support A Rear connect support B Up support frame Adjustable fixed tube Adjustable moving frame Moving wheel frame Moving pulley frame Base frame sleeve Top plate Weight stack plate Guide rod Damping block Fixed sleeve of guide rod M10*20mm Allen head bolt Shaft circlips...
M8 Nylon nut M10 Nylon nut Up pulley fixed sleeve Long hang rod Note: Some parts in above list have been assembled in advance. HARDWARE LIST 1 PART NO PART NAME Q'TY M10*70mm bolt Ø10 Washer M10 Nylon nut Strong magnetic latch Damping block Fixed sleeve of guide rod M10*20mm Allen head bolt...
ASSEMBLING INSTRUCTIONS STEP1: 1.Fixed Rear connect support A3 and Rear connect support B4 onto Left main frame1 and Right main frame2 with M10*70mm bolt 37, M10 Nylon nut45 and Ø10 Washer43. 2.Fixed Up support frame5 onto Left main frame1 and Right main frame2 with M10*70mm bolt 37, M10 Nylon nut45 and Ø10 Washer43.
Page 6
STEP2: 1.Insert Guide rod13 onto Left main frame1 and Right main frame2,then fix Weight stack plate12 and Top plate11 onto Guide rod14. 2.Fixed other side of Guide rod14 onto Left main frame1 and Right main frame2 with Fixed sleeve of guide rod15,M10 * 20mm Allen head bolt16 and Shaft circlips17.
