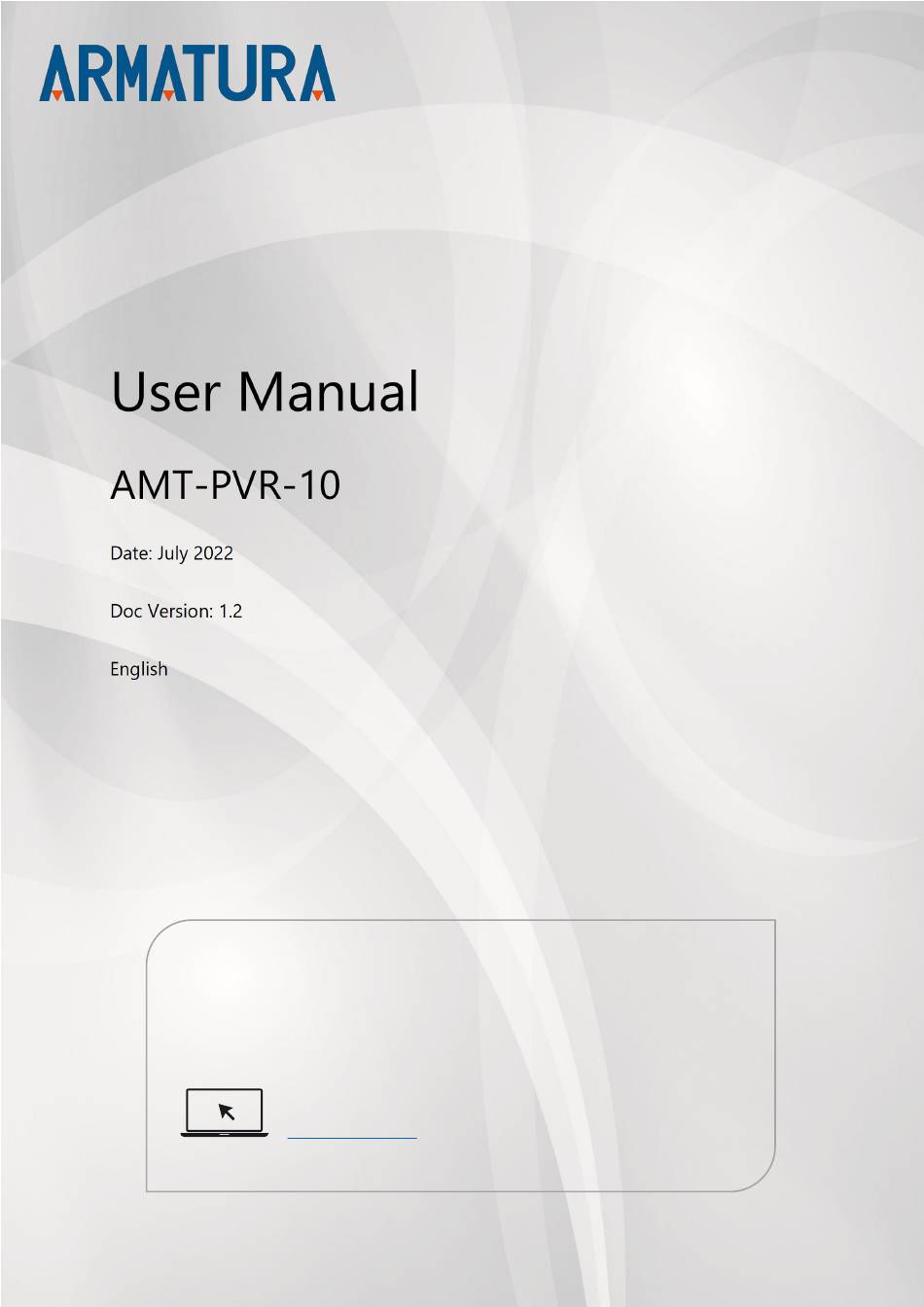

ARMATURA AMT-PVR-10 User Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Thank you for choosing our product. Please read the instructions

carefully before operation. Follow these instructions to ensure that the

product is functioning properly. The images shown in this manual are

for illustrative purposes only.

P a g e

| 1

For further details, please visit our Company's website

www.armatura.us.

User Manual

Table of Contents

Need help?

Do you have a question about the AMT-PVR-10 and is the answer not in the manual?

Questions and answers

Summary of Contents for ARMATURA AMT-PVR-10

Page 1 Follow these instructions to ensure that the product is functioning properly. The images shown in this manual are for illustrative purposes only. For further details, please visit our Company’s website www.armatura.us. P a g e Copyright©2022 ARMATURA LLC. All rights reserved.
Page 2 The copyright in all the documents, drawings, etc. in relation to the ARMATURA supplied product vests in and is the property of ARMATURA. The contents hereof should not be used or shared by the receiver with any third party without express written permission of ARMATURA.
Page 3 The entire risk as to the results and performance obtained from using the information is assumed by the user. ARMATURA in no event shall be liable to the user or any third party for any incidental, consequential, indirect, special, or exemplary damages, including, without limitation, loss of...
Page 4 User Manual About the Company ARMATURA is a leading global developer and supplier of biometric solutions which incorporate the latest technologies on biometric hardware design, algorithm research and software development. ARMATURA holds numerous patents in the field of biometric recognition technologies. Its products are primarily used in business applications which require high-secured, high-accurate and fast matching and identification processes.
Page 5 The general information which helps in performing the operations faster. The information which is significant. Care taken to avoid danger or mistakes. The statement or event that warns of something or that serves as a cautionary example. P a g e Copyright©2022 ARMATURA LLC. All rights reserved.
Page 6: Table Of Contents
6.2 LED I ............................13 NDICATOR TATUS 6.3 O .......................... 13 PERATION EIGHT AND NGLE 6.4 M ........................15 AINTENANCE AND LEANSING UIDE 6.4.1 Maintenance..............................15 6.4.2 Cleansing................................15 7 FREQUETN ASKED QUESTIONS ..................... 15 P a g e Copyright©2022 ARMATURA LLC. All rights reserved.
Page 7: Product Introduction
Product Introduction Overview AMT-PVR-10 is a single-lens near infrared light camera module that supports to capture the palm print and palm vein grayscale images for recognition process. The module is configured with near-infrared LED lights, wide dynamic image sensor, and aspherical distortion-free camera lens.
Page 8: Product Specifications
T = 25℃/77°F, VCC = 5.0 V 1.75W 2.0W Consumption T = 25℃/77°F, VCC = 5.0 V Standby Current 150mA 170mA Standby Power T = 25℃/77°F, VCC = 5.0 V 0.75W 0.85W Consumption P a g e Copyright©2022 ARMATURA LLC. All rights reserved.
Page 9: Optical And Image Specifications
TAR=98.2% when FAR=0.05% Recognition Time <300ms (Quad-core Cortex-A9 up to 1.6GHz) Windows Windows XP / Windows 7 / Windows10 (32/64bits) Android Android 4.1 or higher version Algorithm Specifications Palm Recognition Algorithm P a g e Copyright©2022 ARMATURA LLC. All rights reserved.
Page 10: Palm Recognition Specifications
The image saved while palm registration has JPG or BMP format and the minimum resolution is 160 x 120 pixels. The individual should take care of the following things while registering their palm: P a g e | 10 Copyright©2022 ARMATURA LLC. All rights reserved.
Page 11: Application Scenarios
Figure 3.2 Example of a palm registration image Application Scenarios The AMT-PVR-10 module is is optimized on its physical structure for the purpose of the built-in design and integration, facilitating easy and fast integration into third-party hardware device. Kept the integration thought into design, the module can be built into a host device using a single USB cable which provides both the power supply and data communication, this approach simplifies the integration development work considerably.
Page 12: Structural Dimensions
2. Keep the hand parallel to the reader. Ensure that the center of the palm is aligned with the center of the reader. 3. Stretch out the hand and keep palm open in natural posture. P a g e | 12 Copyright©2022 ARMATURA LLC. All rights reserved.
Page 13: Led Indicator Status
Registration is successful or matching is successful. Red light Registration is failed or matching is failed Figure 6.2 LED light indicator on the palm reader Operation Height and Angle P a g e | 13 Copyright©2022 ARMATURA LLC. All rights reserved.
Page 15: Maintenance And Cleansing Guide
Next, verify if the palm position, angle, and the palm placing distance are proper. Read the pop-up error code and check the reason for the error by comparing with the P a g e | 15 Copyright©2022 ARMATURA LLC. All rights reserved.
Page 17 AMT-PVR-10 User Manual 190 Bluegrass Valley Pkwy, Alpharetta, GA 30005 E-mail: info@armatura.us www.armatura.us P a g e | 17 Copyright©2022 ARMATURA LLC. All rights reserved. Copyright © 2022 ARMATURA LLC. All Rights Reserved.
