Summary of Contents for Mantall XE Crawler XE80CT-OR

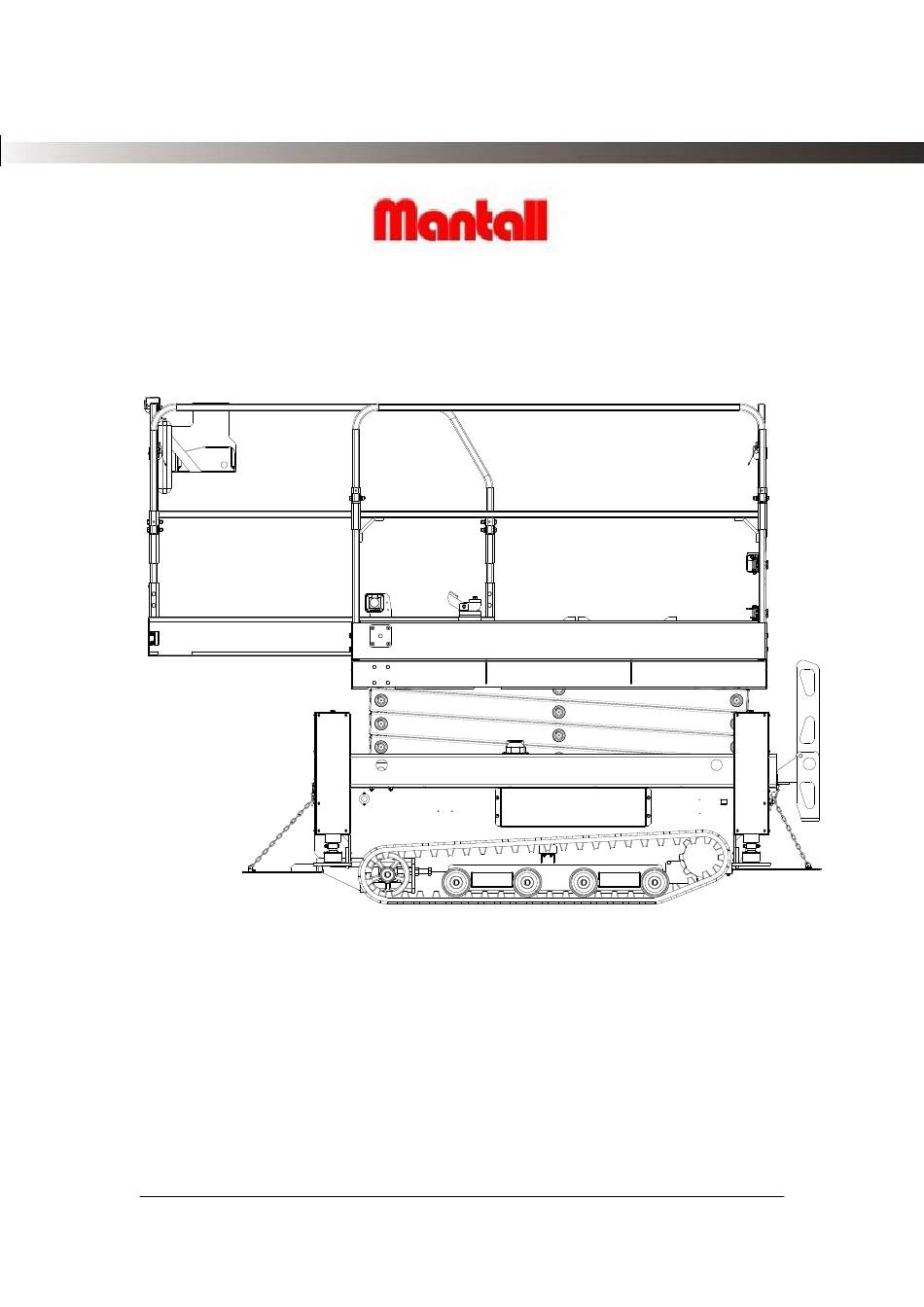

- Page 1 XE Crawler Type Scissor Lift Operator Manual Applicable for XE80CT‐OR (With outriggers) DANGER - DO NOT DRIVE MACHINE WHILE PLATFORM IS RAISED, UNLESS ON SOLID LEVEL GROUND (e.g. level concrete slab) Failure to comply could result in serious INJURY or DEATH. Must read operators manual prior to use.
-
Page 2: Revision Record
Revision record Version No. Creation date Creator Checker A2.0.1 July, 2024... - Page 3 Mantall Heavy Industry CO., LTD is a professional enterprise of manufacturing aerial work platforms. Mantall has Sales, R&D, Technology, Production, QC, Purchase, After-sales Departments, etc. Our company introduced a complete set of CNC processing production equipment and painting equipment, it has advanced equipments including Plasma cutting machine, CNC flame cutting machine, CNC bending machine, CNC shearing machine, CNC drilling and milling machine, Laser machine, Welding robot, etc.
-
Page 4: Table Of Contents
Important Owner, User and Operator: Read， understand and obey these safety rules Mantall thanks your choosing and using our and operating instructions before operating products.We design and produce this product this machine. Only trained and authorized is to help our operators work more safety and personnel shall be permitted to operate this efficienty.We need you as an operator to... - Page 5 Dangerous classification will result in death or serious injury Mantall products symbol、mark and symbolic text Do not operate unless: meaning are as below: You have mastered the code of safety operation through this operation manual.
-
Page 6: Design Purpose
Voltage Min safe approach distance Phase to Phase Feet Meter Avoid Contact 0-300 300V-50KV 3.05 50KV-200KV 4.60 200KV-350KV 6.10 350KV-500KV 7.62 500KV-750KV 10.67 750KV-1000KV 1372 Mantall Heavy Industry CO., Ltd... - Page 7 Do not place or tie heavy objects on any part of the machine. Do not use platforms to push machines or other objects. Don't tie the platform to nearby objects Don't put the platform together with the objects nearby. Mantall Heavy Industry CO., Ltd...
- Page 8 Be sure all tires are in good condition，castle nuts are properly tightened and cotter pins are properly installed． Do not operate the machine when the battery box or hydraulic door is open. Mantall Heavy Industry CO., Ltd...
-
Page 9: Fall Hazards
Keep the platform floor clear of debris. Do not operate the machine unless the guard rails are properly installed and the entry is secured for operation. Be aware of crushing hazard when grasping the platform guard rail. Mantall Heavy Industry CO., Ltd... -
Page 10: Crushing Hazards
Machine must be on level surface or secured before releasing brakes． Limit travel speed according to condition of ground surface, congestion, slope, location of personnel and any other factors which may cause collision. Mantall Heavy Industry CO., Ltd... -
Page 11: Component Damage Hazard
Be sure all maintenance has been performed as specified in this manual. Be sure all decals are in place and legible Ensure this manual is complete, legible and in the storage container located on the platform Mantall Heavy Industry CO., Ltd... -
Page 12: Explosion Hazards
The battery tray should remain open during the entire charging cycle. Lifting Hazard Do not contact the bakery terminals or the Use the appropriate number of people and cable clamps with tools that may cause sparks. proper lifting techniques when lifting batteries. Mantall Heavy Industry CO., Ltd... -
Page 13: Graphic Parts
Graphic parts 1 Platform 2 Boom 3 Chassis Mantall Heavy Industry CO., Ltd... -
Page 14: Panel Graphic
Handle Control Box(B system) Mantall Heavy Industry CO., Ltd... - Page 15 “On” position, can operate the machine. 5 Power indicator light 6 Scissor arm lifting switch Press this button to activate the lifting function, press the function enable switch on the platform control handle. Move the control Mantall Heavy Industry CO., Ltd...
- Page 16 Operator Manual Ground control Operation (B System) Mantall Heavy Industry CO., Ltd...
- Page 17 Turn the key switch to down “chassis” position, ground controller will run. 4 Manual release brake switch Pull down the manual release brake switch, the brake is released. 5 Power indicator light 6 10A fuse Mantall Heavy Industry CO., Ltd...
-
Page 18: Pre-Operation Inspection
Scheduled maintenance inspections shall be performed by qualified service technicians, according to the manufacturer's specifications and the requirements listed in the responsibilities manuals. Mantall Heavy Industry CO., Ltd... - Page 19 Platform entry chain or gate, Door / door lock Beacon and alarms(if equipped) Safety arm Pothole guards Platform control joystick Scissor pins and retaining fasteners Extended platform and components Mantall Heavy Industry CO., Ltd...
-
Page 20: Test Emergency Stop
Repairs to the machine may only be made by a qualified service technician, according to the manufacturer's specifications. After repairs are completed, the operator must perform a pre-operation inspection and function tests again before putting the machine into service. Mantall Heavy Industry CO., Ltd... -
Page 21: Function Tests
Result:The machine should move in the on the control handle. direction that the green arrow points on the control panel, then come to an abrupt Slowly move the control handle in the stop direction indicated by the green arrow. Mantall Heavy Industry CO., Ltd... -
Page 22: Test Limited Drive Speed
If the drive speed with the platform raised exceeds 0.7 foot per second(20cm per second), immediately tag and remove the machine from service. Test the Tilt Sensor Operation Note: Perform this test from the ground with Mantall Heavy Industry CO., Ltd... -
Page 23: Work Place Inspection
It is the operator's responsibility to read and remember the work place hazards, then watch for and avoid them while moving, setting up and operating the machine. Mantall Heavy Industry CO., Ltd... -
Page 24: Emergency Stop
That means every Mantall Heavy Industry CO., Ltd... - Page 25 To Position Platform 1 Move the lift/drive selector switch to the lift position. 2 Press and hold the function enable switch on the control handle. Move the control handle according to the markings on the control panel Mantall Heavy Industry CO., Ltd...
-
Page 26: To Extend And Retract Platform
If the error light is still on, stop using the machine and send it to repair. Mantall Heavy Industry CO., Ltd... -
Page 27: After Each Use
2 Lower the platform. 3 Turn the key switch to the off position and remove the key to secure from unauthorized use. 4 Chock the wheels. 5 Charge the batteries. Mantall Heavy Industry CO., Ltd... -
Page 28: Battery And Charger
7 The charger will indicate when the battery is fully charged. 8 Check the battery acid level when the charging cycle is complete. Replenish with distilled water to the bottom of the fill tube. Do overfill. Mantall Heavy Industry CO., Ltd... -
Page 29: Transport Instructions
CANNOT BE ENGAGED WITH THE key before transporting. Inspect entire machine for loose or unsecured DISENGAGE BOLTS IN THE BRAKE items. DISENGAGE HOLES.THIS WILL CAUSE THE MACHINE TO ROLL WHEN PARKED ONAN INCLINE. Mantall Heavy Industry CO., Ltd... -
Page 30: Floor Loading
This measurement is of concern where the machine is being used on a beam supported floor or surface. The occupied pressure imposed by the machine must not exceed what the floor or surface can support. Mantall Heavy Industry CO., Ltd... -
Page 31: Decals
601-040 051005J904 601-033 (Hydraulic oil level) (Chinese) (Hydraulic oil level) (English) 05112QB850 601-033 Lifting 051005J900 601-034 traction 051005J901 601-035 XE80CT(Leg) Load and tilt instruction (230kg 05J0001102 601-106 3° slider 115kg 6m) Emergency lowering 051005J912 601-037 Mantall Heavy Industry CO., Ltd... - Page 32 （Prevent presser foot） 051008Z021 CZ007 Platform “Mantall” 051005J115002 Platform “XE80CT” 05J0000770 Chassis“Mantall” 051005J777001 Chassis “XE80CT” 05J0000771 Ground control panel decal(Including 10A 051005J669003 fuse，brake release) 313. 171. Upper control box decal(B system) 05J0001122 QR code 50*50 051003W096001 Mantall Heavy Industry CO., Ltd...
- Page 33 Operator Manual QB003 601-015 Platfor Platfor logo Logo XE80CT 601-002 Mantall 601-004 Mantall Heavy Industry CO., Ltd...
- Page 34 Operator Manual CZ005, CZ007 601-013 CZ005, 601-013 601-011, 601-109 601-019 601-037 601-016 601-108 601-016 Mantall Heavy Industry CO., Ltd...
- Page 35 Operator Manual 601-005 601-003 601-024 Mantall Heavy Industry CO., Ltd...
- Page 36 Operator Manual 601-006, 601-008, 601-010, 601-014, 601-040 Mantall Heavy Industry CO., Ltd...
- Page 37 Operator Manual Platform logo Mantall Platform Logo 601-002 XE80CT Mantall Heavy Industry CO., Ltd...
- Page 38 Operator Manual 601-013 601-013 CZ005, CZ005, CZ007 CZ007 601-011, 601-111 601-094 601-110 601-016 601-016 Mantall Heavy Industry CO., Ltd...
- Page 39 Operator Manual 601-001 601-106 Mantall Heavy Industry CO., Ltd...
- Page 40 Operator Manual 601-101 601-101 601-006, 601-008, 601-010, 601-014, 601-040 Mantall Heavy Industry CO., Ltd...
-
Page 41: Technical Parameter
Hydraulic tank capacity L Vertical tilt 2° Lateral tilt 3° Load number max Raised time S/Lowering 32/28 time S Power source 24V/225Ah Crawler size 200*72 AB-A1 Fast speed 10m/18.34s Drive speed Low speed5m/32s Gradeability 30%/40% both can Mantall Heavy Industry CO., Ltd... - Page 42 Operator Manual Crawler technical parameters Track width Pitch pitch number Model Pitch Mode Width*Pitch number Y200*72 28.5 29.5 Mantall Heavy Industry CO., Ltd...
-
Page 43: Inspection And Maintenance Record
Operator Manual Inspection and maintenance records Date Remark Mantall Heavy Industry CO., Ltd...
