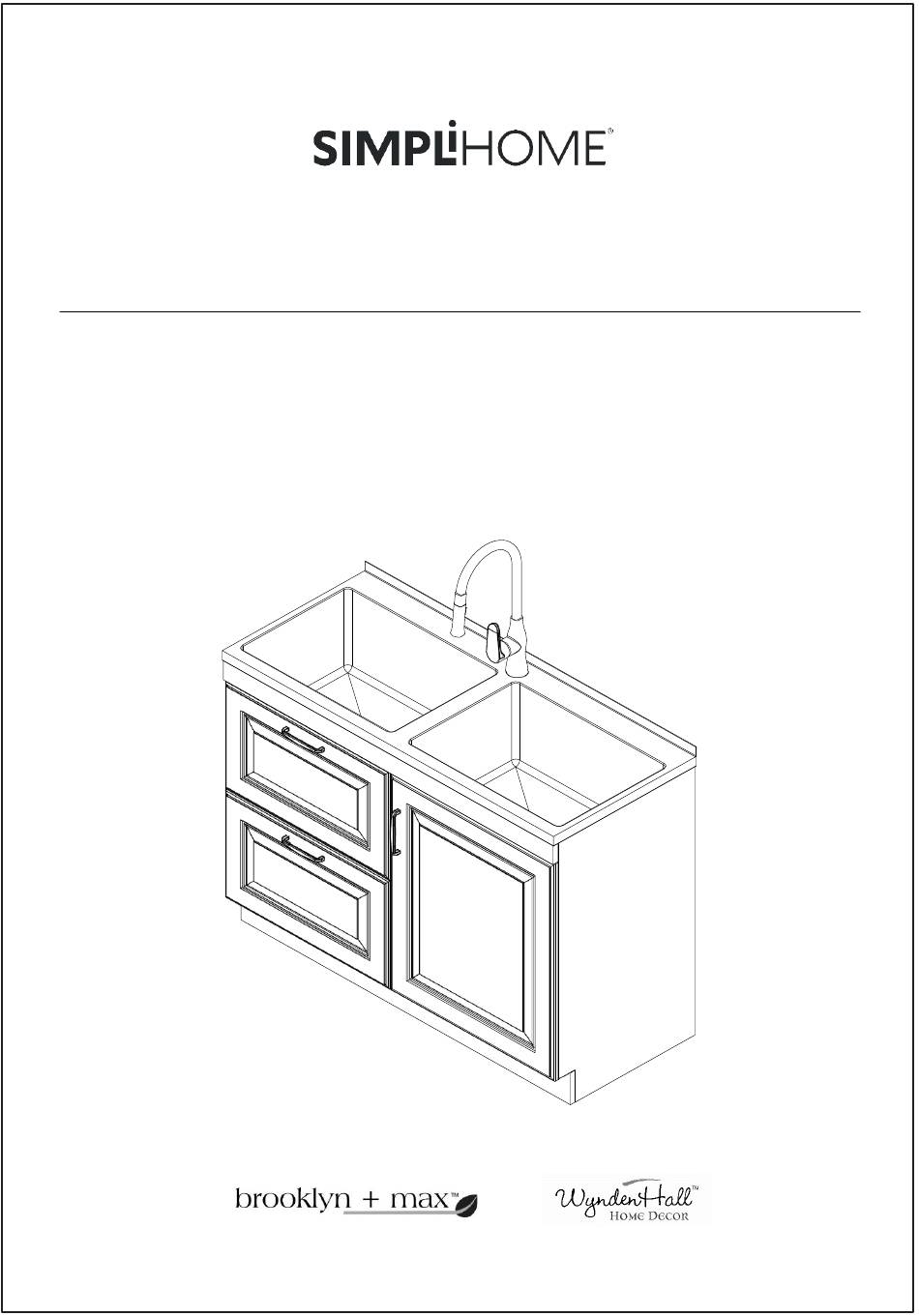

- Page 1 Darwin / Gregg / Cleo 46 inch Laundry Cabinet with Faucet and Dual SS Sink Model # AXCLDYDAR46-SS...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ✓ Activate your 1-year warranty. ✓...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For fastest customer service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information This furniture is designed for indoor use. Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all the parts and hardware required. -
Page 6: Pre-Assembly Information
Pre-Assembly Information Model # AXCLDYDAR46-SS Cabinet Parts BOTTOM PANEL RIGHT SIDE PANEL BACK BOTTOM PANEL QTY 1 QTY 1 QTY 1 BACK TOP PANEL BACK MIDDLE PANEL LEFT SIDE PANEL QTY 1 QTY 1 QTY 1 FRONT BOTTOM PANEL FRONT TOP PANEL FRONT TOP PANEL QTY 1 QTY 1... - Page 7 Pre-Assembly Information Model # AXCLDYDAR46-SS Cabinet Parts DRAWER PANEL DRAWER FRONT DRAWER BACK QTY 1 QTY 1 QTY 2 DRAWER LEFT AND RIGHT DRAWER BOTTOM SINK QTY 2 QTY 1 QTY 1 FRONT TOP PANEL QTY 1...
- Page 8 Pre-Assembly Information Model # AXCLDYDAR46-SS Drain Parts DRAIN BOWL ASSEMBLY DRAIN PLUG ASSEMBLY DRAIN WASHER BLACK QTY 1 QTY 1 QTY 1 THREAD WASHER COUPLING BLACK PIPE WASHER QTY 1 QTY 1 QTY 1 COUPLING BLACK PIPE WASHER WHITE STRAIGHT DRAIN PIPE BLACK QTY 2 QTY 1 QTY 1...
- Page 9 Pre-Assembly Information Model # AXCLDYDAR46-SS Faucet Parts FAUCET BODY FAUCET WASHER RUBBER FAUCET WASHER STEEL QTY 1 QTY 2 QTY 1 BRASS NUT ASSEMBLY FAUCET SEALING RING WEIGHT BLOCK QTY 1 QTY 1 QTY 1...
-
Page 10: Hardware Parts
Pre-Assembly Information Model # AXCLDYDAR46-SS Hardware Parts Ⅰ Ⅲ Ⅱ CAM LOCK CAM PIN WOOD DOWEL QTY 37 QTY 37 QTY 24 Ⅳ Ⅴ Ⅵ SELF-TAPPING SCREW PHILLIPS SCREW M4 x 14 M4 x 25 M4 x 40 HANDLE M4 x 23 QTY 21 QTY 17 QTY 9... - Page 11 Components - Key Diagram Model # AXCLDYDAR46-SS...
- Page 12 Assembly Model # AXCLDYDAR46-SS Step 1 Ⅱ Ⅶ Ⅳ M4X14 Ⅱ 1. Screw Cam Pins- -into the pre-drilled small holes on Left Panel- and Right Panel- Ⅱ 2. Insert Self-Tapping Screw- -M4 x 14 through the hole of Slide Rail- ,then screw into Ⅳ...
- Page 13 Assembly Model # AXCLDYDAR46-SS Step 2 Ⅱ Ⅶ Ⅳ M4X14 1. Screw Cam Pins- -into the pre-drilled small holes on Middle Panel- -.. Ⅱ 2. Insert Self-Tapping Screw- -M4 x 14 through the hole of Slide Rail- , then screw into Ⅳ...
- Page 14 Assembly Model # AXCLDYDAR46-SS Step 3 Ⅱ 1. Screw Cam Pins into the pre-drilled small holes on Bottom Panel and Back Middle Ⅱ Panel-...
- Page 15 Assembly Model # AXCLDYDAR46-SS Step 4 Ⅲ Ⅲ Ⅰ 1. Insert Wood Dowels- -into the pre-drilled holes of Middle Panel- Ⅲ 2. Attach Middle Panel- -to Back Middle Panel- and Bottom Panel- 3. Insert Cam Locks- -into pre-drilled holes on Middle Panel Ⅰ...
- Page 16 Assembly Model # AXCLDYDAR46-SS Step 5 Ⅲ Ⅰ 1. Insert Wood Dowels- -into the pre-drilled holes of Front Top Panels- -and- Ⅲ 2. Attach Middle Panel- to Front Top Panels- and- 3. Insert Cam Locks- into the pre-drilled holes of Front Top Panels- -and- Ⅰ...
- Page 17 Assembly Model # AXCLDYDAR46-SS Step 6 Ⅲ Ⅰ Ⅲ 1. Insert Wood Dowels into the pre-drilled holes of Bottom Panel , Front Top Panels Ⅲ , Back Bottom Panel , Back Middle Panel and Back Top Panel 2. Attach Bottom Panel , Front Top Panels , Back Bottom Panel , Back...
- Page 18 Assembly Model # AXCLDYDAR46-SS Step 7 Ⅰ Ⅰ Ⅱ Ⅱ 1. Screw Cam Pins into the pre-drilled small holes on Front Bottom Panel Ⅱ 2. Insert Front Bottom Panel with Cam Pins into the pre-drilled holes on both Side Ⅱ Panels 3.
- Page 19 Assembly Model # AXCLDYDAR46-SS Step 8 Ⅳ M4X25 1. Insert Self-Tapping Screws M4 x 25 though the holes of Front Top Panels , and Ⅳ screw into the Top Panel...
- Page 20 Assembly Model # AXCLDYDAR46-SS Step 9 Ⅳ M4X14 1. Use the Screwdriver to attach the right door hinges to Right Side Panel with Self-Tapping Screws M4 x 14. Ⅳ...
- Page 21 Assembly Model # AXCLDYDAR46-SS Step 10 Ⅳ M4X25 1. Insert Self-Tapping Screws M4 x 25 though the holes of Front Top Panels- Ⅳ and screw into the Drawer Panel...
- Page 22 Assembly Model # AXCLDYDAR46-SS Step 11 Ⅲ Ⅳ M4X40 1. Insert Wood Dowels into the holes of Drawer Front and Drawer Back Ⅲ 2. Attach Drawer Left to Drawer Front and Drawer Back 3. Use the Screwdriver to attach the Drawer Left with Self-Tapping Screws M4 x 40.
- Page 23 Assembly Model # AXCLDYDAR46-SS Step 12 Ⅳ M4X40 1. Place the Drawer Bottom into the slot of the Drawer Front , Drawer Back Drawer Left 2. Attach Drawer Right to Drawer Front and Drawer Back 3. Use the Screwdriver to attach the Drawer Right with Self-Tapping Screw M4 x 40.
- Page 24 Assembly Model # AXCLDYDAR46-SS Step 13 Ⅷ Ⅳ M4X14 Ⅷ 1. Use the Screwdriver to attach the Slide Rails with Self-Tapping Screws M4 x 14 Ⅷ Ⅳ into the small holes of Drawer Left and Drawer Right...
- Page 25 Assembly Model # AXCLDYDAR46-SS Step 14 Ⅶ Ⅷ 1. Place the Drawer into the cabinet.
- Page 26 Assembly Model # AXCLDYDAR46-SS Step 15 Ⅳ M4X25 1. Insert Self-Tapping Screws M4 x 25 though the holes of Drawer Front and screw into Ⅳ the Drawer Panel...
- Page 27 Assembly Model # AXCLDYDAR46-SS Step 16 Ⅵ Ⅵ Ⅴ M4X23 1. Use the Screwdriver to attach the Handle with Philips Screws M4 x 23. Ⅵ Ⅴ...
- Page 28 Assembly Model # AXCLDYDAR46-SS Step 17 Ⅸ Wall Anchors Ⅸ Screw 1. Pierce holes in the wall and insert Wall Anchors into the holes. Ⅸ 2. Insert the Screw through Panel and then insert it into the Wall Anchor to lock in Ⅸ...
- Page 29 Assembly Model # AXCLDYDAR46-SS Step 18 1. Place a Rubber Washer onto the end of the Faucet and insert the faucet through the top of the Sink 2. From underneath the Sink , secure the Faucet to the Sink using a Rubber Washer , Steel Washer and Brass Nut Assembly 3.
- Page 30 Assembly Model # AXCLDYDAR46-SS Step 19 1. Attach the Weight Block to the faucet hose and screw in place to secure.
- Page 31 Assembly Model # AXCLDYDAR46-SS Step 20 1. Place the Sink with the attached Faucet Body on top of the cabinet.
- Page 32 Assembly Model # AXCLDYDAR46-SS Step 21 1. Put the Drain Washer on the top of the drain opening in the Sink- 2. Put the Drain Bowl on the Drain Washer through the drain opening. 3. From underneath the sink fasten the Threaded Washer onto the Drain Bowl Assembly and tighten.
- Page 33 Assembly Model # AXCLDYDAR46-SS Step 22 1. Fasten the nuts of the hoses (not included in package) to the nut ends of the faucet body. 2. Fasten the nuts of the hoses (not included in package) to the water outlet: •...
- Page 34 Assembly Model # AXCLDYDAR46-SS Step 23 1. Put a Pipe Washer onto the Straight Drain Pipe . Connect the Straight Drain Pipe to the drain and fasten the Coupling 2. Put the Coupling into the Straight Drain Pipe and put a Pipe Washer into the Straight Drain Pipe 3.
- Page 35 Assembly Model # AXCLDYDAR46-SS Step 24 1.Use the Screwdriver to re-align or adjust the hinges that attach the doors to the cabinet.
