SIMPLIHOME brooklyn + max WyndenHall AXCLDYREE20-SS Assembly Instructions Manual

Reed/alma/leonard, 20 inch laundry cabinet with faucet and ss sink
Hide thumbs

Advertisement

Table of Contents

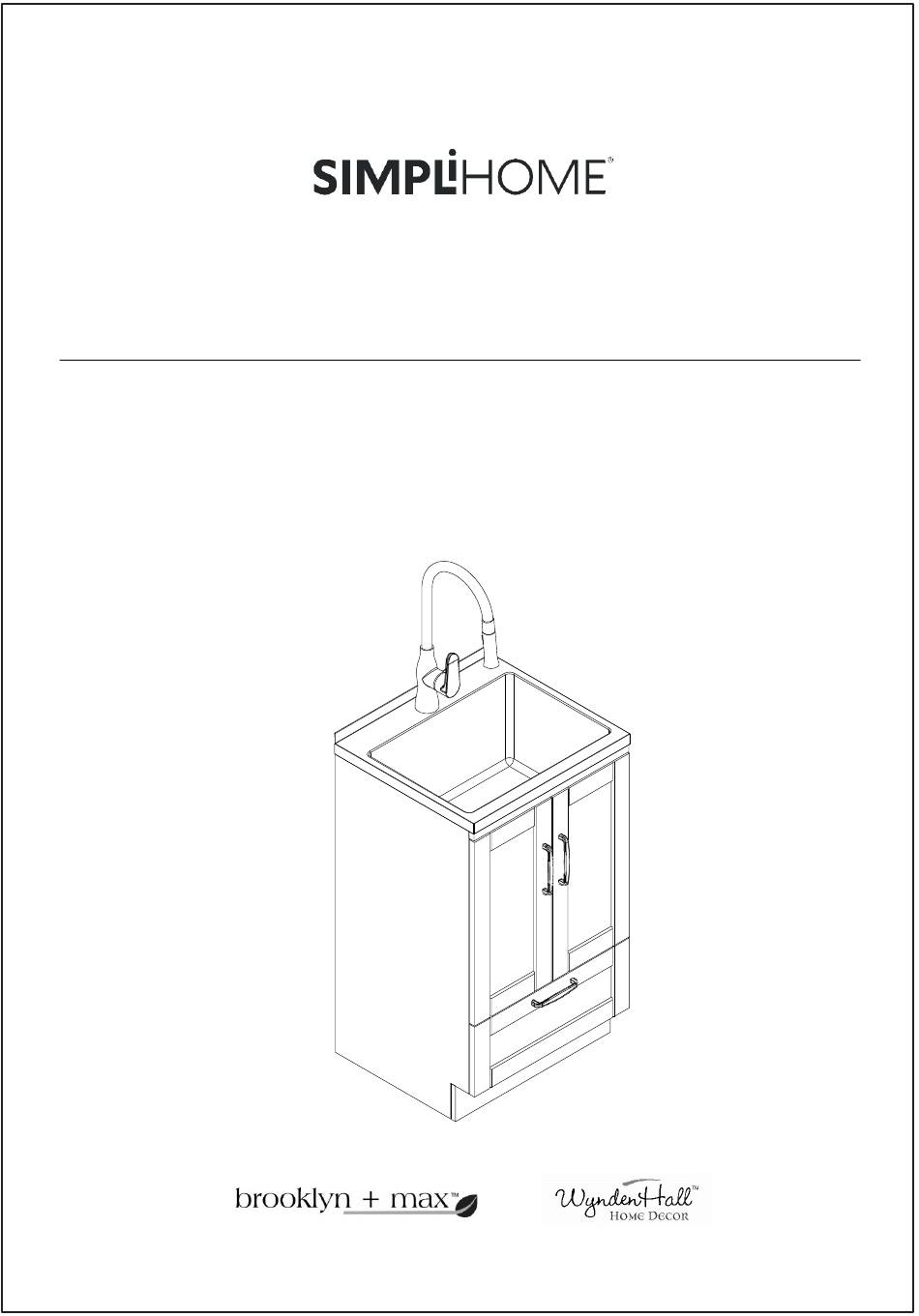

Reed / Alma / Leonard
20 inch Laundry Cabinet with Faucet and SS Sink
Model # AXCLDYREE20-SS
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the brooklyn + max WyndenHall AXCLDYREE20-SS and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME brooklyn + max WyndenHall AXCLDYREE20-SS

Summary of Contents for SIMPLIHOME brooklyn + max WyndenHall AXCLDYREE20-SS

  • Page 1 Reed / Alma / Leonard 20 inch Laundry Cabinet with Faucet and SS Sink Model # AXCLDYREE20-SS...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ✓ Activate your 1-year warranty. ✓...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For fastest customer service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information This furniture is designed for indoor use. Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all the parts and hardware required.

  • Page 6: Pre-Assembly Information

    Pre-Assembly Information Model # AXCLDYREE20-SS Pre-Assembly Information Model # AXCLDYREE20-SS Cabinet Parts BOTTOM PANEL RIGHT SIDE PANEL QTY 2 QTY 1 BACK TOP PANEL BACK BOTTOM PANEL QTY 1 QTY 1 BACK MIDDLE PANEL LEFT SIDE PANEL QTY 1 QTY 1 FRONT BOTTOM PANEL FRONT TOP PANEL QTY 1...
  • Page 7 Pre-Assembly Information Model # AXCLDYREE20-SS Cabinet Parts LEFT DOOR RIGHT DOOR QTY 1 QTY 1 DRAWER FRONT SS SINK QTY 1 QTY 1 DRAWER BACK DRAWER SIDE LEFT QTY 1 QTY 1 DRAWER SIDE RIGHT DRAWER BOTTOM FRONT PANEL QTY 1 QTY 1 QTY 1...
  • Page 8 Pre-Assembly Information Model # AXCLDYREE20-SS Drain Parts DRAIN BOWL ASSEMBLY DRAIN PLUG ASSEMBLY DRAIN WASHER BLACK QTY 1 QTY 1 QTY 1 THREAD WASHER COUPLING BLACK PIPE WASHER QTY 1 QTY 1 QTY 1 COUPLING BLACK PIPE WASHER WHITE STRAIGHT DRAIN PIPE BLACK QTY 2 QTY 1 QTY 1...
  • Page 9 Pre-Assembly Information Model # AXCLDYREE20-SS Faucet Parts FAUCET BODY FAUCET WASHER RUBBER FAUCET WASHER STEEL QTY 1 QTY 2 QTY 1 FAUCET SEALING RING BRASS NUT ASSEMBLY WEIGHT BLOCK QTY 1 QTY 1 QTY 1...
  • Page 10 Pre-Assembly Information Model # AXCLDYREE20-SS Pre-Assembly Information Model # AXCLDYREE20-SS Hardware Parts Ⅰ Ⅲ Ⅱ CAM LOCK CAM PIN WOOD DOWEL QTY 29 QTY 29 QTY 21 Ⅳ Ⅴ Ⅵ PHILLIPS SCREW SELF-TAPPING SCREW M4 x 23 HANDLE M4 x 25 M4 x 40 M4 x 14 QTY 3...
  • Page 11 Components - Key Diagram Model # AXCLDYREE20-SS...
  • Page 12 Assembly Model # AXCLDYREE20-SS Step 1 Ⅱ Screw into Left Side Panel into two pre-drilled small holes first. Use this hole for the screw to go through Ⅳ Ⅶ M4X14 Screw into Right Side Panel into two pre-drilled small holes first. Use this hole for the screw to go through Ⅶ...
  • Page 13 Assembly Model # AXCLDYREE20-SS Step 2 Ⅲ The small screwdriver is included in the hardware pack Ⅰ Ⅲ 1. Insert Wood Dowels into the pre-drilled hole of Bottom Panel , Back Bottom Panel Ⅲ , Back Top Panel , Back Middle Panel and Front Top Panel 2.
  • Page 14 Assembly Model # AXCLDYREE20-SS Step 3 The small screwdriver is included in the hardware pack Ⅰ 1. Attach the Left Side Panel with Cam Pins and Dowels into the pre-drilled holes. Ⅱ 2. Insert Cam Locks into the pre-drilled hole of Bottom Panel , Back Bottom Panel Ⅰ...
  • Page 15 Assembly Model # AXCLDYREE20-SS Step 4 Ⅳ M4X25 . . . Ⅱ Ⅰ 1. Screw Cam Pins into the pre-drilled small holes on Front Bottom Panel Ⅱ 2. Insert Front Bottom Panel with Cam Pins into the pre-drilled holes on both Side Ⅱ...
  • Page 16 Assembly Model # AXCLDYREE20-SS Step 5 1. Place the Drawer Bottom into the slot of Drawer Front and Drawer Back 2. Ensure the Drawer Bottom is in the slot of the Drawer Front and Drawer Back...
  • Page 17 Assembly Model # AXCLDYREE20-SS Step 6 Ⅲ Ⅳ M4X40 1. Insert Wood Dowels into the holes of Drawer Front and Drawer Back Ⅲ 2. Attach Drawer Side Left and Drawer Side Right to Drawer Front and Drawer Back 3. Ensure Drawer Bottom is in the slot of Drawer Side Left and Drawer Side Right 4.
  • Page 18 Assembly Model # AXCLDYREE20-SS Step 7 Screw into Drawer Side Right (O) into two pre-drilled small holes first Ⅶ Ⅳ M4X14 the hole that the screw goes through Screw into Drawer Side Left (N) into two pre-drilled small holes first Ⅳ...
  • Page 19 Assembly Model # AXCLDYREE20-SS Step 8 Ⅶ Ⅷ 1. Place the Drawer into the cabinet.
  • Page 20 Assembly Model # AXCLDYREE20-SS Step 9 Ⅳ 1. Use the Screwdriver to attach the right door hinges to Right Side Panel with Self-Tapping Screws M4 x 14. Ⅳ 2. Use the Screwdriver to attach the left door hinges to Left Side Panel with Self-Tapping Screws M4 x 14.
  • Page 21 Assembly Model # AXCLDYREE20-SS Step 10 Ⅵ Ⅴ Ⅴ Ⅵ 1. Use the Screwdriver to attach the Handle with Philips Screws M4 x 23. Ⅴ Ⅵ...
  • Page 22 Assembly Model # AXCLDYREE20-SS Step 11 Ⅸ Wall Anchors Ⅸ Screw 1. Pierce holes in the wall and insert Wall Anchors into the holes. Ⅸ 2. Insert the Screw through Panel and then insert into the Wall Anchor to lock in place. Ⅸ...
  • Page 23 Assembly Model # AXCLDYREE20-SS Step 12 1. Place a Rubber Washer onto the end of the Faucet and insert the faucet through the top of the Sink 2. From underneath the Sink , secure the Faucet to the Sink using a Rubber Washer , Steel Washer and Brass Nut Assembly 3.
  • Page 24 Assembly Model # AXCLDYREE20-SS Step 13 1. Attach the Weight Block to the faucet hose and screw in place to secure.
  • Page 25 Assembly Model # AXCLDYREE20-SS Step 14 1. Place the Sink with the attached Faucet Body on top of the cabinet.
  • Page 26 Assembly Model # AXCLDYREE20-SS Step 15 1. Put the Drain Washer on the top of the drain opening in the Sink- 2. Put the Drain Bowl on the Drain Washer through the drain opening. 3. From underneath the sink fasten the Threaded Washer onto the Drain Bowl Assembly and tighten.
  • Page 27 Assembly Model # AXCLDYREE20-SS Step 16 1. Fasten the nuts of the hoses (not included in package) to the nut ends of the faucet body. 2. Fasten the nuts of the hoses (not included in package) to the water outlet: •...
  • Page 28 Assembly Model # AXCLDYREE20-SS Step 17 1. Put a Pipe Washer onto the Straight Drain Pipe . Connect the Straight Drain Pipe to the drain and fasten the Coupling 2. Put the Coupling into the Straight Drain Pipe and put a Pipe Washer into the Straight Drain Pipe 3.
  • Page 29 Assembly Model # AXCLDYREE20-SS Step 18 1.Use the Screwdriver to re-align or adjust the hinges that attach the doors to the cabinet.
