Valeton GP-200 Quick User Manual

Specifications Getting Started
A/D/A Converter: 24-bit high performance audio 1. Connect your Device. Plug your guitar into the
Sampling Frequency: 44.1 kHz SNR: 110dB
GP-200's input jack, and run a cable from the
Module: 11, can be used simultaneously UNBALANCED OUTPUT L (MONO) to your amp.
Patch Memory: 256 Patch slots, Please remember:
100 Factory Patches (1) Keep your amp volume down.
Looper: 180 seconds of record time (2) Connect your cable to the amp's FX Loop
Drum Machine: 100 Patterns Return if it has one.
MIDI(IN/OUT/THRU): 5-pin MIDI connectors
2. Turn the GP-200 MASTER knob all the way
Analog Input Connections down, then connect the power supply and turn
Guitar Input: 1/4" Unbalanced (TS) on GP-200.
Input Impedance: 4.7M Ohms (A.GT),
1M Ohms (E.GT), 10k Ohms (Line) 3. Tune your strings. Press and hold footswitch
Return Input: 1/4" Unbalanced (TS) TAP (HOLD FOR TUNER) to bring up Tuner
Return Input Impedance: 100k Ohms screen. Pluck each string and tune it until the
Aux Input: 1/8" Stereo (TRS) pitch reaches the middle of the screen and turns
Aux Input Impedance: 10k Ohms green. When all strings are tuned, tap either of
the footswitches again to exit the tuner.
Analog Output Connections
L/R Unbalanced Outputs: 1/4" TS jacks 4. Select a patch. Tap footswitch A, B, C, D, choose
L/R Unbalanced Output Impedance: 1k Ohms a patch you like. Tap footswitch BANK- to move
L/R Balanced Outputs: XLR jacks back through the banks, and tap footswitch
L/R Output Impedance: 1k Ohms
BANK+ to move forward through the banks.
Send Output: 1/4" Unbalanced (TS)
Send Output Impedance: 1k Ohms ※ In the interest of product improvement, the
Headphone Output: 1/8" Stereo (TRS) specifications and/or the content of products
Headphone Output Impedance: 22 Ohms
(including but not limited to appearances,
packaging design, manual content, accessories,
Digital Connections size, parameters and display screen), are subject
USB Port: USB 2.0 Type-C Port to change without prior notice. Please check
USB Recording Specification
with local supplier for exact offers. Specifications
Sample Rate: 44.1 kHz and features (including but not limited to
Bit Depth: Supports 16-bit or 24-bit appearances, colors and size) may vary by model
owing to environmental factors, and all images
Size and weight
are illustrative.
Dimensions: 345mm(W) x 220mm(D) x 62.5mm(H)
Unit Weight : 2.37kg
Power
Power Requirements: DC 9V, 1000mA, www.valeton.net

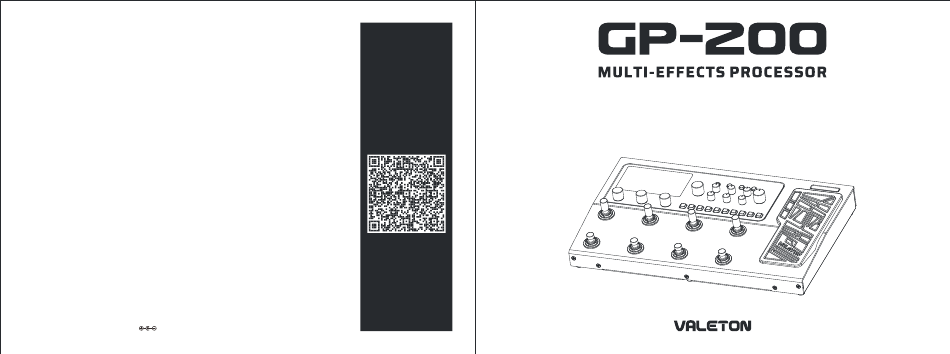

Scan the QR code
for the full manual
& GP-200 software.
Quick User Guide
Thank you for purchasing a VALETON product!
