Overview
Thanks for choosing

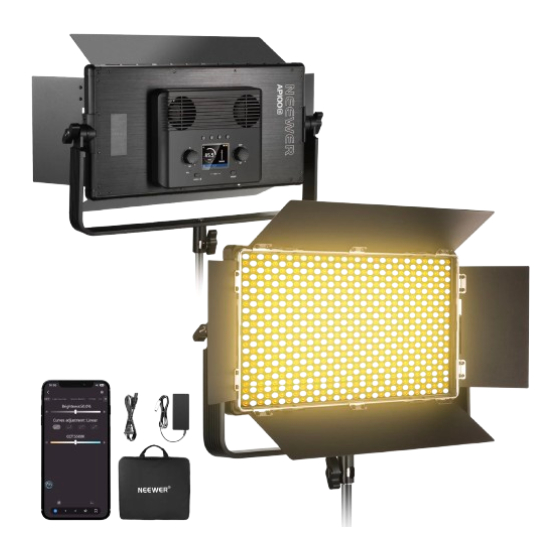

AP100B is a professional LED panel video light, characterized by
high brightness, high color fidelity, and wide color temperature
range, supporting dual power options. It provides 3 lighting modes:
CCT/FX/SOURCE (Source Matching), along with 12 pre-set special
effects to adapt to diverse scenarios.
It supports APP/control panel/2.4G/DMX control to meet different
professional lighting setups.
Package Contents
Video Light × 1
Carrying Bag × 1
!
Power Adapter × 1
Power Cable × 1
Hanging hook×2
User Manual × 1

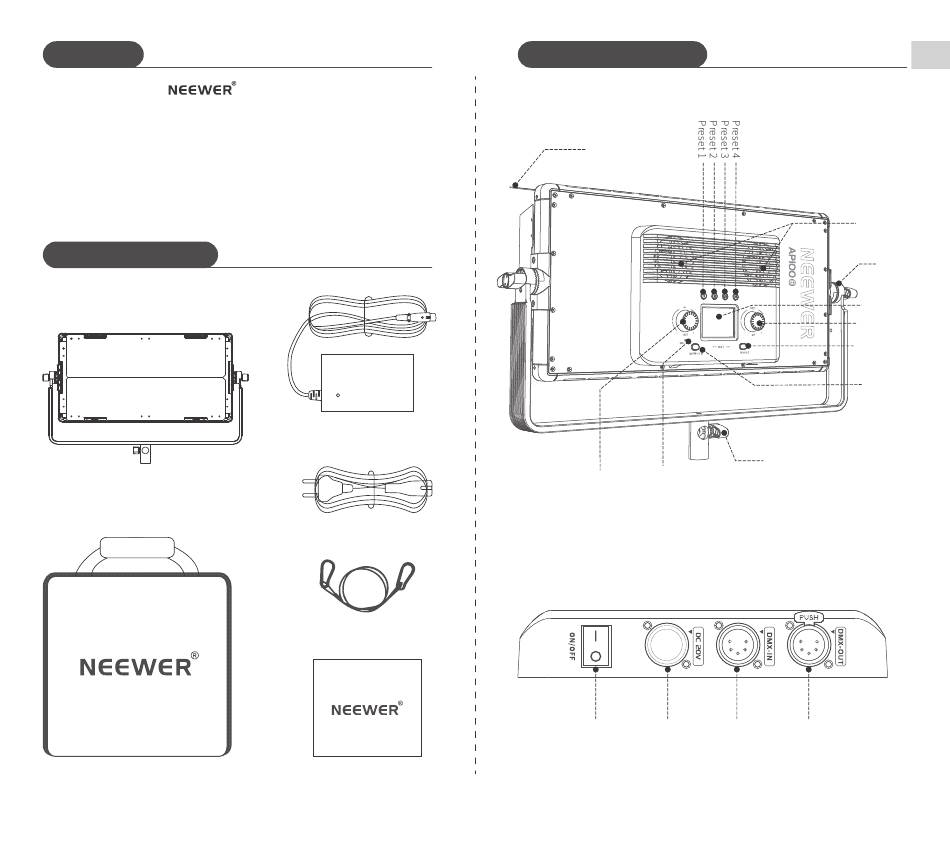

Product Illustration
Barn Door
Microphone
INT Dial
DC Input
ON/OFF
Switch
01
Support bracket
fixing knob
1
5
5
1
2
4
4
2
3
3
DMX Input
DMX Output
Jack
Port
Port
EN
Cooling Fan
Tilt Lock
Display
SET Dial
MODE Button
MENU
/LOCK
Button
