Oxford MULTIMIG CS Series User Instruction Manual

270-510a compact mig/mag machines & swf mig rolled
Hide thumbs

Advertisement

Table of Contents

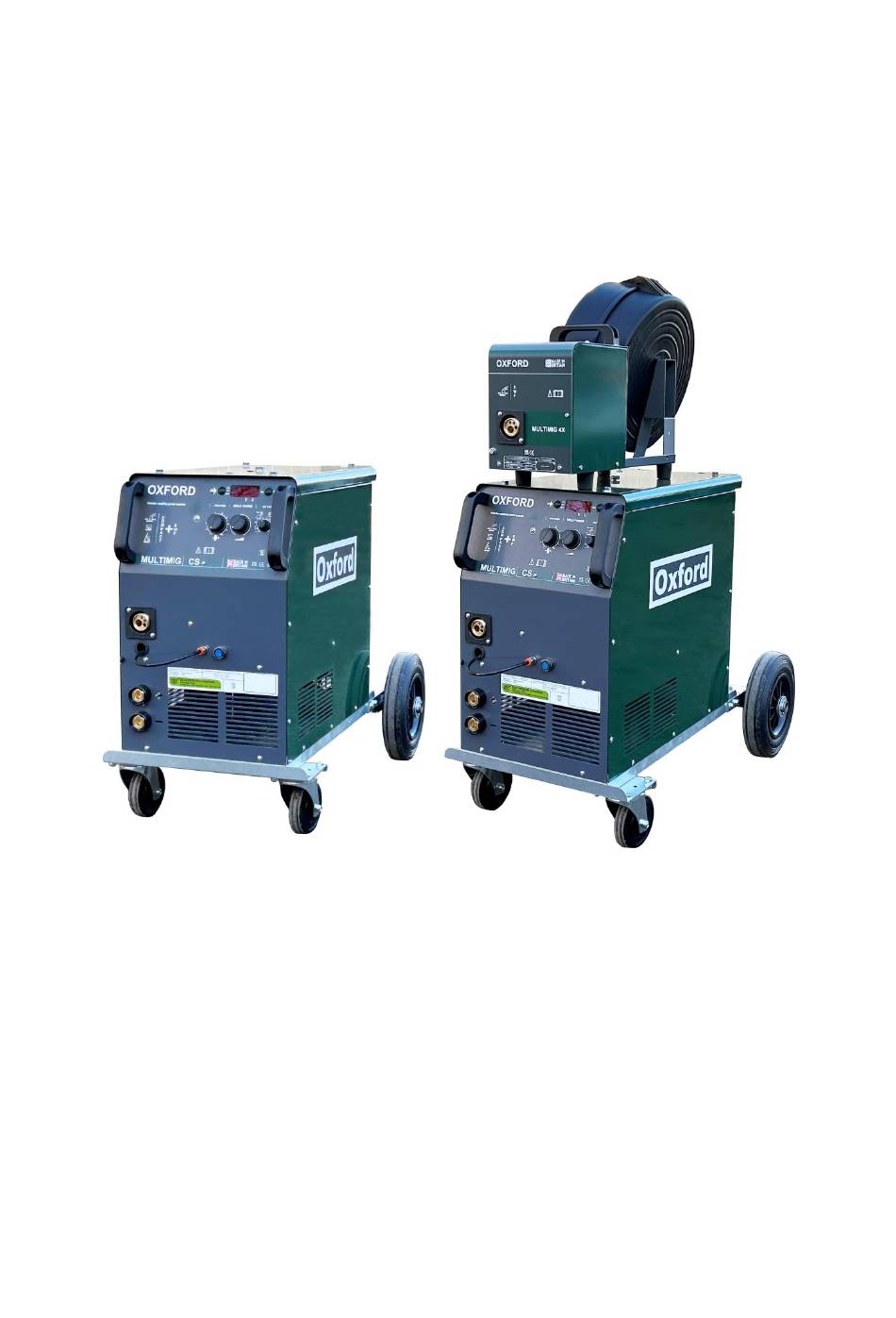

Oxford MULTIMIG CS range
Compact & SWF 270-510A
British made high performance multi-process MIG/MAG machines.
USER INSTRUCTION MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MULTIMIG CS Series and is the answer not in the manual?

Questions and answers

Related Manuals for Oxford MULTIMIG CS Series

Summary of Contents for Oxford MULTIMIG CS Series

  • Page 1 Oxford MULTIMIG CS range Compact & SWF 270-510A British made high performance multi-process MIG/MAG machines. USER INSTRUCTION MANUAL...
  • Page 2 You should only use welding machines marked with S for these higher risk applications. OXFORD MULTIMIG models are all marked S. • Before use check the local area for flammable materials & ensure suitable fire extinguishers are available to hand.

  • Page 3: Declaration Of Conformity

    This will involve consulting an experienced engineer or contact OXFORD WELDERS directly. Oxford MULTIMIG CS models comply with IEC61000-3-12 if the input main supply has a short circuit power (Ssc) equal or greater than that specified in the technical specifications. (Measured at the point of entry...

  • Page 4: Technical Specifications

    Overview of your MULTIMIG OXFORD MULTIMIG’s are heavy duty Industrial machines designed to give a minimum 25 year lifespan. Simple to use machines with better welding performance than traditional transformer MIG! Low spatter, instant arc starts & infinite weld control +/- 1A & 0.1V. Real performance benefits but easier to set & use than our old transformer machines.

  • Page 5: Electrical Installation

    Unpacking & assembling the machine Unpacking - Check the packaging for any signs of damage. Carefully remove the machine and retain the packaging until the installation is complete. For transportation, the wheels and bottle tray are not fitted to help prevent damage and make transporting easier.

  • Page 6: Functions And Controls

    (Note: To remove the gas hose connector, press in the outer plastic ring & withdraw the hose fitting). Remote connector – This connector is used to connect the Oxford 4X separate wire feed unit, Oxford spool on gun or for a switched TIG torch.
  • Page 7 Fitting the MIG welding wire & torch MULTIMIG models are all fitted with the industry standard EURO connector so almost any common MIG torch can be fitted. We stock 3M, 4M & 5M lengths in various amperage ratings. A water cooled torch can also be fitted if your model has water cooling built in.
  • Page 8 (adjustment point is shown on the previous picture). This can also switch off water cooling if required. The coolant capacity is approximately 2L. Your OXFORD will be supplied from new with SACIT coolant in the tank to approximately 50% level. Don’t mix other coolants with this. SACIT coolant protects down to -20°C, it also lubricates the pump &...
  • Page 9 MIG welding with this machine MULTIMIG models provide outstanding MIG welding performance on steel stainless & duplex steels & aluminium, much improved over conventional transformer based machines. With the machine all set up ready to MIG weld, the operator should first set the welding power required to suit the thickness and type of weld to be carried out.
  • Page 10 The choice of gas depends upon the material being welded. For mild steel & general purpose welding Argon with co2 content between 5% and 20% gives the best results. Pure co2 can be used however it gives a cold and splattery weld and is not so nice to use, pure argon results in an arc which is flary & too hot for mild steel.
  • Page 11 TIG welding with this machine MULTIMIG models provide true LIFT TIG control for great arc starts & finishes. Welding performance is superb on all steels, stainless steel, copper, brass. Aluminum up to around 2-3mm also welds superbly using + electrode, but a larger diameter tungsten electrode is needed & a minimum of a WP26 torch, ideally use a water cooled WP18 torch.
  • Page 12 Parts list – 4x4 Wire feed system wear parts / electro mechanical (wire drive system fitted to all MULTIMIG power sources & 4X wire feeder) D + E Description Part number pcs/machine Roller 0.6-0.8mm V groove for hard wire FECV0608 Roller 0.8-1.0mm V groove for hard wire FECV0810 Roller 1.0-1.2mm V groove for hard wire...
  • Page 13 3003156 3003157 3003158 intercon. lead MIG torches Multiple choices in 3M, 4M & 5M please check with your supplier or OXFORD WELDERS MMWP26…(add 2 suffix digits 4M/8M to specify length option) WP26 TIG torch WP17 TIG torch MMWP17…(add 2 suffix digits 4M/8M to specify length option) WP18 water cooled TIG MMWP18…(add 2 suffix digits 4M/8M to specify length option)

  • Page 14: Troubleshooting Guide

    CW = reduce burn back time CCW = increase burn back time For any technical assistance or problems contact your local OXFORD supplier in the first instance. Or contact OXFORD WELDERS directly. MULTIMIG models are ultra reliable & simple to service. All have fault finding LED’s fitted to internal PCB’s.
  • Page 15 Schematic diagram 1 phase 230V models...
  • Page 16 Schematic diagram 3 phase 400V models...

  • Page 17: Maintenance

    We aim to offer the very best long term support for your OXFORD machine. We stock all parts in York & will provide service & support to keep it working for you for a minimum of 25 years from purchase.
