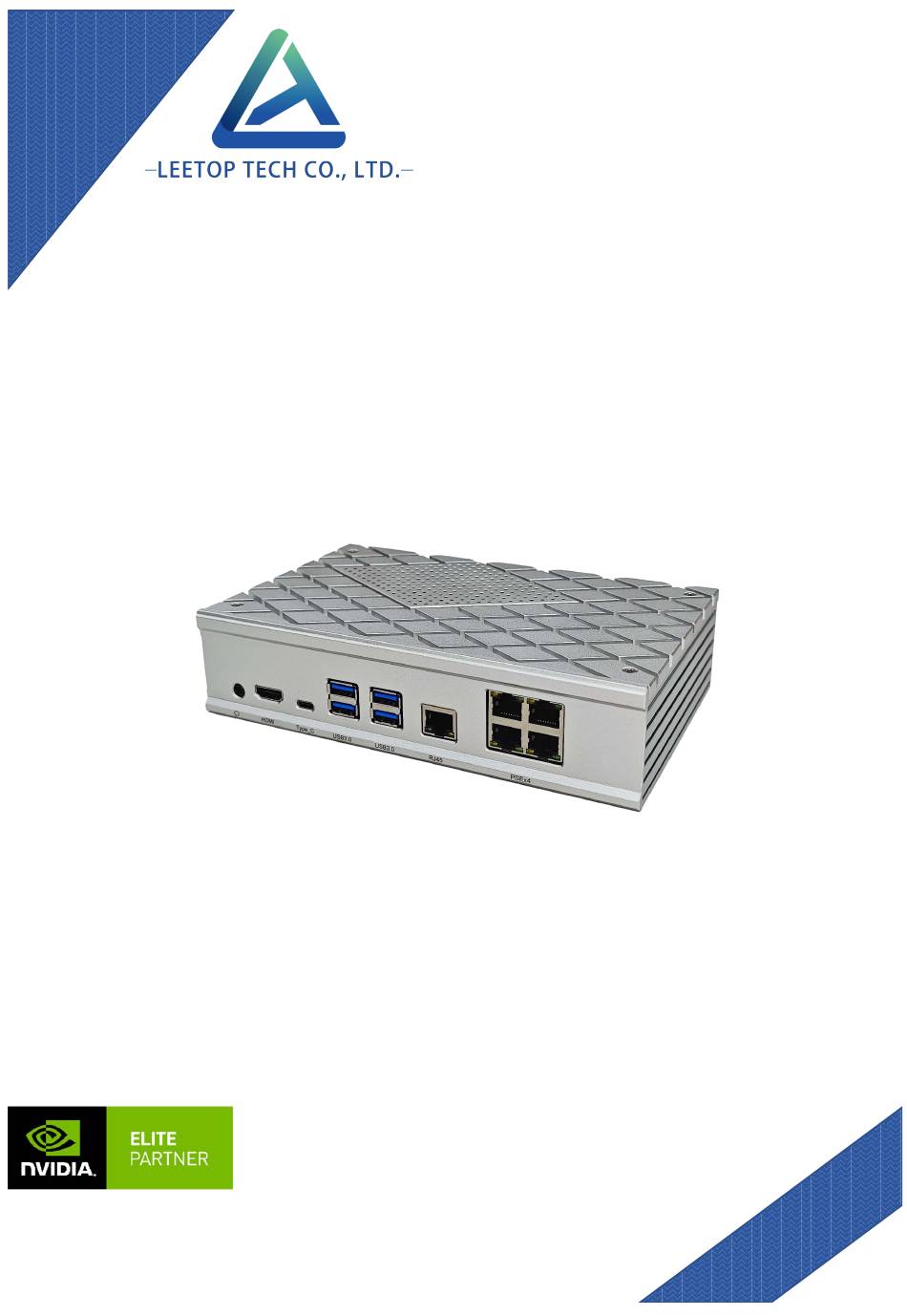

- Page 1 User Manual Leetop_ALP_609_ Leetop Technology (Shenzhen) Co., Ltd.. http://www.leetop.top...
- Page 2 Leetop_ALP_609_F Leetop Tech Co., Ltd. User Manual Leetop_ALP_609_F_User Manual Notice Service and Support Warranties Packing List DOCUMENT CHANGE HISTORY Leetop_ALP_609_F product introduction Brief Specifications Processor module Power Supply Environmental Install Dimension Leetop_ALP_609_F Interfaces Interface description Front interface 背面接口 Rear interface...
- Page 3 Notice Please read manual carefully before install, operate, or transport Leetop device. Ensure that the correct power range is being used before powering the device. Avoid hot plugging. To properly turn off the power, please shut down the Ubuntu system first, and then cut off the power.
-
Page 4: Service And Support
Service and Support Technical Support Leetop is glad to help you with any questions you may have about our product, or about the use of the technology for your application. The fastest way is sending us an email: service@leetop.top Warranties Warranty period: One year from the date of delivery. - Page 5 Leetop_ALP_609_F product introduction Brief Leetop_ALP_609_F is an embedded artificial intelligence computer that can provide computing power up to 20/40/70/100 TOPS for many terminal devices. Leetop_ALP_609_F provides a fast active cooling design, which can meet industrial standards such as shock resistance and anti-static. At the same time, Leetop_ALP_609_F has rich interfaces and high cost performance.
-
Page 6: Specifications
Specifications Processor module Processor Jetson Orin Nano 4GB Jetson Orin Nano 8GB 20 TOPS 40 TOPS Performance 512-core NVIDIA Ampere 1024-core NVIDIA Ampere architecture GPU with architecture GPU with 16 Tensor Cores 32 Tensor Cores 6-core Arm® Cortex®-A78AE v8.2 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 64-bit CPU 1.5MB L2 + 4MB L3... - Page 7 Processor Jetson Orin NX 8GB Jetson Orin NX 16GB 70 TOPS 100 TOPS Performance 1024-core NVIDIA Ampere GPU 1024-core NVIDIA Ampere GPU with 32 Tensor Cores with32 Tensor Cores 8-core NVIDIA Arm® 6-core NVIDIA Arm® Cortex A78AE Cortex A78AE v8.2 v8.2 64-bit CPU 1.5MB L2 + 4MB L3 64-bit CPU2MB L2 + 4MB L3 8 GB 128-bit LPDDR5...
- Page 8 Interface Specification PCB Size / Overall Size 210X132X54mm Display 1x HDMI Ethernet 5x Gigabit Ethernet (10/100/1000) 4x USB 3.0 Type A (Integrated USB 2.0) 1x USB 2.0+3.0 Type C 20PIN IO CON 20PIN Multifunction Audio 1x Audio Function key 1x Power; 1x Recovery; 1x Reset key +12--+36VDC Input NO PSE Device（Max 80W）, Power Requirements With PSE Device(Max 150W)
- Page 9 Install Dimension Leetop_ALP_609_F： Dimensions as below: Up view (Unit:mm) Front view (Unit:mm) Left view (Unit:mm) Rear view(Unit:mm)
-
Page 10: Front Interface
Leetop_ALP_609_F Interfaces Interface description Front interface Leetop_ALP_609_F Schematic diagram of front interface Interface Interface name Interface description HDMI HDMI 1xHDMI interface 4xUSB3.0 Type-A interface (compatible with USB2.0) USB 3.0 USB 3.0 interface 1xUSB 2.0+3.0 Type C RJ45 Ethernet Gigabit port 5x Gigabit Ethernet (10/100/1000) Audio Audio interface... - Page 11 背面接口 Rear interface Leetop_ALP_609_F Interface diagram on the back Interface Interface name Interface description +12--+36VDC Input NO PSE Device（Max 80W）, DC power interface With PSE Device(Max 150W) Recovery Recovery button System recoveryr button Reset Reset button System reset button Power Power button System power button 20PIN IO CON...
- Page 12 Description of the carrier board interface Carrier plate specification Feature A609 Carrier for NVIDIA Jetson Orin NX/Orin NANO Module Jetson Orin NX/Orin NANO Compatibility PCB Size / Overall 183mm x 122mm Size Display 1x HDMI Ethernet 5x Gigabit Ethernet (10/100/1000) 4x USB 3.0 Type A (Integrated USB 2.0) 1x USB 2.0+3.0 Type C M.2 KEY M 1x M.2 KEY M Interface...
-
Page 13: Operating System Setup
#When using the latest version of SDK to find the corresponding version, you can use this command to get it sdkmanager --archivedeversions 4.Download the matching driver: orin nx: link: https://pan.baidu.com/s/1aUCe0kzZmdfPc84Ku2QOBQ Extraction code: sk9o orin nano: link: https://pan.baidu.com/s/1FnjWlIsrGr-AUMnqLd6J8g Extraction code: 4z68 Please contact us for the rest of the information：service@leetop.top... - Page 14 2 . Unzip the downloaded image package and enter the Linux for Tegra(L4T) directory tar xf ${L4T_RELEASE_PACKAGE} Linux_for_tegra/rootfs sudo tar xpf ${SAMPLE_FS_PACKAGE} sudo ./apply_binaries.sh sudo ./tools/l4t_flash_prerequisites.sh sudo cp 609_xxx/Linux_for_tegra /Linux_for_tegra 3 . Enter the Linux_for_tegra directory and use the flash command flash to NVMe #flash to nvme #orin nano sudo...
- Page 15 3.Recovery mode Leetop_ALP_609_F can update the system through USB, and the update needs to enter the USB Recovery mode. In USB Recovery mode, you can perform file system update, kernel update, boot loader update, BCT update and other operations. Steps to enter Recovery Mode: 1 .
- Page 16 Use of Xshell Xshell is a powerful security terminal simulation software, it supports SSH1, SSH2, and TELNET protocol of Microsoft Windows platform. Xshell's secure connection to remote hosts via the Internet and its innovative design and features help users enjoy their work in complex network environments.
- Page 17 Fill in the name and host ip (under normal circumstances, you can connect through the network ip, if you don’t know the ip, you can connect the computer and the OTG port of the device through the usb data cable, and fill in the fixed ip to connect) 192.168.55.1 Enter user and password...
- Page 18 Click Connect to enter the command line interface Operate the jetson device remotely through xshell...
-
Page 20: System Configuration
System Configuration default username：nvidia Password: nvidia NVIDIA Linux For Tegra (L4T) The carrier board supports native NVIDIA Linux For Tegra (L4T) Builds. HDMI, Gigabit Ethernet, USB3.0, USB OTG, Serial, GPIO, I2C bus are all supported. Detailed description and tool download link: https://developer.nvidia.com/embedded/jetson -linux-r3531 NVIDIA Jetpack for L4T... - Page 21 Make a backup image Making a backup image needs to be done in the environment of command line flashing, only the system.img file is backed up. 1. Use a USB cable to connect the USB Type-A of the PC computer of the Ubuntu18.04 system to the Type c of Leetop_ALP_609_F;...
- Page 22 Installation of Jtop tools Jtop is a Jetson system monitoring utility that runs on the terminal to view and control the status of the NVIDIA Jetson in real time. Installation steps： 1. Install pip3-tools sudo apt-get install python3-pip 2. Install the jtop package with pip3 sudo pip3 install jetson-stats...
-
Page 23: Developer Tools
Developer Tools JetPack NVIDIA JetPack SDK is the most comprehensive solution for building AI applications. It bundles Jetson platform software including TensorRT, cuDNN, CUDA Toolkit, VisionWorks, GStreamer, and OpenCV, all built on top of L4T with LTS Linux kernel. JetPack includes NVIDIA container runtime, enabling cloud-native technologies and workflows at the edge. - Page 24 Key Features of Jetpack NVIDIA Jetson Linux 35.3.1 provides the Linux Kernel 5.10, UEFI based bootloader, Ubuntu 20.04 based root file system, NVIDIA drivers, necessary firmwares, toolchain and more.JetPack 5.1.1 includes Jetson Linux 35.3.1 which adds following highlights: (Please refer to release notes for additional details)Adds support for Jetson AGX Orin 64GB, Jetson Orin NX 8GB, Jetson...
- Page 25 Jetson Multimedia API package provides low level APIs for flexible application development.Camera application API: libargus offers a low-level frame-synchronous API for camera applications, with per frame camera parameter control, multiple (including synchronized) camera support, and EGL stream outputs. RAW output CSI cameras needing ISP can be used with either libargus or GStreamer plugin.
- Page 26 CUDA Toolkit provides a comprehensive development environment for C and C++ developers building high-performance GPU-accelerated applications with CUDA libraries. The toolkit includes Nsight Visual Studio Code Edition, Nsight Eclipse Plugins, debugging and profiling tools including Nsight Compute, and a toolchain for cross-compiling applications NVIDIA Nsight Systems is a low overhead system-wide profiling tool, providing the...
-
Page 27: Sample Applications
Sample Applications JetPack includes several samples which demonstrate the use of JetPack components. These are stored in the reference filesystem and can be compiled on the developer kit. JetPack component Sample locations on reference filesystem TensorRT /usr/src/tensorrt/samples/ cuDNN /usr/src/cudnn_samples_/ CUDA /usr/local/cuda-/samples/ Multimedia API /usr/src/tegra_multimedia_api/... - Page 28 Developer Tools JetPack includes the following developer tools. Some are used directly on a Jetson system, and others run on a Linux host computer connected to a Jetson system. Tools for application development and debugging: NSight Eclipse Edition for development of GPU accelerated applications: Runs on Linux host computer.
- Page 29 FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications.
