Simpleway Nnounce micnode2g Hardware User's Manual

Microphone station with gooseneck
Hide thumbs

Advertisement

Table of Contents

H
U
ARDWARE
SER GUIDE

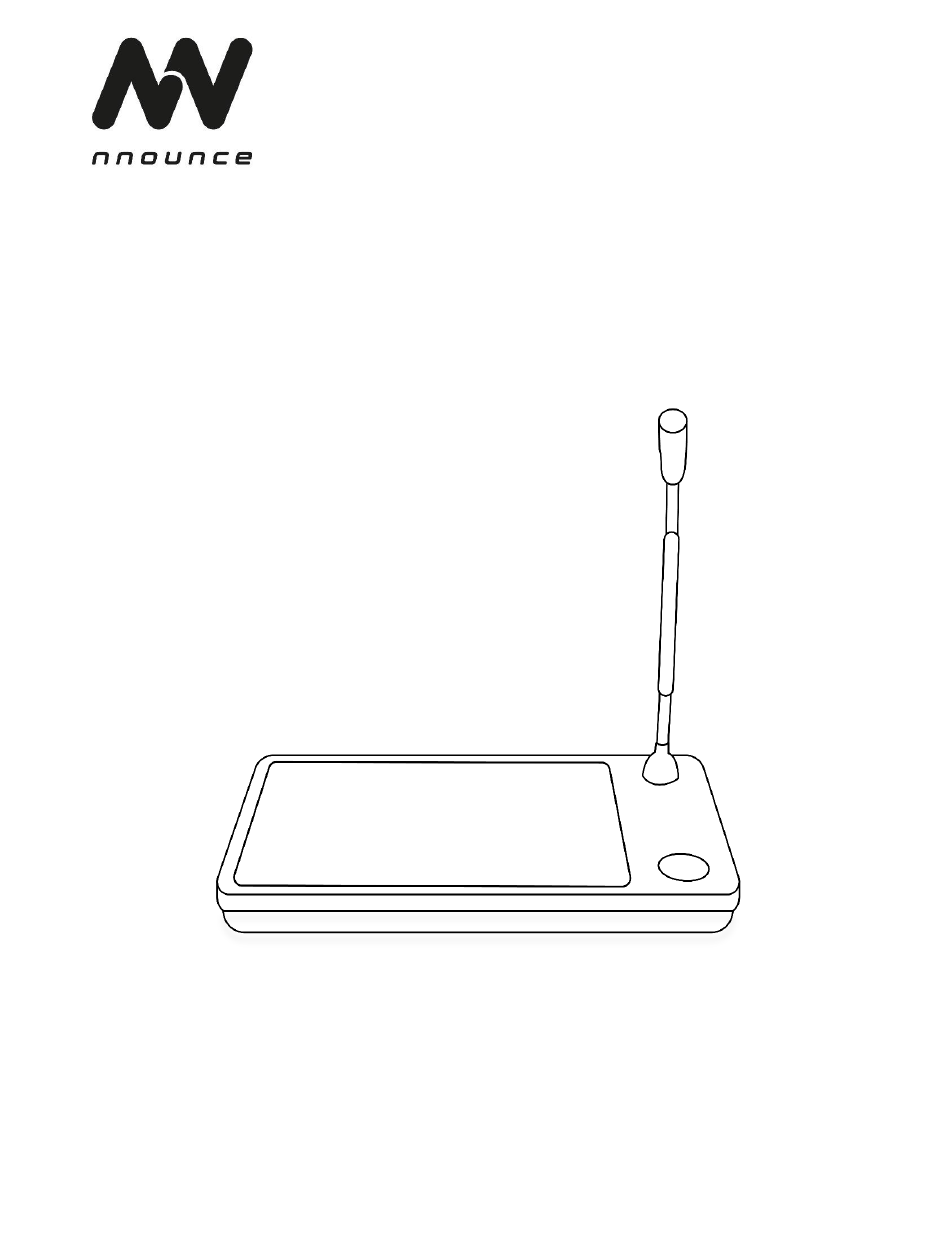

micnode2g – Microphone Station with Gooseneck
©Nnounce powered by Simpleway
Keep this manual
for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nnounce micnode2g and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Simpleway Nnounce micnode2g

Summary of Contents for Simpleway Nnounce micnode2g

  • Page 1 ARDWARE SER GUIDE micnode2g – Microphone Station with Gooseneck ©Nnounce powered by Simpleway Keep this manual for future reference...

  • Page 2: Important Safety Instructions

    If your unit uses an auxiliary power supply, do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding nnounce by Simpleway...

  • Page 3: Optional Accessories

    Directive 2002/95/EC – Restriction of Hazardous Substances (RoHS) Unpacking 1. micnode2g microphone station with an 8-inch touch panel (1920x1200) 2. Gooseneck microphone 3. Two terminal blocks for audio and contact cables Optional accessories 1. micnode AUX extension unit nnounce by Simpleway...
  • Page 4 The 8-inch touch display shows the user interface operating the microphone station. For more information, see the chapter on User Interfaces setup. Use your fingers to touch the screen. CAUTION: Don’t use any sharp objects on the screen. Clean the screen with static -free cleaning cloths only. nnounce by Simpleway...
  • Page 5 MP3 audio source can be added. LAN A & B The two LAN switches allow simultaneous connection to the audio and control networks, or the second LAN can be used for a redundant network. nnounce by Simpleway...
  • Page 6 IMPORTANT: Instead of 000000 enter the last 6 digits of the MAC address which you can find on you micnode2 device. • NOTE: The device is using mDNS. 4. Your web-browser shows the login page of your micnode2 device. nnounce by Simpleway...
  • Page 7 Off mode turns the port off. IMPORTANT: You will need the device's IP address, MAC address from your device which you find on the rear panel. NOTE: Navigate backwards or cancel your steps with the Back function in your browser. nnounce by Simpleway...
  • Page 8 – Hardware User Guide NN_USER_GUIDE_micnode2g_v1.1.docx A. Navigate in the left- hand Menu to Interfaces section You can preconfigure two LANs A and B, see rear panel ports. B. Configure the interface in the Manual mode or Auto mode (DHCP). nnounce by Simpleway...
  • Page 9 LAN adapter. • server and Search domains are assigned by the DHCP server. Click on Save changes button to confirm your configuration. IMPORTANT: The option OFF disables the port. nnounce by Simpleway...

  • Page 10: Network Overview

    1. Download Q-SYS plugin for micnode2, 2. Configure the plugin in Q-SYS designer, 3. Set up streams, 4. Configuration of user interface: a. Using an external application webpage, b. Using the built-in paging dashboard or c. Using Q-SYS UCI. nnounce by Simpleway...
  • Page 11 Zone Group Count - define the number of paging zones for the mic station. • Configuration Mode – select stream configuration mode: o Basic – default micnode2 design is applied and stream configuration is predefined for you. NOTE: An existing default configuration is not overwritten. nnounce by Simpleway...
  • Page 12 NOTE: For secured Web-Socket connection it is required to use domain name of the device. IMPORTANT: Use the host as defined in the Connect the Device chapter above – micnode2 dash and the last six numbers of the station’s MAC address. Example: micnode2g-000000 nnounce by Simpleway...
  • Page 13 7. Upon successful connection status field should be OK. Stream Configuration Create an AES67 stream in the Q-SYS designer. Select first the component and then configure it in the micnode2 plugin. 1. Add the stream component to your Q-SYS design: nnounce by Simpleway...
  • Page 14 Basic mode has a default design and preset ports, in the Advanced mode you create your own design and set manually your stream configuration. IMPORTANT: Before you start to configure your device’s streams in the Streams configuration section of the plugin, Save to Core & Run your design. nnounce by Simpleway...
  • Page 15 DSP designer. Manual changes by the user are overwritten with the default design after reconnecting to the WebSocket. The Network Streams section shows the streams as configured in the Q-SYS designer. IMPORTANT: Do not make any changes in the nnounce configuration UI - DSP designer and Network stream - to avoid malfunction. nnounce by Simpleway...
  • Page 16 Option: Advanced Mode The Advanced mode lets you set up manually your micnode2 device’s protocols, IP addresses, ports etc. for your streams. 1. Open the Streams Configuration section of your micnode2 plugin. IMPORTANT: No values are auto filled in. nnounce by Simpleway...
  • Page 17 The Network Streams section shows the streams as configured in the Q-SYS designer. • TX stream – transmits audio to other devices, output. • RX stream – receives audio from other devices, input. Example of network stream configuration in nnounce configuration UI: nnounce by Simpleway...
  • Page 18 Once the network settings and configuration including zones are set in Q-SYS designer, announcements can be triggered with the Talk/Start button. IMPORTANT: Which mode is used depends on Paging configuration of your micnode2 device in Q-SYS designer. nnounce by Simpleway...
  • Page 19 Optional: For live paging you can chose if an overlay is shown during your call on the micnode2 display. 4. Save your changes. IMPORTANT: Make changes only in the Q-SYS plugin if you use Q-SYS for your audio installation. nnounce by Simpleway...
  • Page 20 – Hardware User Guide NN_USER_GUIDE_micnode2g_v1.1.docx Example of micnode2 microphone station Menu configuration: IMPORTANT: To change the UI configuration, click on the button Change to built-in dashboard. nnounce by Simpleway...
  • Page 21 2. Power off and then power on the device by unplugging and again reconnecting the LAN cable on the rear panel. 3. Progress and result are shown on device display. 4. REMOVE USB stick. 5. Finish the process by once more putting power supply (as in step 2). nnounce by Simpleway...
  • Page 22 NOTE: The file is typically a .swu file. A. Navigate in the left- hand menu to the Maintenance section. Click on the button Update New in the Firmware update part. B. Drag and drop or select the file provided by the nnounce support team. nnounce by Simpleway...
  • Page 23 – Hardware User Guide NN_USER_GUIDE_micnode2g_v1.1.docx C. Start to install the firmware update. D. Wait until the installation process is finished. E. After successful completion login screen is displayed. nnounce by Simpleway...

  • Page 24: Technical Specifications

    250 mm (W) x 40 mm (D) (max. without microphone) x 143 mm (H) Dimensions 1 520 g Accessories micnode aux microphone station (optional) CONTACT Simpleway North America Headquarters: Simpleway Europe a.s. Address: Address: 1621 Central Avenue Na Okraji 335/42 Cheyenne, Wyoming Prague 6...
