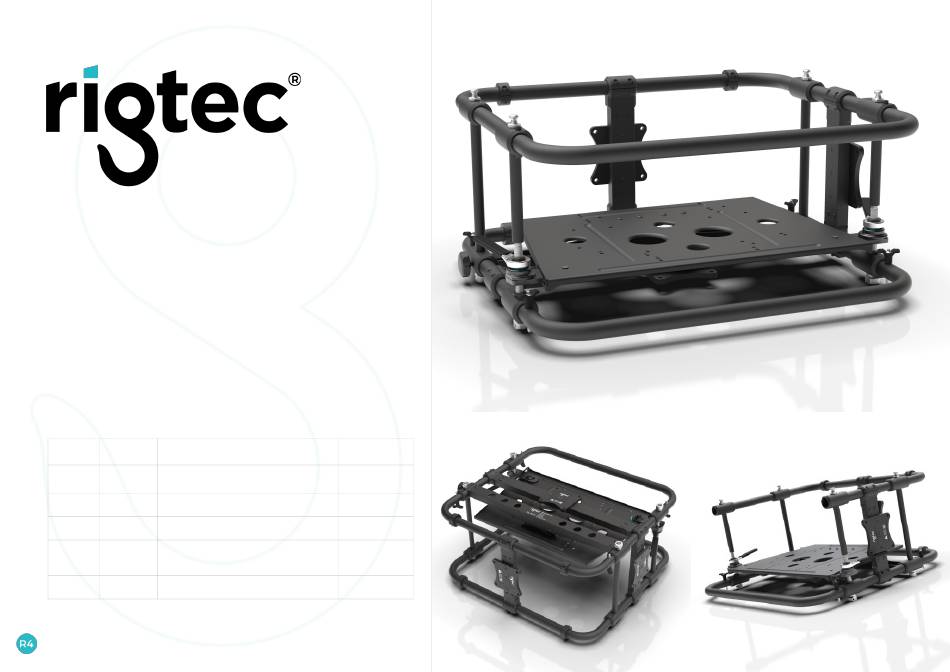

AIR FRAME X-30
(AF02-X30)
USER GUIDE
V1.6
Revision
Date
Revision Details
Projector plate updated to work with
V1.2
22/02/22
Epson EB-PU2200 series projectors.
V1.3
05/05/22
Version renamed from 1.2 to R3.0
V1.4
03/03/23
Updated Images
R# added to front cover
V1.5
11/03/24
Revisions changed to V#
Additional projector models added
V1.6
24/01/25
R3 plate replaced with R4 plate
T
I
+44 (0)1926 290 418
E
I
hello@rigtec.com
Revised By
ST
ST
ST
ST
ST
W
I
www.rigtec.com
Advertisement
Table of Contents
Related Manuals for RIGTEC X-30
Summary of Contents for RIGTEC X-30
- Page 1 AIR FRAME X-30 (AF02-X30) USER GUIDE V1.6 Revision Date Revision Details Revised By Projector plate updated to work with V1.2 22/02/22 Epson EB-PU2200 series projectors. V1.3 05/05/22 Version renamed from 1.2 to R3.0 V1.4 03/03/23 Updated Images R# added to front cover V1.5...
- Page 2 (Found in the bottom left corner) The R number is within the serial number on the frame, as highlighted here: If your frame is an older R number, please contact Rigtec for the correct version User Guide for your frame.
-
Page 3: Table Of Contents
HANGING ACCESSORIES ATTACHING AN ATOM GRIP: LANDSCAPE PORTRAIT FLOOR PROJECTION SWIVEL COUPLER SAFETY INFORMATION ATTACHING SWIVEL COUPLERS: LANDSCAPE PORTRAIT FLOOR PROJECTION SAFETY STEEL CABLES SPECIFICATIONS DIMENSIONS CE DECLARATION OF CONFORMITY +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com UKCA DECLARATION OF CONFORMITY... -
Page 4: Safety Information
Do not hang the Air Frame from unstable, unsafe or inappropriate objects/ structures. Ensure the structure can support the overall weight. • When stacking Air Frames, ENSURE all four locking pins are securely positioned through the adjoining male and female Air Frame stacking connectors. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... - Page 5 • Any accident or dangerous occurrence. • Any significant change in conditions of use. • Any long periods of inaction. • Each time the equipment is used. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com...
-
Page 6: Safety Inspection
All Atom Grip Attachment Plates must be inspected, it is important to ensure that all threads are intact. If there is any damage to the threads that Atom Grip Attachment Plate must not be used. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 7: Part Names
Portrait Atom Grip Attachment Plate Floor Projection Atom Grip Attachment Plate M8 Atom Grip Threads Upper Side Bar Lower Side Bar Upper Back Bar Lower Back Bar Removable Front Bar Removable Front Bar Bolts Lower Front Bar +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 8: Compatible Projectors
PT-MZ570 itemisation of each hole set. EB-L1050U LWU900-DS EB-PU1008 EB-PU2213 EB-L1200U PT-MW630 EB-PU2010 EB-PU2120 EB-L1300U PT-MZ670 EB-PQ2008 EB-PU2116 EB-L1405U PT-MW730 EB-PQ2010 EB-PU2113 EB-L1490U PT-MZ770 EB-PQ2213 EB-L1495U EB-PQ2216 EB-L1500UH EB-PQ2220 EB-L1505UH EB-L1710S EB-L1715S EB-L1750U EB-L1755U +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 9: Installation Accessories
▲ ◆ Epson EB-L1490U [4] ◆ ▲ ◆ ▲ ◆ Rigtec Air Frames are provided with all the necessary accessories Epson EB-L1495U [4] ◆ ▲ ◆ ▲ ◆ to install the projector into the Air Frame. Spacers, bolts and Epson EB-L1500UH [4] ◆... - Page 10 ◆ such as a the Dynamic Projection Mirror Head, please contact the Panasonic PT-MZ570[5] ◆ ◆ ◆ team at Rigtec to discuss. Alternative bolts and spacers will be required to accommodate the accessory. Panasonic PT-MW630 [5] ◆ ◆ ◆ Panasonic PT-MZ670 [5] ◆...
-
Page 11: Installinga Projector
Use a spanner to tighten the bolts. Please torque bolts to 4±0.5 Nm (or as recommended by the projector manufacturer in the projector user guide) Only use supplied bolts to connect Air Frame and Projector. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 12: Adjustments
Handles in the same directions (Anti-Clockwise to raise, Clockwise to lower). To control the projector on the Axis, operate the Yaw Adjustment Handle. Clockwise for movement to the left and Anti- Clockwise for movement to the right. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 13: Stacking
Air Frame stacking connectors. Care should be taken when lifting and moving Air Frames with Projectors installed – the combined weight of the device and any accessory should be within safe manual handling limits. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 14: Stacking Limits
Rigtec Air Frames. A Stack of Air Frames must only be suspended in a Landscape Orientation, either with an Atom Grip or Rigtec Swivel Couplers - DO NOT suspend a stack of Air Frames in Portrait or Floor Projection Orientation. -
Page 15: Removable Front Bar
Once the front bar is firmly in place, locate the four Removable Bar Bolts back into the holes in the top and bottom of both left and right front blocks and tighten with the 5mm Hex Key. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 16: Hanging Accessories
Frame, the next few pages will detail those accessories and the give instructions on how to safely suspend Rigtec Air Frames. Rigtec Atom Grips The best solution for hanging an Air Frame is by using a Rigtec Atom Grip, depending on the application there are 3 models to choose from:... -
Page 17: Attaching An Atom Grip
Ensure all four M8 bolts are torqued to 6±0.5 Nm (M8). Any suspended accessory must be independently secured with an approved safety wire/s. Local laws or regulations should be consulted regarding the additional safety of hanging equipment +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 18: Portrait
Air Frame is hanging in a portrait orientation. Any suspended accessory must be independently secured with an approved safety wire/s. Local laws or regulations should be consulted regarding the additional safety of hanging equipment +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 19: Floor Projection
Ensure all four M8 bolts are torqued to 6±0.5 Nm (M8). Any suspended accessory must be independently secured with an approved safety wire/s. Local laws or regulations should be consulted regarding the additional safety of hanging equipment +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 20: Landscape
SAFETY WIRE/S. Local laws or regulations should Right be consulted regarding the additional safety of hanging equipment. Only stack a MAXIMUM THREE Air Frames (AF02-X30), when suspending with Swivel Couplers. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com Back Left... -
Page 21: Attaching Swivel Couplers
ATTACHING RIGTEC SWIVEL COUPLERS To hang an Air Frame in Landscape Orientation with the Rigtec Swivel Couplers, follow these instructions: Measure the distance between the two truss chords that will be used to hang the Air Frame. Using the 32mm clamps, attach two Swivel Couplers at the measured distance apart on the upper side bar. -
Page 22: Portrait
ATTACHING RIGTEC SWIVEL COUPLERS To hang an Air Frame in Portrait Orientation with the Rigtec Swivel Couplers, follow these instructions: Measure the distance between the two truss chords that will be used to hang the Air Frame. Using the 32mm clamps, attach two Swivel Couplers at the measured distance apart on the upper side bar. -
Page 23: Floor Projection
ATTACHING RIGTEC SWIVEL COUPLERS To hang an Air Frame in Floor Projection Orientation with the Rigtec Swivel Couplers, follow these instructions: Measure the distance between the two truss chords that will be used to hang the Air Frame. Using the 32mm clamps, attach two Swivel Couplers at the measured distance apart to the upper back bar. -
Page 24: Safety Steel Cables
- No drop distance is allowed or must be limited as much as possible. Please follow these instructions and diagrams when choosing where to position Safety Steel Cables on Rigtec Air Frames: Landscape Orientation; Please loop safety steel cables around the suspending truss and through the Air Frame, around the Side Bars. -
Page 25: Specifications
SPECIFICATIONS Part Number: AF02-X30 Description: Air Frame X-30 Weight: 18.4 kg / 40.56 lbs ±3.4° Roll Adjustment: +4.3° / -4° Pitch Adjustment: ±5.8° Yaw Adjustment: Maximum Projector & Lens Weight: 35kg / 77.16 lbs Landscape WLL: 108kg / 238.09 lbs Portrait WLL: 55kg / 121.25 lbs... -
Page 26: Dimensions
DIMENSIONS +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 27: Ce Declaration Of Conformity
Manufacturer: Rigtec Ltd Unit B1 Holly Farm Business Park Kenilworth CV8 1NP CE DECLARATION +44 (0) 1926 290 418 www.rigtec.com OF CONFORMITY Description of lifting accessory: Air Frame AF02-X30 Rigging Frame for Projector Part Number: AF02-X30 Is in accordance with the following Directive:... -
Page 28: Ukca Declaration Of Conformity
Manufacturer: Rigtec Ltd Unit B1 Holly Farm Business Park Kenilworth CV8 1NP UKCA DECLARATION +44 (0) 1926 290 418 www.rigtec.com OF CONFORMITY Description of lifting accessory: Air Frame AF02-X30 Rigging Frame for Projector Part Number: AF02-X30 Is in accordance with the following Directive:...
