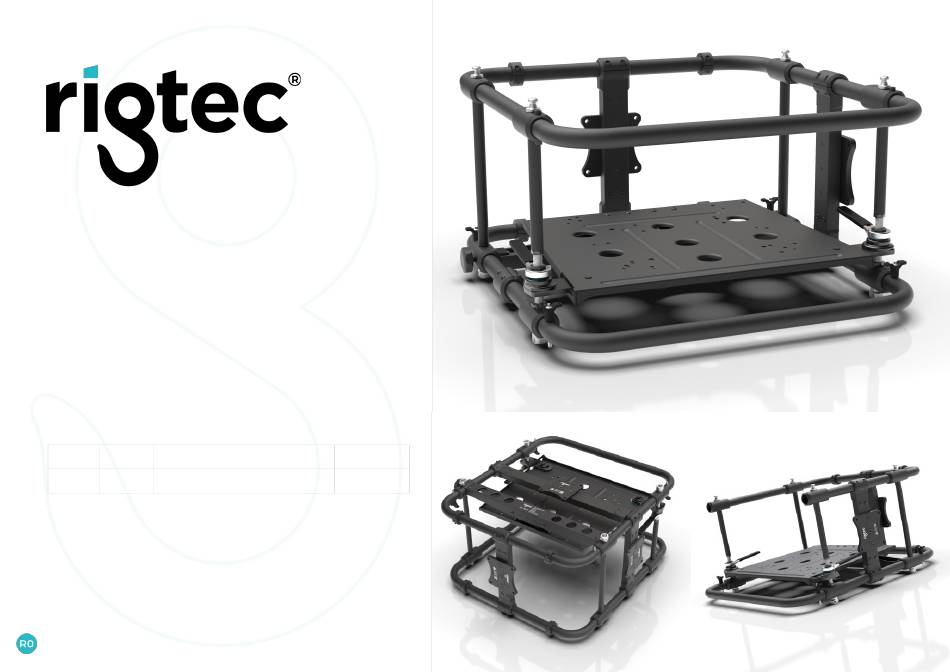

- Page 1 AIR FRAME X-12 (AF02-X12) USER GUIDE V1.1 Revision Date Revision Details Revised By Instructions to remove and reattach V1.1 03/01/25 Portrait Bar added. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com...
- Page 2 (Found in the bottom left corner) The R number is within the serial number on the frame, as highlighted here: If your frame is an older R number, please contact Rigtec for the correct version User Guide for your frame.
-
Page 3: Table Of Contents
REMOVABLE FRONT BAR HANGING ACCESSORIES ATTACHING AN ATOM GRIP: LANDSCAPE PORTRAIT FLOOR PROJECTION SWIVEL COUPLER SAFETY INFORMATION ATTACHING SWIVEL COUPLERS: LANDSCAPE PORTRAIT FLOOR PROJECTION SAFETY STEEL CABLES SPECIFICATIONS DIMENSIONS +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com DECLARATION OF CONFORMITY UKCA DECLARATION OF CONFORMITY... -
Page 4: Safety Information
Do not hang the Air Frame from unstable, unsafe or inappropriate objects/ structures. Ensure the structure can support the overall weight. • When stacking Air Frames, ENSURE all four locking pins are securely positioned through the adjoining male and female Air Frame stacking connectors. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... - Page 5 • Any accident or dangerous occurrence. • Any significant change in conditions of use. • Any long periods of inaction. • Each time the equipment is used. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com...
-
Page 6: Safety Inspection
All Atom Grip Attachment Plates must be inspected, it is important to ensure that all threads are intact. If there is any damage to the threads that Atom Grip Attachment Plate must not be used. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 7: Part Names
Portrait Atom Grip Attachment Plate Floor Projection Atom Grip Attachment Plate M8 Atom Grip Threads Upper Side Bar Lower Side Bar Upper Back Bar Lower Back Bar Removable Front Bar Removable Front Bar Bolts Lower Front Bar +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 8: Compatible Projectors
Hole Set 3 Hole Set 5 Parallelogram Crescent (Panasonic) (Barco) PT-REQ80 Barco I600-4K8 PT-REQ10 Barco I600-4K10 PT-REQ12 Barco I600-4K15 PT-REZ80 PT-REZ10 PT-REZ12 PT-REZ15 PT-REQ15 +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 9: Installation Accessories
Frame, such as a the Dynamic Projection Mirror Head, please Panasonic PT-REZ15 [5] ◆ ◆ ◆ contact the team at Rigtec to discuss. Alternative bolts and spacers will be required to accommodate the accessory. ◆ ◆ ◆ Panasonic PT-REQ15 [5] ◆... -
Page 10: Installinga Projector
Use a spanner to tighten the bolts. Please torque bolts to 4±0.5 Nm (or as recommended by the projector manufacturer in the projector user guide) Only use supplied bolts to connect Air Frame and Projector. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 11: Removing Portrait Bar
PORTRAIT BAR When installing certain projector models, the Portrait Bar may obstruct the control panel of the projector. In this circumstance Rigtec would recommend using the projector’s remote control, when this is not an option, the Portrait Bar can be removed by following these instructions. -
Page 12: Reattaching Portrait Bar
Air Frame, through the Cap and fasten them to the Air Frame. Please ensure the Cap is properly attached and Bolts are fastened before attempting to suspend the Air Frame. Only use supplied bolts to install Portrait Bar and Cap +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 13: Adjustments
Handles in the same directions (Anti-Clockwise to raise, Clockwise to lower). To control the projector on the Axis, operate the Yaw Adjustment Handle. Clockwise for movement to the left and Anti- Clockwise for movement to the right. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 14: Stacking
Air Frame stacking connectors. Care should be taken when lifting and moving Air Frames with Projectors installed – the combined weight of the device and any accessory should be within safe manual handling limits. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 15: Stacking Limits
Rigtec Air Frames. A Stack of Air Frames must only be suspended in a Landscape Orientation, either with an Atom Grip or Rigtec Swivel Couplers - DO NOT suspend a stack of Air Frames in Portrait or Floor Projection Orientation. -
Page 16: Removable Front Bar
Once the front bar is firmly in place, locate the four Removable Bar Bolts back into the holes in the top and bottom of both left and right front blocks and tighten with the 5mm Hex Key. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 17: Hanging Accessories
Frame, the next few pages will detail those accessories and the give instructions on how to safely suspend Rigtec Air Frames. Rigtec Atom Grips The best solution for hanging an Air Frame is by using a Rigtec Atom Grip, depending on the application there are 3 models to choose from:... -
Page 18: Attaching An Atom Grip
Ensure all four M8 bolts are torqued to 6±0.5 Nm (M8). Any suspended accessory must be independently secured with an approved safety wire/s. Local laws or regulations should be consulted regarding the additional safety of hanging equipment +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 19: Portrait
Air Frame is hanging in a portrait orientation. Any suspended accessory must be independently secured with an approved safety wire/s. Local laws or regulations should be consulted regarding the additional safety of hanging equipment +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 20: Floor Projection
Ensure all four M8 bolts are torqued to 6±0.5 Nm (M8). Any suspended accessory must be independently secured with an approved safety wire/s. Local laws or regulations should be consulted regarding the additional safety of hanging equipment +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 21: Landscape
SAFETY WIRE/S. Local laws or regulations should Right be consulted regarding the additional safety of hanging equipment. Only stack a MAXIMUM THREE Air Frames (AF02-X12), when suspending with Swivel Couplers. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com Back Left... -
Page 22: Attaching Swivel Couplers
ATTACHING RIGTEC SWIVEL COUPLERS To hang an Air Frame in Landscape Orientation with the Rigtec Swivel Couplers, follow these instructions: Measure the distance between the two truss chords that will be used to hang the Air Frame. Using the 32mm clamps, attach two Swivel Couplers at the measured distance apart on the upper side bar. -
Page 23: Portrait
ATTACHING RIGTEC SWIVEL COUPLERS To hang an Air Frame in Portrait Orientation with the Rigtec Swivel Couplers, follow these instructions: Measure the distance between the two truss chords that will be used to hang the Air Frame. Using the 32mm clamps, attach two Swivel Couplers at the measured distance apart on the upper side bar. -
Page 24: Floor Projection
ATTACHING RIGTEC SWIVEL COUPLERS To hang an Air Frame in Floor Projection Orientation with the Rigtec Swivel Couplers, follow these instructions: Measure the distance between the two truss chords that will be used to hang the Air Frame. Using the 32mm clamps, attach two Swivel Couplers at the measured distance apart to the upper back bar. -
Page 25: Safety Steel Cables
- No drop distance is allowed or must be limited as much as possible. Please follow these instructions and diagrams when choosing where to position Safety Steel Cables on Rigtec Air Frames: Landscape Orientation; Please loop safety steel cables around the suspending truss and through the Air Frame, around the Side Bars. -
Page 26: Specifications
SPECIFICATIONS Part Number: AF02-X12 Description: Air Frame X-12 Weight: 17.6kg / 35.27 lbs ±3.8° Roll Adjustment: +3.2° / -3.1° Pitch Adjustment: ±4.4° Yaw Adjustment: Maximum Projector & Lens Weight: 36kg / 79.36 lbs Landscape WLL: 108kg / 238.09 lbs Portrait WLL: 55kg / 121.25 lbs... -
Page 27: Dimensions
DIMENSIONS +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 28: Ce Declaration Of Conformity
Manufacturer: Rigtec Ltd Unit B1 Holly Farm Business Park Kenilworth CV8 1NP CE DECLARATION +44 (0) 1926 290 418 www.rigtec.com OF CONFORMITY Description of lifting accessory: Air Frame AF02-X12 Rigging Frame for Projector Part Number: AF02-X12 Is in accordance with the following Directive:... -
Page 29: Ukca Declaration Of Conformity
Manufacturer: Rigtec Ltd Unit B1 Holly Farm Business Park Kenilworth CV8 1NP UKCA DECLARATION +44 (0) 1926 290 418 www.rigtec.com OF CONFORMITY Description of lifting accessory: Air Frame AF02-X12 Rigging Frame for Projector Part Number: AF02-X12 Is in accordance with the following Directive:...
