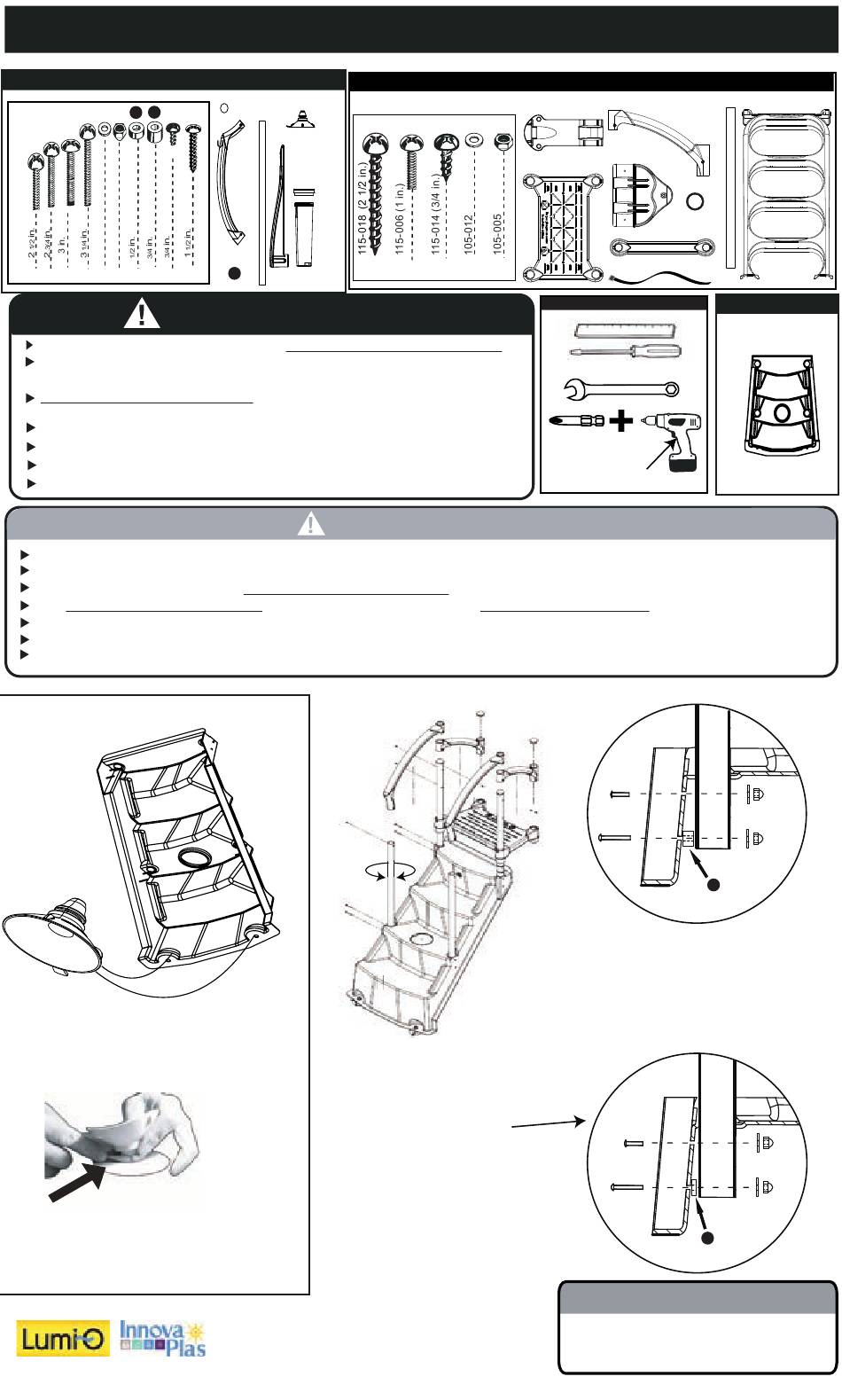

Lumi-O ROYAL II Assembly Instructions

ROYAL II WITH CLASSIC LADDER
Contents of Accessory box
SCREW KIT 140-0070
A B
x2 x2 x2 x8 x8 x2 x2
x2
Do not jump nor dive from the step; you can be permanently injured.
To prevent electrocution use only BATTERY operated tools to
assemble the step.
To prevent drowning or injuries, do not use the step outside the pool
or to access a pool, and fasten the step firmly to the outside ladder.
For 48,52,54''above-ground pool only.
The step must be installed per manufacturer's instructions.
Maximum capacity is 300 lbs / 135 kg.
The outside ladder must be installed on a flat surface.
Use of corrosive cleaning solutions can dammage the step components.
Remove the step from water when temperatures drop below freezing.
To prevent dammaging the step, never lift the step by its handrails.
The manufacturer is not responsible for damages or injuries caused by improper installation or use of the product.
Failing to install the Step Cup
To prevent pool liner puncture, install the Step Cup
Damage caused by freezing or winterization is not under warranty.
A
x2
Insertion of Step Cup
With a flat screwdriver, compress the Step
mushroom ring while pushing it into the hole.
Step Cup TM
Twist the to ensure that its mushroom has entirely
cleared the wall thickness.
x2
x2
x4
x2
x1
x2
x 1
x1
*
x16 x12
WARNING
will greatly reduce the steadiness of the step and will void the manufacturer warranty.
TM
B1
in the step.
TM
Cup TM
2257 route 139
Drummondville, Québec
J2A 2G2
WWW.INNOVAPLAS.COM
Contents of Ladder box SKU # 6007
SCREW BAG 140-0058
x2 x2 x18 x2
Caution
provided.
TM
*Adjust by rotating each
posts prior to fastening the
.
handrails
2) Assemble the bottom posts.
Using a ruler, pick the bolts you
need: two 2 1/2'' and two 3'' bolts.
Use the two thin spacers, washers
and nuts as per the schematic
Bottom post, DO NOT TIGHTEN,
YET.
x2
x2 Security Strap
Tools required (not included)
Use a 7/16'' wrench.
A philips socket
screwdriver bit is required.
Battery operated
cordless drill
TOP POST
2 3/4 in.
3 1/4 in.
1) Begin the assembly with the two top
posts. Using a ruler, pick the bolts you
need: two 2 3/4'' and two 3 1/4'' bolts.
Use the two tallest spacers and the
washers and nuts as per the schematic
Top post. Assemble the two top posts,
DO NOT TIGHTEN, YET.
BOTTOM POST
2 1/2 in.
3 in.
MANUFACTURER WARRANTY
1 year on pool step.
1 year on hardware.
REV. 16/04/2025
(*Classic Ladder also
compatible with Royal
Entrance and Festiva steps)
x2
x2
x2
x2
Royal II Step Shell
x1
B
A
PG:1
