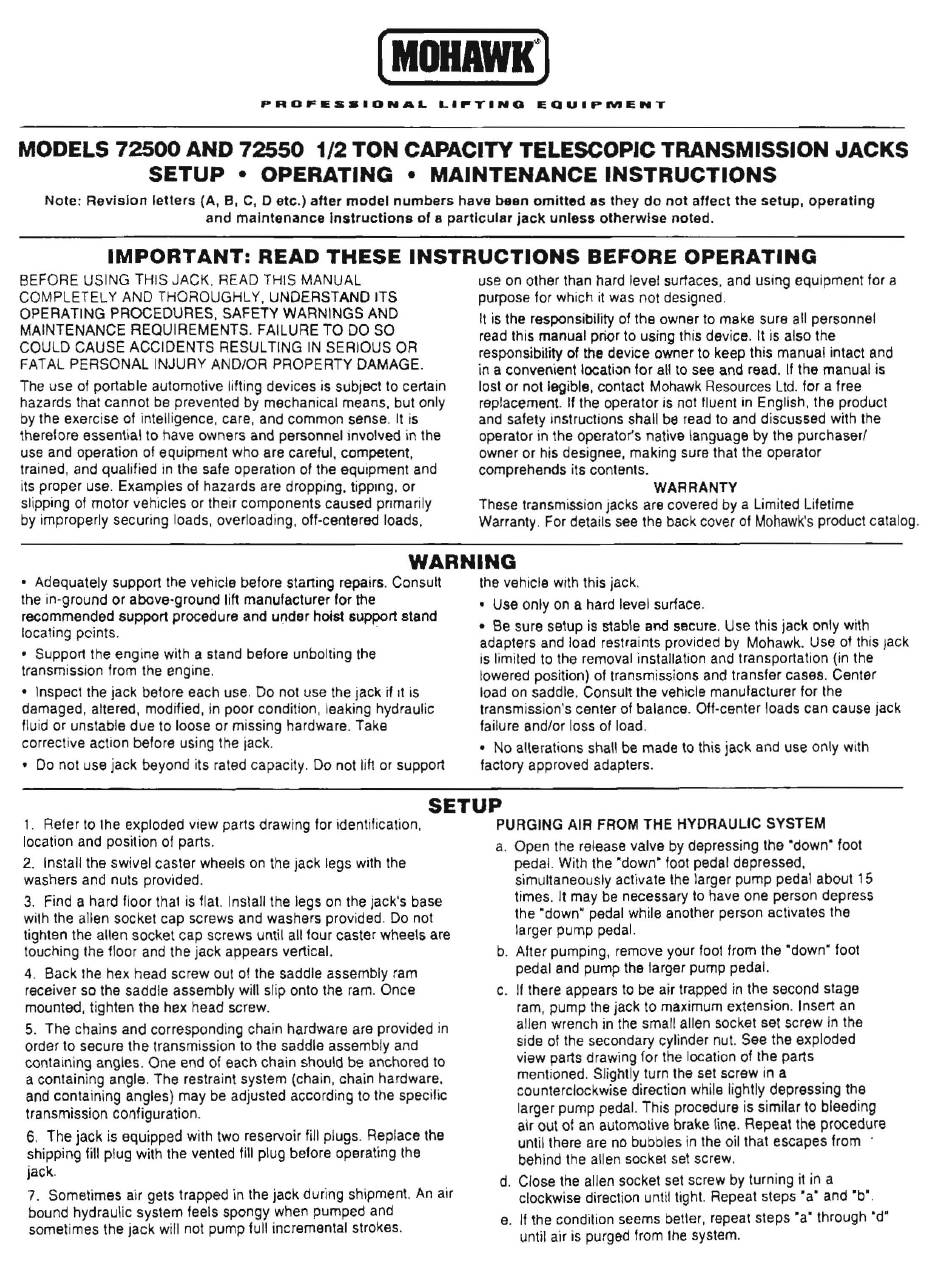

Mohawk 72500 Setup, Operating, Maintenance Instructions

[MOHAWK]
PROFESSIONAL L I P T I N O EQUIPNlIENT
MODELS 72500 AND 72550 1/2 TON CAPACITY TELESCOPIC TRANSMISSION JACKS
SETUP • OPERATING • MAINTENANCE INSTRUCTIONS
Note: Revision letters (A, 8, C, 0 etc.) atter model numbers have been omitted as they do not affect the setup, operating
and maintenance Instructions of a particular jack unless otherwise noted.
IMPORTANT: READ THESE INSTRUCTIONS BEFORE OPERATING
BEFORE USING THIS JACK. READ THIS MANUAL
COMPLETELY AND THOROUGHLY, UNDERSTAND ITS
OPERATING PROCEDURES, SAFETY WARNINGS AND
MAINTENANCE REQUIREMENTS. FAILURE TO DO SO
COULD CAUSE ACCIDENTS RESULTING IN SERIOUS OR
FATAL PERSONAL INJURY ANDIOR PROPERTY DAMAGE.
The use of portable automotive lifting devices is subject to certain
hazards that cannot be prevented by mechanical means, but only
by the exercise of intelligence, care, and common sense. It is
Iherelore essen\ialto have owners and personnel involved in the
use and operation of equipment who are careful. competent,
trained, and qualified in the safe operation 01 the equipment and
its proper use. Examples of hazards are dropping. tiPPing, or
slipping of motor vehicles or their components caused pnmarily
by improperly securing loads, overloading, off-centered loads,
use on other than hard level surfaces, and using equipment for a
purpose for which it was not designed.
It is the responsibility of the owner to make sure all personnel
read this manual prior to using this device. It is also the
responsibility of the device owner to keep this manual intact and
in a convenientlocativn for all to see and read.
If
the manual is
lost or not legible, contact Mohawk Resources Ltd. for a free
replacement. If the operator is not fluent in English, the product
and safety instructions shall be read to and discussed with the
operator in Ihe operator's native language by the purchaserl
owner or his designee, making sure that the operator
comprehends its contents.
WARRANTY
These transmission jacks are covered by a Limited Lifetime
Warranty. For details see the back cover of Mohawk's product catalog.
WARNING
o
Adequately support the vehicle before staning repairs. Consult
the vehicle with this jack.
the in-ground or above-ground lift manufacturer for the
o
Use only on a hard level surface.
recommended support procedure and under holst support stand
• Be sure selup is stable and secure. Use this jack only wilh
locating pcints. .
adapters and load restraints provided by Mohawk. Use 01 this jack
o
Support the engine with a stand belore unbolting the
is limiled to the removal installation and transportation (in the
transmiSSion from the engine.
lowered position) of transmissions and transfer cases. Center
• Inspect the jack belore each use. Do not use the Jack if It is load on saddle. ConSUlt the vehicle manUfacturer for the
damaged, altered, modified, in poor condition, leaking hydraulic transmission's center of balance. Off-center loads can cause Jack
fluid or unstable due to loose or missing hardware. Take failure andlor loss of load.
corrective action before using the jack.
o
No alterations shall be made to this jack and use only with
o
Do not use jack beyond its rated capacity. Do not lift or support factory approved adapters.
SETUP
1. Refer to the exploded view parts drawing for identification,
location and position of parts.
2. Install the swivel caster wheels on the jack legs with the
washers and nuts provided.
3. Find a hard floor thaI is flat. Install the legs on the Jack's base
with the allen socket cap screws and washers provided. Do not
tighten the allen socket cap screws until all four caster wheels are
touching the floor and the jack appears vertical.
4. Back the hex head screw oul at the saddle assembly ram
receiver so the saddle assembly will slip onto the ram. Once
mounted, tighten the hex head screw.
5. The chains and corresponding chain hardware are provided in
order to secure the transmission to the saddle assembly and
containing angles. One end of each chain should be anchored to
a containing angle. The restraint system (chain, chain hardware,
and containing angles) may be adjusted according to the specific
transmission configuration.
6, The jack is equipped with two reservoir fill plugs. Replace the
shipping fill plug with the vented fill plug belore operating the
jack.
7. Sometimes air gets trapped in the jack during shipment. An air
bound hydraulic system feels spongy when pumped and
sometimes the jack will not pump full incremental strokes.
PURGING AIR FROM THE HYDRAULIC SYSTEM
a. Open the release valve by depressing the "down" foot
pedal. With the "down' foot pedal depressed.
simultaneously activate the larger pump pedal about 15
times. It may be necessary to have one person depress
the "down" pedal while another person activates the
larger pump pedal.
b. Alter pumping, remove your 1001 from the "down" foot
pedal and pump the larger pump pedal.
c.
If
there appears to be air trapped in the second stage
ram, pump the jack to maximum extension. Insert an
allen wrench in the small allen socket set screw in the
side of the secondary cylinder nut. See the exploded
view parts drawing for the location of the parts
mentioned. Slightly turn the set screw in a
counterclockwise direction while lightly depressing the
larger pump pedal. This procedure is similar to bleeding
air out of an automotive brake line. Repeat the procedure
until there are no bubbles in the oil that escapes from
behind the allen socket set screw.
d. Close the allen socket set screw by turning il in a
clockwise direction until tight. Repeat steps 'a' and "b'.
e. If the condition seems beller, repeat steps "a' through "d"
until air is purged from the system.
