SETUP •
IMPORTANT: READ THESE INSTRUCTIONS BEFORE OPERATING
BEFORE USING THIS LIFT TABLE, READ THIS MANUAL
COMPLETELY AND THOROUGHLY. UNDERSTAND ITS
OPERATING PROCEDURES, SAFETY WARNINGS ANO
MAINTENANCE REQUIREMENTS. FAILURE TO DO SO
COULD CAUSE ACCIDENTS RESULTING IN SERIOUS OR
FATAL PERSONAL INJURY ANO/OR PROPERTY DAMAGE.
The use of portable automot i ve lifting devices is subject to
certain hazards that cannot be prevented by m· e chanical
means, but only by the exercise of intelligence, care, and
common sense. It is therefore essential to have owners and
personnel involved in the use and operation of equipment
who are careful, competent, trained, and qualified in the
sale operation of the equipment and i ts proper use.
Examples of hazards are dropping, tipping or slipping of
components caused primarily by improperly securing loads,
overloading, off-centered loads, use on other than hard
• Adequately support the vehicIe before starting repairs.
Consult the in-ground or above-ground litt manufacturer for
the recommended support procedure and under hoist
support stand locating points
• Support the engine with a stand before unbolting the
transmission from the eng· 1 ne.
• Fuel tanks must be emptied before removal, installation or
transportation.
• Inspect the lift table before each
table if it is damaged, altered, modified, in poor condition,
leaking hydraulic fluid, leaking air, or unstable due to loose
or missing hardware. Take corrective action before using
the lift table.
• Do not use lift table beyond its rated
or support the vehicle with this lift table.
•
Do not exceed 120
P.S.
I.
•
Use only on a hard level surtace.
1
Refer to the exploded view pans drawing for 1dent1fication,
location and position of parts
2.
Remove the red
fill
plug in the top ol
foot pump and replace with the black vented fill plug
3. Install the air quick disconnect of your choice at the rear
of the hydraulic foot pump and connect the shop air line.
OPERATING
•
A
use.
Do not use the lift
capacity.
Do not lift
input air pressure.
the
air/hydrauhc

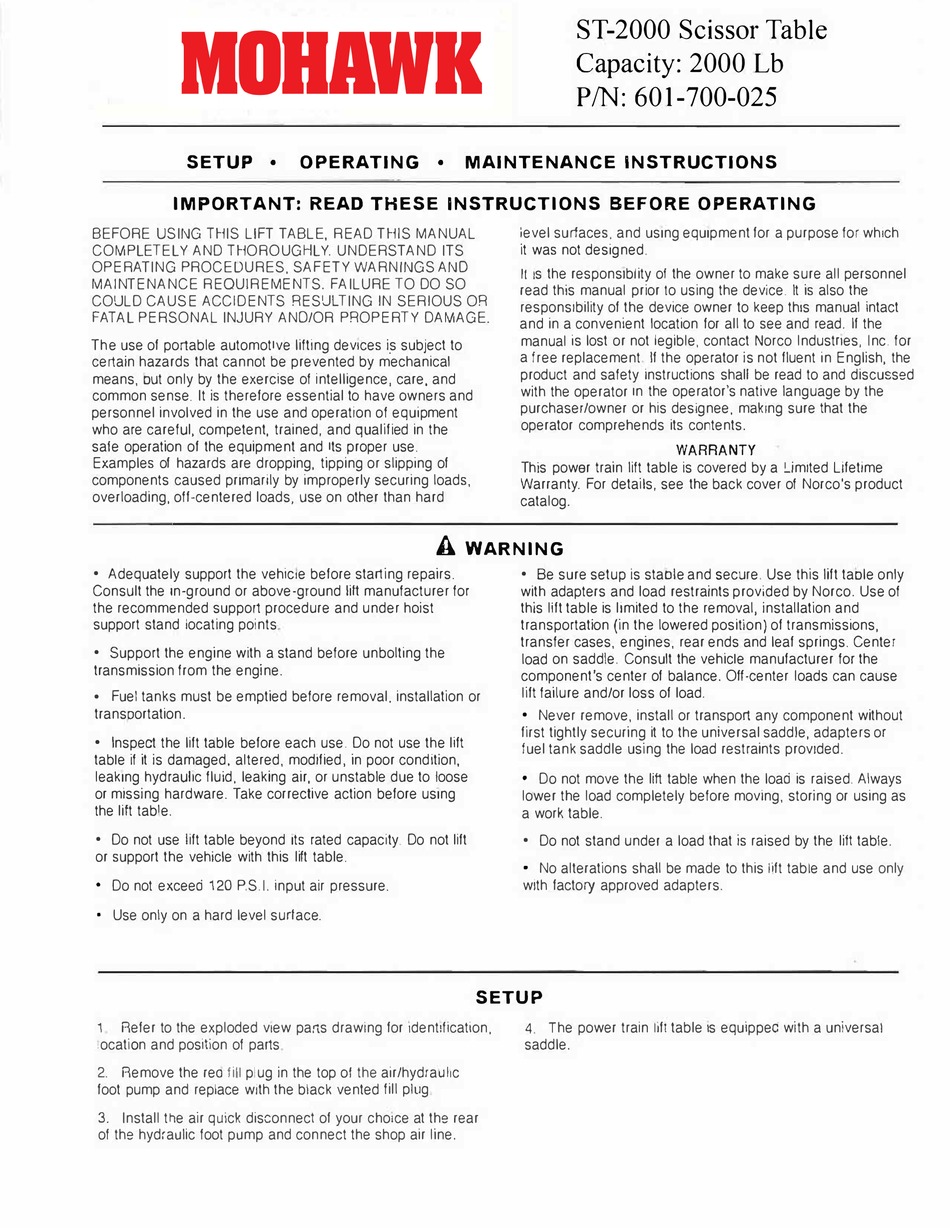

ST-2000 Scissor Table
Capacity: 2000 Lb
PIN: 601-700-025
MAINTENANCE INSTRUCTIONS
level surfaces, and using equipment for a purpose for which
it was not
designed.
It is the respons1blity of the owner to make sure all personnel
read this manual prior lo using the
responsibility of the device owner to keep this manual intact
and in a convenient location for all to see and read. If the
manual is lost or not legible, contact Norco lndustnes,
a free replacement If the operator is not fluent in English, the
product and safety instructions shall be read to and discussed
with the operator in the operator's native language by the
purchaser/owner or his designee, making sure that the
operator comprehends its contents.
This power train lift table is covered by a limited Lifetime
Warranty. For details, see the back cover of Norco's product
catalog.
WARNING
• Be sure setup is slaole and
with adapters and load restraints provided by Norco. Use of
this lift table is limited to the removal, installation and
transportation (in the lowered position) of transmissions,
transfer cases, engines, rear ends and leaf springs. Center
load on
saddle.
Consult the vehicle manufacturer for the
component's center of balance. Off-center loads can cause
lift failure and/or loss of load.
•
Never remove, install or transport any component without
first tightly securing it to the universal saddle, adapters or
fuel tank saddle using the load restraints provided.
•
Do not move the litt table when the load is
lower the load completely before moving, storing or using as
a work table.
• Do not stand under a load that is raised by the litt table.
•
No alterations shall be made to this lift table and use
with factory approved adapters.
SETUP
4
The power train lifi table Is equippeo with a universal
.
saddle.
device.
It is also the
WARRANTY
secure.
Use this lift table only
raised.
Inc.
for
Always
only
