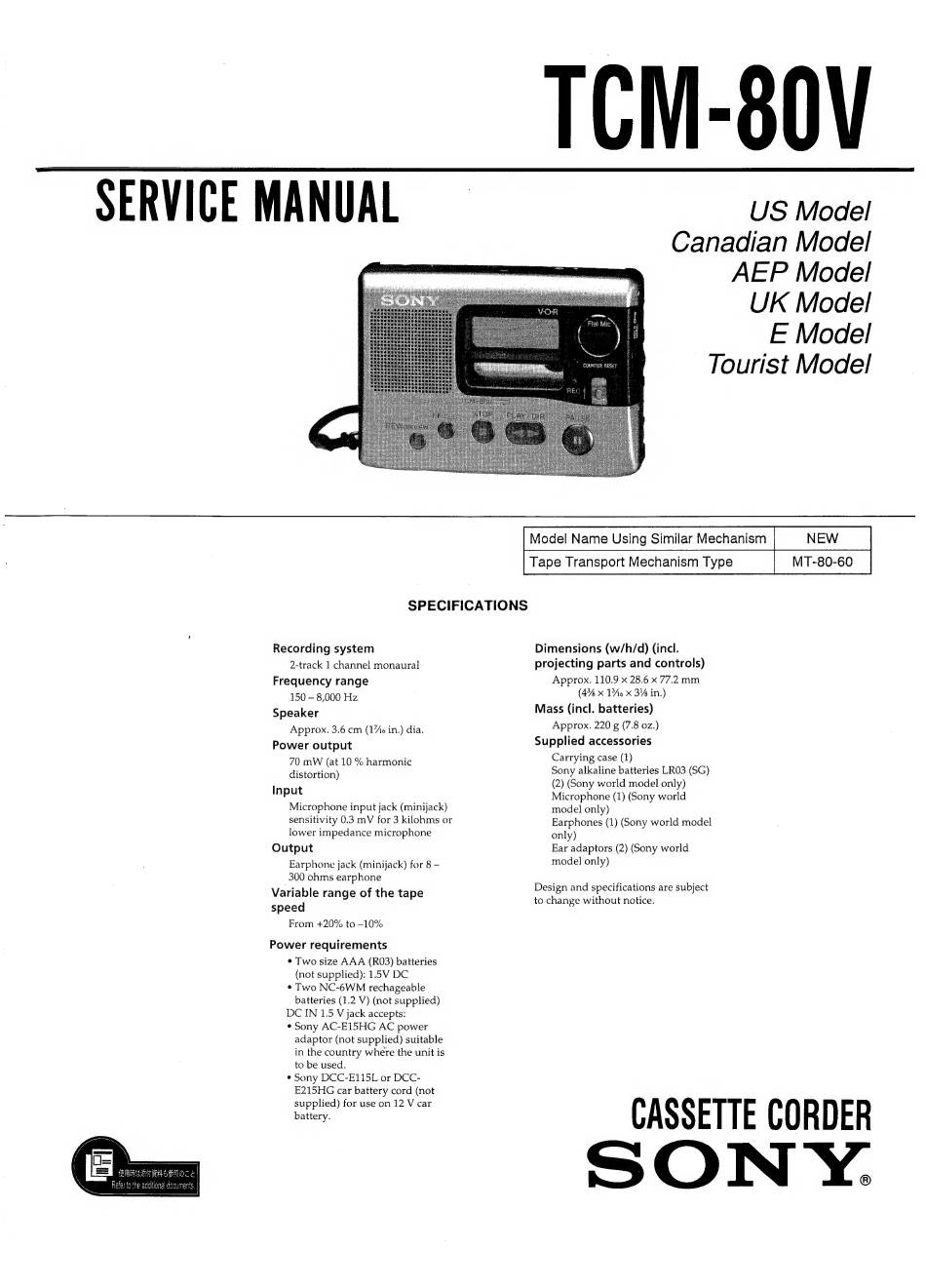

Sony TCM-80V Service Manual

TCM-80V
SERVICE MANUAL US Model
Canadian Model
AEP Model
UK Model
E Model
Tourist Model
Model Name Using Similar Mechanism
Tape Transport Mechanism Type MT-80-60
SPECIFICATIONS
Recording system Dimensions (w/h/d) (incl.
2-track 1 channel monaural projecting parts and controls)
Frequency range Approx. 110.9 x 28.6 x 77.2 mm
(4% x 1% x 3% in.)
Mass (incl. batteries)
Approx. 220 g (7.8 oz.)
Supplied accessories
150 - 8,000 Hz
Speaker
Approx. 3.6 cm (1%e in.) dia.
Power output
9 F Carrying case (1)
70 mW (at 10 %h De
ues popes Sony alkaline batteries LRO3 (SG)
distorti
nie (2) (Sony world model only)
npur Microphone (1) (Sony world
Microphone input jack (minijack) model only)
sensitivity 0.3 mV for 3 kilohms or Earphones (1) (Sony world model
lower impedance microphone only)
Output Ear adaptors (2) (Sony world
Earphone jack (minijack) for 8 - model only)
300 ohms earphone : d ee bi
Variable range of the tape Design an specifications are su ject
to change without notice.
speed
From +20% to -10%
Power requirements
* Two size AAA (R03) batteries
(not supplied): 1.5V DC
* Two NC-6WM rechageable
batteries (1.2 V) (not supplied)
DC IN 1.5 V jack accepts:
¢ Sony AC-EI5HG AC power
adaptor (not supplied) suitable
in the country where the unit is
to be used.
¢ Sony DCC-E115L or DCC-
E215HG car battery cord (not
