Bissell SpotClean PROHEAT 3924F / 3924H Manual

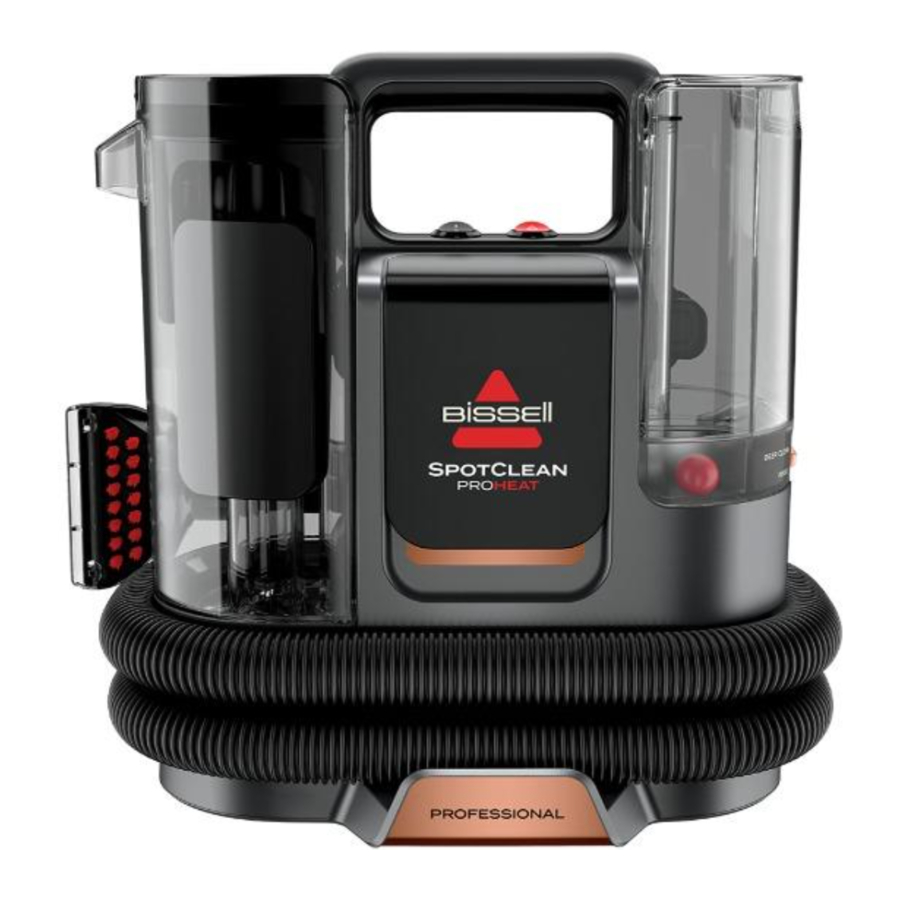

Product Overview

Power Switch
ProHeat Mode Switch
Dirty Tank Lid
Dirty Tank Handle
Dirty Tank (Float Stack inside)
Carry Handle
SmartMix Handle
SmartMix Tank
Cleaning Mode Switch
Power Cord Wrap
Hose
Hose Clip

TOOLS INCLUDED IN BOX WILL DIFFER BY MODEL

To see what's included with your purchase, check the "Carton Contents" list on the top flap of the box.

Assembly

Wrap hose around bottom of machine.
Secure hose on hose clip.

Filling the SmartMix ™ Tank

warning
For optimal performance, use genuine BISSELL^® formulas in your machine. Other formulas or household cleaners may cause defects or damage to the machine.


Choose your formula.* Scan the QR code with your smartphone camera or visit global BISSELL.com for formulas.	Remove SmartMix tank by gripping tank handle and lift up.	Unscrew cap on the water side of the SmartMix tank.

Fill with warm (60°C MAX) tap water to water fill line. Do not use boiling water. Do not heat water in microwave.	Align cap with tank and fully insert. Securely screw cap onto machine.	Open the cover on the formula side of the SmartMix tank.

Slowly pour in formula. Add cleaning formula* to formula fill line. Note: There is a formula level indicator ball to help visually indicate how much formula you have left.	Close formula cover until it clicks. Align tank with machine and press down until it clicks into place.

*Compatible BISSELL formulas include: Pet Stain and Odour, Spot and Stain, Oxy Boost.

To reduce the risk of fire and electric shock due to internal component damage, use only BISSELL cleaning formula intended for use with this machine.
Do not plug in your cleaner until you are familiar with all instructions and operating procedures.

Using Your Machine

warning shock hazard

Vacuum to remove loose dirt from areas to be cleaned.
Spray any BISSELL stain pretreat formula on soiled areas and allow to sit for a few minutes.
Tip: For upholstery, work in small sections until area is clean.

Unwrap hose

Attach your desired tool to end of hose until it clicks into place.

Unwrap power cord and plug into a grounded outlet.

Choose desired cleaning method. Deep Clean Mode: Automatically mixes the correct ratio of formula and water to clean tough stains Rinse Mode: Provides option for a water only clean

To turn machine on, flip power switch to the ON ( I ) position.

Optional: Press ProHeat switch ( ) to activate heater. Wait 30 seconds for water to heat to temperature. ProHeat Technology provides better, faster cleaning to loosen and remove tough stains, like oily messes and old set-in stains.

Using the Tools

caution shock hazard
Tools included in box will differ by model. Check the the top flap of the box to see what's included with your purchase.

Spraying Crevice Tool (select models)


While holding tool above the stained area, press and hold the trigger to spray solution.	Release spray trigger and press tool firmly against surface and pull toward you to remove the stain. Repeat this step as needed.

2-in-1 Tough Stain Tool (select models)


Slide tool lever up to ensure tool is in SPRAY mode.	While holding tool above desired area, press and hold trigger to spray solution.	Release spray trigger and gently scrub stain using bristles.

With trigger released, press tool firmly against surface and pull towards you to remove stain. Repeat as needed.

15cm Tool


Point the tool above the desired area, press and hold the trigger to spray the solution	Release the trigger and gently scrub with bristles. Press firmly against the surface and pull towards you to remove the stain. Repeat as needed.

Deep Stain Tool
Note: Always keep tool in contact with carpet to avoid over-spraying.


Set the tool directly on to the carpet. Press and hold trigger to spray solution.	Scrub back and forth to suction away the spot or stain. After releasing the trigger make additional passes to remove excess solution.

Emptying the Dirty Water Tank

caution shock hazard


Empty dirty water tank when "MAX" full line is reached. Do not allow water level to exceed MAX full line. Note: The machines pitch will change and suction will stop once the MAX fill line has been reached.	Tilt and pull away dirty water tank to remove from machine.	Pull up on dirty tank lid to remove.

Pour out dirty water and rinse tank.	Reinstall tank lid.	To reinstall tank, tilt and push firmly near top of tank until it clicks into place

Cleaning and Storing Your Machine

Cleaning the Machine with the 2-in-1 Tough Stain Tool (select models)


Turn machine ON. Slide tool lever down for cleanout mode.	Press the trigger to activate the CLEANOUT function. Solution mixture will come through the tool and the hose.	To continue cleaning with your machine, slide the tool's lever upward to return to spray mode.

Storing Your Machine


Remove and rinse tools under clean, running water. Allow tools to dry.	Wrap hose for storage. Store indoors in a secure, dry location.

Note: Other maintenance or service not included in this manual should be performed by an authorised service representative.
NOTICE: To reduce the risk of a leaking condition, do not store where freezing may occur. Damage to internal components may result. Store machine in protected, dry area at room temperature (4°C - 40°C).

To reduce the risk of fire and electric shock due to internal component damage, use only BISSELL cleaning formula intended for use with this machine.

SYMBOL	EXPLANATION	SYMBOL	EXPLANATION
			This symbol on the product and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take this product to designated collection points. Please contact your local authority for further details of your nearest designated collection point.
	Read operator's manual.
	Risk of fire.
			Do not freeze.
	Risk of electric shock.
			Warning: Slippery surface.
	Do not expose to rain.
			Heat fluid.
	Store indoors.
			Elapsed time, wait 30 seconds to heat fluid.
	Do not overwet carpet. Use only on carpet moistened by the cleaning process.
			Allow parts to dry.
	Use only BISSELL® cleaning formulas intended for use with this machine.		Use warm water, temperature up to 60°C.
			Check the manufacturer's tag before cleaning textile. "W" on the tag as shown means you can use your cleaner.
	Disconnect power before servicing.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING YOUR APPLIANCE.
When using an electrical appliance, basic precautions should be observed, including the following:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts of the appliance and its accessories.
The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.
If the supply cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
Do not leave appliance when it is plugged in. Unplug from outlet when not in use and before servicing.
Do not pull or carry by cable, use cable as a handle, close door on cable, or pull cable around sharp edges or corners. Do not run appliance over cable. Keep cord away from heated surfaces.
Do not unplug by pulling on cable. To unplug, grasp the plug, not the cable.
Do not handle plug or appliance with wet hands.
Turn OFF all controls before plugging or unplugging appliance.
Plastic film can be dangerous. To avoid danger of suffocation, keep away from children.
Do not use for any purpose other than described in this user guide. Use only manufacturer's recommended attachments.
If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water; do not attempt to operate it and have it repaired at an authorized service center.
Do not put any object into openings. Do not use with any opening blocked; keep openings free of dust, lint, hair, and anything that may reduce air flow.
Use extra care when cleaning on stairs.
Do not use to pick up flammable or combustible materials (lighter fluid, gasoline, kerosene, etc.) or use in areas where they may be present.
Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.)
Do not use appliance in an enclosed space filled with vapours given off by oil-based paint, paint thinner, some moth-proofing substances, flammable dust, or other explosive or toxic vapors.
Keep appliance on a level surface.
Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
Do not expose to rain. Store indoors.
Always connect to a properly earthed electrical socket. Do not modify earthed plug.
Liquid must not be directed toward equipment containing electrical components.

Use only the type and amount of liquids specified under the operations section of this guide.
Always install float before any wet pick-up operation.

Do not turn your appliance ON until you are familiar with all instructions and operating procedures.
Floor slippery when wet.

SAVE THESE INSTRUCTIONS
ORIGINAL INSTRUCTIONS. FOR OPERATION ON A 220-240 VOLT A.C. 50-60 HZ POWER SUPPLY ONLY. THIS MODEL IS FOR HOUSEHOLD USE ONLY.

To reduce the risk of a leaking condition, do not store where freezing may occur. Damage to internal components may result.
